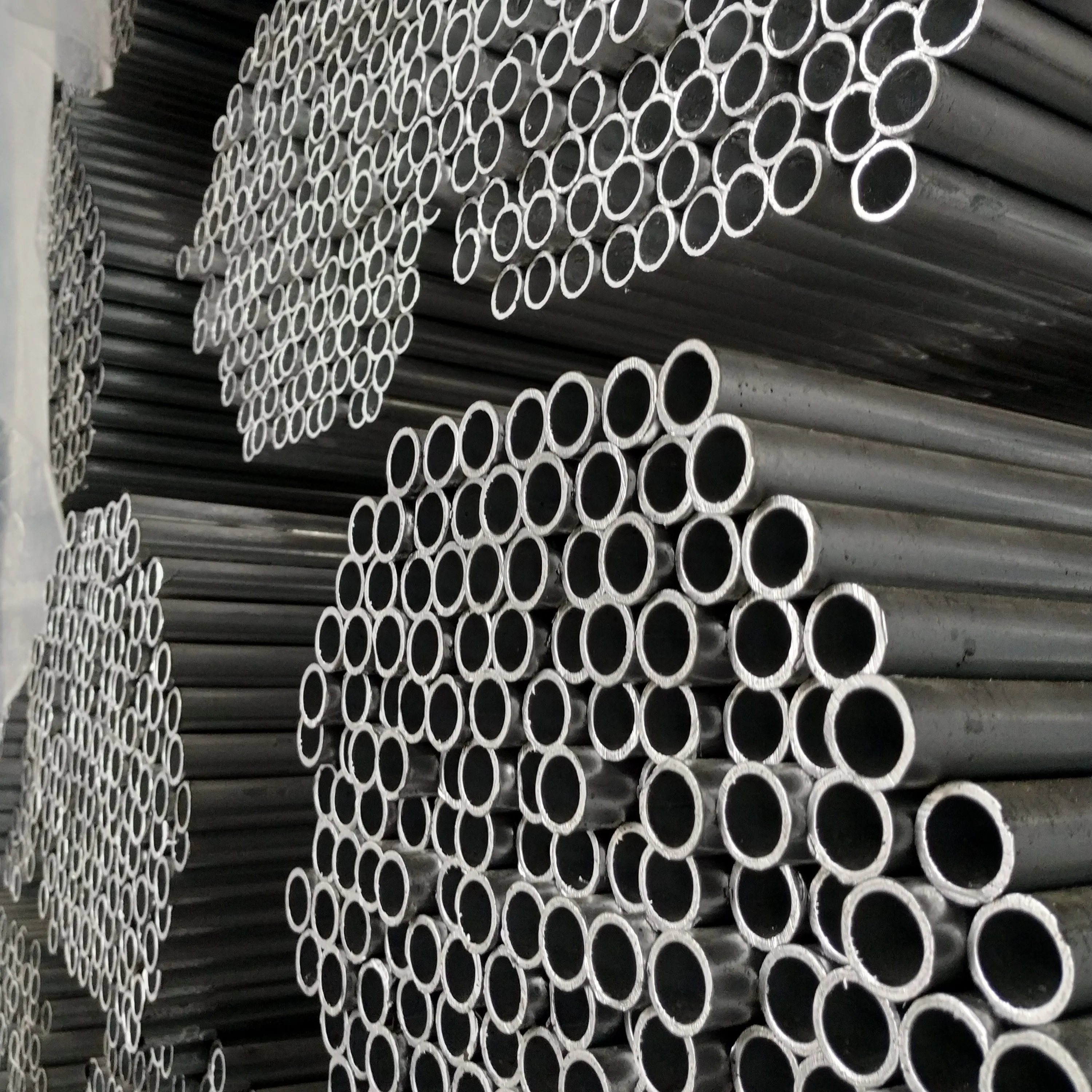

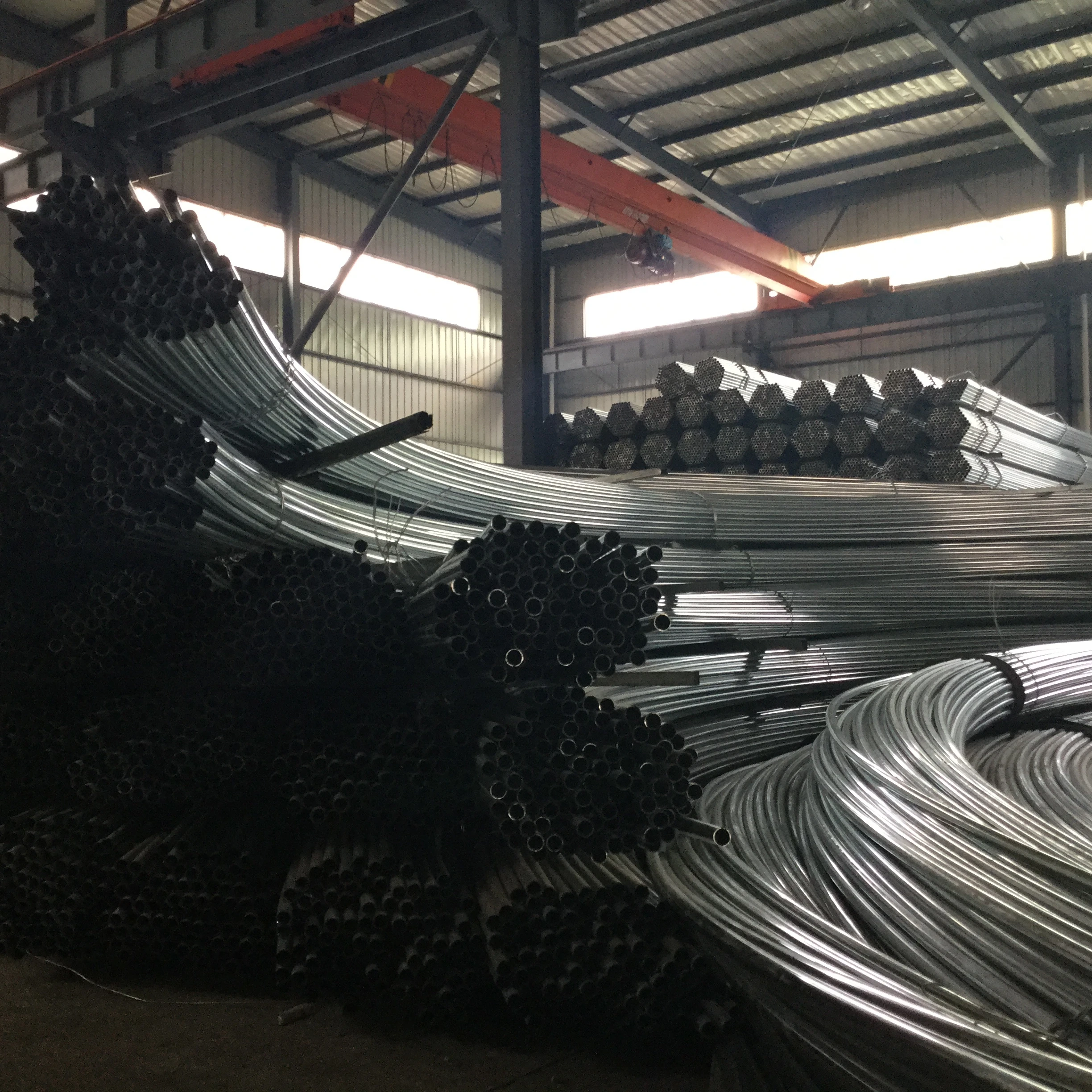

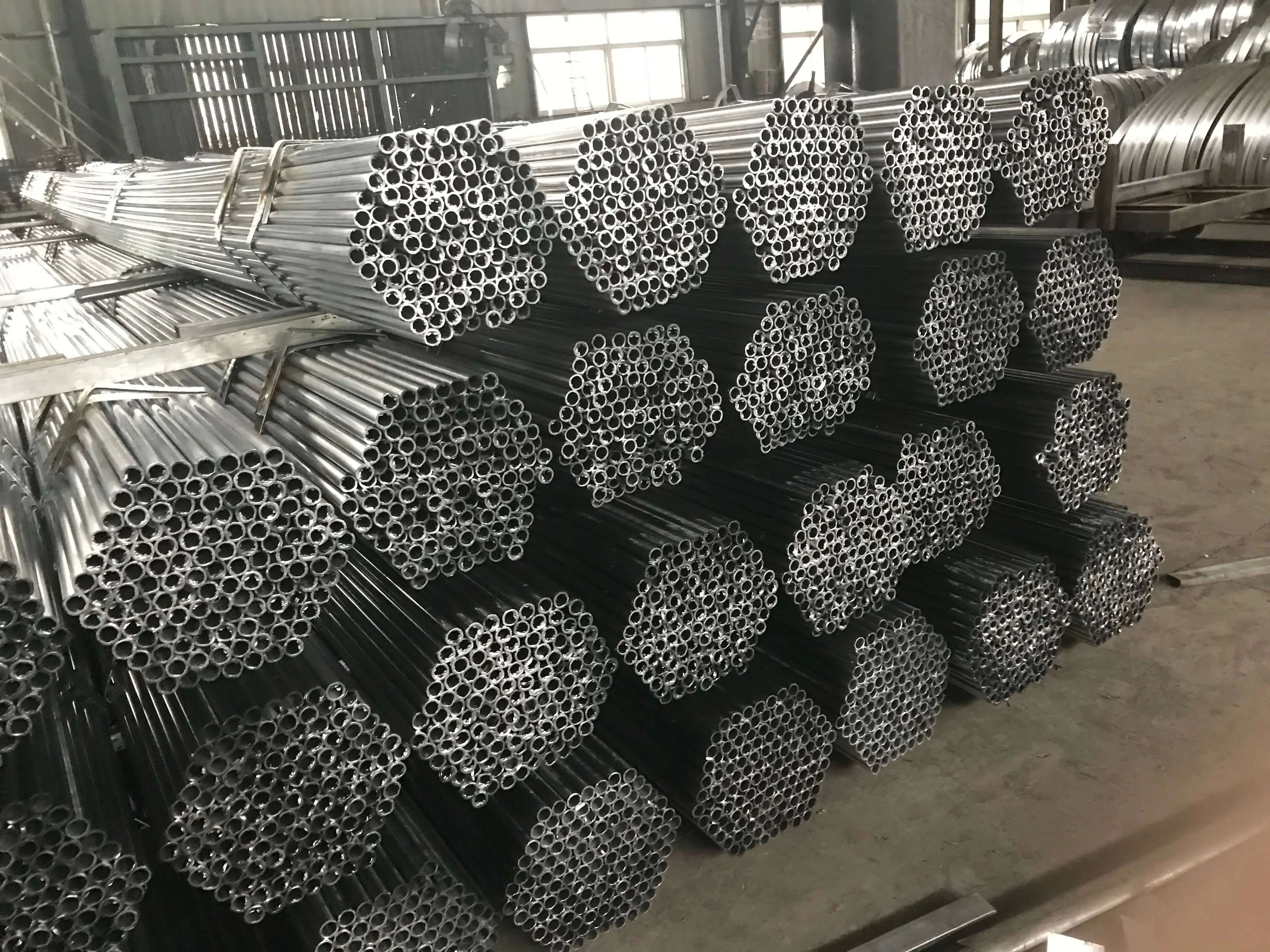

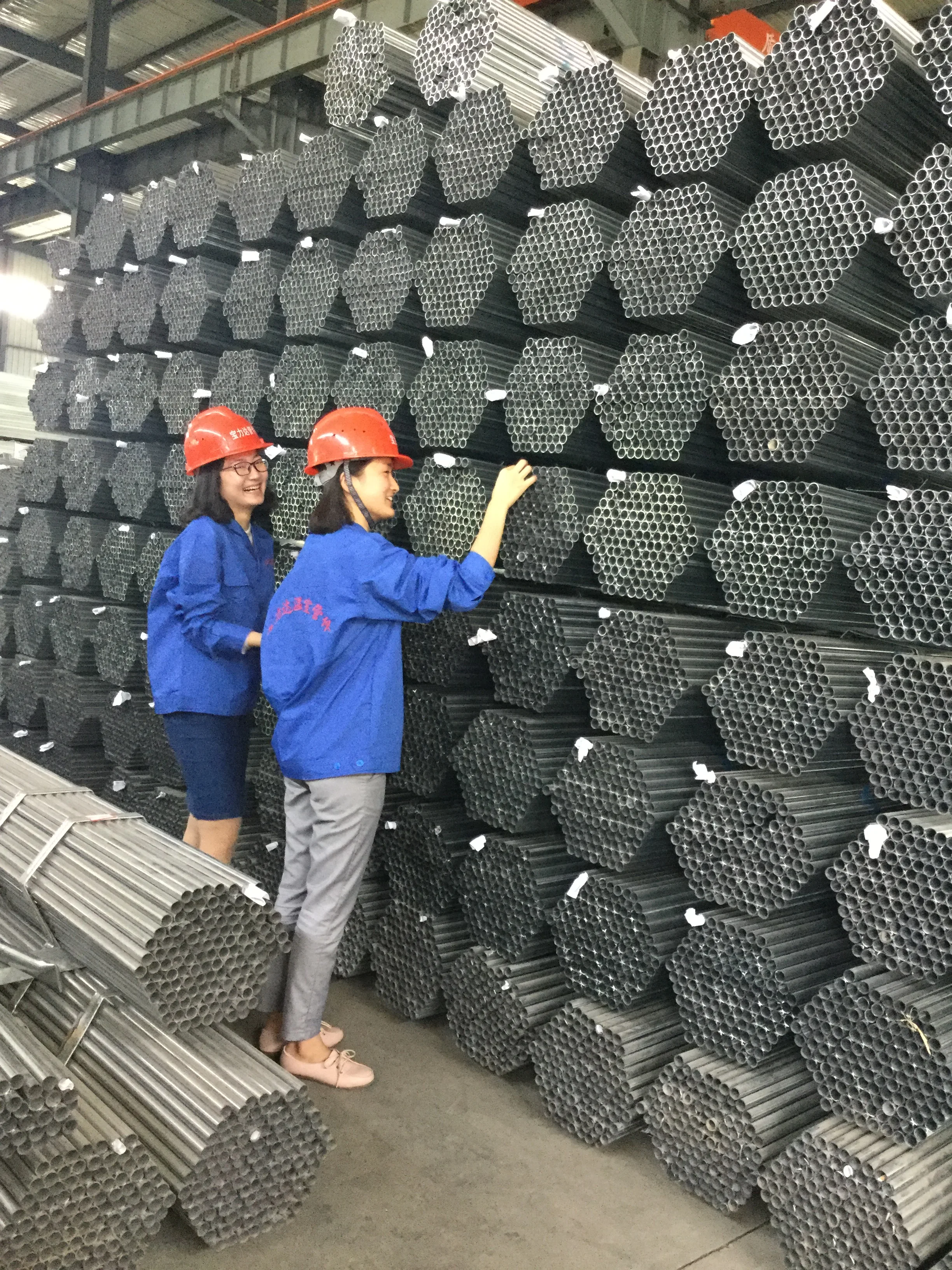

High Quality Greenhouse Material Galvanized Steel Pipee

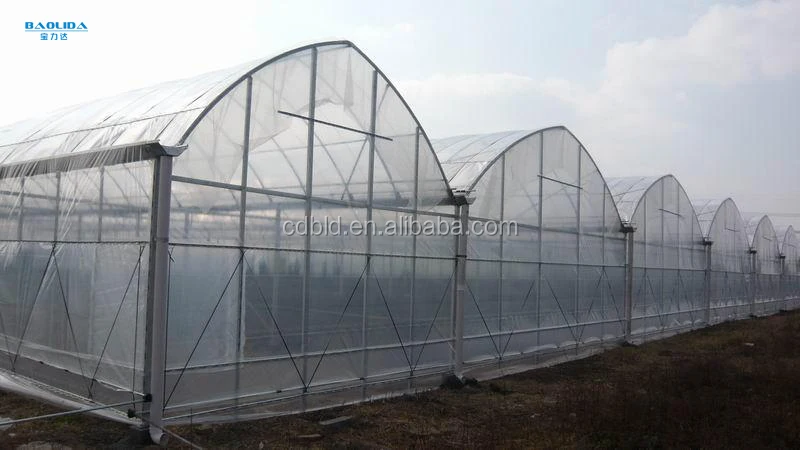

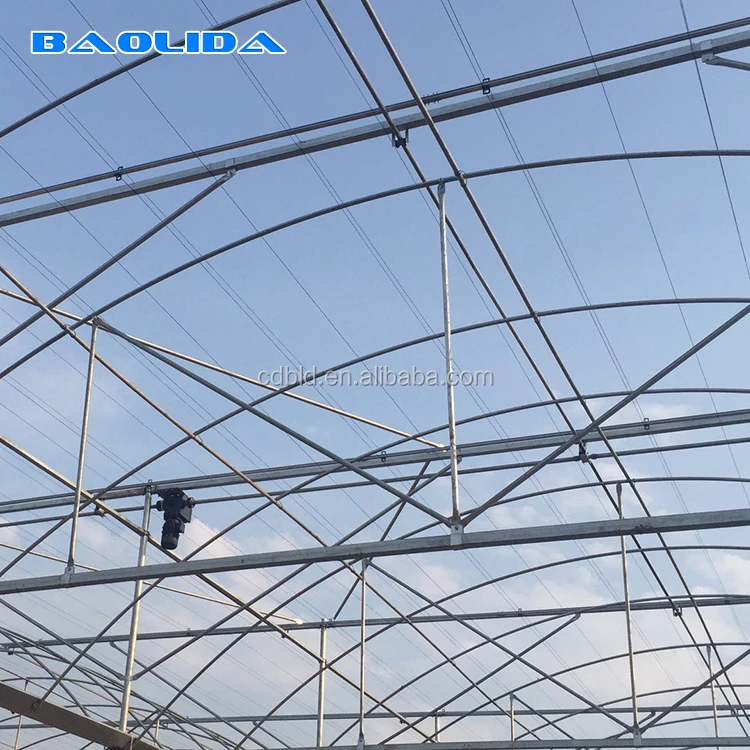

Multi-span Plastic Greenhouse Frame
| Item | Parameter |
| Span | 8m /9m/10m /12m or customized |
| Width | 16m 24m 32m 40m 48m 56m or customized |
| Length | 16-60m or customized |
| Each Bay | 4m |
| Shoulder Height | 3m or customized |
| Total Height | 4.8-5.3m or customized |
| Covering material | PE film / Po (0.08 / 0.10 / 0.12 / 0.15 / 0.2mm) |
| Ventilation | Manual side ventilation / Manual roof ventilation / Electric side ventilation / roof ventilation |
Supporting system (choose according to your needs) | Cooling system & irrigation system & outside or inside shading system |
| The arch distance | 1.33m / 1.2 / 1.0 / 2.0 or customized |
| Arch diameter | 25mm, 32mm, 48mm or customized |
| Main Pillar | 50mm, 60mm, 76mm, 89mm, 114mm, 50X70mm, 60X80mm 50x100mm, 80x80mm, 100X100mm |
| Steel tube thickness | 1.5mm, 2.0mm, 2.5mm, 3.0mm, 3.5mm or customized |
| Foundation | Point concrete base |

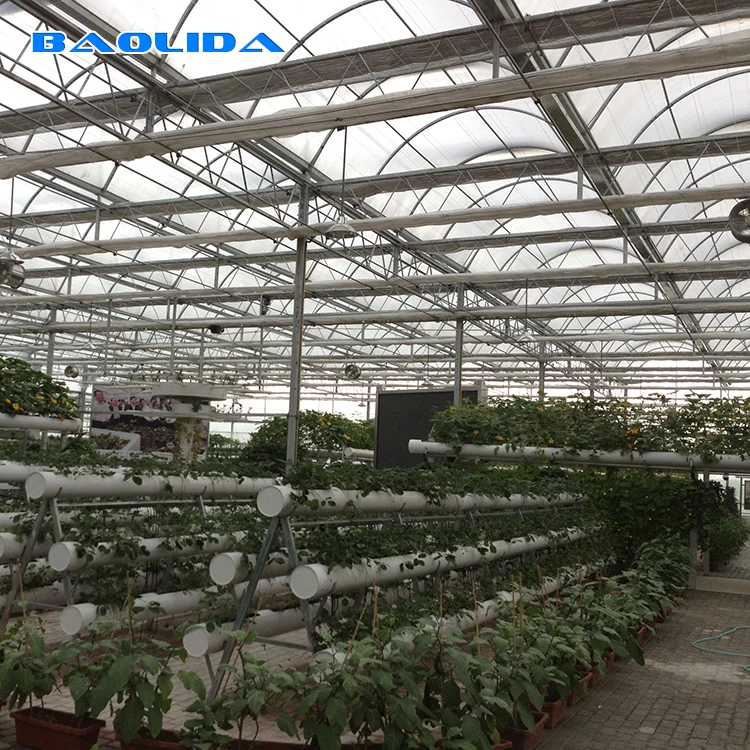

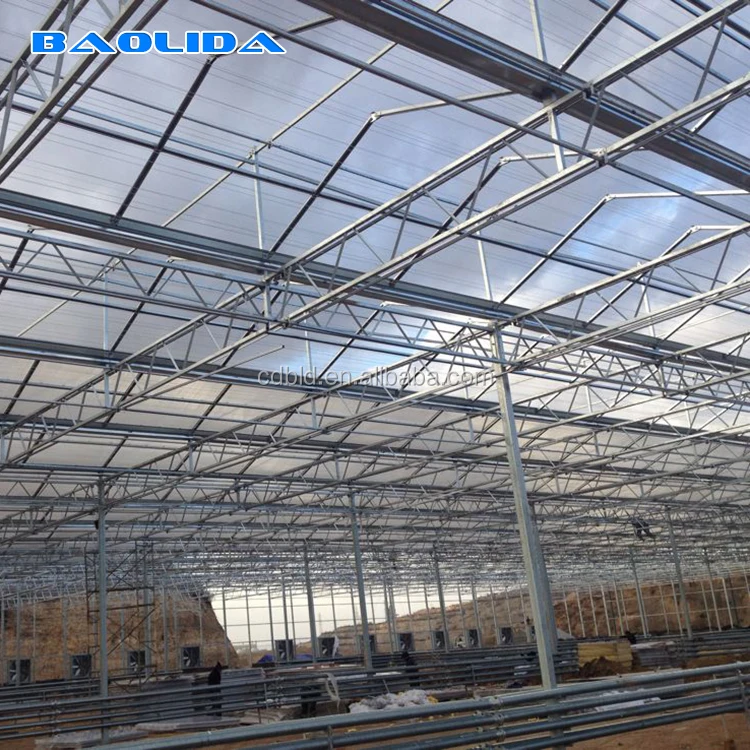

Multi-span PC Greenhouse Frame
| ITEM | PARAMETER |
| Type | Small spire top or round top |
| Greenhouse Length | 16m-120m or customized |
| Greenhouse Width | 20m-60m or customized |
| Width Of Each Span | 8m/9.6m/12m for option or customized |
| Spires No.for each span | 3 PCS |
| Total Height | 4.8-5.3m customized |
| Bay | 4m |
| Covering material | PC sheet ( 6mm,8mm,10mm for option) |
Ventilation Requirements For Option | Top or side ventilation |
| Basic equipment | Frame structure ,top ventilation or both sides ventilation, electrical power distribution |
Supporting system (choose according to your needs) | Cooling system, electrical outside shading net & inside shading & irrigation system for option |

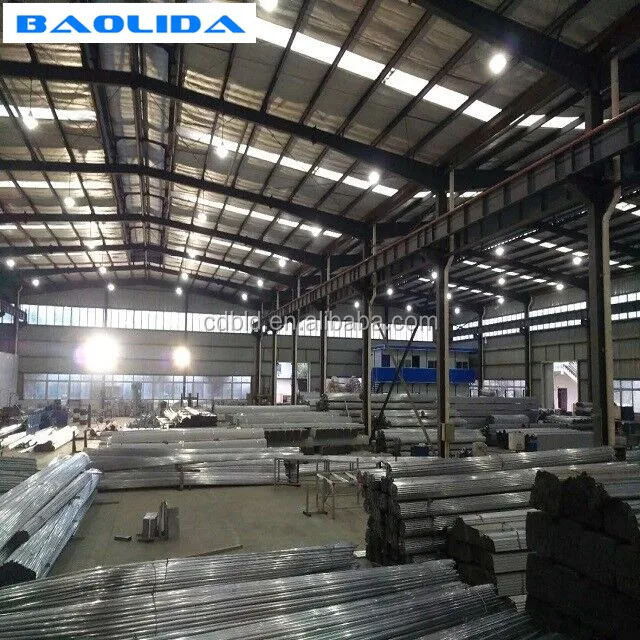

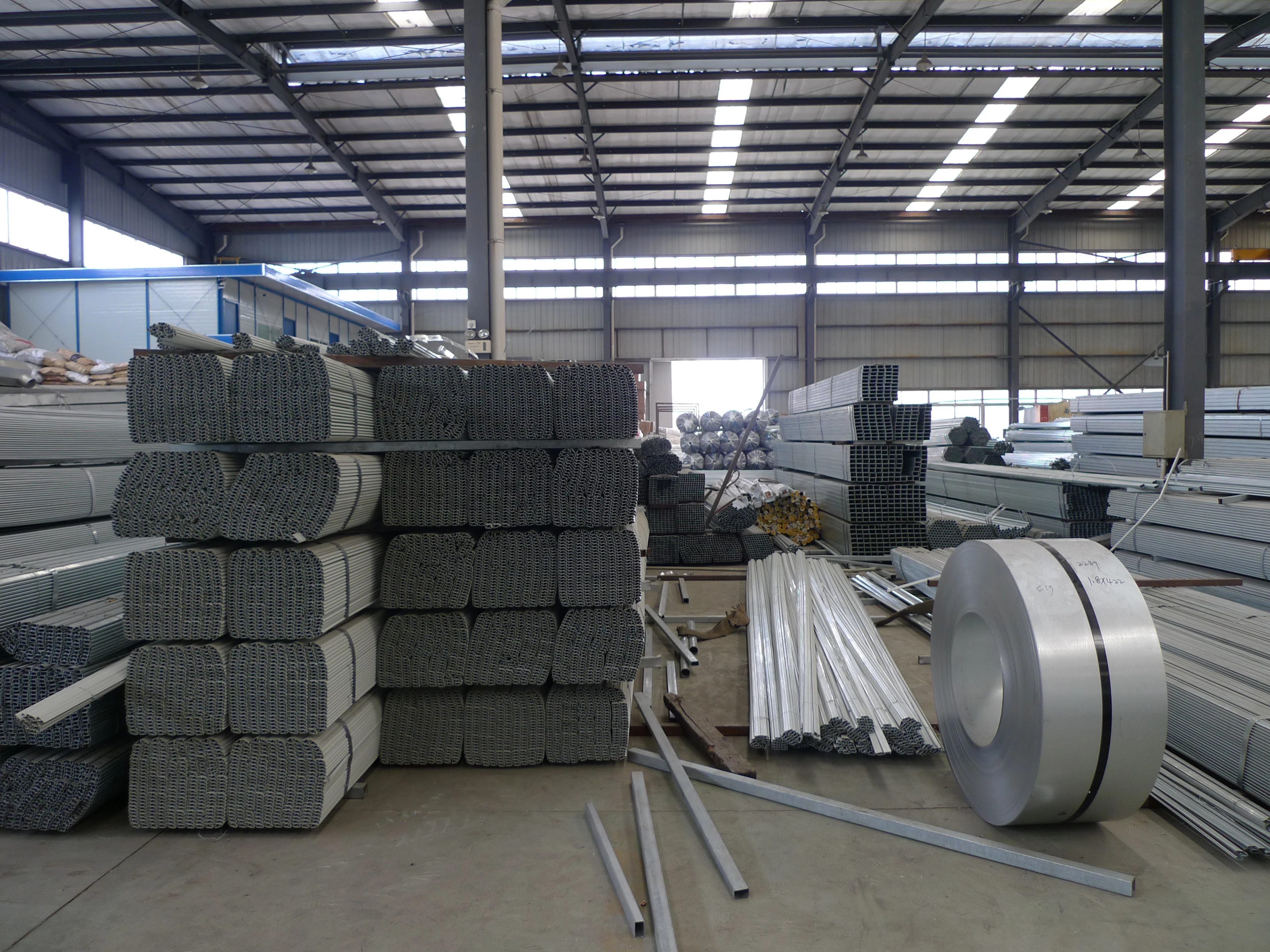

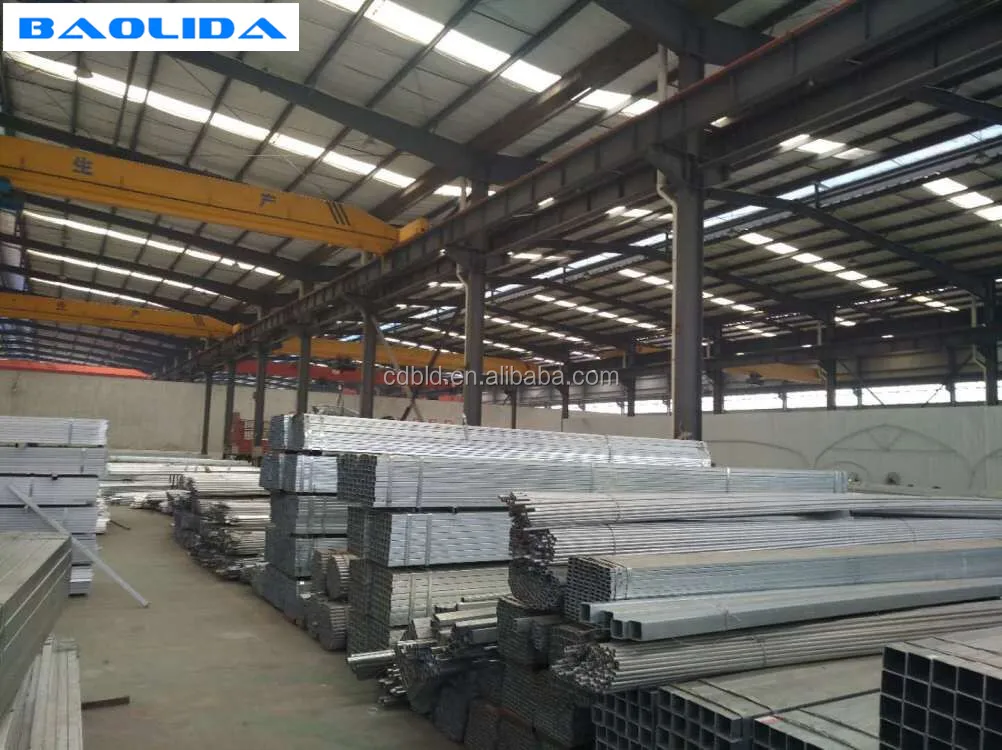

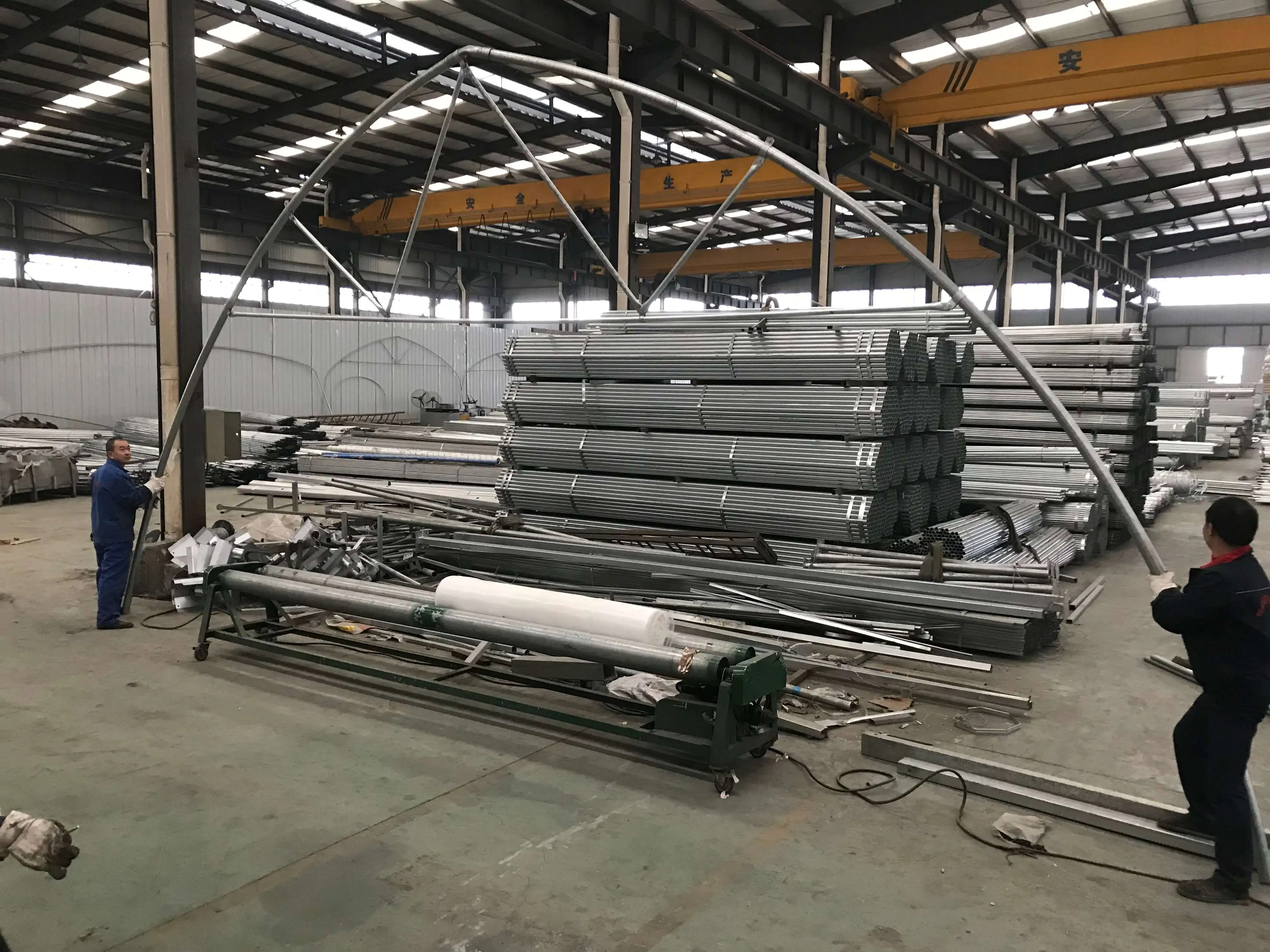

Our factory:



Related products:
Multispan greenhouse

Customer from all over the world visit our factory and make a business about greenhouse and irrigation.
