Semi Auto Soy Paraffin Wax Filling Machine Candle Make Machine Coconut Double Pump Honey Small Oil Tealight Cup Pour Equipment
- Category: Wax & Candle Making Machines >>>
- Supplier: Dongguan Yide Machinery Co. Ltd.
Share on (60808469645):
Product Overview
Description
Semi Auto Soy Paraffin Wax Filling Machine Candle Make Machine Coconut Double Pump Honey Small Oil Tealight Cup Pour Equipment
Item | Double Pump Hot Wax Dispensing Machine |
Function | Fill fixed volume hot wax into container |
Filling Speed | 6L/M at max. each pump |
Control | PLC |
Accuracy | ±1g |
Machine size | appro.59*37*35CM |
Wax Pouring Machine
Soy wax filling machine is stainless steel heat gear pump.There are single and double heat gear pump filling machine.
Suitable for beeswax,soy wax,paraffin wax and tealight etc.
Filling machine with filling range 1-1000ml adjustable.
Model:YD-I-II
Name:Wax Pour Machine
Type:single pump and double pump
Power Voltage:220V 50HZ
Power:150W 300w
Speed:35-45bottle.min
Size:59*37*35cm
Weight:33Kg
Material :Stainless Steel
Function :Wax filling
Why the price is higher than others?
1). PLC control system, different from electric board control one(easy to burn the board if pump is stocked)
2). Extra pump heating and reversing function to prevent blocking
3). Fill wax by volume directly not time, more accurate
4). Wireless controller to begin and stop filling at any time, easy and safe operate
5).We are stainless steel heat gear pump,anti-corrosion
Advantage
1.Single heat gear pump filling machine2.Pump temp. interval time,filling volume set on the PLC touch screen
3.Avoid material(wax etc) cool down block and solid the pump and pipe.
4.Easy to change material and clean pump and pipe
5.Easy to operate and high efficiency
6.Accuracy 1ML
3.Avoid material(wax etc) cool down block and solid the pump and pipe.
4.Easy to change material and clean pump and pipe
5.Easy to operate and high efficiency
6.Accuracy 1ML
Detailed Images
Quality Gear Pump
1. Pump can be heating to avoid blocking of wax, 0-100degree ajustable
2. Easy to clean
3. With function of reverse to empty wax in the tube and pump
4.Stainless steel heat gear pump

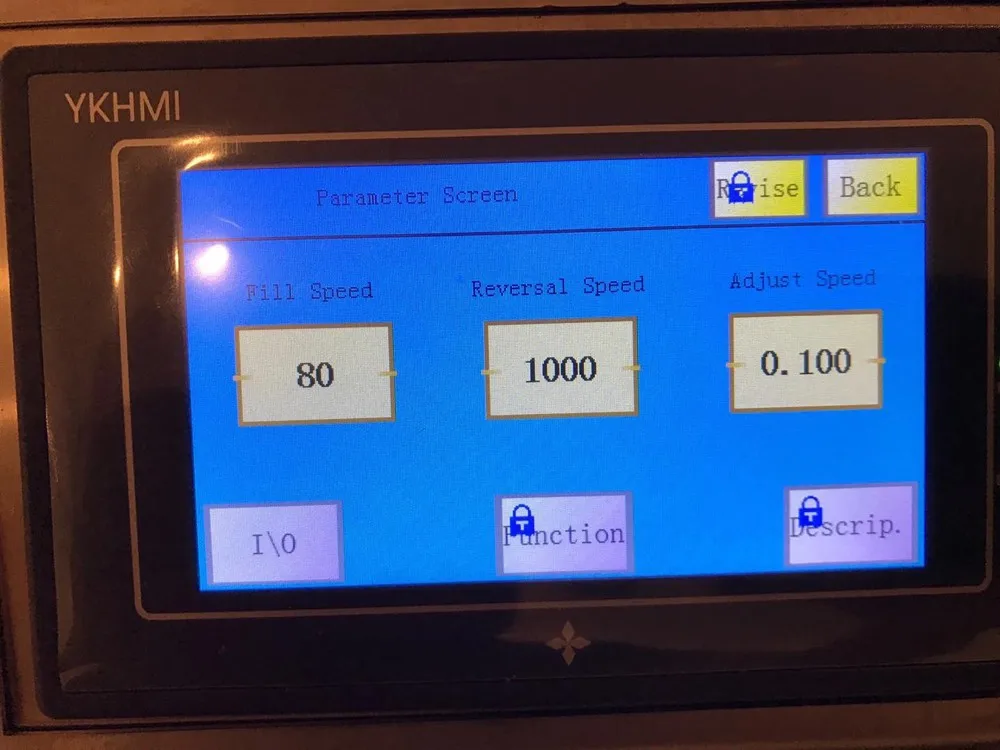

PLC control
1. Easy to operate
2. Filling volume and intervals adjustable
3. With counter to help count
SS304 filling nozzle
sizes of nozzle can be option
Wireless controller
control filling at any time

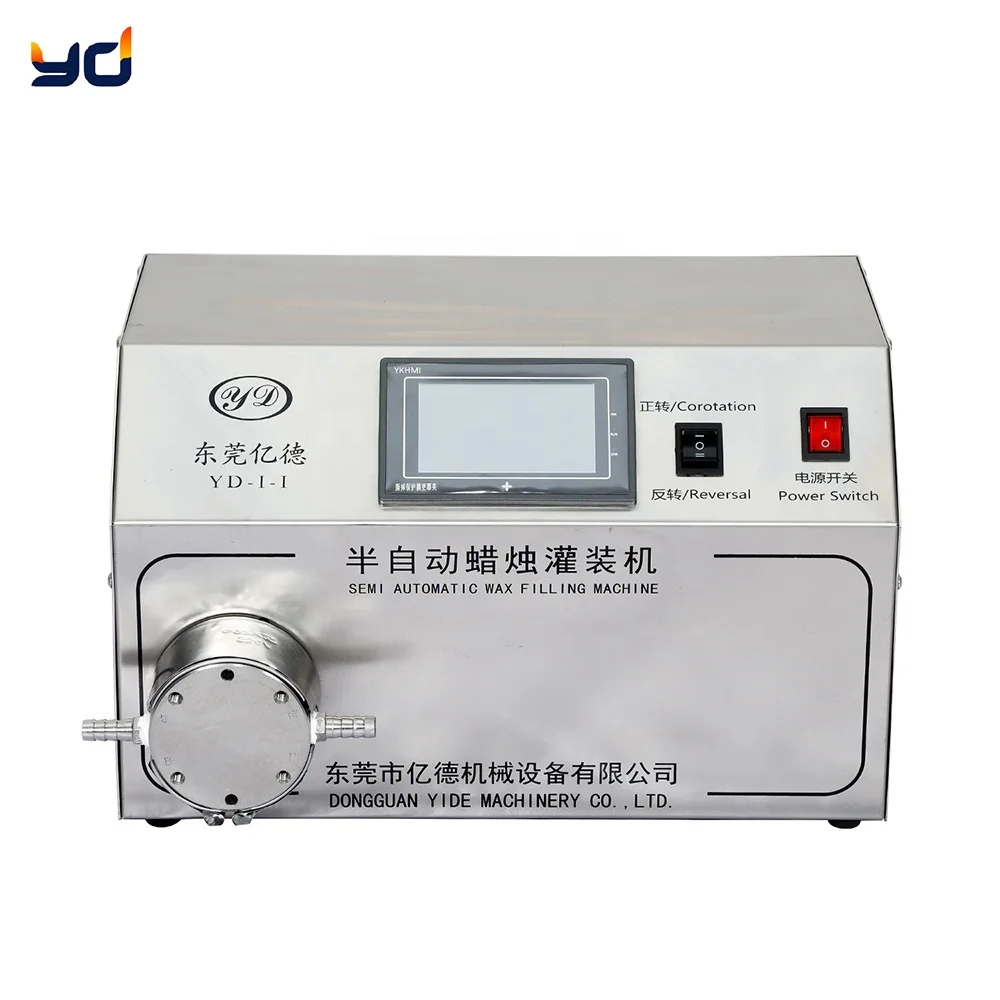

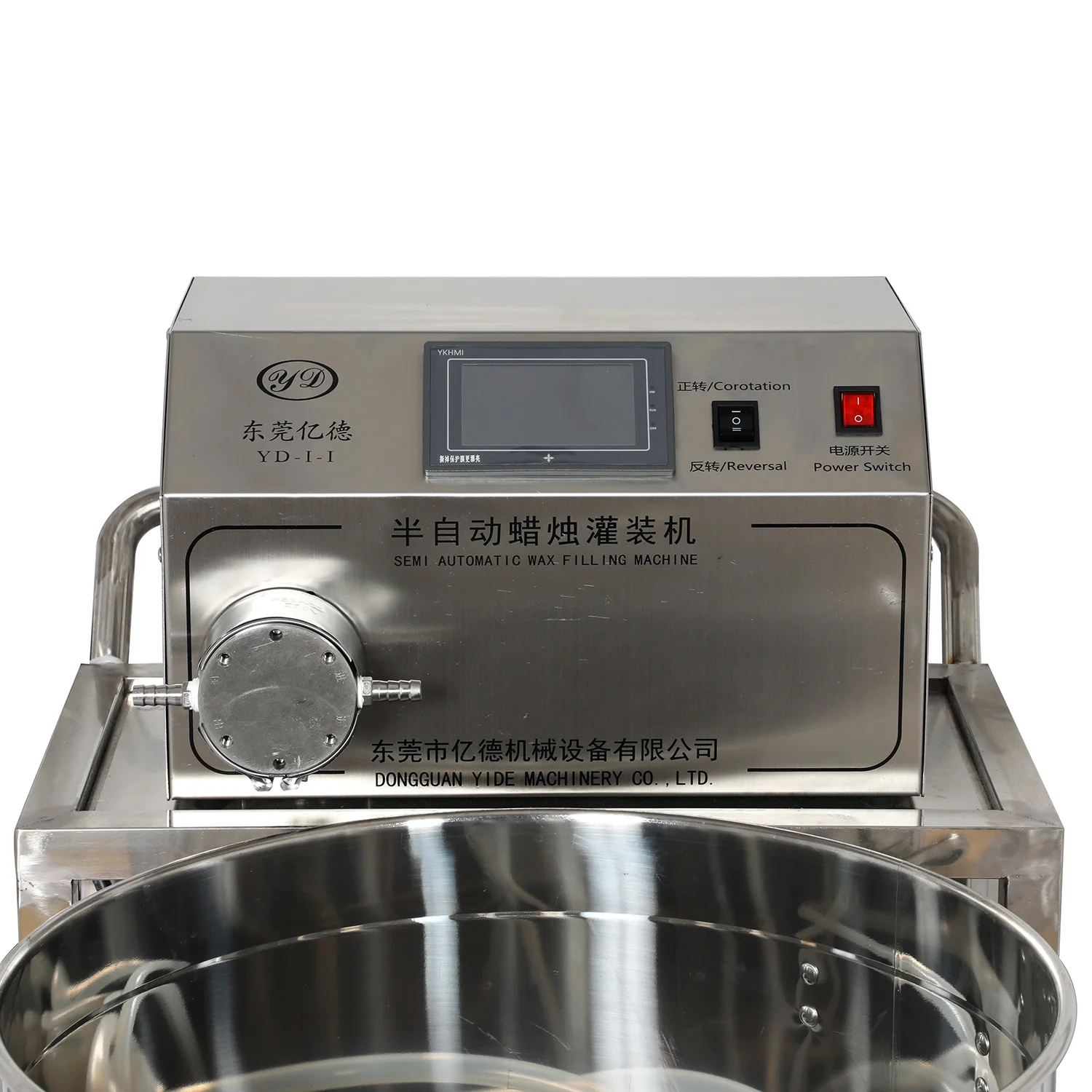

Single heat gear pump
This is our single heat gear pump filling machine,filling volume 1ml-1000ml.

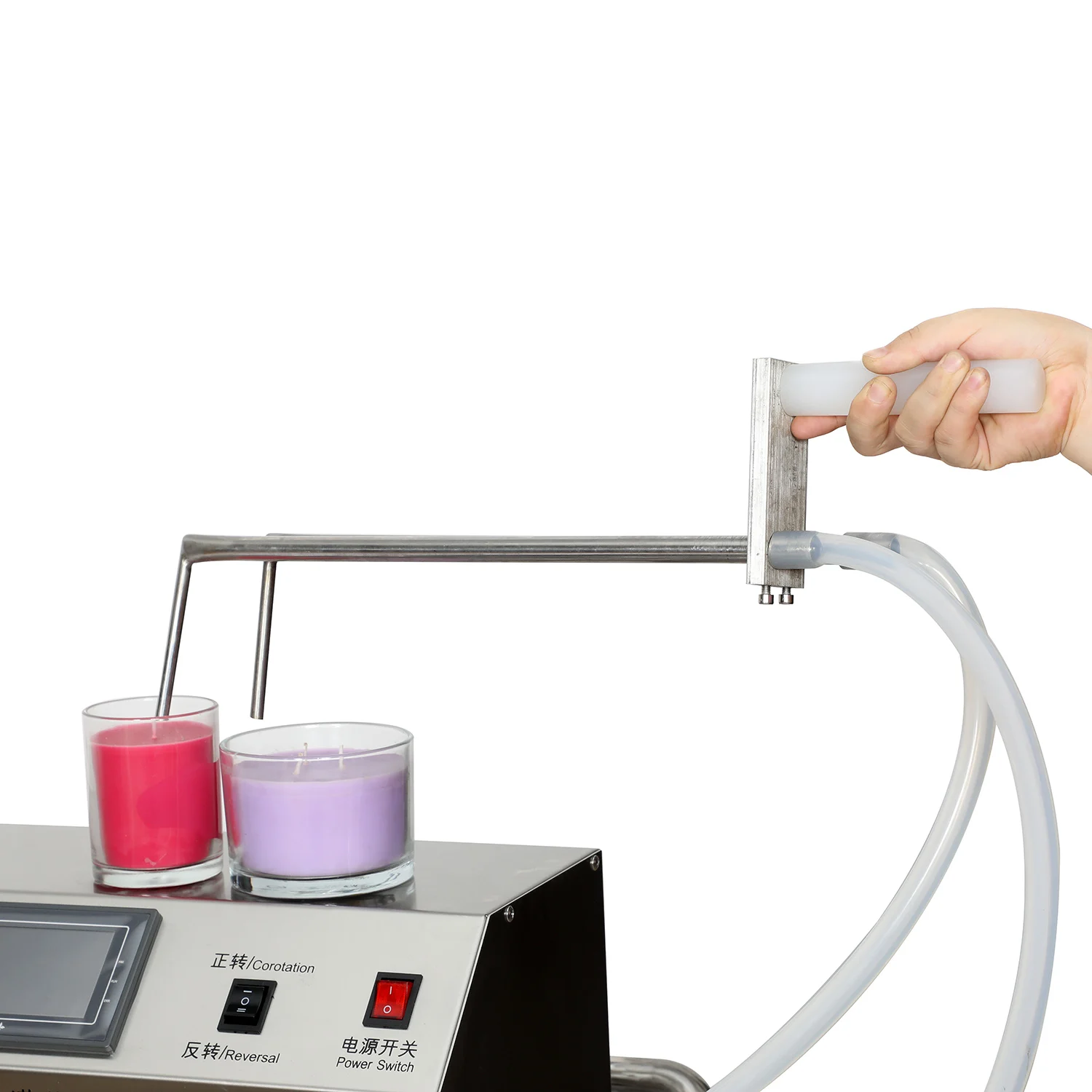

Double heat gear pump
This is our double heat gear pump filling machine,filling volume 1ml-1000ml.
The main difference is the filling speed,Double is faster.as it can fill 2pcs at a time.There is a handle to hanger 2 filling
nozzle on and one worker can operate it.The two pump with separate switch to control,so it can work only one pump separately or even two pump together.
nozzle on and one worker can operate it.The two pump with separate switch to control,so it can work only one pump separately or even two pump together.
