HK-8SS Light Automatic Magnet Auto Welding Carriage
Auto Welding Carriage Product Description

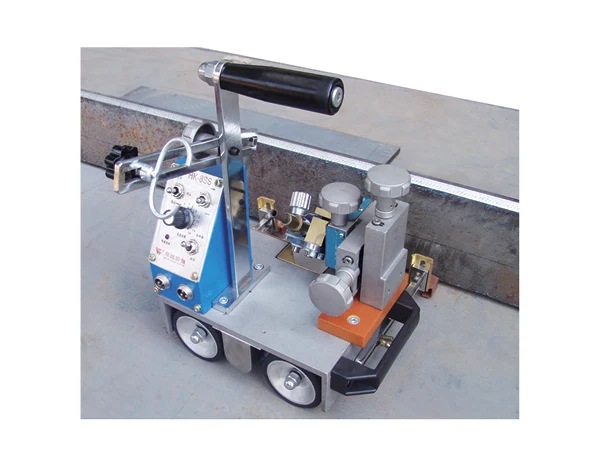

HK-8SS Light Automatic Magnet Welding Carriage
Introduction of standard magnetic automatic welding machine
HK-8SS carriage's welding position is in the middle of its body. It is used in general welding, especially long horns of the welding.Carriage can weld while walking forward and backward. It is easy to move and install the carriage under different conditions due to its small volume and light weight.
Features of HK-8SS Automatic Magnet Welding Carriage
*.HK-8SS automatic magnet welding carriage is small, lightweight, easy to move and install.
*.HK-8SS automatic magnet Welding carriage uses a dust-proof, anti-magnetized transmission system inside, which is simple in structure and long in service life.
*.HK-8SS automatic welding carriage adopts four-wheel drive at the same time. The rubber wheel is made of good material, high temperature resistance and smooth welding.
*.HK-8SS auto welding carriage has a strong permanent magnet with a guide wheel to keep the car in close contact with the weld bead and the welding is accurate.
*.HK-8SS auto welding carriage adopts the gear transmission mode to avoid the loosening gap of the traditional chain transmission mode and the phenomenon of jitter in the walking.
*. HK-8SS automatic welding machine's magnets have clutch switches for easy alignment and cleaning of iron waste
*.HK-8SS automatic welding machine can perform vertical fillet welding and horizontal fillet welding for welding of the joints of reinforcements and the like.
The main technical parameters
(automatic welding carriage)
1. size | 215×275×215 mm | |
2. Weight | 8.5Kg | |
3. Power | AC220V / DC24V | |
4. power | 22W | |
5.adsorbability | 10~25Kg | |
6. walking speed | 50~900mm/min | |
7. Range of adjusting welding torch | Up and down | 50mm |
left-right | 50mm | |
range of working angle | ±45° | |
range of adjusting angle | 10° | |
Range of working angle | 360° | |
Welding parameter of auto welding carriage
welding wire diameter welding parameter | Φ1.2mm | Φ1.4mm | Φ1.6mm | |
current(A) | Down hand welding | 120-300 | 150-380 | 180-430 |
flush fillet welding | 120-280 | 150-320 | 180-380 | |
horizontal welding | 120-280 | 150-300 | 180-330 | |
voltage(U) |
| |||
distance between nozzle and workpiece(H) |
| |||
welding extension length(L) | The length is about 10 times welding wire diameter. It is L=10d | |||
Product Overviews
Detail Of Automatic Magnet Welding Carriage

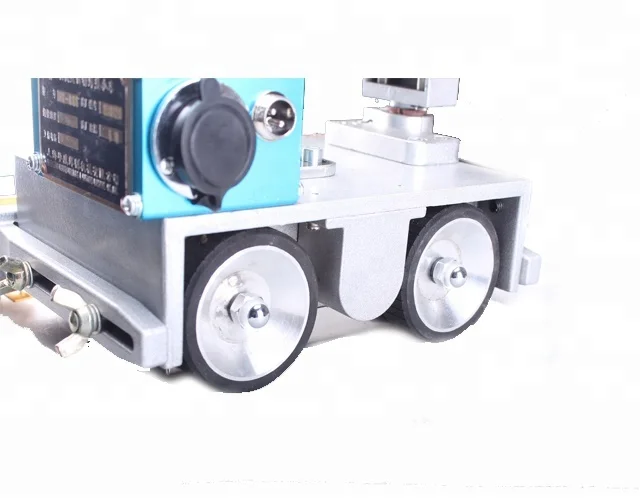

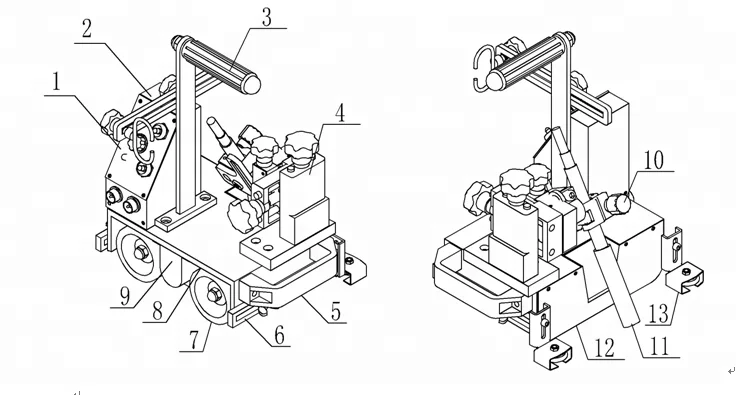

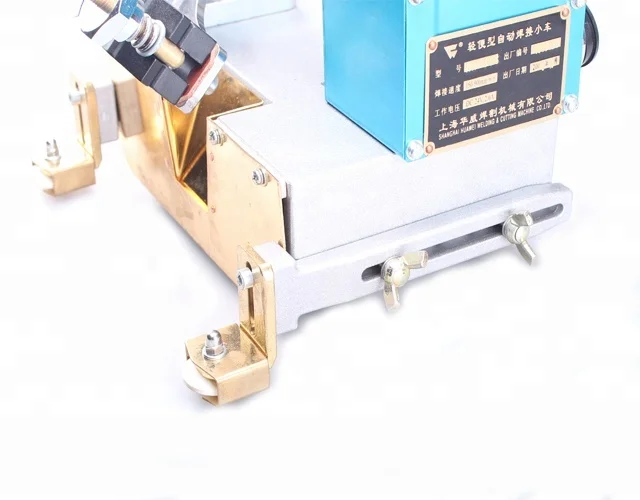

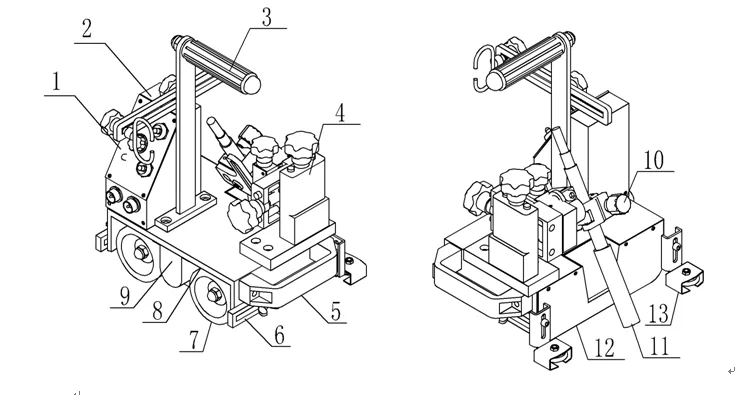

The structure of the automatic welding machine
HK-8SS is made up of carriage body, guide wheel, torch handle, X-Y slide, torch wiggler and control box.
carriage body:It is the frame of machine and carrier of others.
1. Control panel | 8.Base |
2. Control box:It can adjust all actions of carriage. Please refer to “explanation of control panel” | 9.Motor casing |
10. Welding torch gripper: It is used to fix the torch. You can take down torch by it, when you want to repair or adjust the torch. 11.Torch 12.Insulation baffle board | |
3. hand grips:Please hold this hand grip when you carry the machine. 4. X-Y moving slide:Use it to adjust the position of torch. In the process of welding, you can tune the torch up and down. 5.Plastic handle 6. Guide pulley bar 7.Walking wheel | |
13. Guide wheel assembly: It rolls along the base metal surface and align the torch to the welding part. | |
|

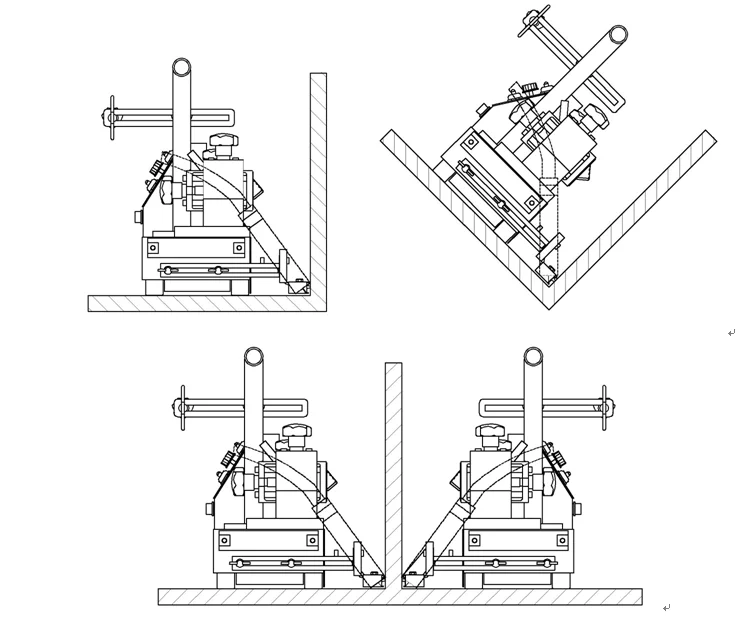

Diagram Of The Portable Electromagnetic Automatic Welding Tractor
