Detergent Powder Machine Producer/Washing Powder Plant/Detergent Powder Machines Maker

Product Overview

Description

Our Company:



Zhejiang Meibao Industrial Technology Co,Ltd is the head corporation of three large manufactured factories of Meitong ,Meibao Furnace ,Zhuomiao Industrial .We are specialized in producing complete turn-key set of washing detergent powder production line in consultation,developing,research,installation,commissioning operator training ,formulation,etc.We have built more than 170 large washing powder factories around the world for Unilever,Henkel ,P&G ,Rhodia ,etc.Our old customers had rapid investment returns by our plant and kept on building factories in many places.Our detergent powder plant can be operated by coal,oil,natural gas,biomass which can save great quantity of energy consumption



Introduction For Our Powder Materials Conveying System :



The traditional method for lifting solid raw materials is using elevator, but in this method, there are such problems as large horizontal/vertical logistics, large number of workers and labor intensity, poor workshop operating environment, raw materials temporarily stored in the high floors which is under large civil load. If conveying pneumatically by dense phase, above problems can be avoided, meanwhile reduce the secondary conveying of raw materials, which improve automation of the equipments, workshop floor height can be effectively utilized.



Powder raw materials in Ton bags such as Soda Ash, Sodium Sulfate, Zeolite, STTP etc. are moved into factory, through electric hoist lift, move, tear open manually, and pour into the raw materials hopper. Through transmit tank, the raw materials will sent to each high bins by compressed air.



Transmit tank sends the raw materials by batch. There are processes such as feeding, charging, conveying, exhausting, which are intermittent convey. In order to convey continuously, design 2 sets of conveying device, alternately to finish conveying full-automatically. On feeding site, set on-off button, besides that, set objective bin choice button, and set the light to avoid feeding error. The system is controlled by PLC+touch screen, which can display the system operating conditions and operating status of each device.



Meibao Detergent Powder Plant		Meibao Detergent Detergent Plant
Capacity:	Min: 1 TPH	Capacity:	Max: 30TPH

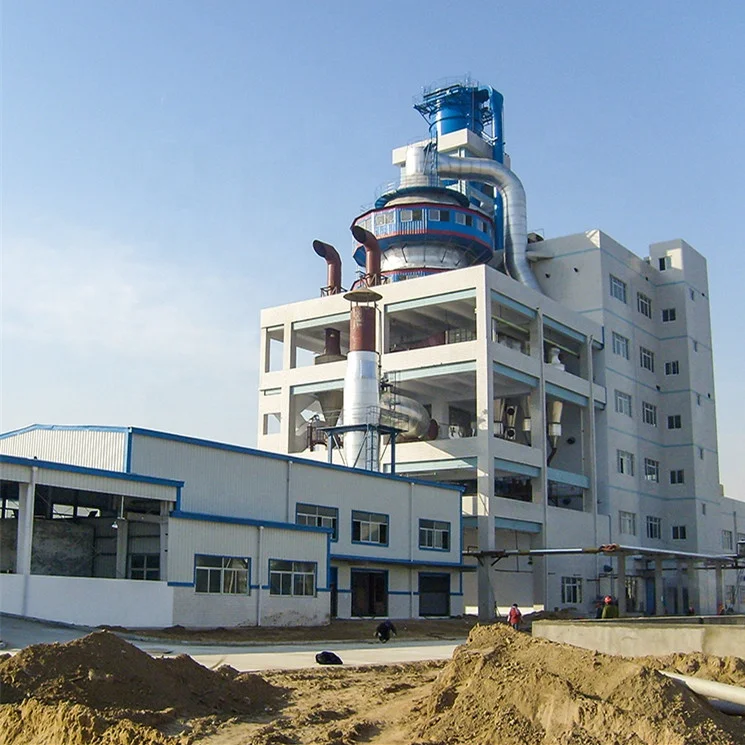

Type:	High Sprayed Tower/ Agglomeration	Type:	Full Automatic /Semi Automatic
Transfer Type:	Lift/Pneumatic	Packing	As Per Client's Requirement
Packing:	As Per Client's Requirement:from 10g/bag to 500 Kg /bag





Advantages:

1.)Equipment are durable, low cost of operation, easy maintenance;very light bulk density reached

    200g/L-250g/L,high sprayed drying tower system.

2.)Powder raw materials fed into tank in certain ratio automatically according to computer control

3.)Distribute structure and multi-interface network ability easy to use.

4) Automatically controlled system which is suitable for large scale industrial control and visualization of the whole process of production

5.)Semi-automatic and full automatic production line from 1T/hour to 30 T/hour

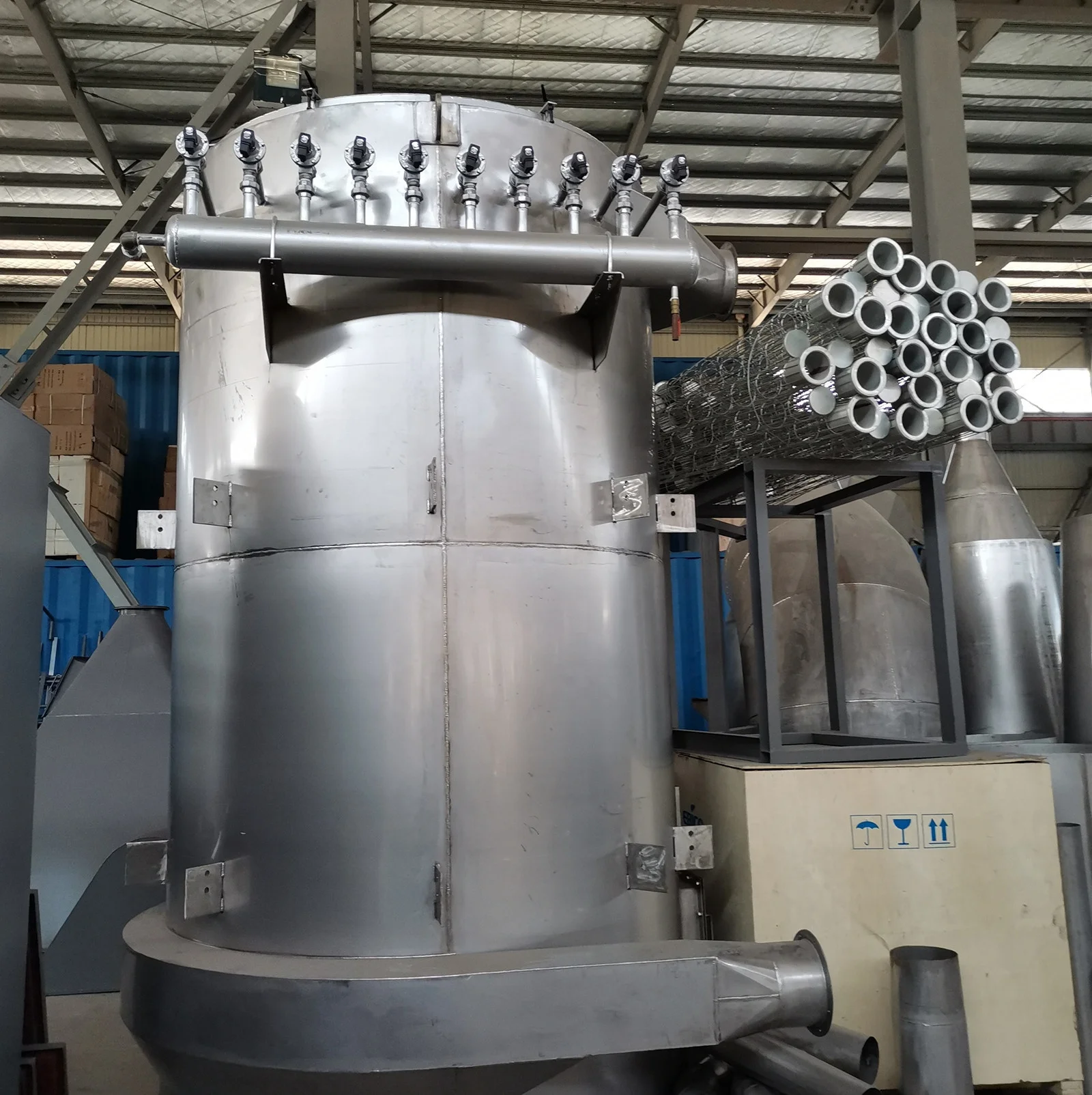

6.)Workshop environment is provided  with perfect dedustion system,ensure the workshop environment as clean as top level of Unilever,Henkel ,P&G
