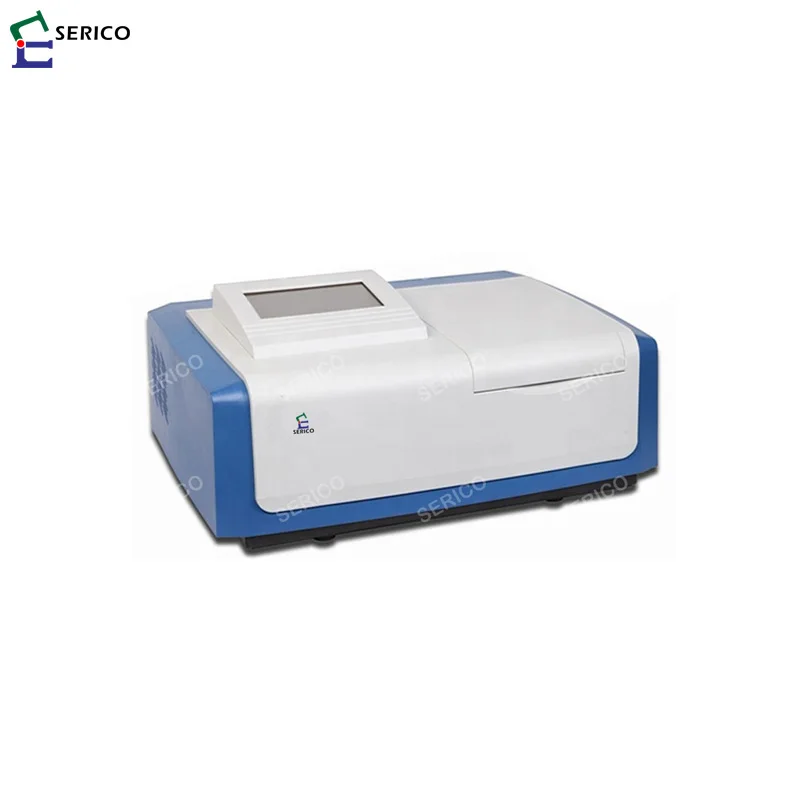

Спектрофотометр SERICO UV VIS, модель L6S, длина волны 190 1100 нм

Product Overview

Description

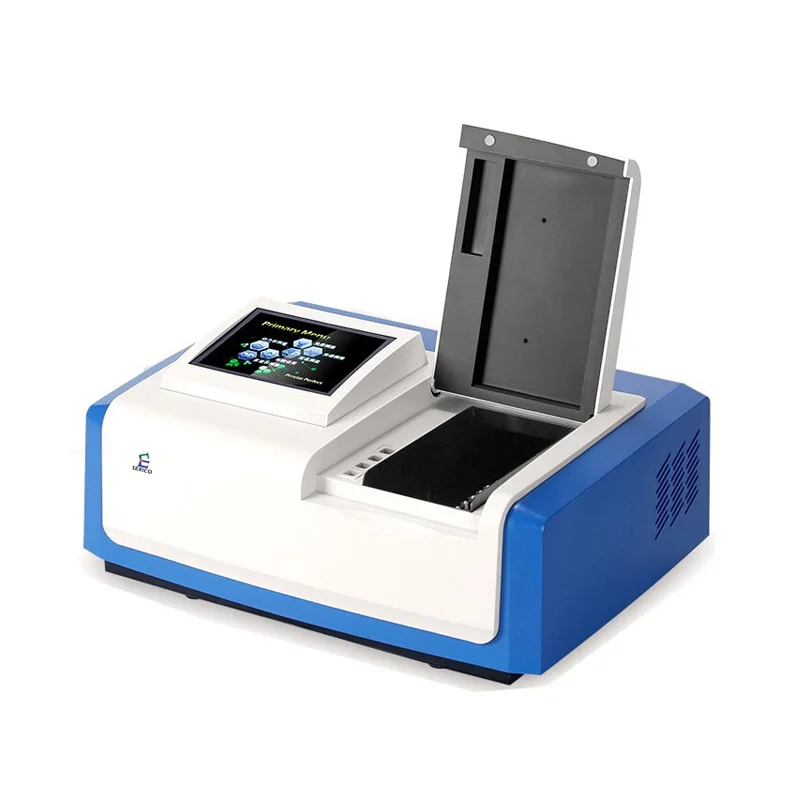

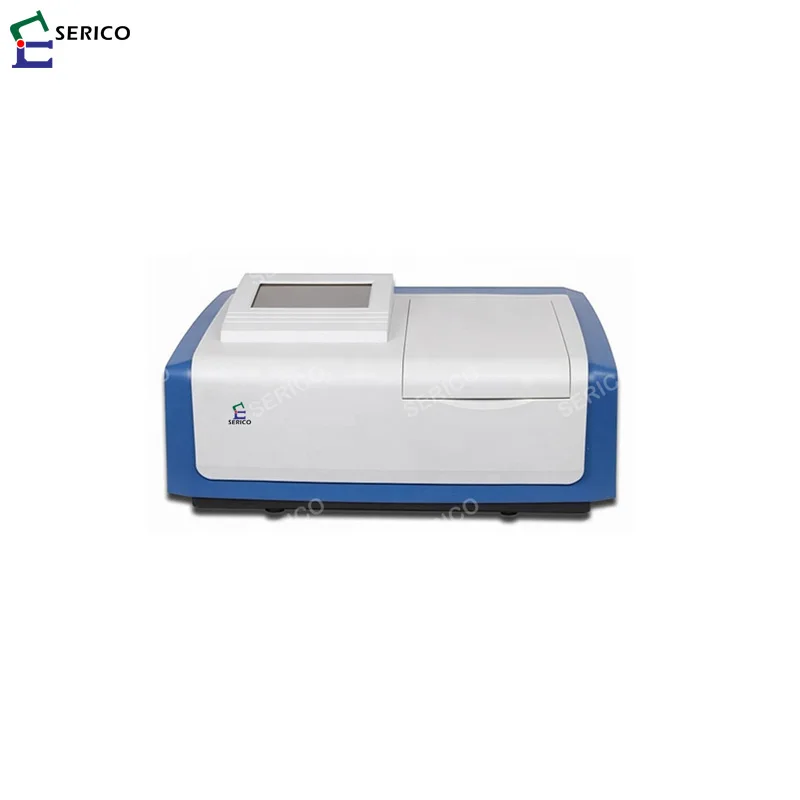

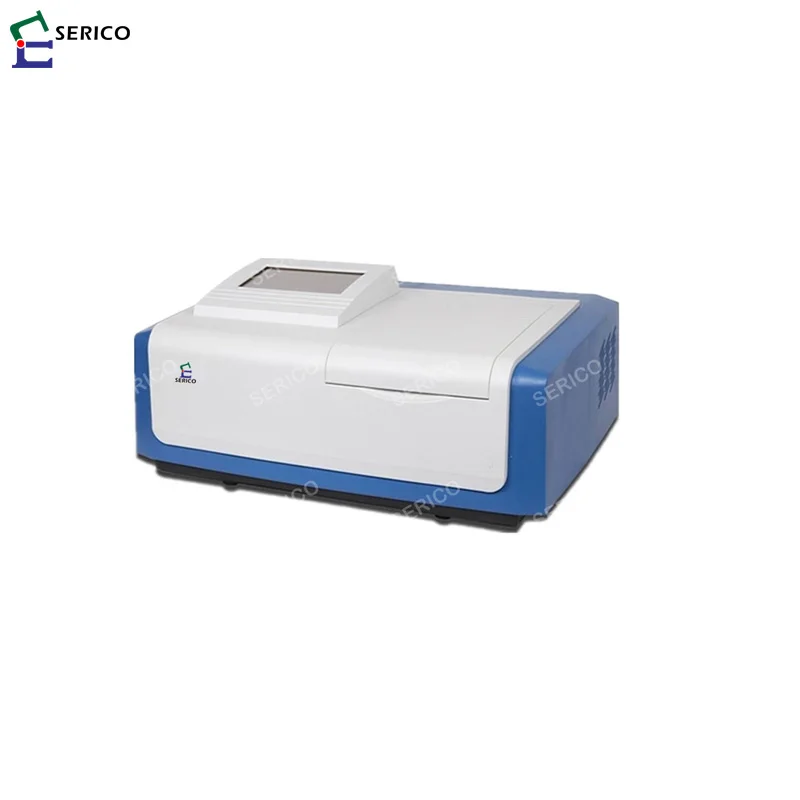

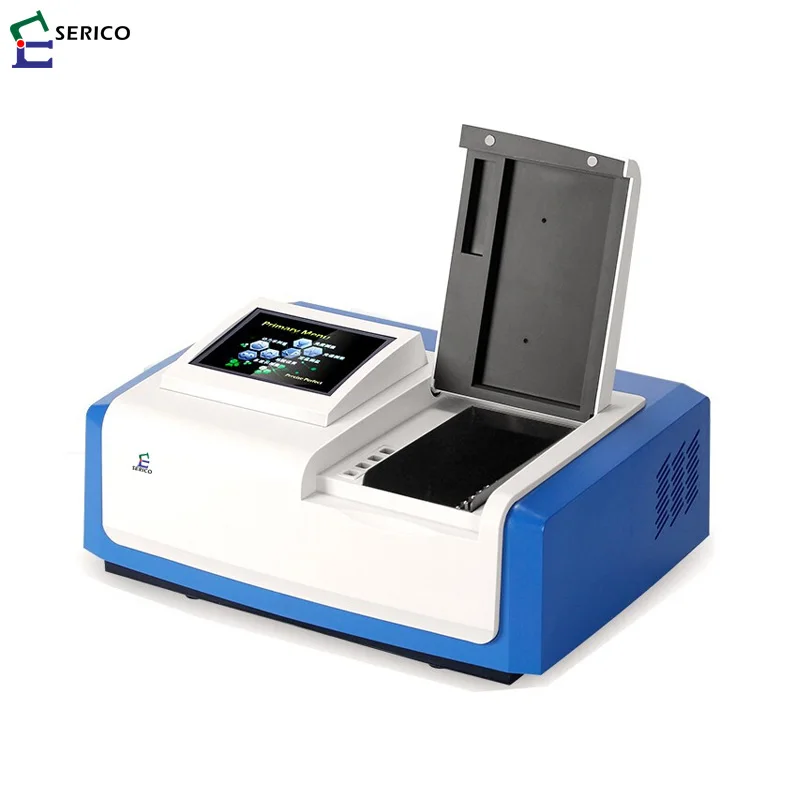

SERICO Double Beam UV VIS Spectrophotometer

Model L6S Wavelength 190-1100nm





Item No: 20222104/05

Product Description

The equipment is designed with sophisticated power protection system. With high capacity of internal memory, it can store testing results, scanned images, regression equations and correction data.

The instrument can be connected with dedicated printer, which can print testing results, or draw curve from spectral scanning, fixed wavelength time-based scanning, and linear regression.

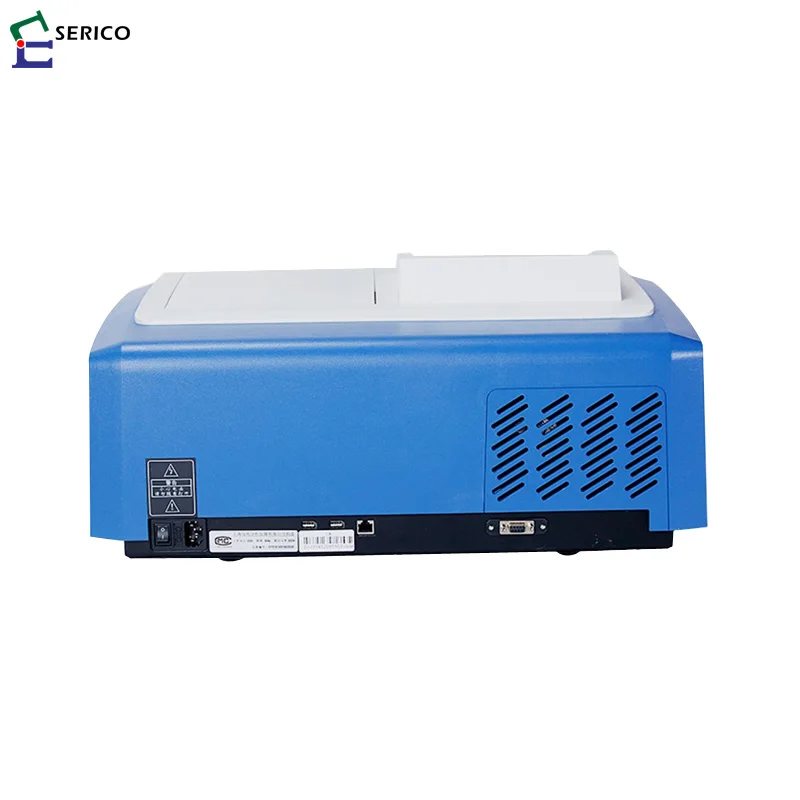

With USB COM port the device can be connected to a PC, which can not only enhance the performance in data testing and spectrum scanning, but also expand the memory to save more testing results.

Features:

1.          Split beam optical system

2.          Automatic wavelength settings

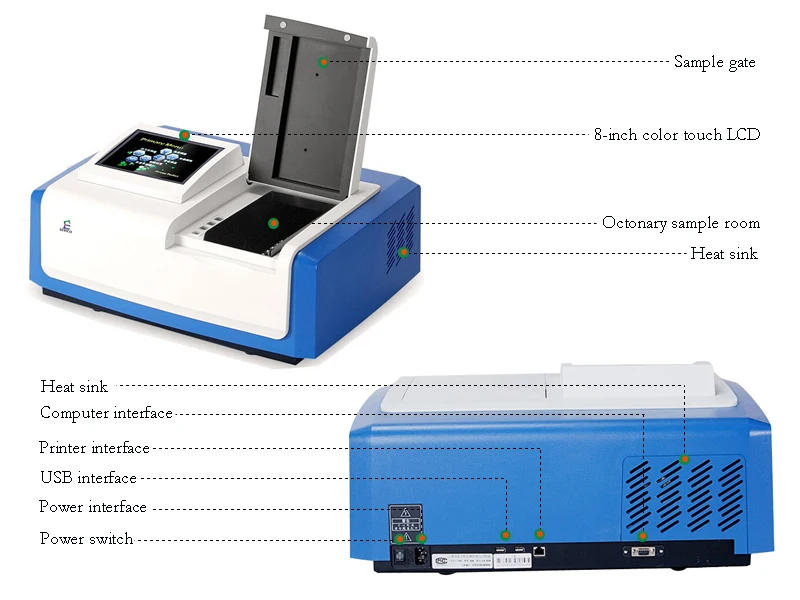

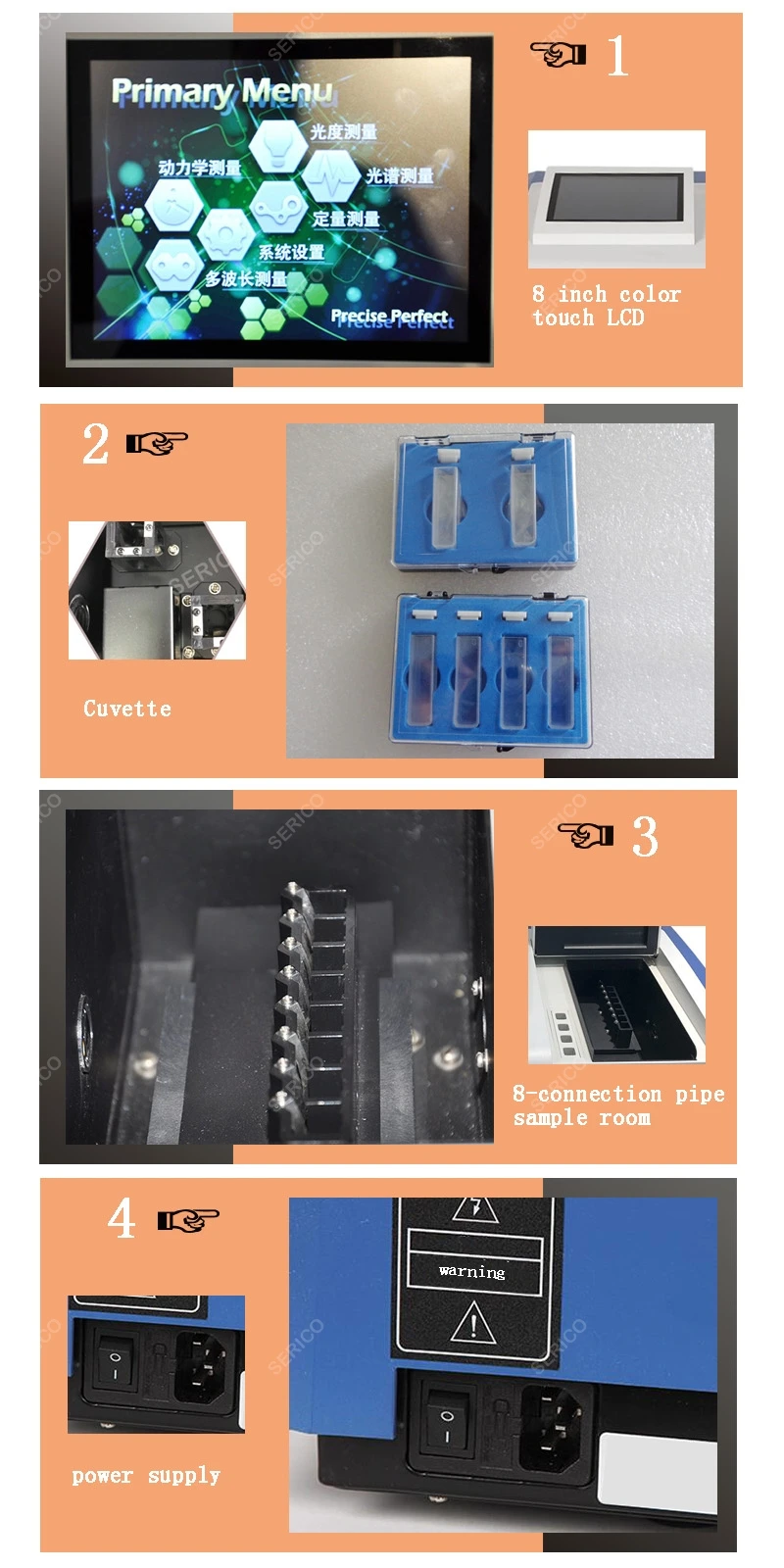

3.          8-inch multi color touch-screen

4.          Automatic 8 position cuvette holder

5.          Equipped with USB port

6.          Thermal plotter optional Software optional

7.          Automatic zero and full scale adjustment  (for L6S only)

8.          Full-spectrum scanning  (for L6S only)

9.          Detailed spectrum scanning  (for L6S only)

10.      Multi-wavelength measurement

11.      Time-based kinetics determination

12.      GOTO λ

13.      Linear regression

14.      Concentration direct reading

15.      Peak / Valley detecting





Specifications:

Model	L6	L6S
Item No	20222104	20222105
Photometry	Split Beam
Monochromator Type	Czerny-Turner
Focal Length	160mm
Grating	1200 lines/mm
Detector	Silicon Photocell
Spectrum Bandwidth	1.8nm
Wavelength Setting	8-inch color touch-screen
Wavelength Range	190-1100nm
Wavelength Accuracy	±0.3nm
Wavelength Repeatability	≤0.1nm
Scanning Speed	Conventional speed	Fast-Medium-Slow
Stray Light	≤0.03%T( at 220nm NaI, 360nm NaNo2 )
Photometric Range	0.0-200.0% T
	-0.301-4.000 A
	0.000-9999 C
hotometric Accuracy	±0.3% T
	±0.002 Abs (0-0.5A)
	±0.004 Abs (0.5-1A)
Photometric Repeatability	≤0.15% T
	0.001 Abs (0-0.5A)
	0.002 Abs (0.5-1A)
Drifting	N/A	≤0.0009 Abs/h (at 250nm and 500nm after 2h warm up)
Baseline	N/A	≤±0.0015 A(200-1090nm)
Light Source	12V20W halogen lamp and long life DD2.5 deuterium lamp
Noise	100%(T)noise≤0.15%(T) , 0%(T)noise≤0.1%(T)
Power	AC220V±22V 50Hz±1Hz, 200W



Standard Accessories:

1	Operation Manual	1
2	Glass cuvette 10mm	4
3	Quartz cuvette 10mm	2
4	Power cable	1
5	Fuse (3A)	2
6	Cuvette holder 10mm	1





Optional accessories:

1.         UV Spectrum data processing software

2.         5/10/20/30/50mm Glass / Quartz cuvette

3.         Cuvette holder 50mm/ 100mm

4.         Thermal PlotterPrinter (FD-TP211)

5.         Power cable (UK/ EU type)



Shipping Package:

Package Type: 1 Unit/ Carton

Dimension: 710*600*500mm

Gross weight: 32Kg

Net weight: 26Kg
