Строгальный станок для деревообработки, № 22101, 12 дюймов, настольный строгальный станок с винтовой режущей головкой

Product Overview

Description

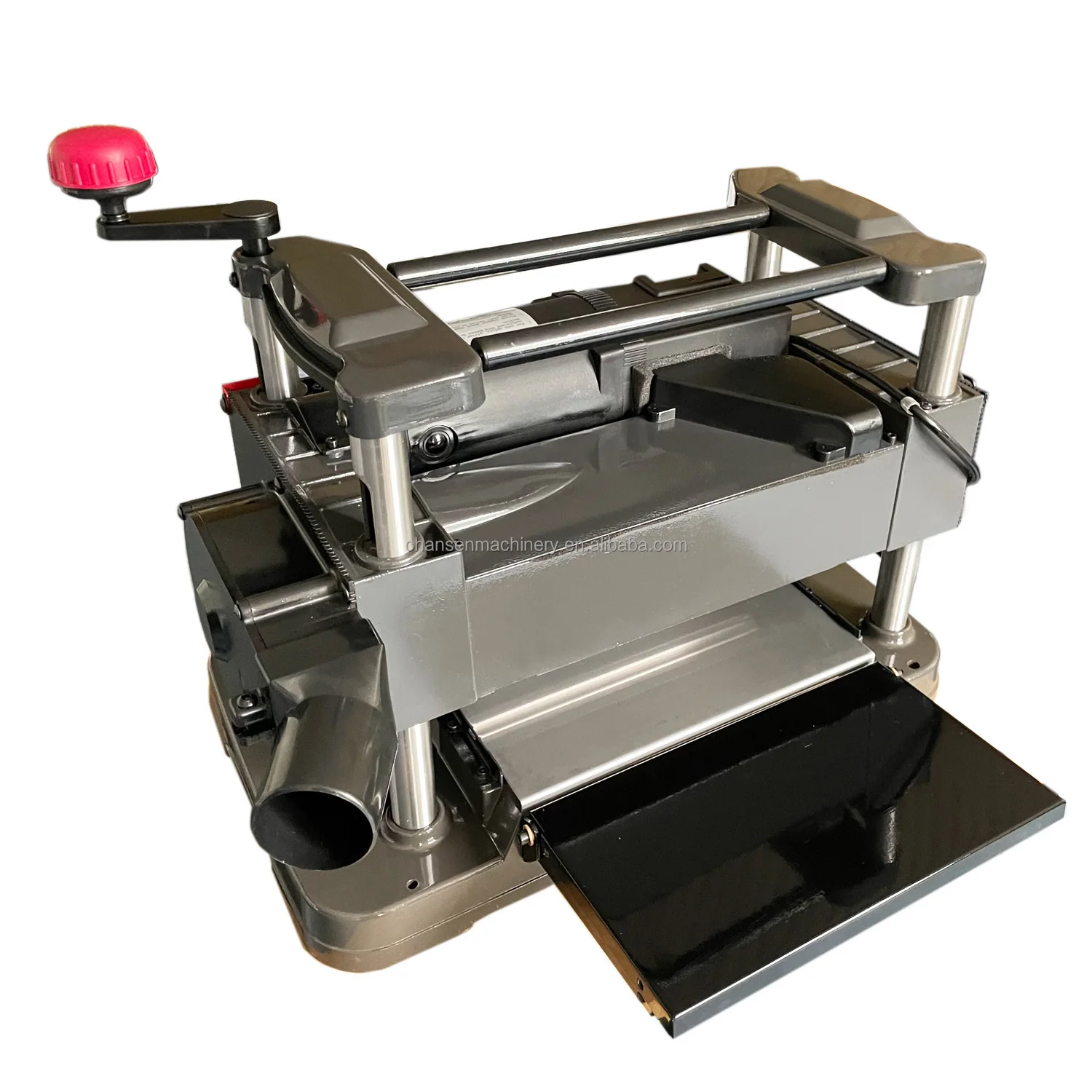

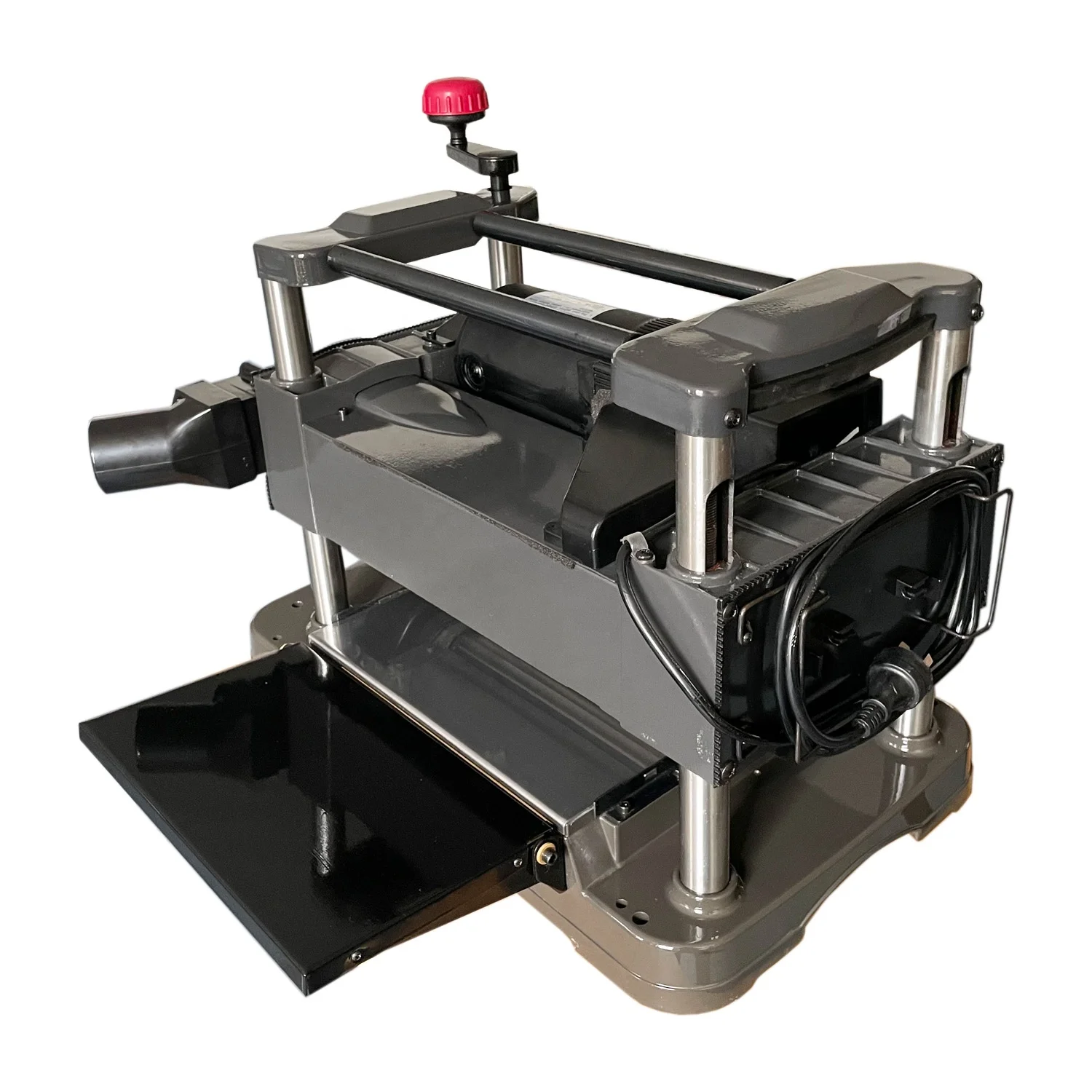

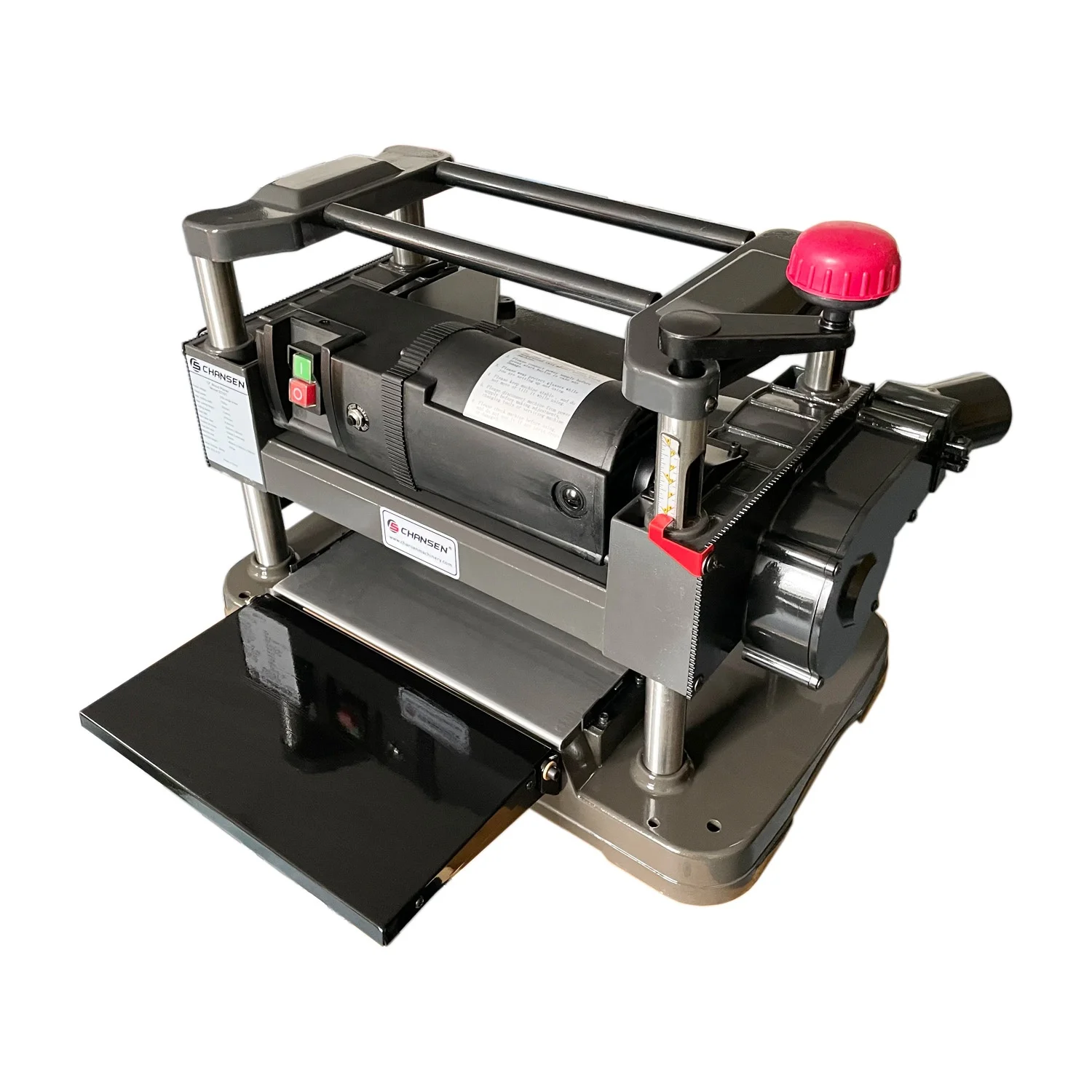

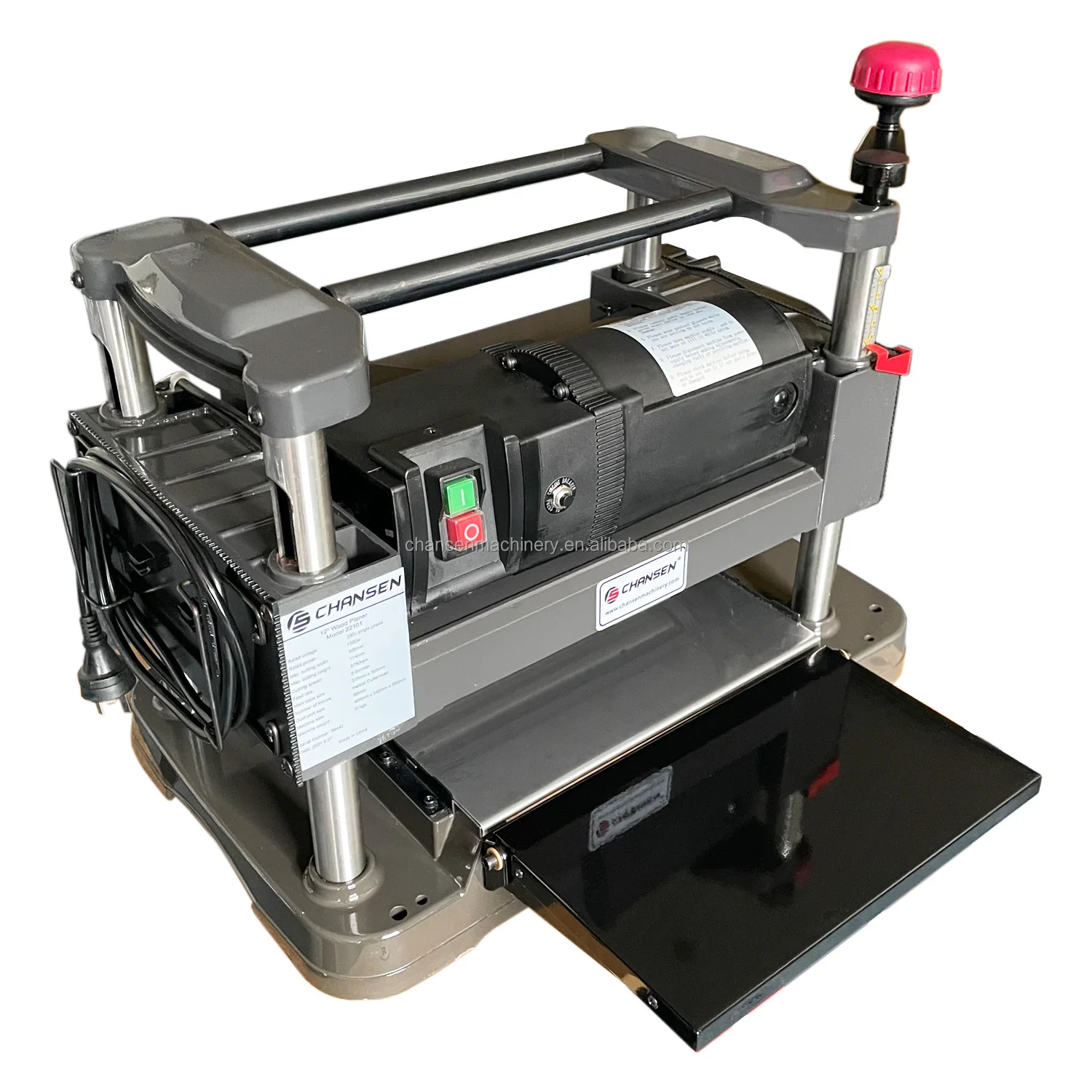

 12" benchtop wood thickness planer with helical cutterhead

Item#22101





Description

This 12inch benchtop planer is a portable planer that was lighter to carry around and finished cuts faster, but didn’t ­lack power or design quality. It has a helical cutterhead with 36 pcs 4-sided carbide insers as standard for ultra smooth surface finish. It also features a 2 HP motor, 8750 RPM cutterhead, 6.6 m/min feed rate, top-mounted return rollers, and precision grounded cast iron worktable... The solid cst iron construction proof that this dynamo will rule the jobsite for years!



Features

• Solid cast iron construction


• Powerful 2HP motor handles larger, deeper cuts in hardwoods

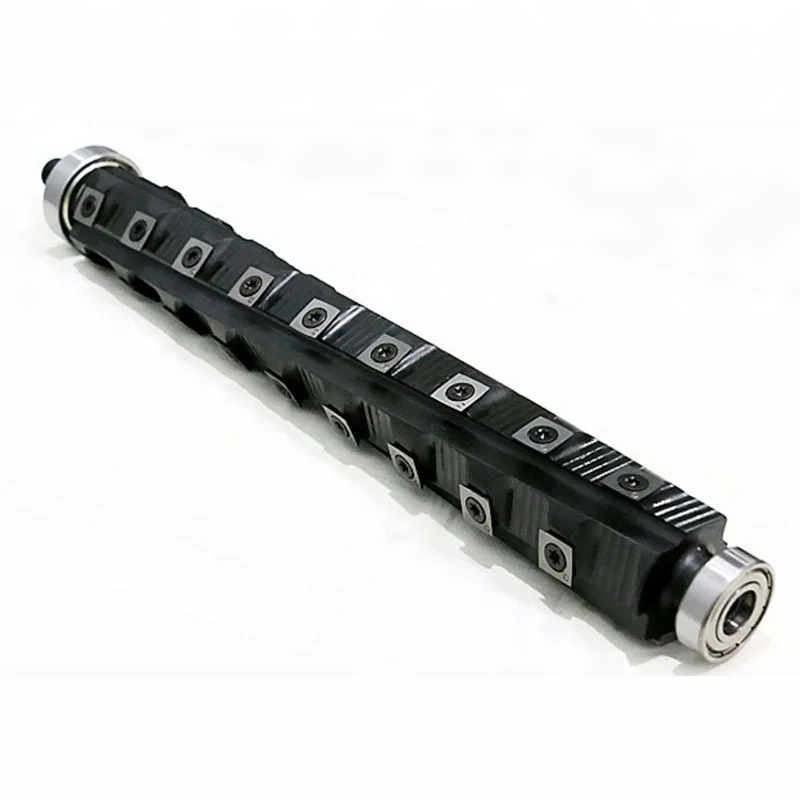

• Standard with 36 pcs 4-sided carbide inserts helical cutterhead for ultra smooth surface finish


• Top-mounted return rollers


• Four-column carriage lock drastically reduces t


• Built-in blower inside for automatic dust removal


• 2-3/8" dust port


• Magnetic handles for changing knives


• Small footprint makes this an excellent choice for off-site projects or small shops

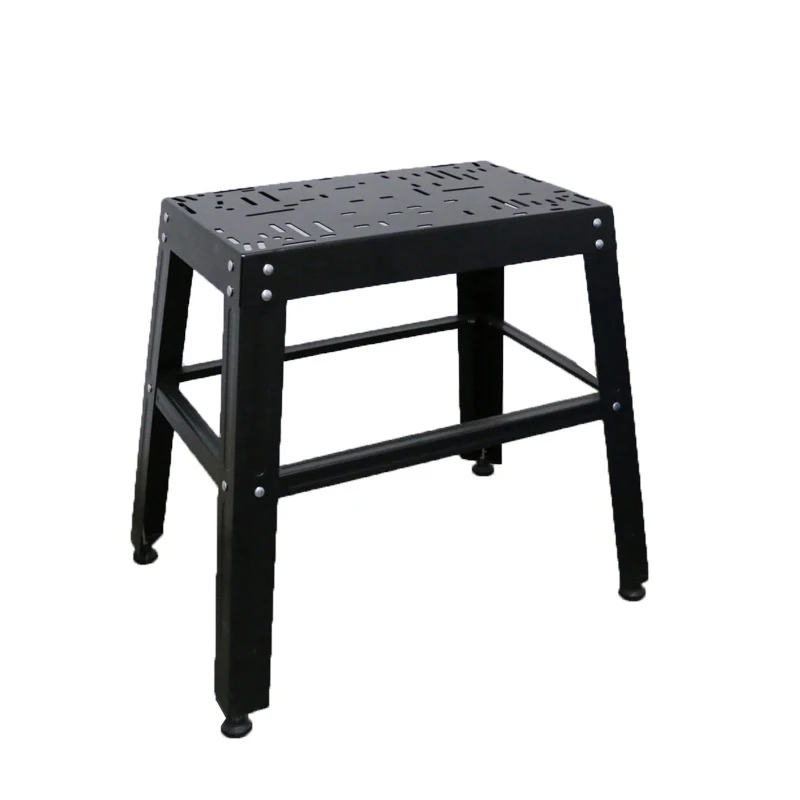

• Optional Item#29210 Universal stand

• Optional dust bag

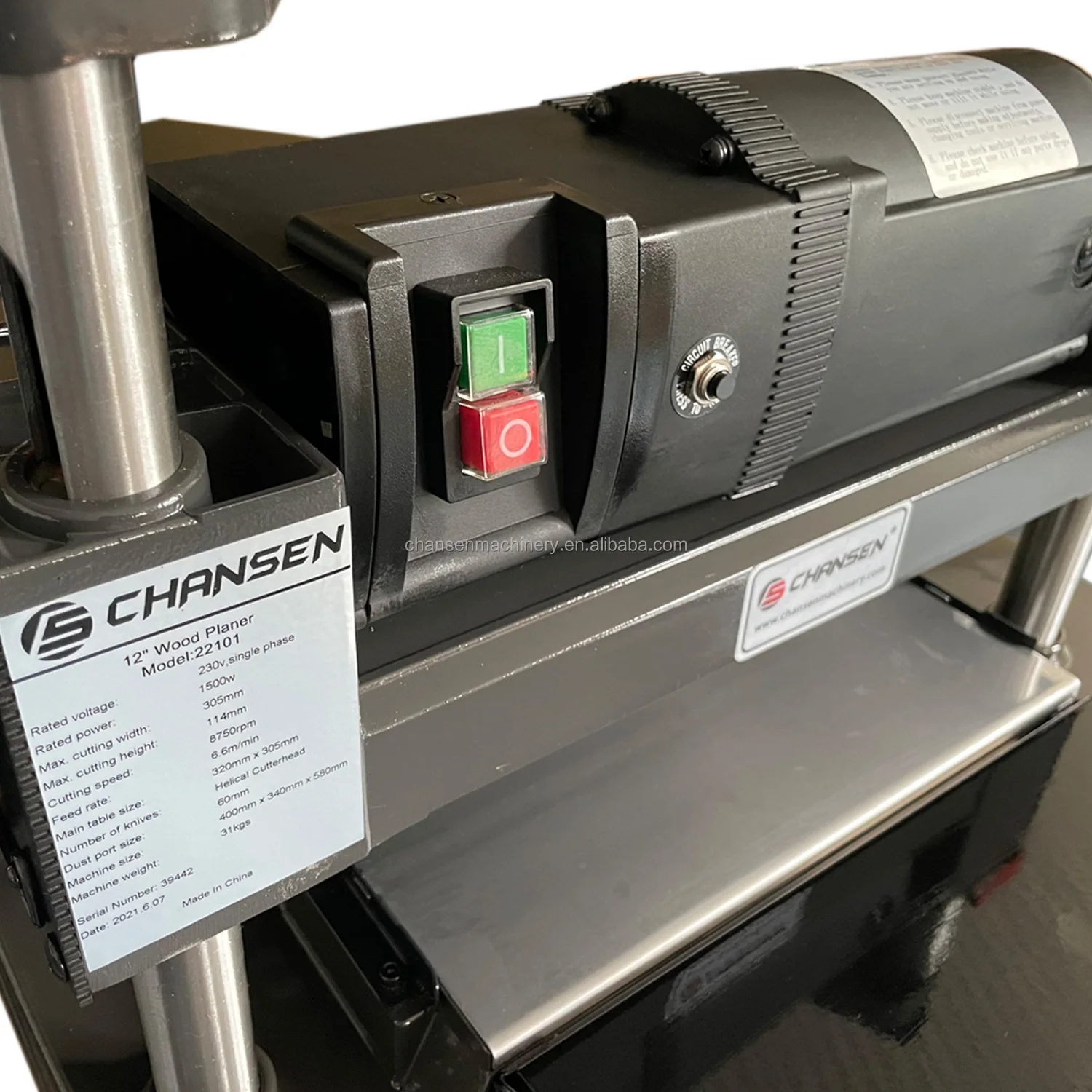

Specifications

• Motor: 2 HP, 110V or 220V, single-phase


• Maximum cutting width: 305mm (12”)


• Maximum cutting height: 114mm


• Maximum cutting depth: 0.8mm full width, 2.4mm on 5" wide board


• Feed rate: 6.6 m/min


• Number of knives: helical cutterhead with 36 pcs 4-sided carbide inserts


• Cutterhead speed: 8750 RPM


• Table size: 320mm x305mm


• Dust port size: 60mm (2-3/8")


• Machine size: 400mm x340mm x580mm


• Machine weight: 31kgs


• Packing dimensions: 635mm x395mm x455mm


• Shipping weight: 33kgs
