Hot sale high density tungsten bucking bar

Share on (60809280979):


Price:RUB 3,715.41 - RUB 9,660.06

Quantity:


Product Overview

Description

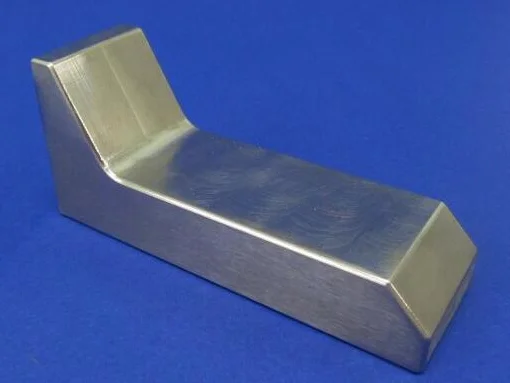

Hot sale high density tungsten bucking bar

Product Show

 1.png2.png3.png4.png5.pnghigh temperature forming mould and tool materials.jpg

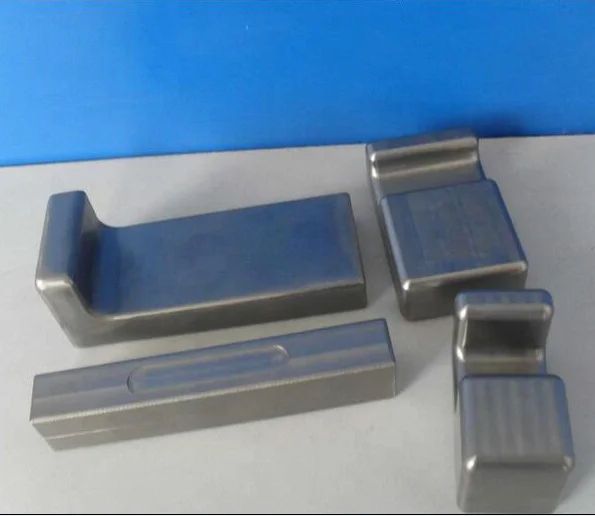

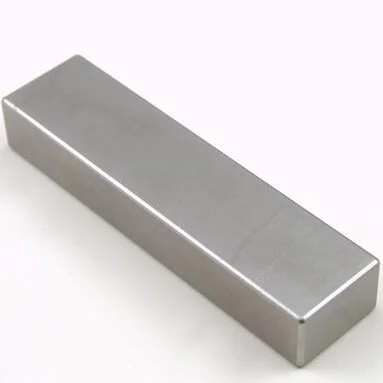

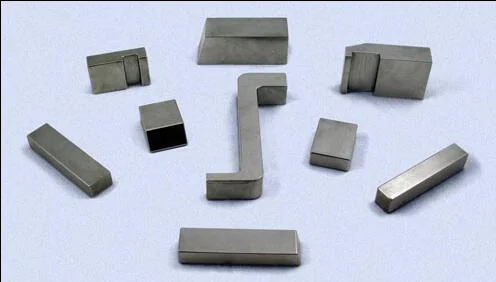

Description: tungsten bucking bar
Tungsten heavy alloy, also known as high density tungsten base alloy, is specially made by adopting tungsten as matrix and adding nickel, iron, copper and other metal components in appropriate proportion. In terms of the alloy, tungsten content commonly accounts for 90% and the relative density is above 17g/cm3. Tungsten heavy alloys can be divided in two major kinds: tungsten nickel copper alloy system and tungsten nickel iron alloy system. Tungsten heavy alloys from Achemetal Tungsten&Molybdenum  co., Ltd all comply with Standard ASTM B777-99. tungsten bucking bar

Application: tungsten bucking bar
1.Tungsten heavy alloys are mainly applied in aerospace industry, damping devices, conventional weapons, radiation shielding devices and parts;  tungsten bucking bar
2.They are also used for die mold in machinery manufacturing, flywheel and automatic watch pendulum;
3.They're also adopted in electrical equipment contacts and electrodes, etc. tungsten bucking bar

Features: tungsten bucking bar
1.Tungsten heavy alloys are of high density, high strength and good conductivity thermal characteristics;
2.The properties of high density tungsten base alloy help to reduce the processing temperature, simplify the production process and improve the alloy plasticity and processing performance;  tungsten bucking bar
3.In terms of engineering materials, tungsten heavy alloy is much easier to conduct than pure tungsten because of its better mechanical property. tungsten bucking bar

Parameters of WNiCu Alloys: tungsten bucking bar

85W-10.5Ni-4.5Fe

15.8-16.0

700-1000

20-33

20-30

90W-7Ni-3Fe

16.9-17.1

700-1000

20-33

24-32

90W-6Ni-4Fe

16.7-17.0

700-1000

20-33

24-32

91W-6Ni-3Fe

17.1-17.3

700-1000

15-28

25-30

92W-5Ni-3Fe

17.3-17.5

700-1000

18-28

25-30

92.5W-5Ni-2.5Fe

17.4-17.6

700-1000

25-30

25-30

93W-4Ni-3Fe

17.5-17.6

700-1000

15-25

26-30

93W-4.9Ni-2.1Fe

17.5-17.6

700-1000

15-25

26-30

93W-5Ni-2Fe

17.5-17.6

700-1000

15-25

26-30

95W-3Ni-2Fe

17.9-18.1

700-900

8-15

25-35

95W-3.5Ni-1.5Fe

17.9-18.1

700-900

8-15

25-35

96W-3Ni-1Fe

18.2-18.3

600-800

6-10

30-35

97W-2Ni-1Fe

18.4-18.5

600-800

8-14

30-35

98W-1Ni-1Fe

18.4-18.6

500-800

5-10

30-35

90W-6Ni-4Cu

17.0-17.2

600-800

4-8

25-35

93W-5Ni-2Cu

17.5-17.6

500-600

3-5

25-35

Achemetal Tungsten&Molybdenum  Co., Ltd is a professional manufacturer and supplier of tungsten heavy alloys in China. In this product category, we can provide tungsten heavy alloy, WniCu, WniFe, tungsten heavy alloy plate, tungsten heavy alloy rod as well as tungsten heavy alloy part. All of our products are made in accordance with the standard of ISO9001 and ASTM B777-99. Above 60% of our tungsten heavy alloys are exported to more than ten countries and areas, such as USA, Germany, Japan, Russia, South Korea, etc. Our tungsten heavy alloys have been highly recognized by customers for their excellent quality and accuracy.
