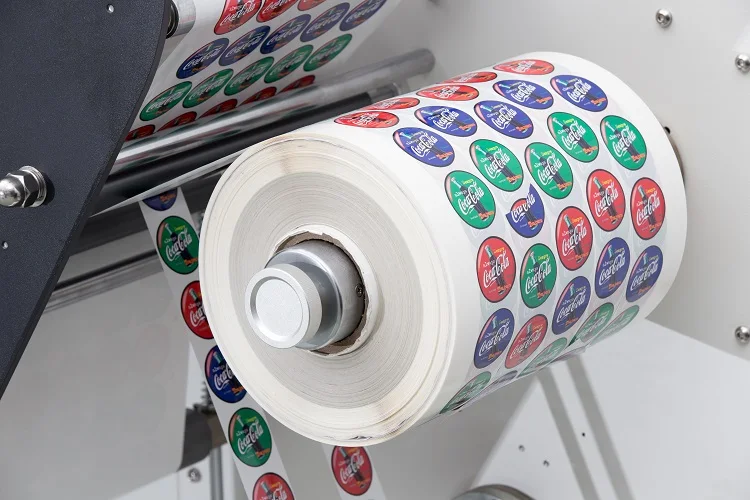

Vorey VD320 Rotary Digital Paper Label Die Cutter Machine With Cutting Width 320MM

Share on (60809797613):


Price:$15,800.00 - $22,000.00

Quantity:


Product Overview

Description


Vorey VD320III Rotary Digital Paper Label Die-Cutter Machine With Cutting Width 320MM



Product Description


The unique roll to roll digital label die-cutter which can have 4 cutting heads

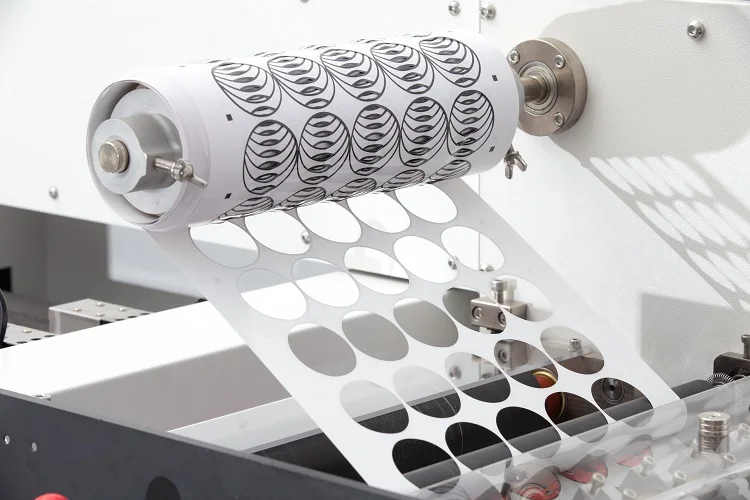

VD320III Digital Roll To Roll Rotary Label Die Cutter For Sale is developed for work for all kinds of applications. It can use for short work or big work, can die-cut all of shapes which you design, delivery time is very fast, it is your best partner for label printer. This machine collect to laminate, die-cut, waste-remove, slit and rewind together, it is not only for die-cutting, but also work for one slitting machine. The operation is very easy, it apply into label, hang tag, and package widely., we believe that this machine will be apply more and more lines , only expect you find the advantage.


Suitable media: Adhesive label ,PP,Plastic film,PET,PVC,white card paper, art paper and other soft media.


Example of application: Adhesive label ,hang tag,paper box making.


Media road en.jpg





Parameters:


















































































Machine model



VD-320 Digital Rotary Small Label Die Cutter



Max. media roller



Diameter 450mm



Cutting media width



40-340MM



Max. cutting width



320MM



Min. label length



10MM



Max. label length



400MM



Cutting speed



7m per minute (Depend on label shape and size)



Cutting blades



2 pcs (Standard ) Max. 4pcs



Slitting blades



4pcs (standard ) Max. 15pcs



Die-cutting technology



Tungsten steel rotary blades



Cutting Precision



0.05MM(Duplicate )



Cutting tracking  Manually



single mark or double mark



Slitting speed



Max. 60m per minute



Slitting precision



0.2MM



Slitting width



10-320MM



Machine size



158cm(w)x90cm(D)x136cm(H)



Weight



Approx. 450KG



Power



100-240VAC, 1000 watts



Warranty



 1 year (beside high consumables parts)









 Functions :





1. High Speed, Economical Digital Label Finisher!


2. The traditional label finisher not only designs are complex and price is very expensive, but also functions are lack. Now, we research and develop high-speed, easy to operate and multifunctional VD320 digital label die-cutter system.


3. The high reliable and professional new model digital label die-cutter are designe for professional label printing company.


4. VD320 digital label die-cutter system is collected laminating, die-cutting, slitting and rewinding on one, it is the best solution for label finishing system.Vin


yl Sticker L











Web-Guide





IMG_9693

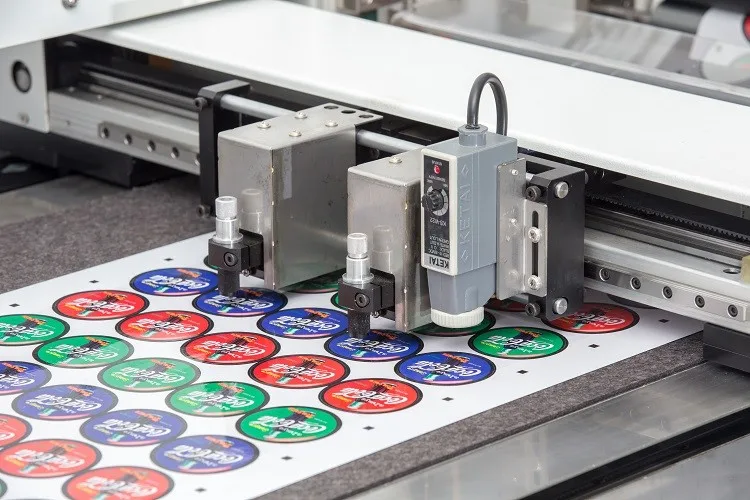

Die-Cutting





IMG_9708

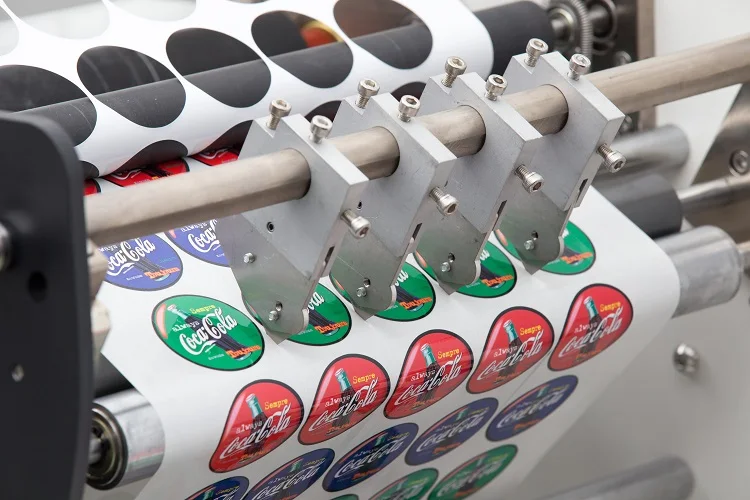

 Slitter


















Main Feature


1. Time Saving, compared with traditional die cutter





cut time





2. No need mould typesetting





.png





3. Suit for small and medium batch cut



    a, width: 10-310 mm
    b, price: 15,000-18,000 USD
    c, speed: max 6 m/min
    d, strength: high precision, time saving.
    e, weakness: low speed





ApplicationsVorey more products











Packaging & Shipping


Package & shipping of VD320 DIGITAL LABEL DIE-CUTTER






















Certifications





All of Our Machines have CE Certifications!





_04
