KFU Series Bucket tipping Mine Car
- Category: Other Mining Machines >>>
- Supplier: Zhong Yun Intelligent Machinery (Yantai) Corp. Ltd.
Share on (60810041391):
Product Overview
Description
Introduction of KFU Series Bucket-tipping Mine Car
KFU Series Bucket-tipping Mine Car is used for mine and construction, load stone, coal, minerals etc. There are V and U style mine car.
KFU Series Bucket-tipping Mine Cars are suitable for surface and underground mining of metal mine or other mine, to transport the ore, waste rocks and other materials along the underground tunnels and the surface working site.
Parameter of KFU Series Bucket-tipping Mine Car
Model | Volume (m³) | Load (T) | Gauge (mm) | Wheel Base (mm) | Wheel Diameter (mm) | Traction (KN) | Traction Height (mm) | Overall Size (L*W*H) |
KFU0.55-6 | 0.55 | 1.3 | 600 | 500 | 300 | 60 | 320 | 1552*850*1150 |
KFU0.75-6 | 0.75 | 1.88 | 600 | 600 | 300 | 60 | 320 | 1700*980*1250 |
KFU1.0-6 | 1.0 | 2 | 600 | 600 | 300 | 60 | 320 | 1910*1070*130 |
KFU1.2-6 | 1.2 | 3 | 600 | 700 | 300 | 60 | 320 | 2228*1070*1320 |

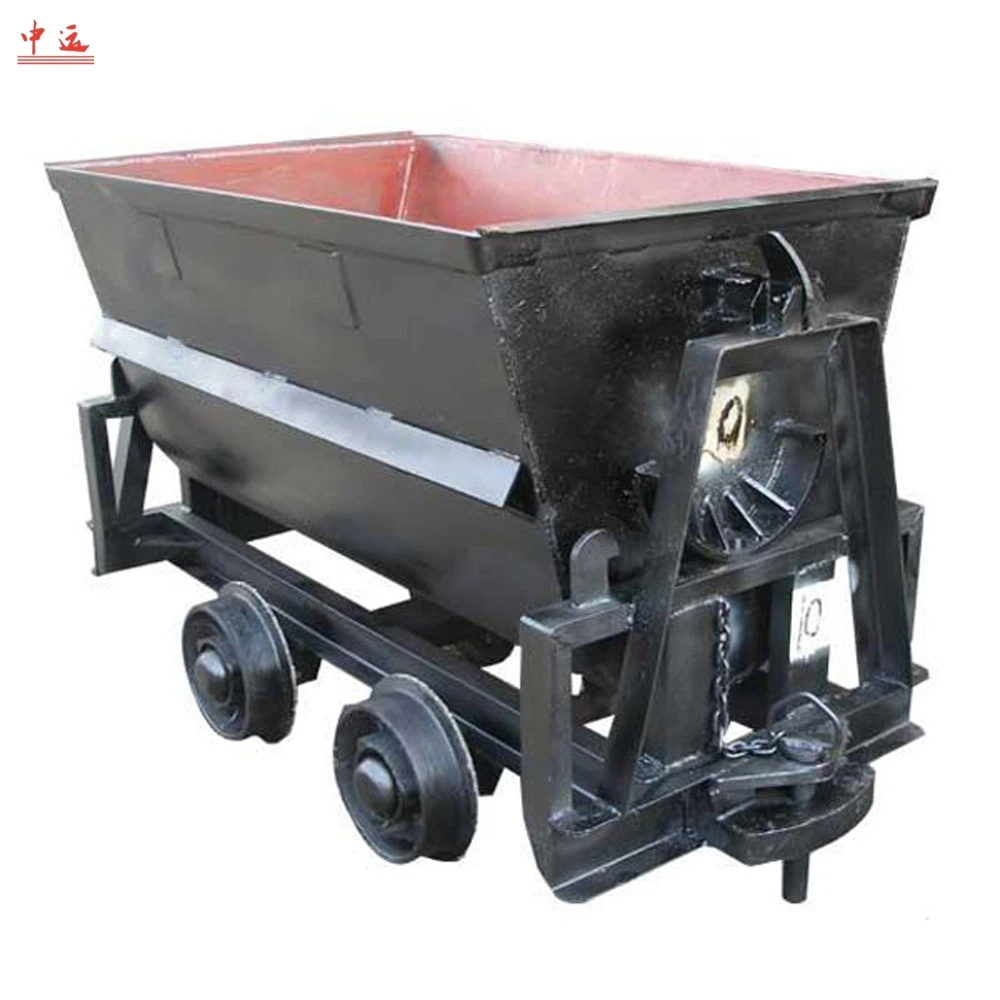

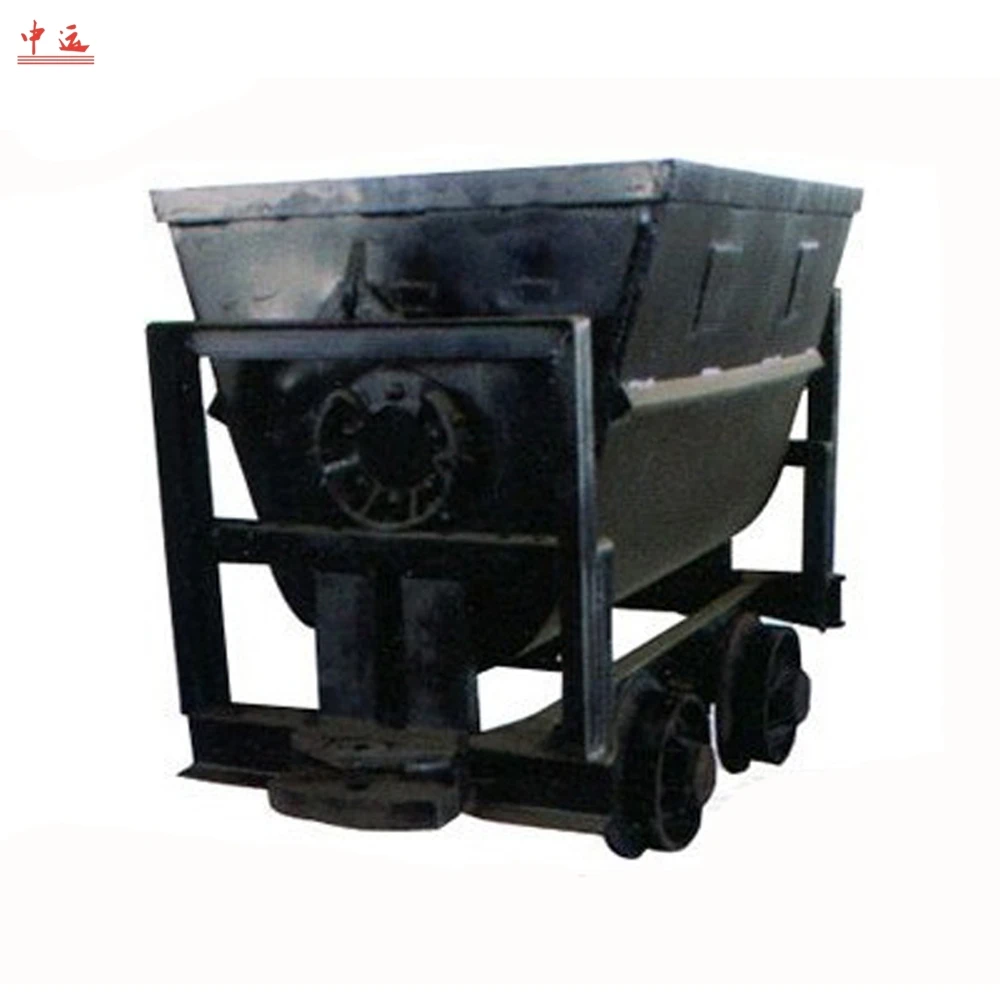

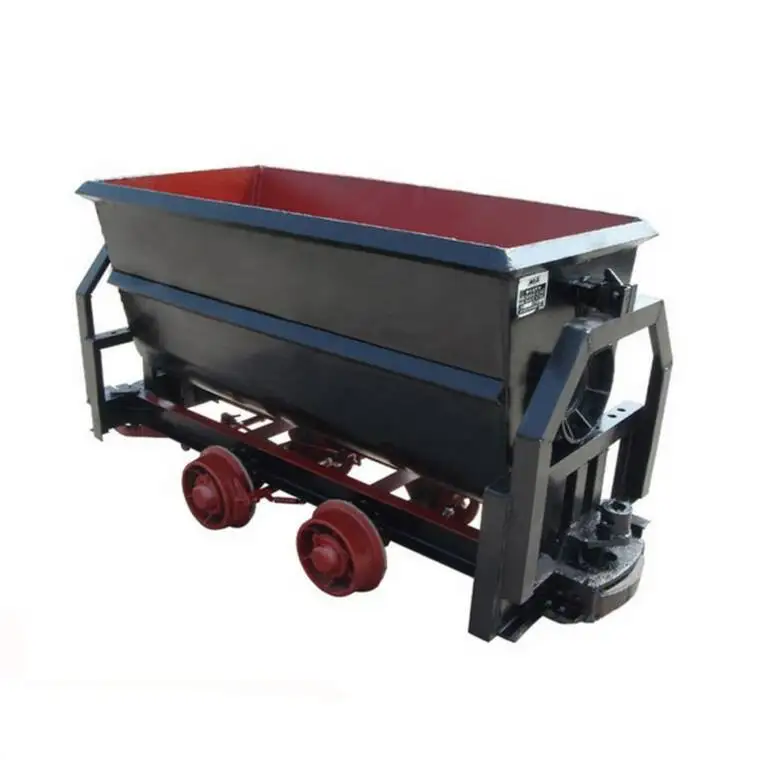

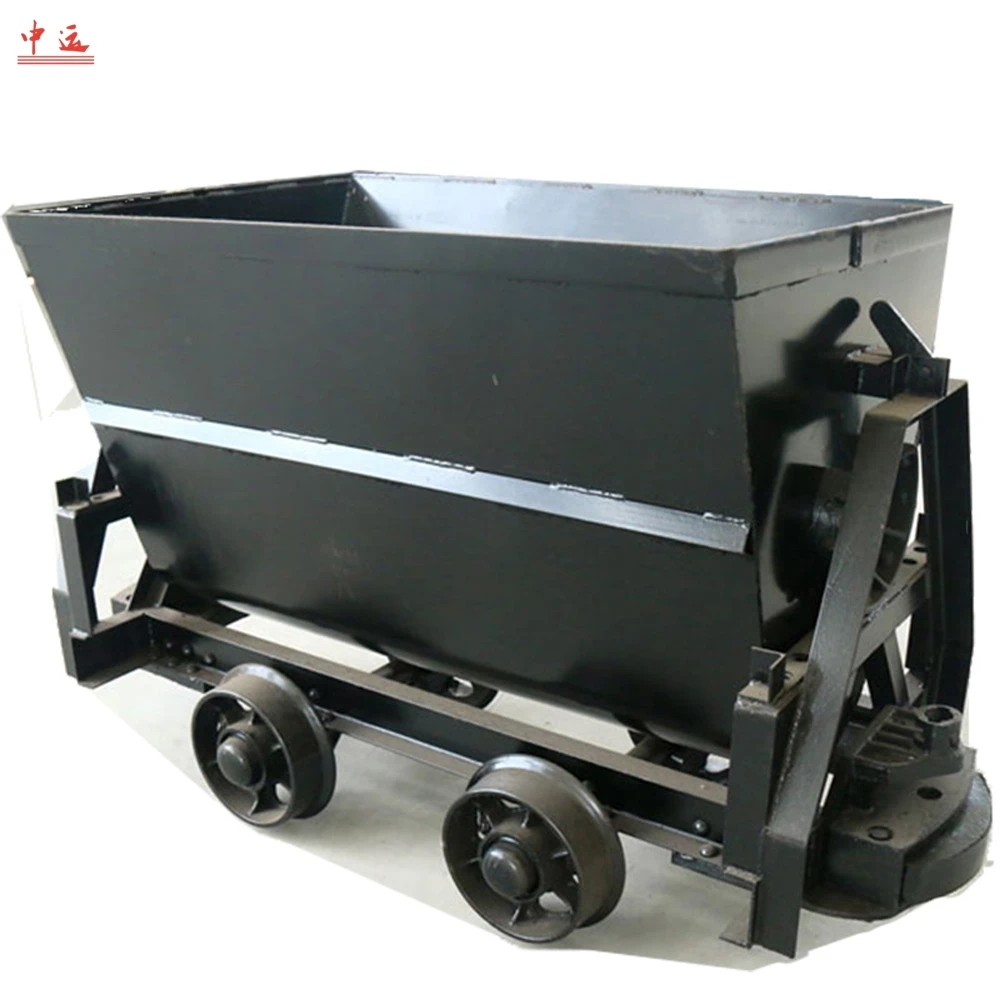

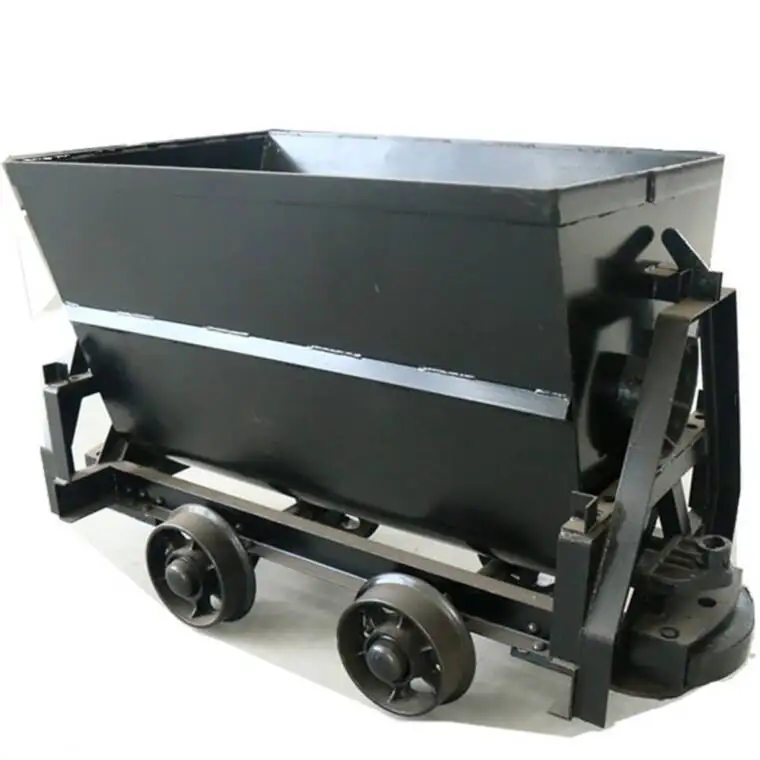

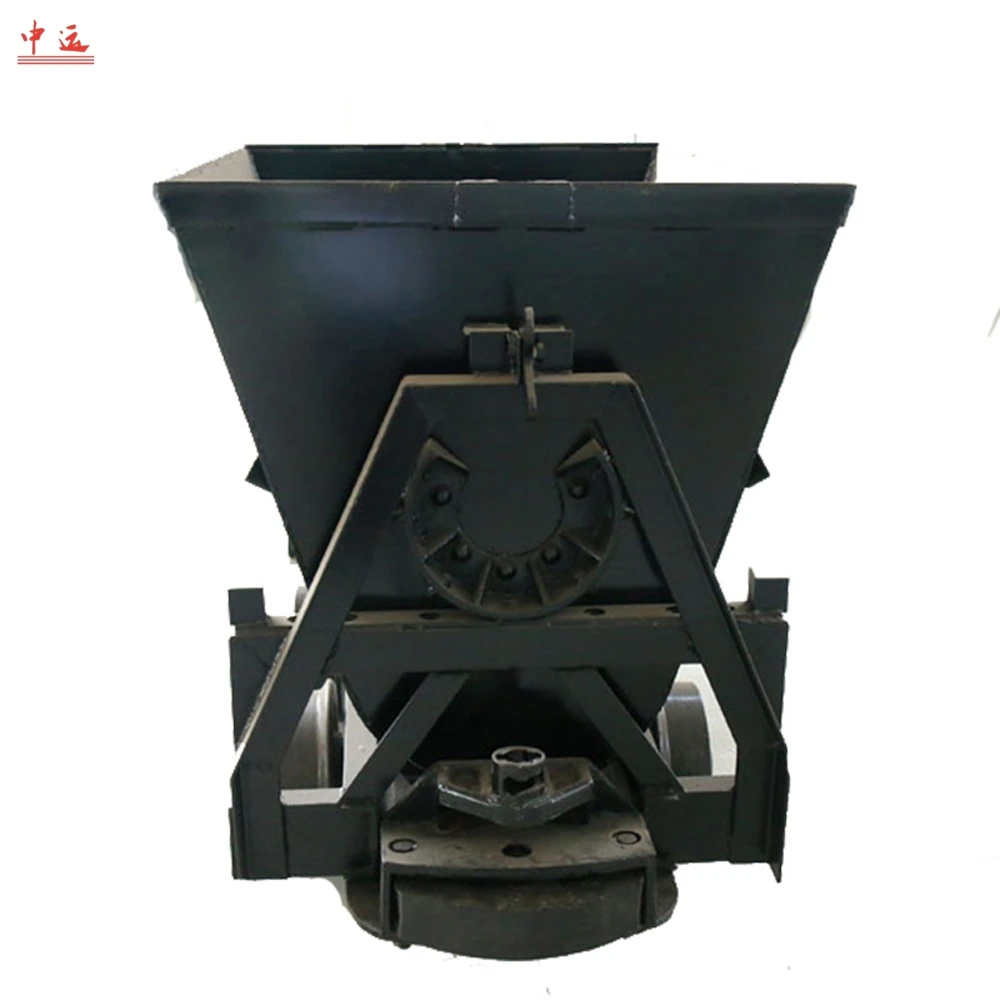

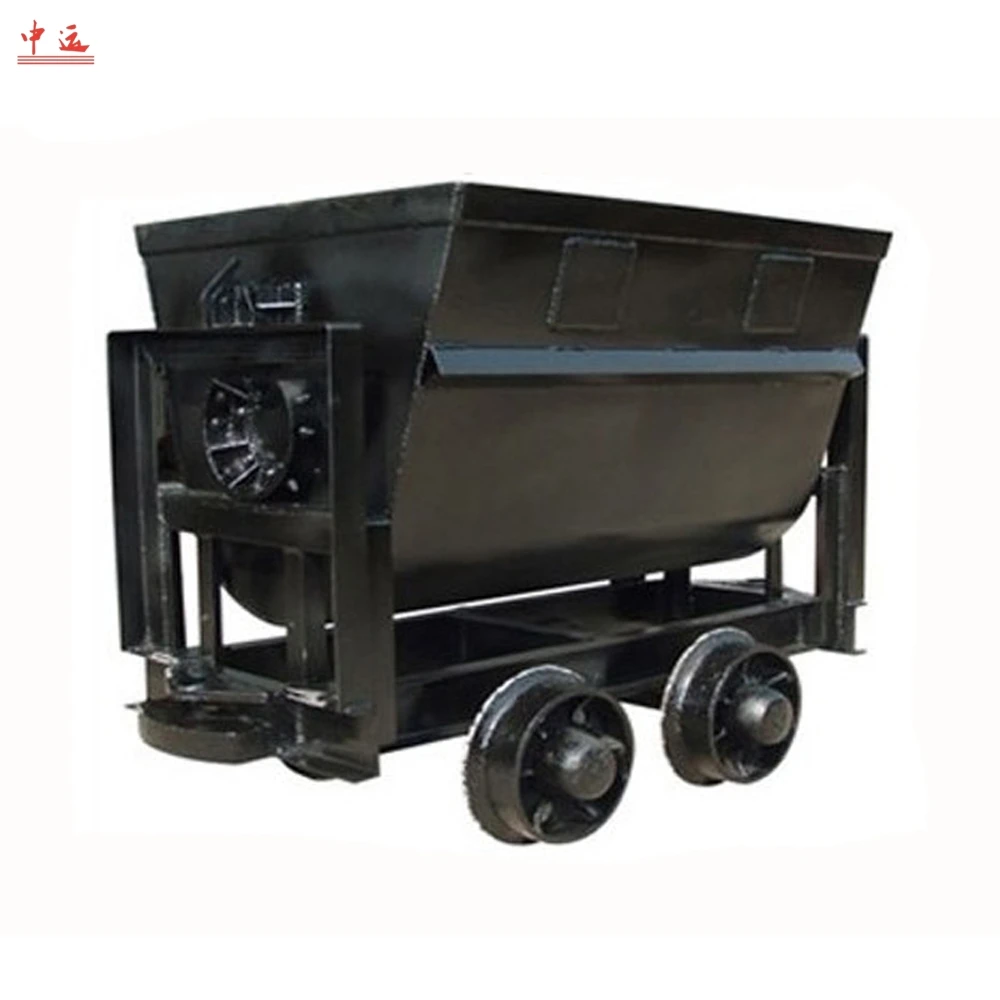

Photos of KFU Series Bucket-tipping Mine Car
