Product Overview

Description


Product Description

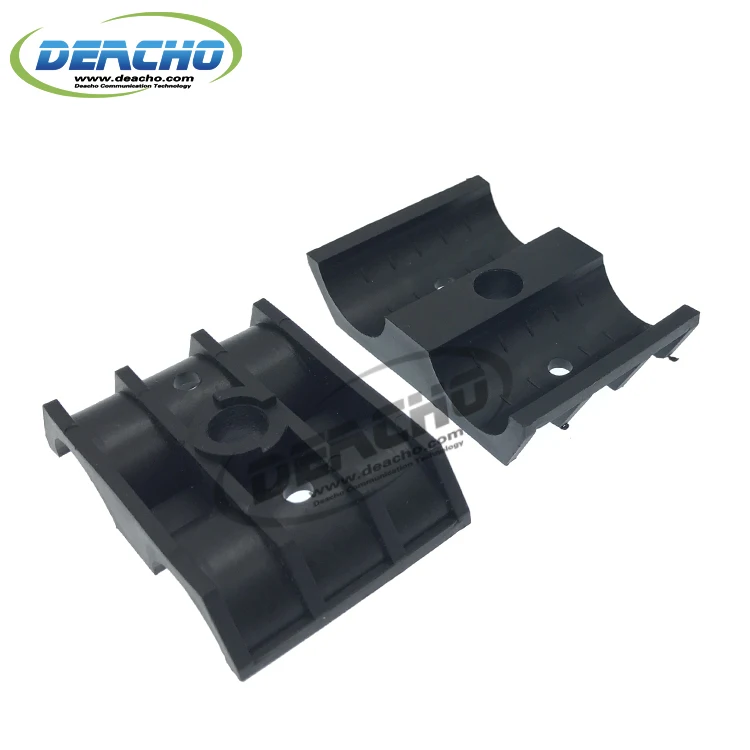

Coax cable support block for FO and DC cable

Description.

The Coax Support Block is a block hanger system designed specifically for wireless applications. Stackable space saving units and provide versatility in all applications, reducing material and installation costs by requiring only one M8 or 3/8" or M10mm threaded rod to secure up to six runs of coax. Coax Support Blocks are manufactured from a durable weather resistant long glass Polypropylene or PA or POM. Thermal, chemical, and UV resistance ensure long term integrity in extreme environments.

Application.


Size:1/4", 3/8", 1/2"S, 1/2", 7/8", 1-1/4", 1-5/8" etc. or use with grommet rubber for different size cable freely.


Type: 1 hole type, 2 hole type, 3 holes type, self-locking type and leaky cable type


Packing: Plastic bag + carton

Technical Specifications.

\t
Item No.
\t
SB2-17-L
\t
Material
\t
PP
\t
Outline Size
\t
53.7*23.6*35.5mm
\t
Product Type
\t
Through core type, 2 holes
\t
Inner Hole Size
\t
16.2*18.5mm
\t
Operating Temperature
\t
-40℃ to +75℃
\t
Screw Hole
\t
M8
\t
Salt Spray Test
\t
96h, No Rustiness
\t
Compatible Cable Size
\t
'16.5-17.5 mm
\t
UV
\t
Protected

Regular Size.

\t
Part No.
\t
Description
\t
Part No.
\t
Description
\t
SB1-14S
\t
through core type, 1 hole for 1/4" s cable
\t
SB2-14S
\t
through core type, 2 hole for 1/4" s cable
\t
SB1-38
\t
through core type, 1 hole for 3/8" cable
\t
SB2-38
\t
through core type, 2 hole for 3/8" cable
\t
SB1-12S
\t
through core type, 1 hole for 1/2"S cable
\t
SB2-12S
\t
through core type, 2 hole for 1/2"S cable
\t
SB1-12
\t
through core type, 1 hole for 1/2" cable
\t
SB2-12
\t
through core type, 2 hole for 1/2" cable
\t
SB1-78
\t
through core type, 1 hole for 7/8" cable
\t
SB2-78
\t
through core type, 2 hole for 7/8" cable
\t
SB1-114
\t
through core type, 1 hole for 1-1/4" cable
\t
SB2-114
\t
through core type, 2 hole for 1-1/4" cable
\t
SB1-158
\t
through core type, 1 hole for 1-5/8" cable
\t
SB2-158
\t
through core type, 2 hole for 1-5/8" cable
\t
SB3-7721
\t
through core type, 3 holes for 7+7+21mm
\t
SB2-12S78
\t
through core type, 2 holes for 1/2"S, 7/8"
\t
SB3-38
\t
through core type, 3 holes for 3/8"
\t
SB3-12
\t
through core type, 3 holes for 1/2" cable
\t
SB3-16.5
\t
through core type, 3 holes for 16.5-17mm
\t
SB3-5
\t
through core type, 3 holes for 5mm
\t
SB3-7
\t
through core type, 3 holes for 7mm
\t
SB2-14-S
\t
through core type, 2 holes for 14mm
\t
SB2-15-M
\t
through core type, 2 holes for 12.5-15mm
\t
SB2-17-L
\t
through core type, 2 holes for 16.5-17.5
\t
SB2-714
\t
through core type, 2 holes for 7 &14mm
\t
SB1-CO12
\t
through core, clip-on type, 1 hole for 1/2"
\t
SB1-CO114
\t
through core, clip-on, 1 hole for 1-1/4"
\t
SB1-SL38
\t
self-locking type, 1 hole, for 3/8"
\t
SB1-SL12
\t
self-locking type, 1 hole, for 1/2"
\t
SB1-SL78
\t
self-locking type, 1 hole, for 7/8"
\t
SB1-LC12
\t
Leaky cable type, for 1/2"
\t
SB1-LC78
\t
Leaky cable type, for 7/8"
\t
SB1-LC114
\t
Leaky cable type, for 1-1/4"
\t
SB1-LC158
\t
Leaky cable type, for 1-5/8"

Application.
