Main features
« KVM (keyboard, video ,mouse ) access over IP and analogous telephone line (modem needed) .
« Full control under any OS, in BIOS mode , during boot, at Blue Screen
« 256 bit SSL encryption of all transmitted data and certificate management
« Port to connect a user console for direct analogous access to KVM switch
« Can be used with most standard KVM
« To switch the host computer though the hotkey or OSD menu, which can manage up to 1024 computers.
« Password security protection, only authorized users can view and manage on-line computer.
« Support a variety of brand industrial computer and the server: EVOC/Lenovo/IBM/DELL/HP/SUN, etc
« Support various operating system: Microsoft, Linux, Unix, etc.
Introduction
« IP-KVM switch can save your Money ,Time, Space, Equipment and Power . IP KVM switch defines a new class of remote KVM switch devices. IP KVM switch combines digital remote KVM access via IP networks with comprehensive and integrated system management.
« IP KVM Switch provides convenient, remote KVM access and control via LAN or internet . it captures, digitizes, and compresses videa signal and transmits it with keyboard and mouse signals to and from a remote computer. IP KVM switch provides a non-intrusive solution for remote access and control . Remote access and control software runs on its embedded processors only but not on mission-critical servers, so that there is no interference with server operation or inpact on network performance.
Specification
Model | IP KVM-1716C | ||
Computer connect | Direct : 16 (Max:512) | ||
Keyboard | 104 Mechanical mute Keyboard | ||
Mouse | Touchpad | ||
Switch Mode | Hotkey , OSD Menu , Panel Button | ||
Auto-scanning interval | 5~99 second | ||
LCD resolution | 1280 *1024 DDC2B | ||
Safety performance | Provide access control list function | ||
Power input | DC12V input , (AC100-240V 47-63Hz, 35W ) optional | ||
Cable Port | Local console | Keyboard / Mouse/ Display (2*USB +1* HDB-15 female ) | |
Connector port | 16 * RJ45 ( CAT5 port ) | ||
Power supply | 1 * 3 pin AC power supply socket | ||
Support Daisy-chain series connectors (8 level ) | |||
LED Indicator | Power indicator | 2 | |
Selection indicator | 16 | ||
Boost on-line indicator | 16 | ||
Num Lock | 1 | ||
Caps Lock | 1 | ||
Scroll Lock | 1 | ||
Work environment | Operating Temp | -10℃~60℃ | |
Storage Temp | -20℃~70℃ | ||
Humidity | 0%-95%RH | ||
Cabinet Material | high-strength and Anti-corrosive steel plate | ||
Color | Insulated black (optional) | ||
For Cabinet | 800-1040mm | ||
Net weight | 13KG-17KG | ||
Gross Weight | 17KG-22KG | ||
Dimension | 568*480*44mm(L x W x H) | ||
Package | 708*608*195mm (L x W x H) | ||
Certificate | CE , FCC , RHOS | ||
Ordering information

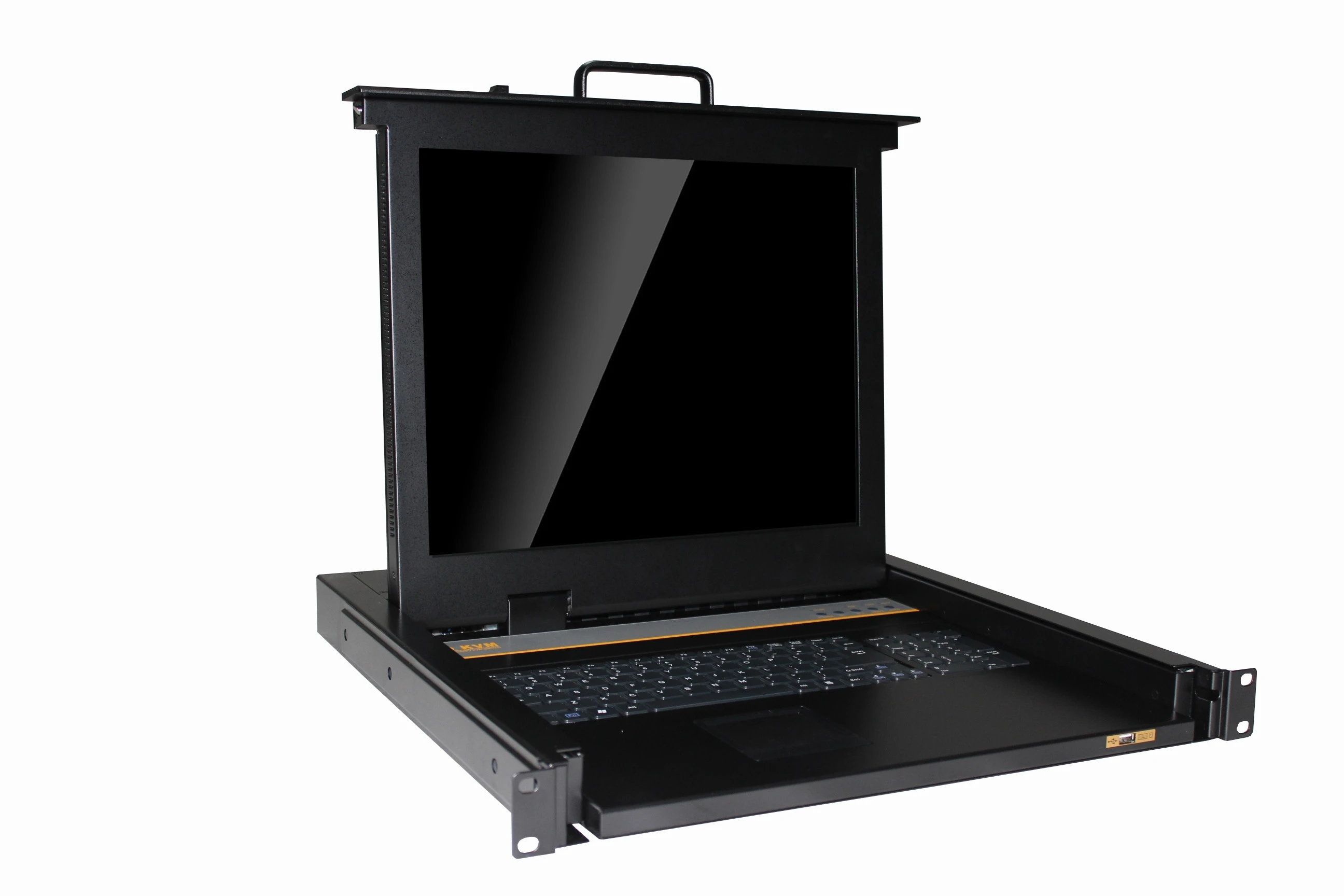

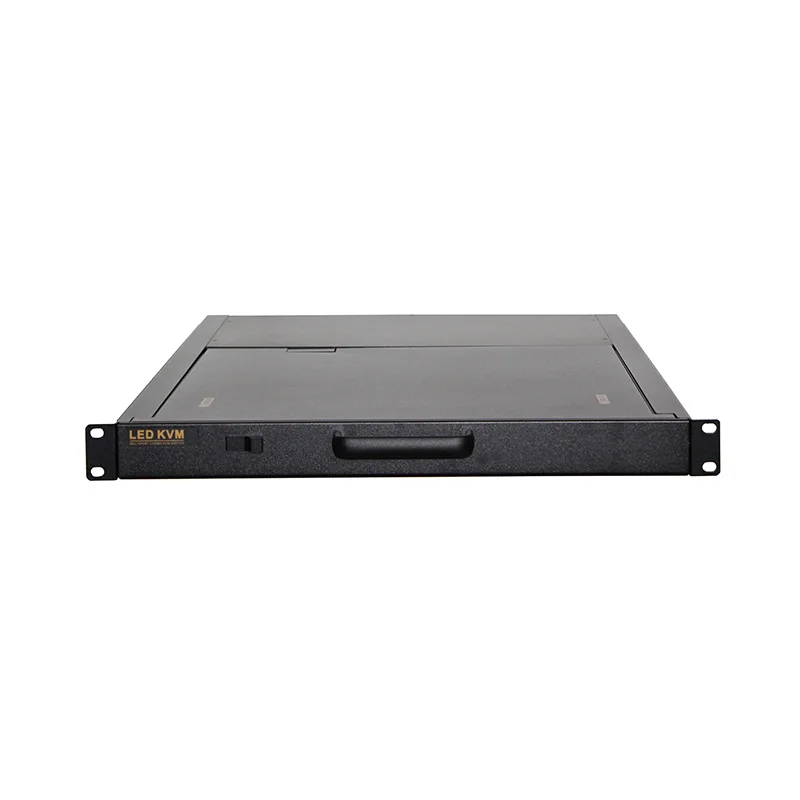

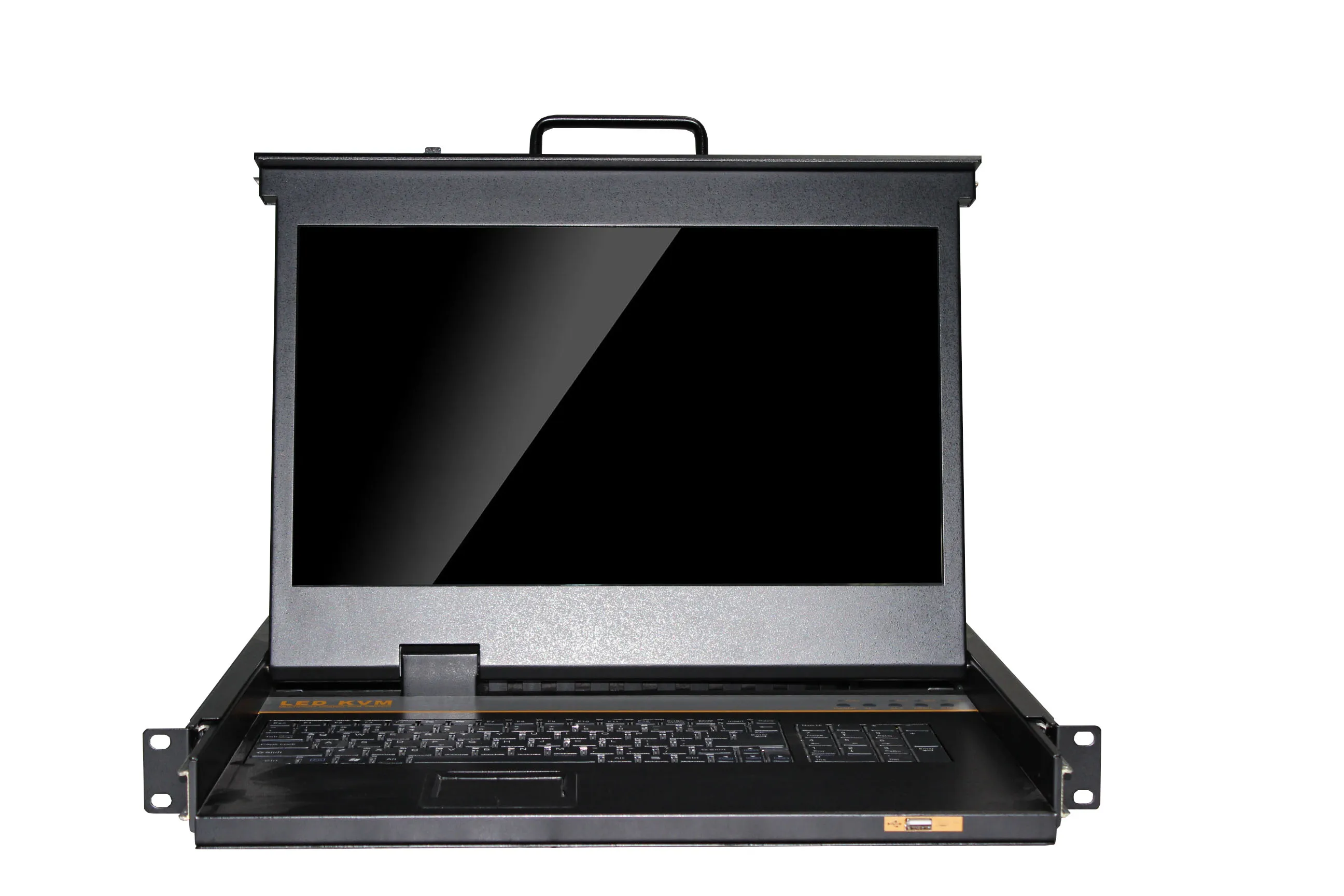

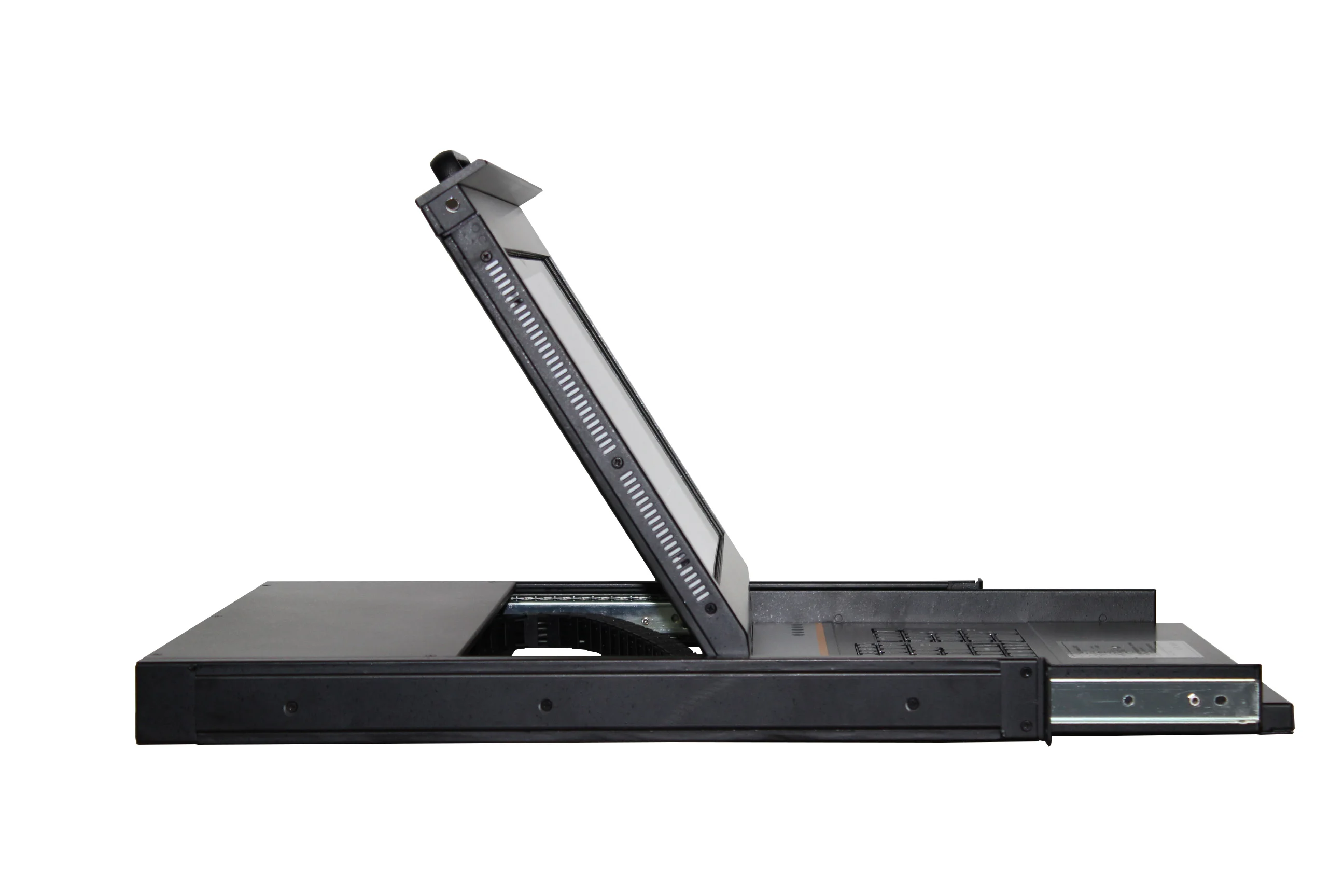

IP KVM - 1716C | 1U Rack mount 17" TFT LED KVM Drawer with 16 port over IP |

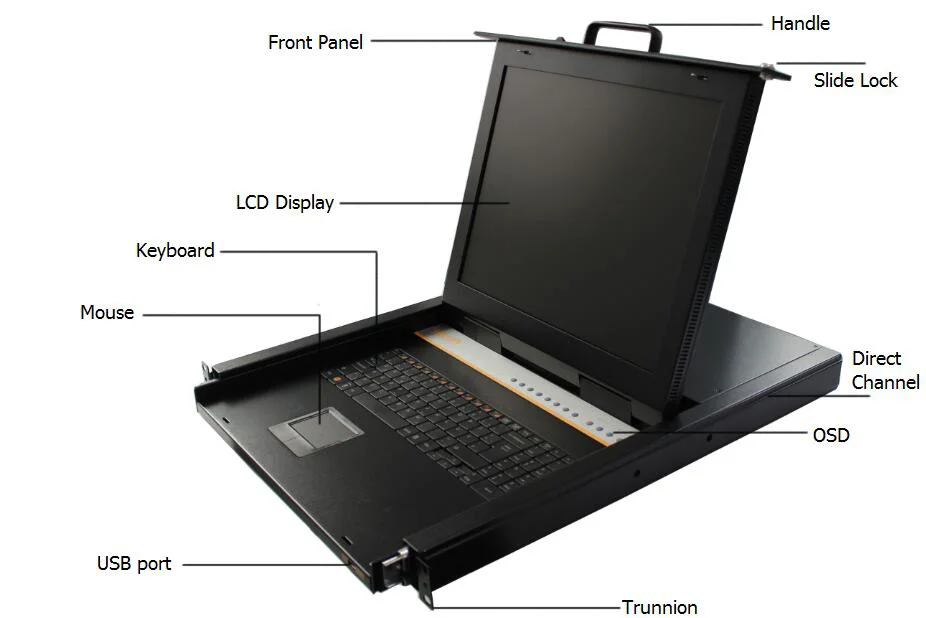

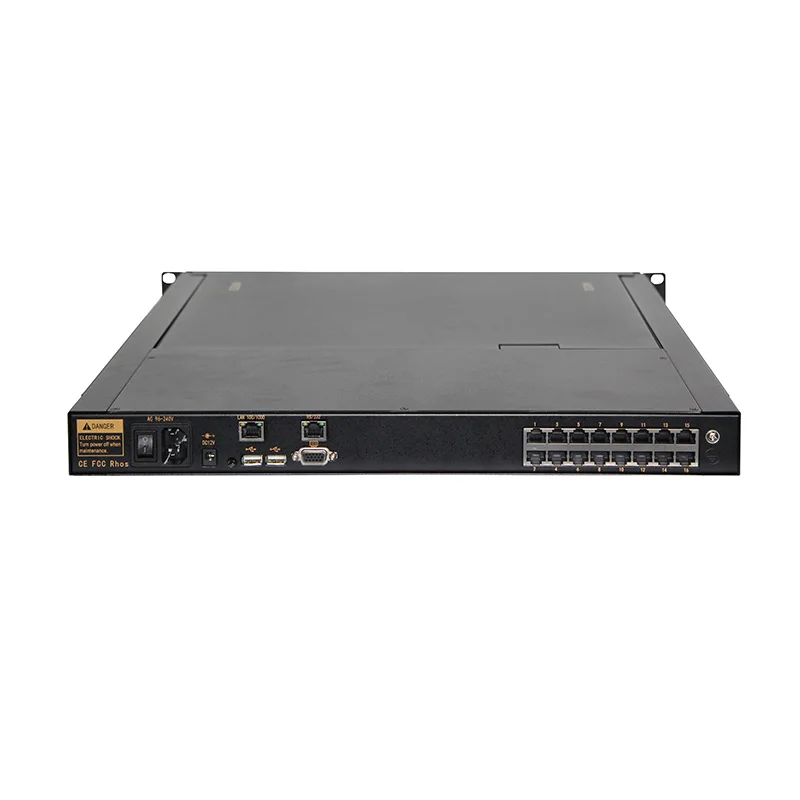

IO View
