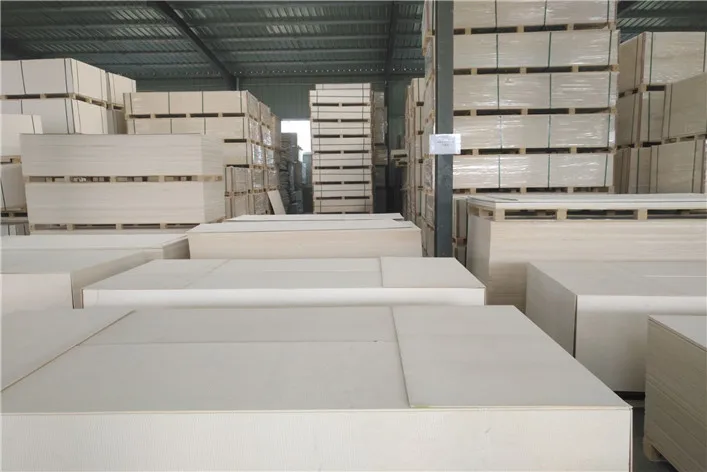

Econic exterior Sheathing MGO Board
- Category: Magnesium Oxide Boards >>>
- Supplier: Zhangjiagang Well Young Material Co. Ltd.
Share on (60810794323):
Product Overview
Description
Product Description
MgO board (also called Magnesium Oxide board, MgO Panels and so on) is a new green building material, with properties that give advantages in many construction structures. MgO Board contributes to a more efficient, profitable, environmentally and health-friendly construction production. It has excellent fire and sound properties, sensitive to moisture, very shock-resistant and produced entirely without environmentally and health-hazardous raw materials. This board is very easy to process, and can be advantageously cut and broken as a plasterboard.

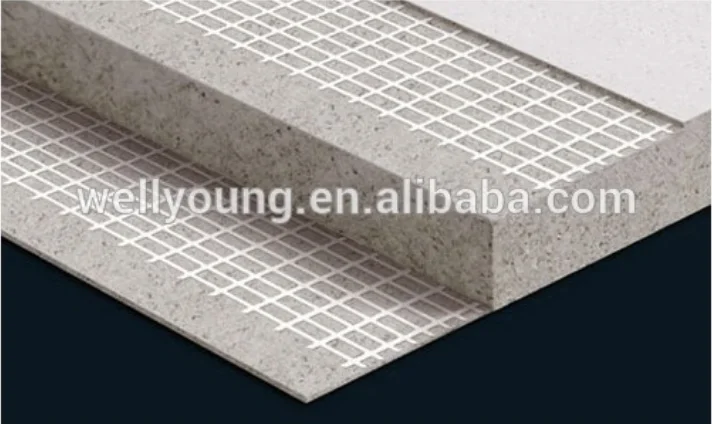

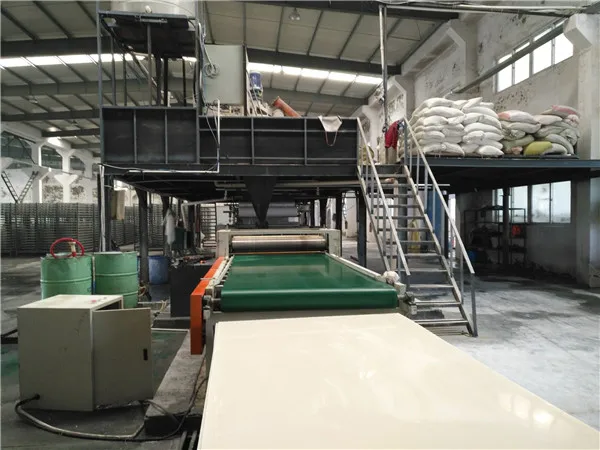

Wellyoung brand MgO Board is mainly made of magnesium oxide, magnesium sulphate or magnesium chloride, perlite and wood fiber. As reinforcement, Wellyoung is using the high quality alkaline glass fiber mesh in the boards. Production takes place through a process, where water is added to the material and the curing takes place naturally without heat supply or other processing. This production ensures minimal energy consumption and a very low impact on the environment.
Fire Resistance limit:
9mm Wellyoung MagPanel could be applied for >= 120mins fireproof lightweight partition wall;
12mm Wellyoung MagPanel could be applied for >= 180mins fireproof lightweight partition wall.
The data is for reference only. Please contact us for more details on fireproof MagPanel in different specifications.
Specifications
| TEST ITEM | UNIT | TEST RESULT | |
| Bending Strength | Mpa | 6MM | Width: >18 |
| Length: >15 | |||
| 9MM&12MM-18MM | Width: >16 | ||
| Length: >13 | |||
| Water Absorption | % | <10% | |
| Thermal Contraction | % | <0.14(w/mk) (30 °C ) | |
| Density | g/cm3 | 0.9-1.15 | |
| Freezing Resistance | After 25 Freezing cycles | No Delaminated | |
| Combustibility | - | Incombustible (class A1) | |
| Fire Resistance Limit | Min | 2 Layers Mineral Wool:180 | |
| Thermal Conductivity | W/(m • k) | <0.12 | |
| Wall Average Acoustical Deduction Factor | dB | 2 Layers 50mm Mineral Wool: 44 | |
| Impact Strength | kg/C | :2.0 | |
| Water resistance | no condensation on the opposite side | ||
Benefits & Advantages:
- Non-Toxic material safe to cut
- Resistance to fire, moisture, and wood boring insects
- Lightweight – easy to nail & screw
- ASTM & ANSI tested
- Less energy required to install
- Long lasting materials – reducing repair and replacement costs
- No silica-based Portland cement
- Post-consumer recycled content
- Gypsum-Free
- Advanced Magnesium cement replaces ordinary Portland cement
- Solid construction – no laminations

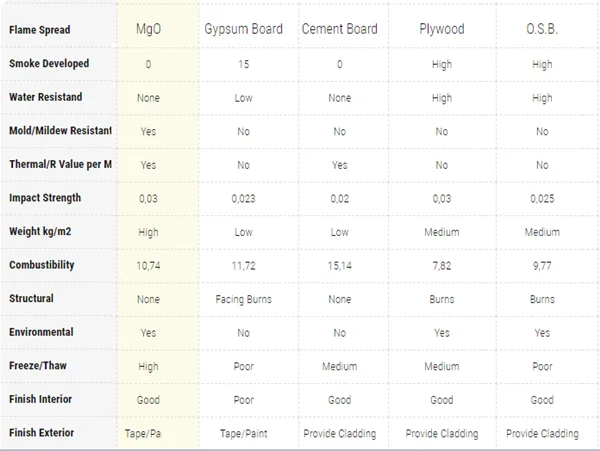

Comparison:

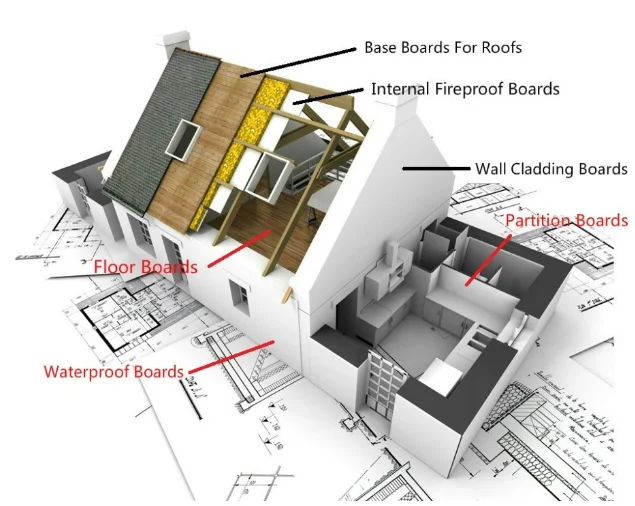

Application and Recommended thickness use in construction
- Suspended ceilings – 6 mm
- Paneling of exterior walls, under bay space and balconies – 10 mm
- Lining of interior walls – 6 mm
- Construction of self-supporting wall structures and partitions – 10 mm
- Floors – 2x12 mm
- Roofs and insulation under tiles or waterproof materials for flat roofs – 10-12 mm
- Formwork – more than 18 mm (after consulting the engineers/builders)
Packaging & Shipping

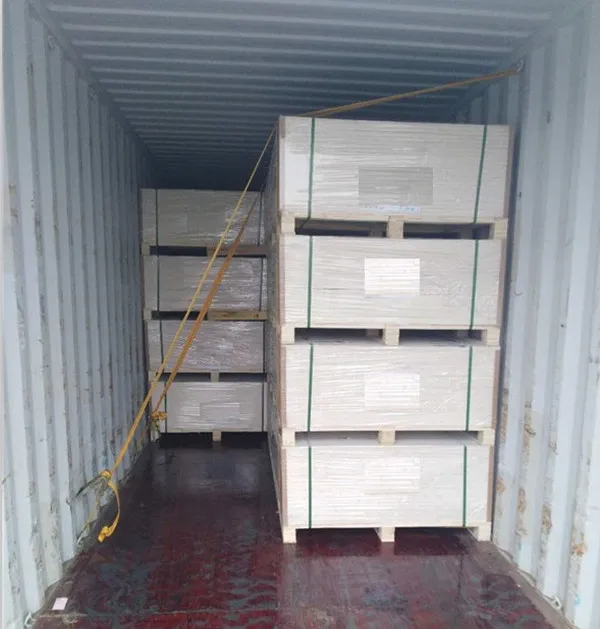

Packing & Loading: in bulk or pallet packing
Certifications
Exhibition
Company Information
Zhangjiagang Wellyoung Materail Co. Ltd is a professional manufacturer of Magnesium Oxide board (also called Magnesium Sulfate board, MgO board) and other related products in China. Our products have included Magnesium Oxide board, PVC laminated MgO ceiling tiles, HPL laminated MgO board, Decorative acoustic MgO panels, MgO SIPs and so on.
Wellyoung has focused on manufacturing MgO boards for more than 15 years, and our factory are having the Intertek factory Audit every three months, which means the good and stable quality boards are always guaranteed from Wellyoung factory. Wellyoung always put the quality in the first place, and aims to make all our customers satisfied with our boards. Besides the normal factory quality control, Wellyoung also did a lot of tests on our own boards, which are based on different standards, such as TUV, Intertek, ZUS and so on. Right now, Wellyoung boards have been exported to more than 70 countries or areas in the world, and have enjoyed a very good reputation in the market.
