Product Overview

Description



Company Introduction




Shandong Xingdou is a professional manufacturer and designer of rack and pinion hoist and lift.
SOLUTIONS PROVIDER, TECHNOLOGY PROVIDER, MANUFACTURER !


Builder's hoist, Tower crane mini hoist, industrial lift, mast climbing platform, Mast climb working platform manufacturer.

Shandong Xingdou Equipment, the Company began to develop foreign markets 10 years ago. Since then it has exported to more than 40 countries and regions.




Its main products include:
PLC Building Hoist.
Low, medium, and high-speed variable frequency Building Hoist.
Special purpose construction lifts, such as power plant cold water tower construction lifts, mini rack construction lifts for tower crane, and mine construction lifts.
Inclined construction lifts.
Small rack observation lift.
High-level test bed maintenance lift.
Other OEM type rack and pinion vertical lift.

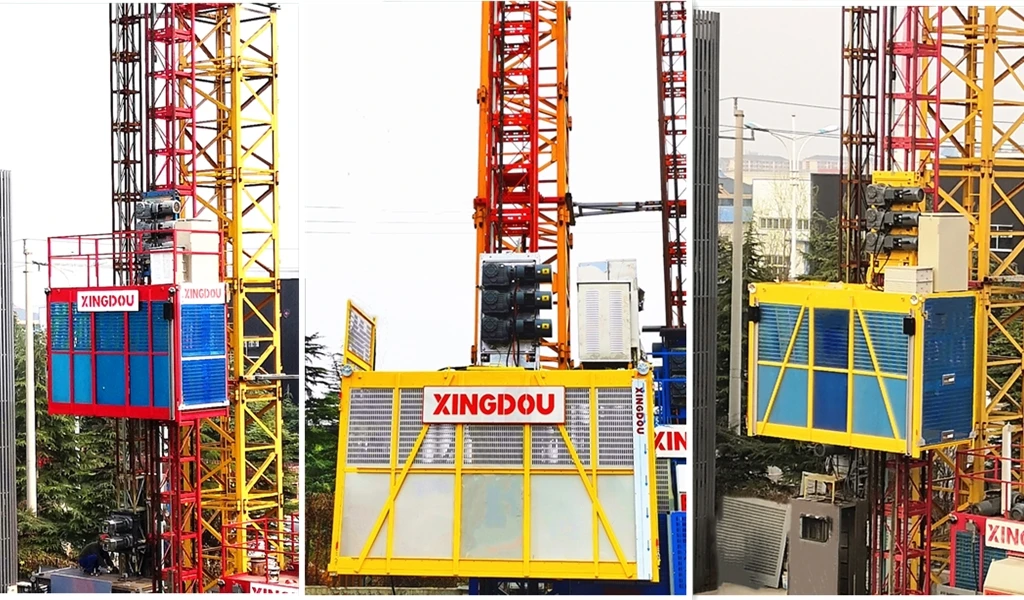

Showing case









Product description


 Intelligent PLC panel building builder freight lift construction equipment construction hoist construction lifter with CE approved





Common PLC control direct speed Building hoist :



Specification
Type
Lifting Capacity
Lifting Speed
Motor Power
Safety Device

Single cage without counter weight
SC100
1000Kg




33m/min
2*11Kw
SAJ 30-1.2
SC150
1500Kg
2×13Kw
SAJ 40-1.2
SC200
2000Kg
3×11Kw
SAJ 40-1.2

Twin cages without counter weight
SC100/100
1000Kg×2EA
2×11Kw×2EA
SAJ 30-1.2
SC150/150
1500Kg×2EA
2×13Kw×2EA
SAJ 40-1.2
SC200/200
2000Kg×2EA
3×11Kw×2EA
SAJ 40-1.2


Low speed inverter control building hoist :


Specification
Type
Lifting Capacity
Lifting Speed
Motor Power
VFD
Safety Device


Single cage without counter weight
SC100L
1000Kg
0~33m/min    0~40m/min
2×11Kw
30Kw
SAJ 30-1.2
SC150L
1500Kg
0~36m/min     0~46m/min
2×13Kw 2×15Kw
30Kw   37Kw
SAJ 40-1.2
SC200L
2000Kg
0~40m/min     0~46m/min
2×15Kw 3×11Kw
37Kw
SAJ 40-1.2

Twin cages without counter weight
SC100/100L
1000Kg×2EA
0~40m/min
2×11Kw×2EA
30Kw×2EA
SAJ 30-1.2
SC150/150L
1500Kg×2EA
0~36m/min 0~46m/min
2×13Kw×2EA2×15Kw×2EA
30Kw×2EA37Kw×2EA
SAJ 40-1.2
SC200/200L
2000Kg×2EA
0~40m/min 0~46m/min
2×15Kw×2EA2×11Kw×2EA
37Kw×2EA
SAJ 40-1.2


Mediaum speed inverter control building hoist:



Specification
Type
Lifting Capacity
Lifiting Speed
Motor Power
VFD
Safety device
Single cage without counter weight
SC 100 M
1000Kg
0~60m/min
3×13Kw
45Kw
SAJ 30-1.4
SC 150 M
1500Kg
0~63m/min    0~60m/min
3×15Kw 2x19Kw(87Hz)
45Kw 55Kw
SAJ 40-1.4
SC 200 M
2000Kg
0~60m/min   0~63m/min   0~70m/min      0~75m/min
2×23Kw(87Hz) 3×15Kw   3×19Kw(87Hz) 3×23Kw(87Hz)
55Kw 55Kw 75Kw 75Kw
SAJ 40-1.4   SAJ50-1.6 SAJ50-1.6 SAJ50-1.6
Twin cages without counter weight
SC 100/100 M
1000Kg×2EA
0~60m/min
3×13Kw×2EA
45Kw
SAJ 30-1.4
SC 150/150 M
1500Kg×2EA
0~63m/min   0~60m/min
3×15Kw×2EA 2x19Kwx2EA
45Kw 55Kw
SAJ 40-1.4
SC 200/200 M
2000Kg×2EA
0~60m/min    0~63m/min  0~70m/min  0~75m/min
2×23Kw×2EA(87Hz)3×15Kw×2EA 3×19Kw×2EA(87Hz)3×23Kw×2EA(87Hz)
55Kw 55Kw 75Kw 75Kw
SAJ 40-1.4 SAJ50-1.6 SAJ50-1.6 SAJ50-2.0




Hight speed inverter control building hoist:



Specification
Type
Lifting Capacity
Lifiting Speed
Motor Power
VFD
Safety device
Single cage without counter weight
SC 200 H
2000Kg
0~80m/min  0~96m/min
3×26(87Hz)     3×18.5(87Hz)
 90Kw  110Kw
SAJ 50-2.0
Twin cage without counter weight
SC 200/200 H
2000Kg×2EA
0~80m/min 0~96m/min
2×3×26(87Hz) 2×3×18.5(87Hz)
90Kw×2EA 110Kw×2EA
SAJ 50-2.0


Remarks:
1. The above data 87Hz means VFD motor.
2. Frequency Inverter (VFD) Schneider, Siemens, Yaskawa or Chinese domestic high quality brandcan be chosen by customer.
3. All the technical datas will be changed following with our innovation. Before placing an order,Please contact us for final confirmation.



1.Standard cage inner size: 3200×1500×2200mm, 3200×1500×2400mm or OEM as real situation (L×B×H)

2.Cage Length can be OEM: 1000~4500 mm
3.Mast section size: 650×650mm
4.Maximum Lifting Height: 400m
5.Power Source: 200V~380V~480V,50Hz/ 60Hz



Builder's hoist/ building hoist
The Cabin&Cage, Mast Section, wall tie and all other parts, we can do OEM for customers, and we can make the proper solution
according to customer building situation
Industrial Lift/Mini hoist
OEM as customer site situation or customer detailed requirement.
OEM as customer's tower crane mast section and site situation.


Builder's hoist/ building hoist

The Cabin&Cage, Mast Section, wall tie and all other parts, we can do OEM for customers, and we can make the proper solution according to customer building situation

Industrial Lift


OEM as customer site situation or customer detailed requirement


Mini hoist for Tower crane operators


OEM as customer's tower crane mast section and site situation.




Materials hoist
Supply safety and stable working performance materials hoist
Mast climber, Mast climbing platform
Semi-Automatic PET Bottle Blowing Machine Bottle Making Machine Bottle Moulding Machine.


Maker technology


Proffessional Manufacturer of rack and pinion building hoist.

Intelligent PLC panel building builder freight lift construction equipment construction hoist construction lifter with CE approved

1. -All Production Line adopt special fixture, mould, gauge made by us to ensure all detailed size.
2.- Select high quality raw material from China Bao Steel Group, other like motors ,reducers, gearbox, safety device with low noise, electrics is schneider or Korea repute brand with reliable quality
3.- Special design,compact and reasonable structure,easy to installation and adjustment.
4.- Each equipment should be test and make record in Factory, all details will be adjust like motor brake, safety device operation, all limit switch operation, dropping test, loading test, and mast section erection test to ensure the completed equipment run well when take into use.











Packing&Shinping


Intelligent PLC panel building builder freight lift construction equipment construction hoist construction lifter with CE approved is the most important matter, but we can not ignore the importance of package. Well package can protect the product from crash, rust ,mess and so on. It is easy for our clients to identify different spare parts, easy loading and unloading. We pay much more attention to the details...
