Hollow Pin Metric Conveyor Chain (MC Series)


Chain No
MC28, MC56, MC112, MC224
Material
Carbon Steel or Stainless Steel
Pin
Seamed or Seamless
Rivet Type
Expansion riveting
Standard
DIN 8165
Note
In high speed condition and severe applications, Please contact with us for high precision chains designed specially.

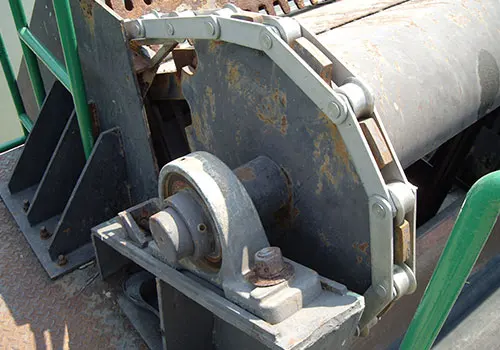

Chain Application:
Hollow Pin Metric Conveyor Chain (MC Series)

MC series metric conveyor chain is with hollow pin, utilised when fixing attachments through the hollow bearing pin. Attachments are usually bolted through the outer links, in order to avoid disrupting articulation.

There are many combinations of steel materials and specifications of component parts for different applications such as high fatigue resistant, strong and highly abrasion resistant, stable operation, strong and compact, highly wear resistant, etc.

If your chains with short working life, higher noise, or facing problem of broken parts, please contact with us.

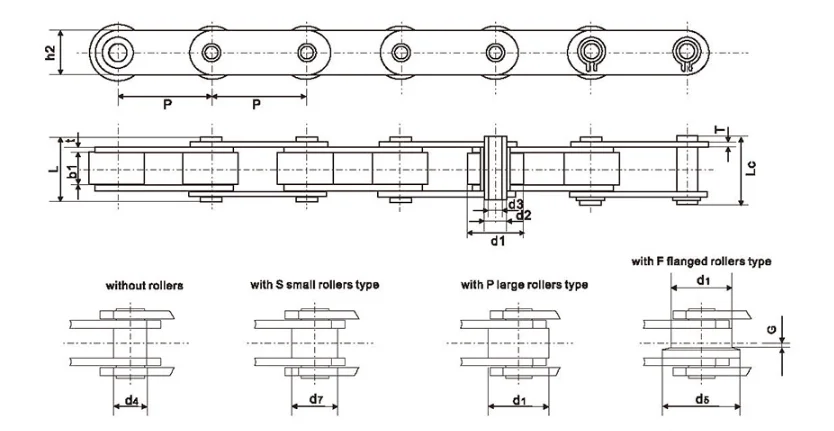

Size Information


If you can not find the same size from below form, please contact with us directly.





Chain No.
Pitch
Bush
Small Roller
Big Roller
Plate Thickness
Tensile Strength(kN)
MC28
63-80-100-125-160
17.5
25
36
3.5
40
MC56
80-100-125-160-200-250
21
30
50
4
80
MC112
100-125-160-200-250-315
29
42
70
6
160
MC224
160-200-250-315-400-500
41
60
100
8
330

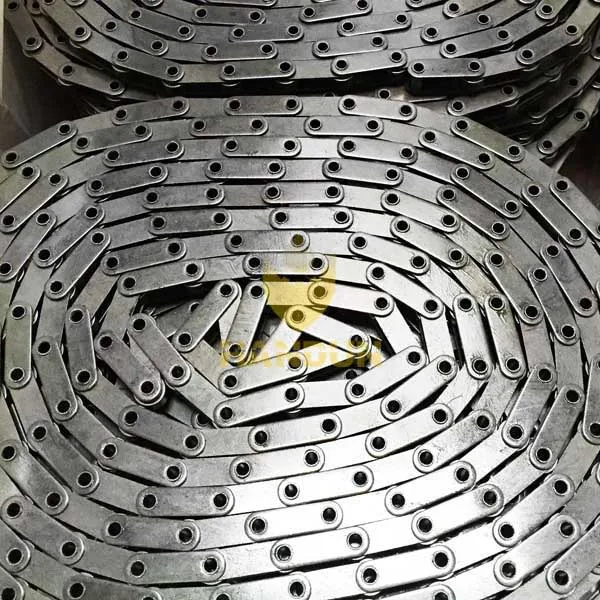

Detailed Images

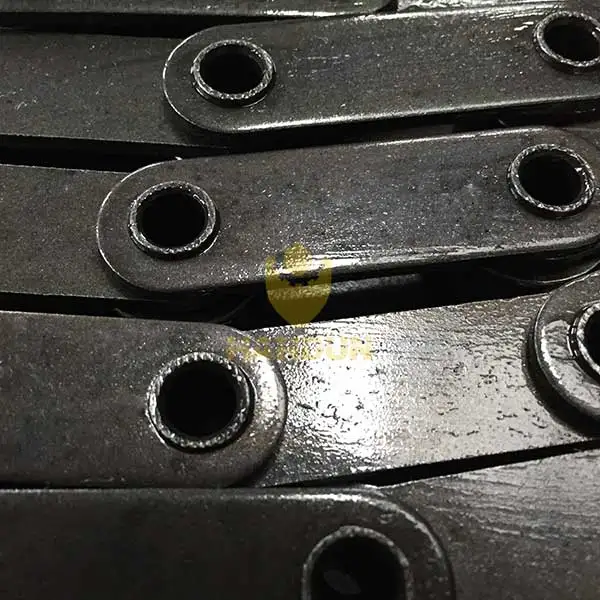

Our High Quliaty Engineer chain with good apperance, perfect clearance between chain parts. Special grease is coated between joint link to protect the chains. Use special oil in surface to keep the chain clean and anti-rust.




Related Products




Packing&Shipping


The engineer chains are cut into 2 meter or special links. Outer packed in poly-wood cases, steel cases or pallects according to customers' requirement. If you need special packing way, please contact with us.




After Sales Service


Technical Support
The above chart shows the most common chain failures and causes, but not the only ones.

If you face problem of chain broken, it is best to contact with us with broken parts photoes and chain application information.


Company Introduction


Hangzhou Handun Machinery Co., Ltd is the trading company of Zhuji Chain General Factory. As China engineer chain specialist, our factory has started in 1972, produced full range of industry chains. Since 2005, we started to cooperate with HITACHI, focusing on design and produce high quality engineer chains. Now, our products have been extended to industry chain, engineer sprockets, couplings and chain conveyor system.
We have 3 brands to serve our customers: HANDUN brand for roller chain and agricultural chain, TJ brand for conveyor chain. Since 2018, we start to supply JOSO brand for high precision top quality engineer chain in China.
Serving lots of industry in China and cooperating with many famous company in the world, we hope to less the cost of ender chain users, not only by quality but also by service.




CNC Machines
Engineer Chain Assembling
Ipsen Multi Purpose Furnace


Germany Optical Spectrum Anlyzer
Chain Breaking Load Tester
Microhardness Tester







Our Advantage

1. Rich Experiences in Engineer chains.
More than 45 years experiences in Engineer Chain, more than 500 handred workers, 25 engineers in conveyor chain team and chain conveyor team, we serve for handreds of industry in China. As an industry partner, we cooperated with many famous companies in China.
We are familiar with working conditions in various industries.
2. High quality with Guarrantee.
We use high precision machines from Germany, Japan and Taiwan. Under the instruction of HITACHI, our engineer chain quality has reach a high level in the world.
There are several Top Engineer Chain Brands in the world cooperated with us. We learn from them to improve the quality step by step.
3. The target of our service is less cost for user.
It is impossible to produce high quality engineer chain according to drawings and specifications. Our engineers check the chain running site and find the solution to extend the chain working life and reduce downtime. For us, quality means "VALUE FOR MONEY".


FAQ


Q: Why the prices are very different for same size chain in China chain factories.
A: There are lots of ways to less the cost in chain production.
-The prices from some steel factory are cheaper but the physical properties are poor.
-Reduce production process: Plate material annealing, twice punching plate hole, centerless grinding,
shot peening, chain pre-strength, etc.
-Use cheaper material for pin, bush and roller.
-Use thinner chain plates.
-Shorter the heat-treatment time or overload in furnace each time.
Q: Why we can say we are China engineer chain specialist.
A: We have more than 45 years experiences in engineer chain, serving lots of industry giants in China.
During analysis lots of imported conveyor chain, we are familiar with the chain design and producing
process from the world first class chain factories.
