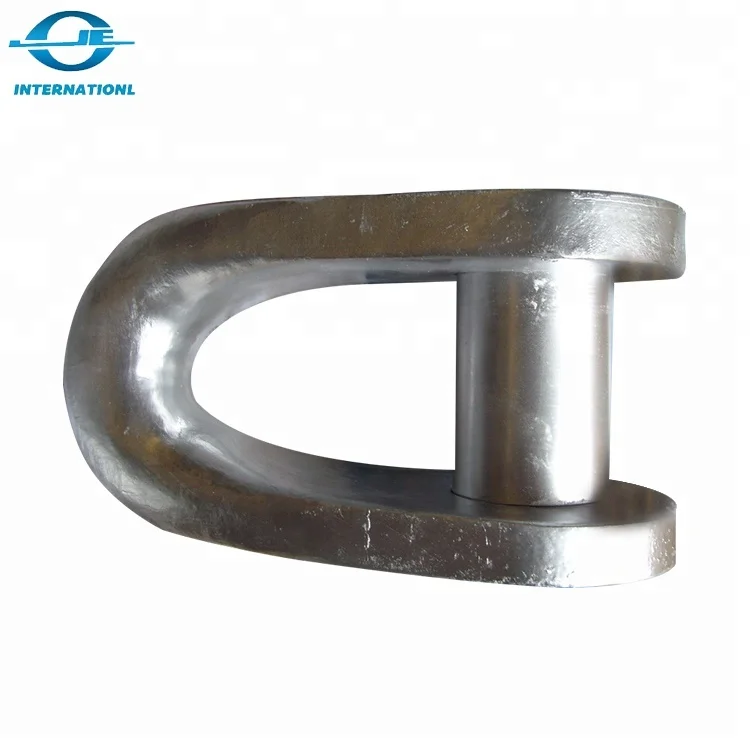

Tonsberg Mooring Links

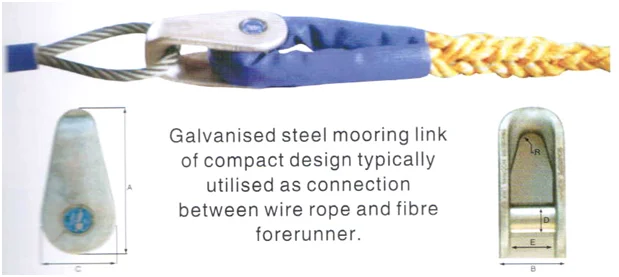

Galvanized steel mooring links of compact design typically utilized as connection between wire ropes and fibre forerunners.

Product Description

Product Name:

Tonsberg Mooring Links

Product Specification:

90T, 120T, 165T, 180T

Material:

Alloy Steel

Heat Treatment:

Quenched and Tempered

Standard:

European Standard

Applications:

Mooring line, general industrial and marine use

Tonsberg Mooring Links

Item No.

Forerunner Circ.

Size

Breaking Load

Proof Load

Safe Working Load

90T

7” – 9”

A=285mm

D=65mm

90 Tonnes

55 Tonnes

30 Tonnes

B=115mm

E=75mm

C=136mm

R=22mm

120T

9” – 11”

A=324mm

D=75mm

120 Tonnes

70 Tonnes

40 Tonnes

B=142mm

E=90mm

C=150mm

R=22mm

180T

11” – 15”

A=350mm

D=85mm

180 Tonnes

95 Tonnes

60 Tonnes

B=184mm

E=120mm

C=160mm

R=30mm
