Nikrothal 80 Cr20ni80 Nichrome Spring Wire Chromel A Spark Resistance Sheet

Product Overview

Description

Ni-Cr and Ni-Cr-Fe electric heating alloys

Nichrome electric heating alloys with high and stable resistance, corrosion resistance, surface oxidation resistance is good, a better under high temperature and seismic strength, good ductility, good workability and weldability.

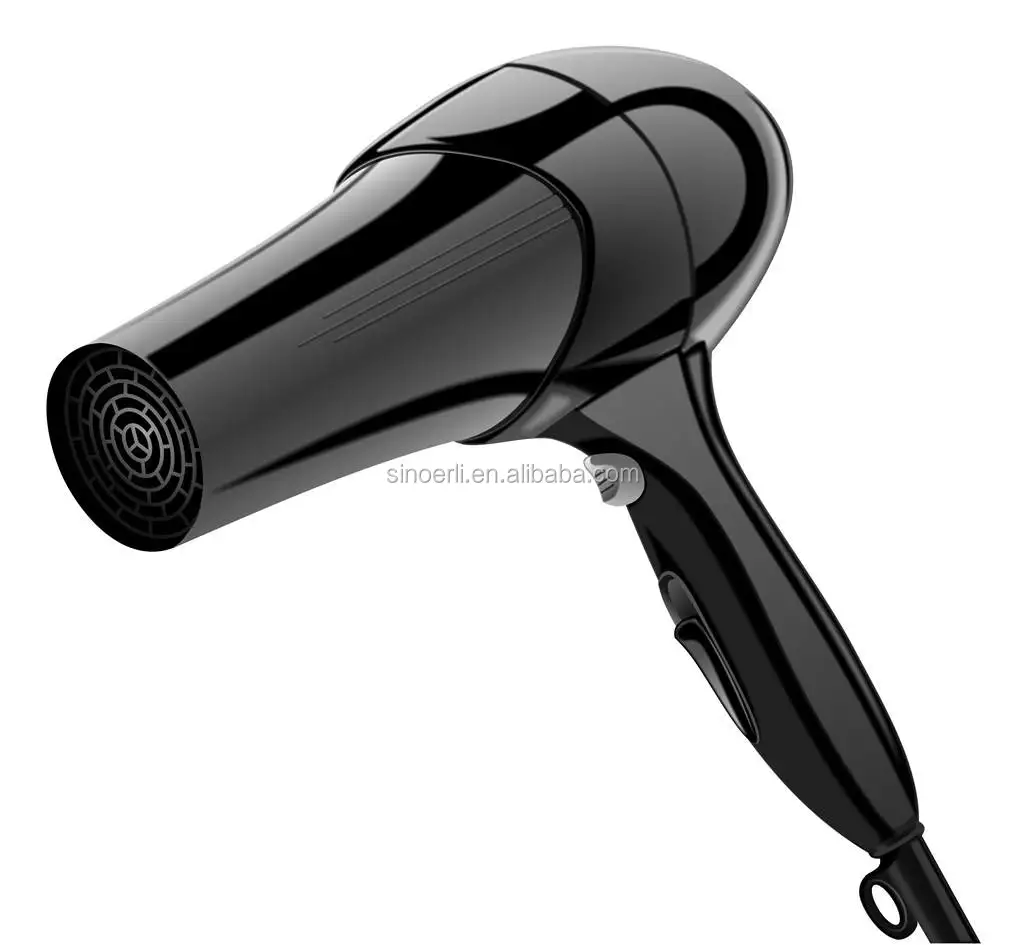

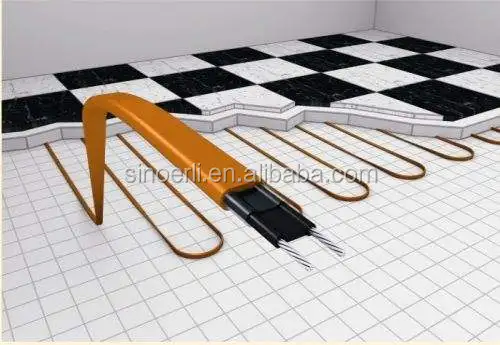

It is widely used in industrial electric furnace, metallurgy, household appliances, machinery manufacturing, heating element and resistor varistor other material.



Alloy Nomenclature Performance		Cr20Ni80	Cr30Ni70	Cr15Ni60	Cr20Ni35	Cr20Ni30
Main chemical composition (%)	Ni	Rest	Rest	55.0-61.0	34.0-37.0	30.0-34.0
	Cr	20.0-23.0	28.0-31.0	15.0-18.0	18.0-21.0	18.0-21.0
	Fe	≤1.0	≤1.0	Rest	Rest	Rest
Max. continuous service temp. of element (ºC)		1200	1250	1150	1100	1100
Resistivity at 20ºC (μΩ·m)		1.09	1.18	1.12	1	1.04
Density (g/cm3)		8.4	8.1	8.2	7.9	7.9
Thermal conductivity (KJ/m·h·ºC)		60.3	45.2	45.2	43.8	43.8
Coefficient of lines expansion (α×10-6/ºC)		18	17	17	19	19
Melting point (approx.) (ºC)		1400	1380	1390	1390	1390
Elongation at rupture (%)		>20	>20	>20	>20	>20
Micrographic structure		austenite	austenite	austenite	austenite	austenite
Magnetic properties		nonmagnetic	nonmagnetic	Weak magnetic	Weak magnetic	Weak magnetic

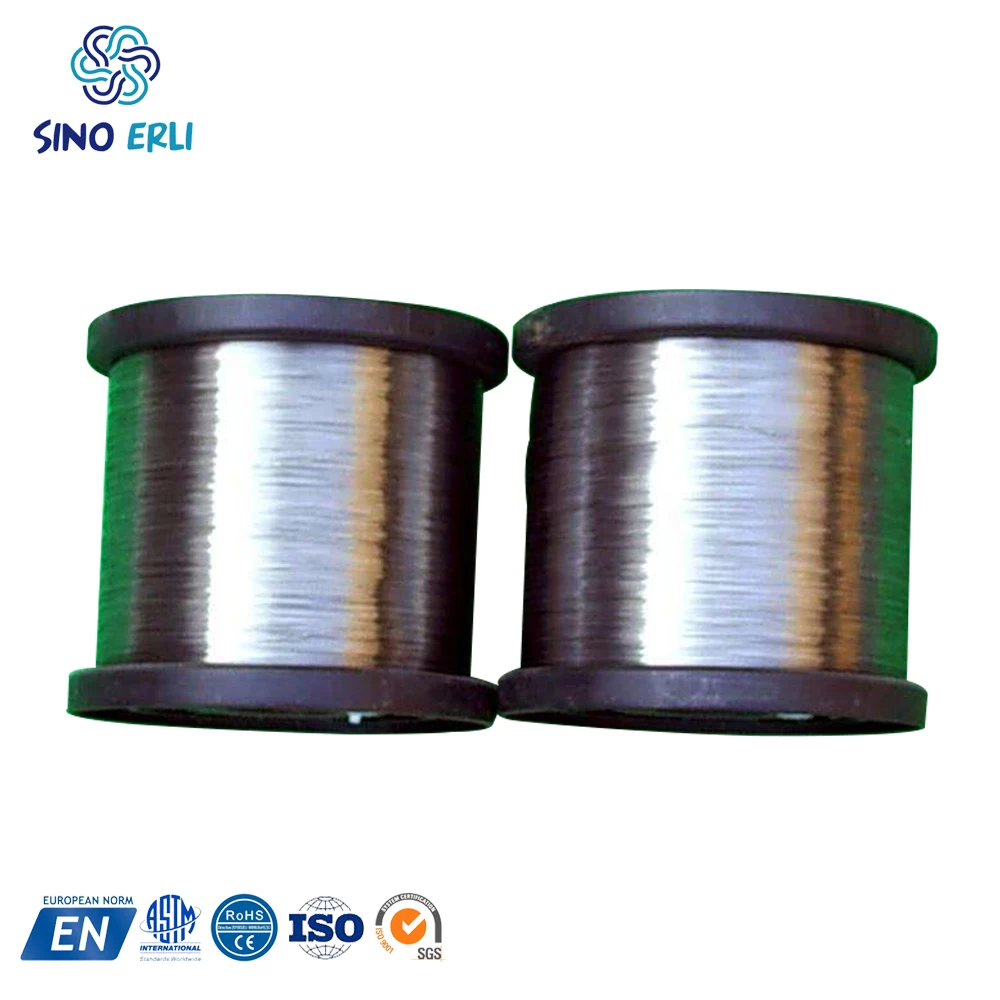

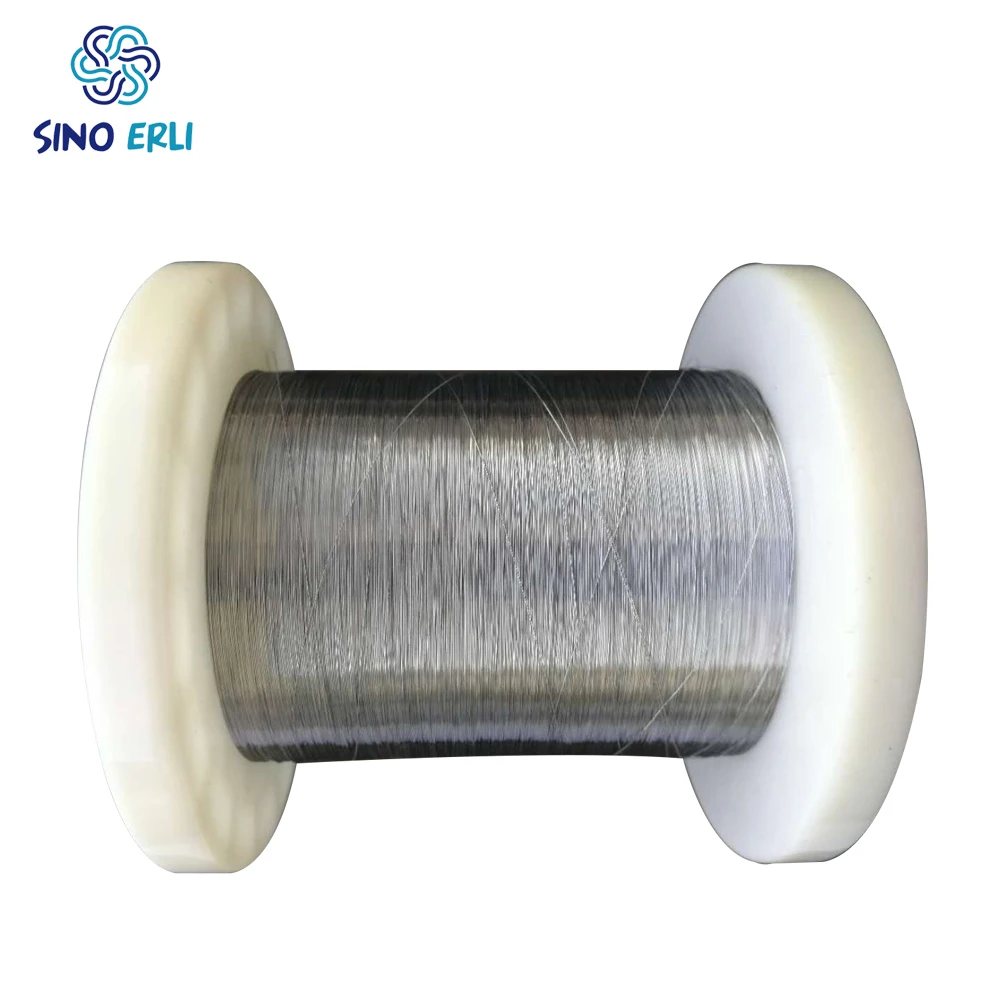

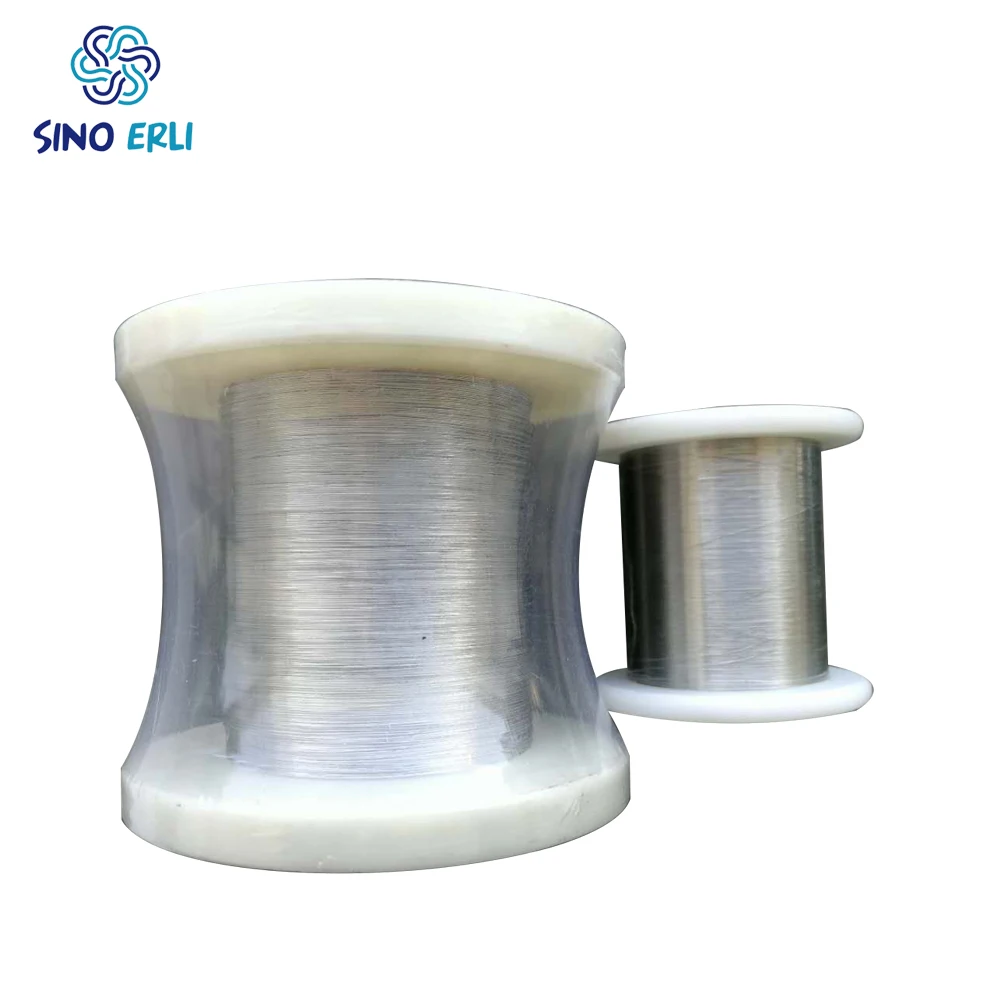

Round wire: diameter 0.03mm-10.0mm

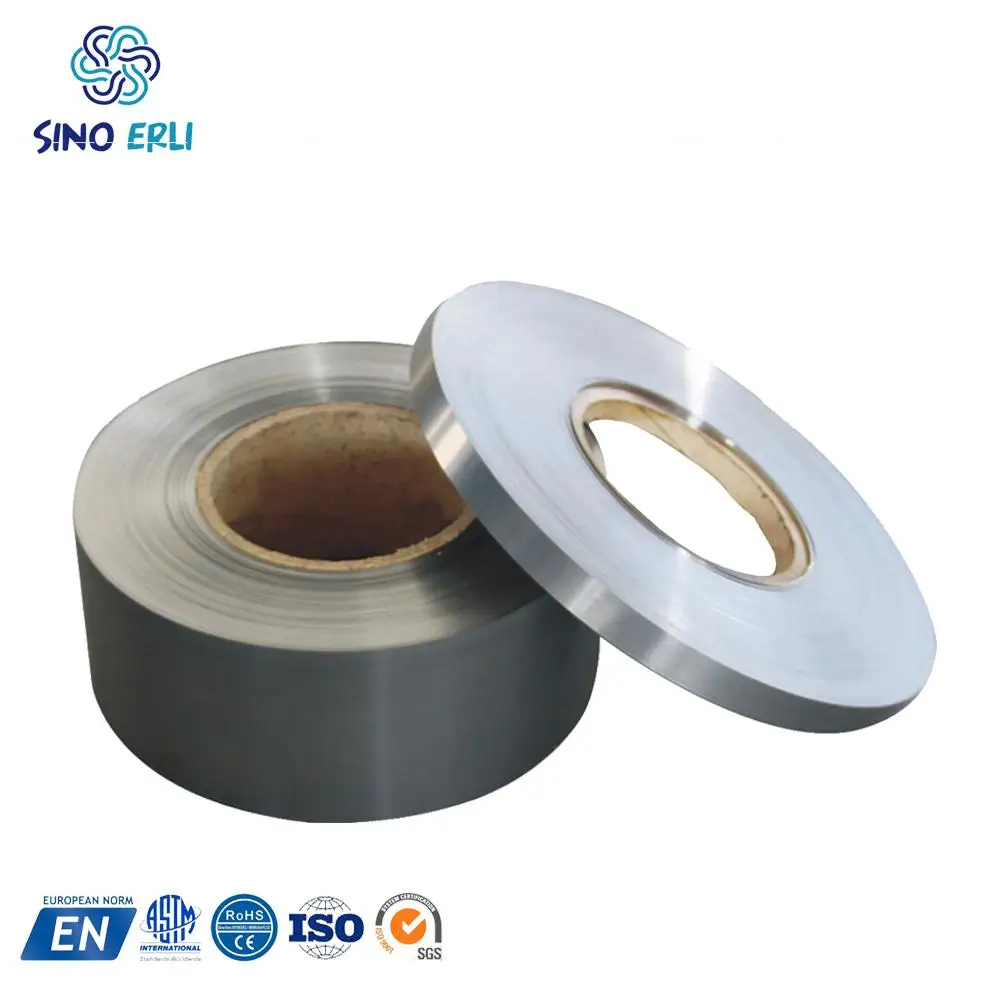

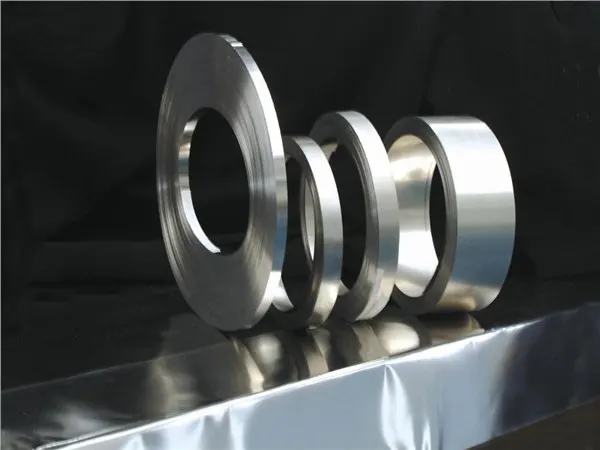

Flat wire: thickness 0.2mm-1.0mm, width 0.08mm-40.0mm
