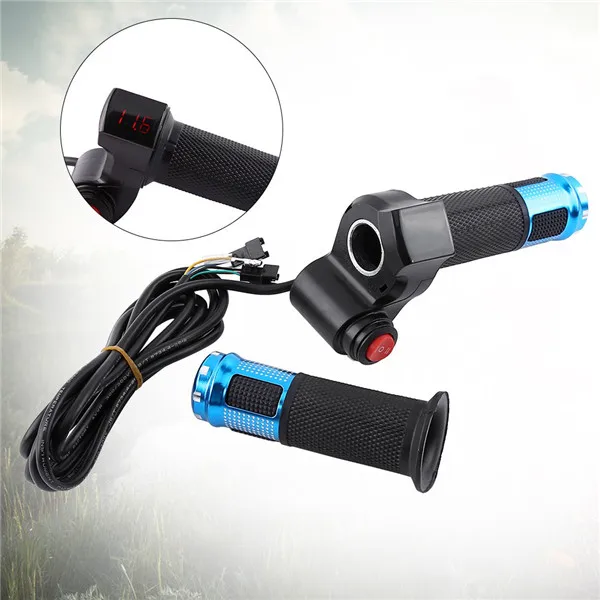

4 Colors Twist Throttle Grips With Led Display Screen Handle With Key Knock For Electric Bike

Description:

The digital data display, not that common analog signal display, which can accurate judge rest battery level and rest distance can indicate vehicle error according to voltage. Fit for many types of battery such as lead acid battery, lithium battery, water battery and dry battery. This throttle indicates battery level by digital data display, you can judge your rest battery level according to your battery voltage, can also check your battery condition after you charged it full. It is a universal throttle for electric bike, scooter , tricycle, and other electric vehicle.

Features:

1. Universal voltage, fit for 12-84V electric bike or scooters, can identify voltage automatically, timely indicating. (12V, 24V, 36V, 48V, 60V, 72V electric vehicles can be used directly, part of the 84V electric vehicles can also be used.)
2. By turning the real-time voltage value can accurately determine the amount of the remaining amount of electricity.
3. To avoid traveling on the way without electricity and accurate judgment
of the lithium battery is damaged.
4. By turning the real-time voltage value can accurately determine the judge the quality of lithium battery.

5. Automatic to identification electric vehicles' voltage under 100V, universal used and real-time display.

Specifications:

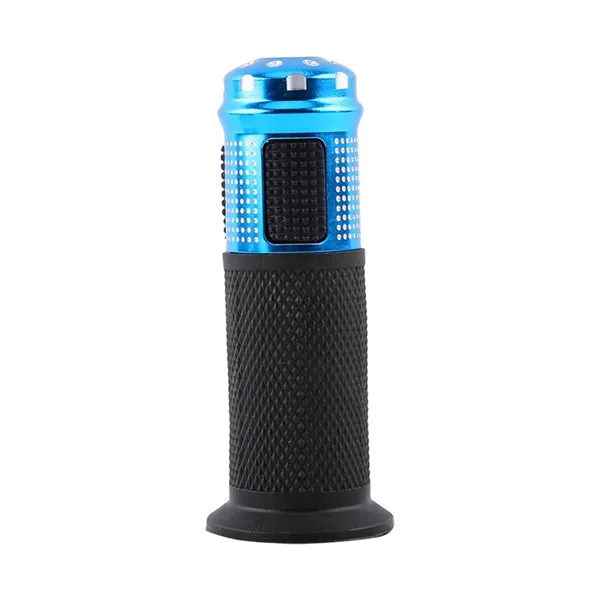

Material: Aluminium Alloy + Rubber

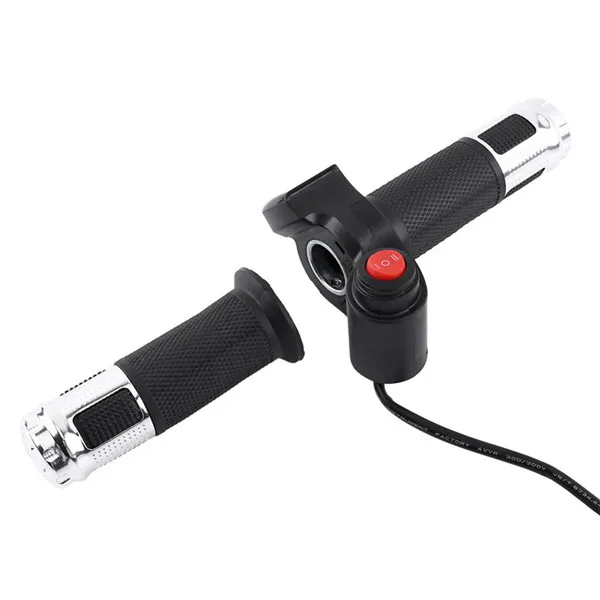

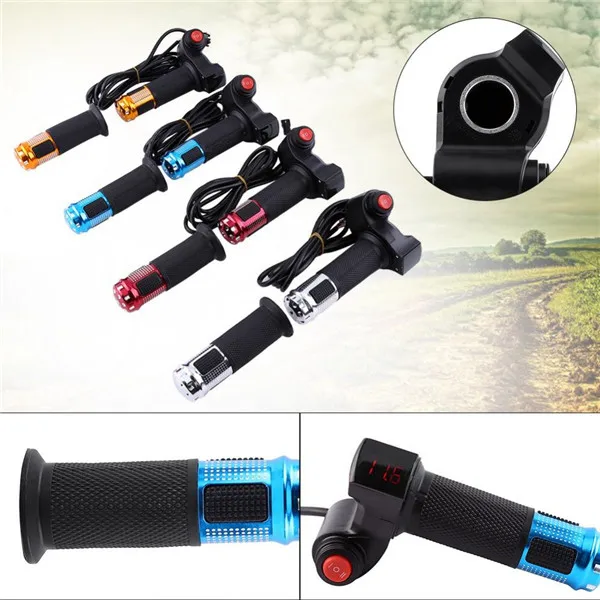

Color: Golden, Silver, Red, Blue (optional)

Package Weight: approx. 285g

Wire Length: approx. 2m / 78.7"

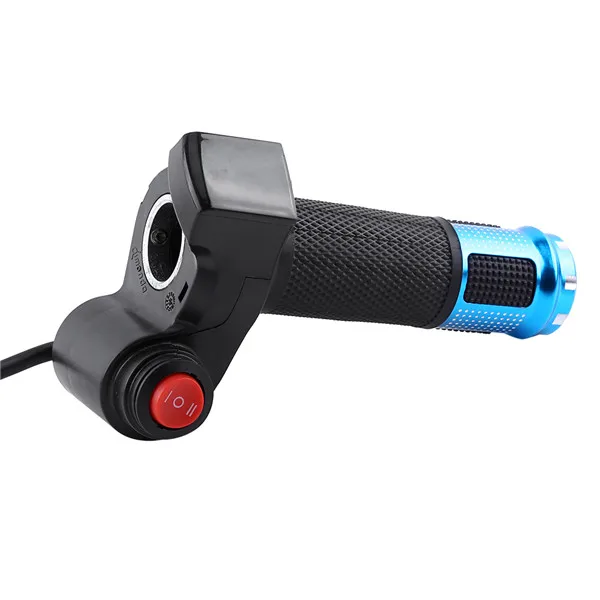

Type: 3 gears switch, high speed, middle speed, low speed (Adjust the speed of electric car, need controller to support)

Compatible With: Suitable for 12V-99V Electric Bicycle
Fitment: Fit for 22.2mm diameter handle

Working Voltage: Throttle DC0.8-4.2V, battery level indicator, 12-84V automatically identify. Application for any battery such as lithium battery , lead-acid battery

Compatible With: Universal throttle for electric bike, scooter, tricycle, and other electric vehicle

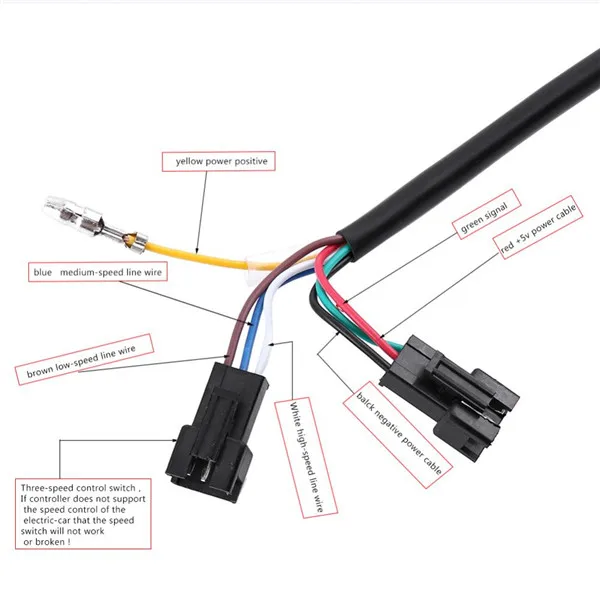

7 Wires:

• Yellow is for power positive, usually connect with battery power + 24V 36V 48V
• 3 throttle wires :

• Red is for throttle positive + 5V

• Green is for twist throttle signal wire

• Black is for throttle negative

• The other three white blue and brown is for gears 3, please make sure your controller has 3 gears wire
• White is for high speed
• Blue is for middle speed shared line
• Brown is for low speed

Package Included:

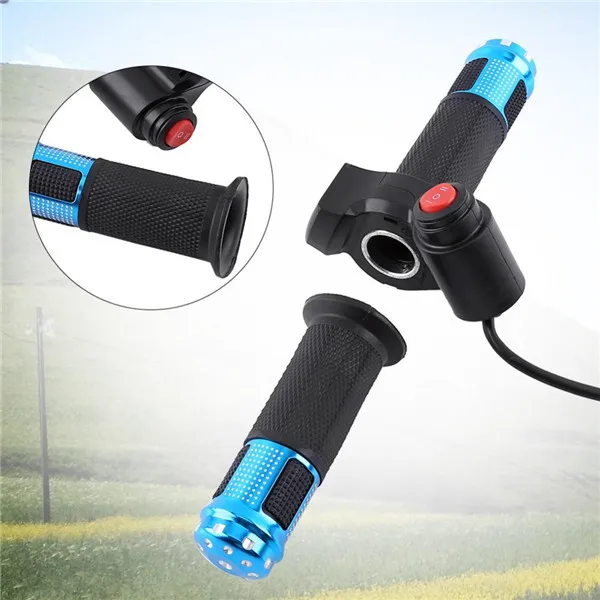

2 x Handlebars (1pc right handle, 1pc left handle grip)

1 x 2m Line

Note:

1. Please notice that if your electric vehicle's controller doesn't support speed regulation, then this speed control switch has no effect.
2. When installing the non professionals, please pay attention to the line order, can not be connected to the wrong line, otherwise it is very easy to cause the burning of Holzer and LED tube.
3. Please allow 1-3cm error due to manual measurement. Thanks for your understanding.
4. Monitors are not calibrated same, item color displayed in photos may be showing slightly different from the real object. Please in kind prevail.

Common sense for battery voltage
Different battery materials, new/old condition of battery, and different controller data make battery voltage reflects differently. Please check your battery voltage data according to your battery. The maximum voltage indicates full charge. The low voltage indicates that the battery is exhausted.
12V ebike max voltage 12V, min voltage 9V
24V ebike max voltage 29V, min voltage 21V
36V ebike max voltage 42V, min voltage 29V
48V ebike max voltage 54V, min voltage 39V
60V ebike max voltage 72V, min voltage 49V
72V ebike max voltage 84V, min voltage 60V
