CJY7/6GP 7T Electric Trolley Underground Mining Locomotive
US $1999-$8999
10T Underground Mine Trolley Electric Locomotive
- Category: Trains >>>
- Supplier: Shandong China Coal Industrial & Mining Supplies Group Co. Ltd.
Share on (60813795790):
Product Overview
Description
Introduction of 10T Underground Mine Trolley Electric Locomotive
10T Underground Mine Trolley Electric Locomotive
10T overhead locomotives have great tractive effort.The technical performances of 550V and 250V 10T overhead locomotives are shown in the table
C: mining locomotive J: Overhead Line Type Y: One Cab
Main Parameter of 10T Underground Mine Trolley Electric Locomotive
|
Type |
CJY10/6,7,9G |
|||
|
Total Weight |
10 tons |
|||
|
Track Gauge |
600, 762 or 900 |
|||
|
Traction |
13.05 kN |
18.93 kN |
15.09 kN |
18.93 kN |
|
Speed |
11km/h |
10.5 km/h |
11 km/h |
10.5 km/h |
|
Max. Traction |
24.5kN |
|||
|
DC Voltage |
250V |
550V |
||
|
Power |
21kW*2 |
30kW *2 |
24 kW *2 |
30 kW *2 |
|
Wheelbase |
1100mm |
1220mm |
1100mm |
1220mm |
|
Wheel Diameter |
680mm |
|||
|
Min. Turning Radius |
7m |
10m |
7m |
10m |
|
Control Mode |
Resistance Control or Chopper Control |
|||
|
Brake Mode |
Mechanical Brake |
|||

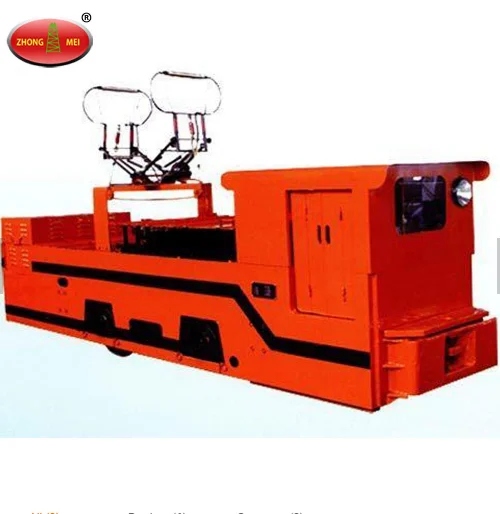

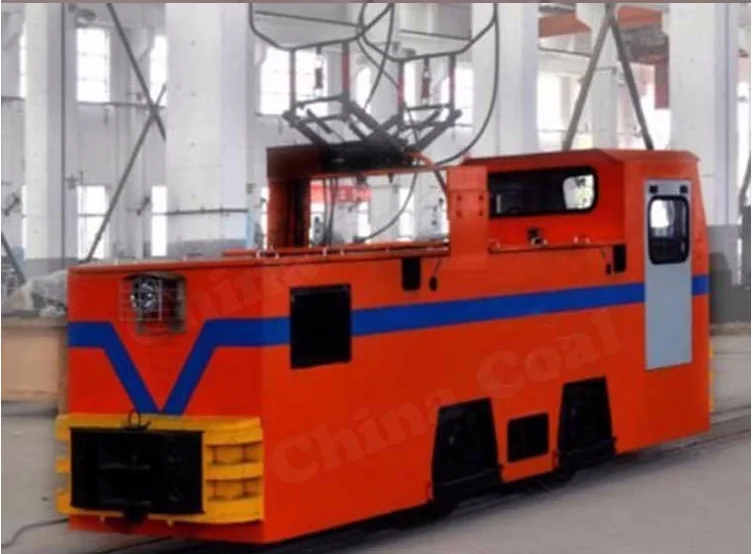

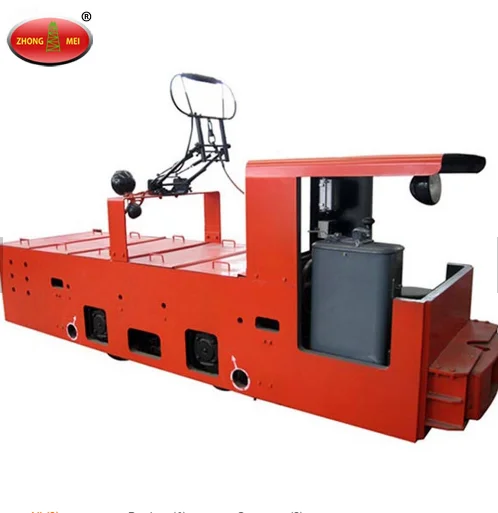

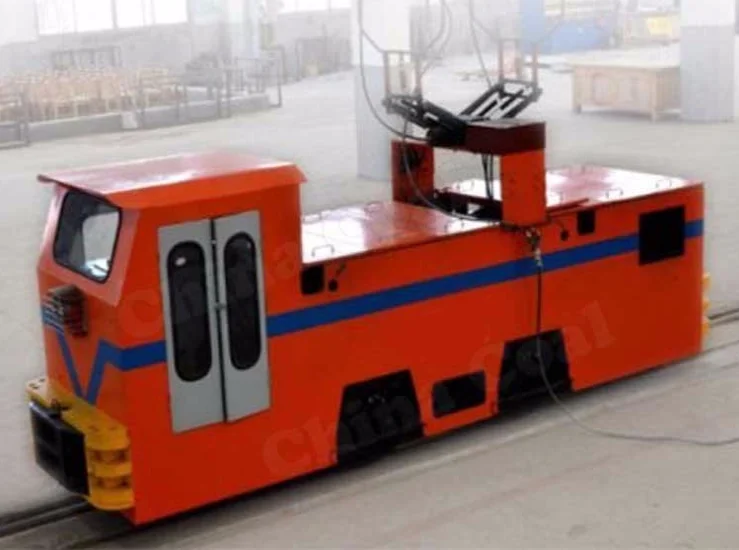

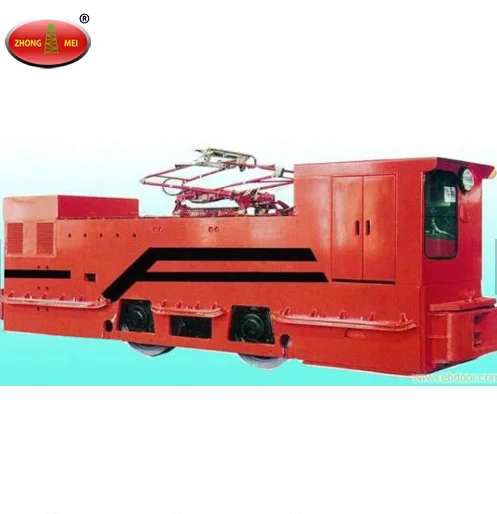

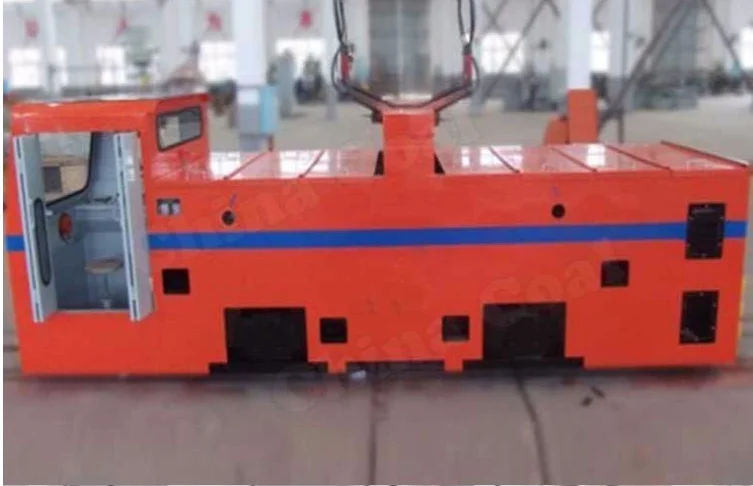

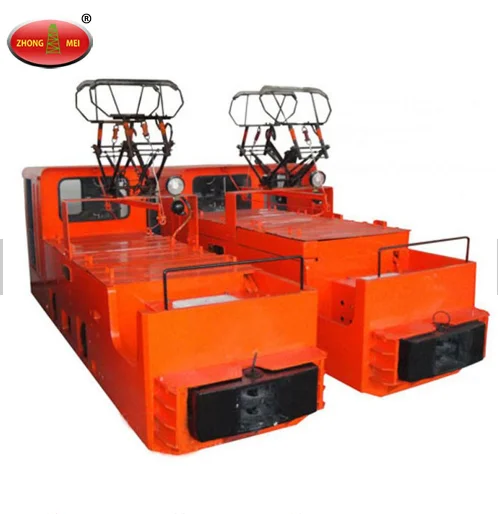

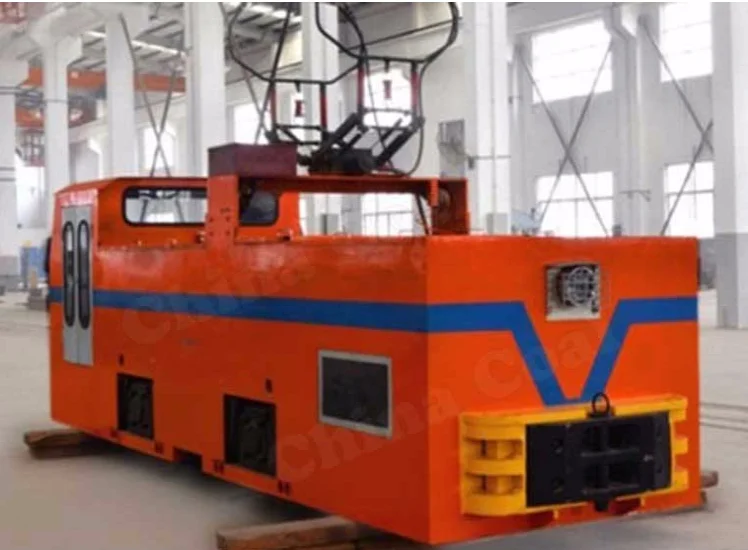

Figure Images of 10T Underground Mine Trolley Electric Locomotive
