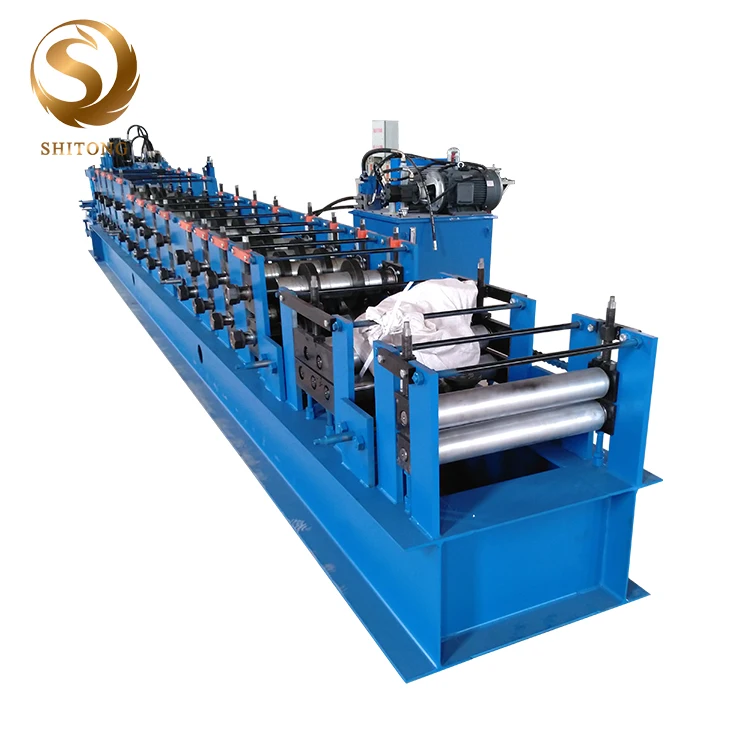

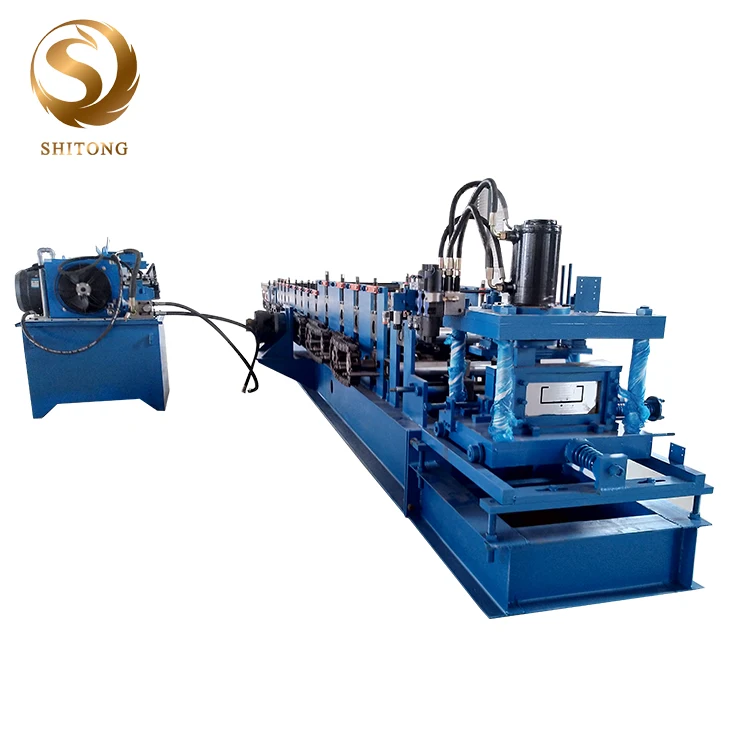

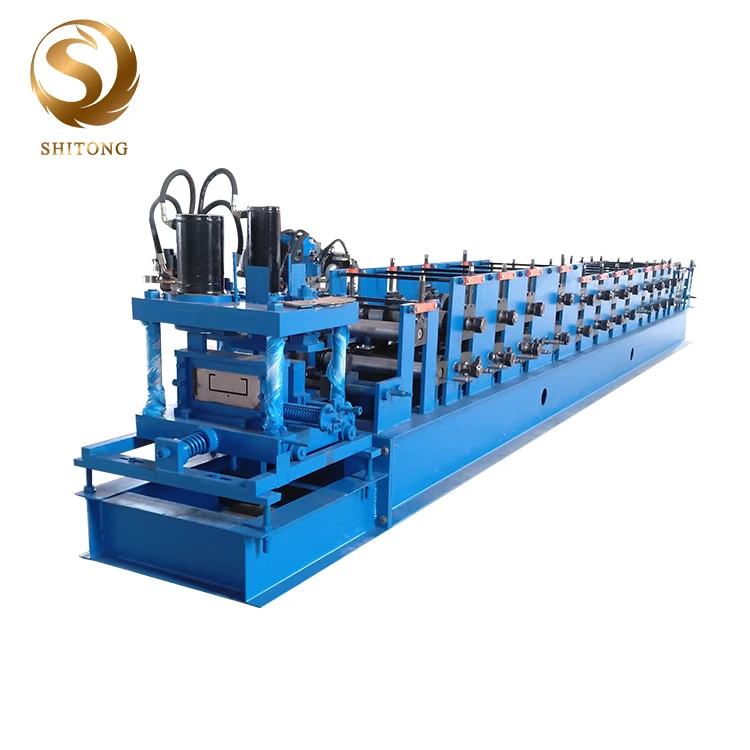

Стальная рама, машина для профилирования рулонов CZ, машина для холодной прокатки линий, Террасная машина для холодной формовки

Share on (60814026402):


Price:

Quantity:


Product Overview

Description


_01

Steel frame CZ purlin roll forming machine cold rolling line decking cold forming machine

Product Description

roll forming machine 1.jpg

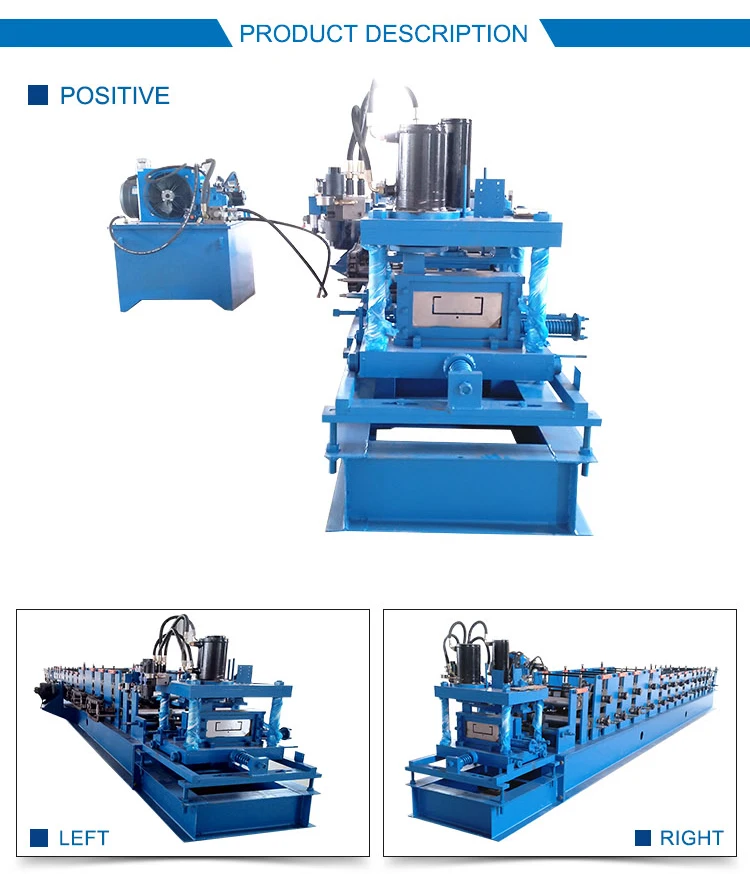

roll forming machine 2.jpg

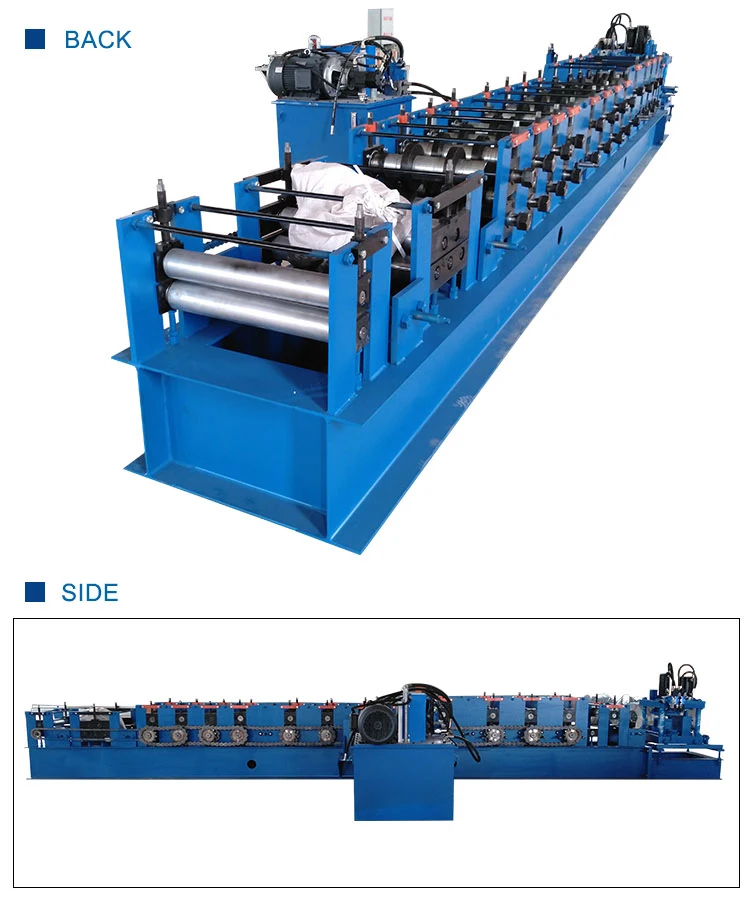

roll forming machine 3.jpg

Raw material

  Material

  colored steel sheet, galvanized steel sheet, aluminum sheet

  Thickness of coil sheet

  1-3 mm

  Roller material

  high grade NO. 45 forged steel with 0.05mm hard chrome plating

  Shaft material

  high grade NO. 45 carbon wrought steel

  Cutting blade

  Cr12 mould steel with quenched treatment

  Diameter of shaft

  90mm

  Main frame

  300 H steel

  Side plate thickness

  16 mm

  Chain size

  1 inch

  Forming steps

  12 stations

  Productivity

  20-25m/min

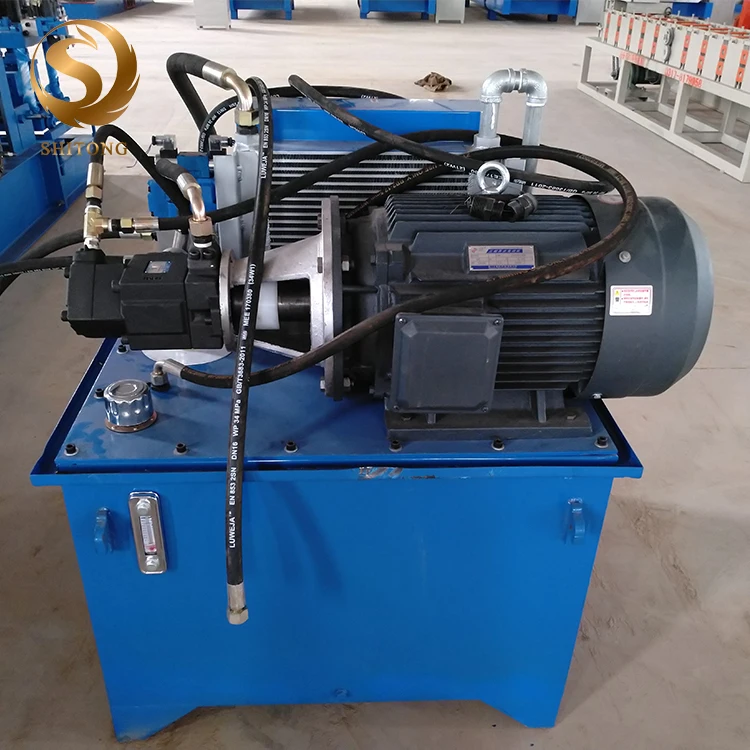

  Hydraulic station power

  22kw

  Hydraulic pressure

  10-12MPa

  Appearance size

  7500*1150*1510mm

  Hydraulic oil

  40# hydraulic oil

  Electric tension

  380V 50 Hz 3 Phase or as your requirement

  Cut Mode

  Hydraulic Guide Column

  Cutter materia

  Cr12 Heat Treatment

  Electronic control system

  PLC (Delta) Touch Screen

  Color

  Blue and orange

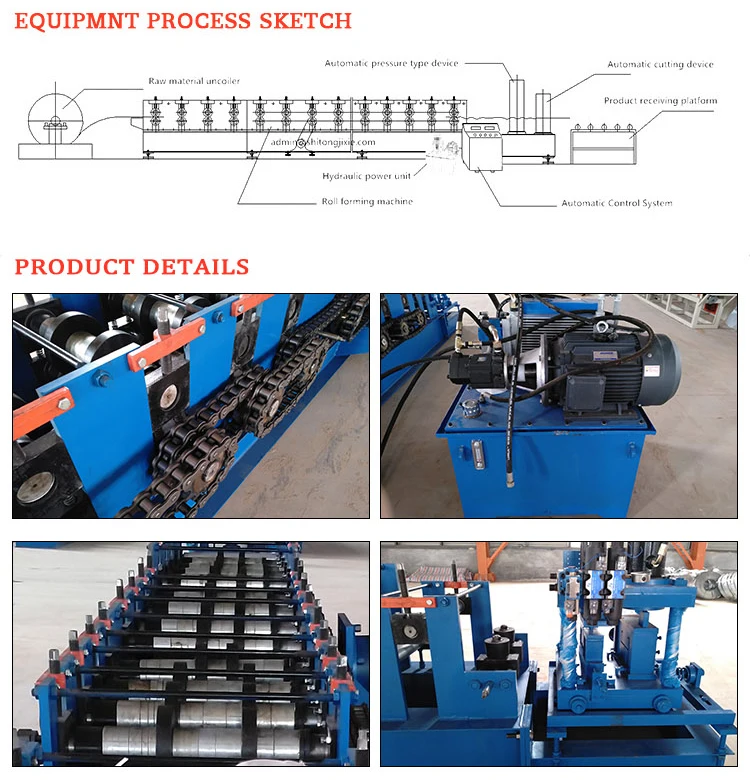

roll forming machine 4.jpg

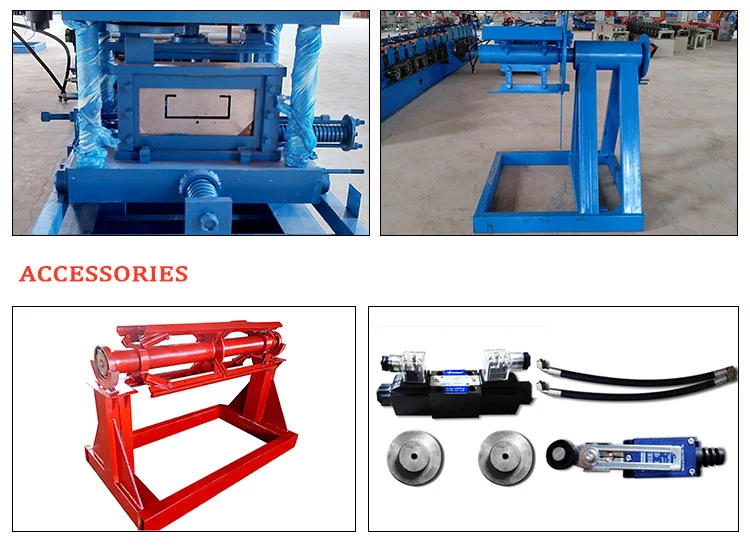

roll forming machine 5.jpg

Machine Components
No.
Name
QTY
1
Manual uncoiler
1 set
2
Feeding and leveling device
1 set
3
Roll forming system
1 set
4
Hydraulic punching and cutting
1 set
5
Product support frame
1 set
6
PLC Control System
1 set

roll forming machine 7.jpg

Company Information

roll forming machine 8.jpg

Botou Shitong Cold Roll Forming Machinery Manufacturing Co.,Ltd. is a professional manufacturer and exporter that are concerned with the design, development and manufactur of cold roll forming machines. We have high quality professional teams, skillful talents, strong technical force, strong and independent research and development capabilities, advanced production equipment and a perfect after-sales service system.

The company is specialized in manufacturing Color steel forming machinery, C and Z purling machine, Glazed tile forming machine, steel structural floor panel roll forming machine, sandwich panel roll forming machine, highway guardrail forming machine, downspout forming machine, car panel roll forming machine, roll shutter door roll forming machine, sheet slitting equipment, and other equipment accessories.

Guaranteeing stable and timely supply, credible quality and sincere service, our products sell well in both domestic and overseas markets. If you are interested in any of our products, or wish to place a customized order, please contact us. We will do our best to meet your needs.

roll forming machine 9.jpg

Packaging & Shipping

 roll forming machine 10.jpg

- 1.Nude,with waterproof cloth and stow-wood.Imported computer control system packedwith waterproof cloth and card board.
- 2.This producing line is maintained free of charge for 18 months.When the machine isused in China,we will install and debug the machine for free;if it is used at abroad,we willsend the professional technician to debug. Buyers should take all the fees for technicianstravelling abroad.
- 3 AlI the parts in the roll forming machine is free to maintain all the life,if in 18 months ourcompany bear the cost for exchanged the broken part like the new parts cost and expresscost,if more than 18 month,we also free to maintain the broken parts but for send the newparts,the buyer need bear the express cost.
- 4.When ship the roll forming machine,We will also send one set CD and specification(Chi-nese and English) to you with the machine,they can teach you how to operater themachines.

roll forming machine 11.jpg
