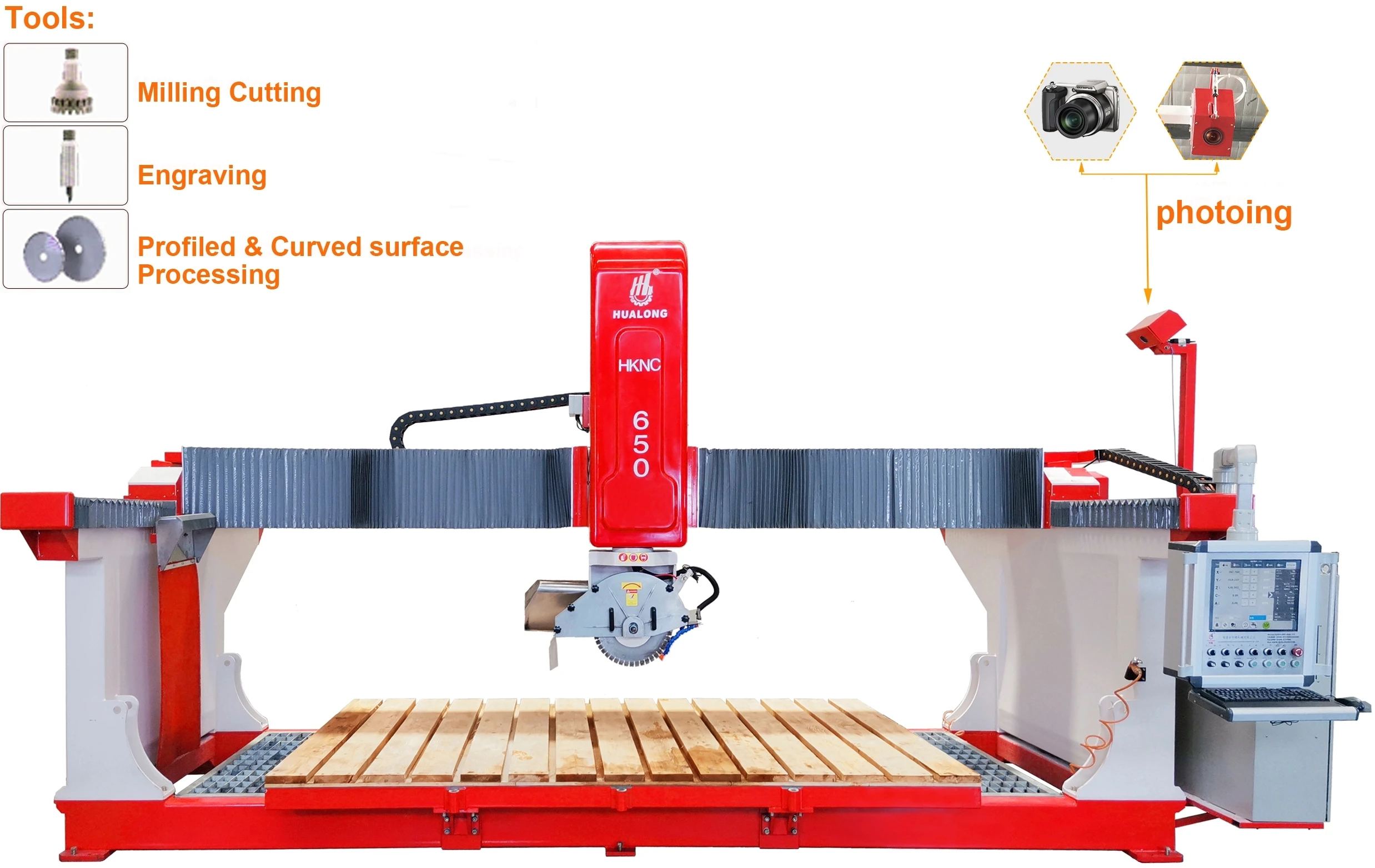

Hualong Machinery HKNC series Bridge Saw 5 Axis Stone Cutter CNC Granite Cutting Machine Processing Center
- Category: Other Mining Machines >>>
- Supplier: Fujian Province Hualong Machinery Co. Ltd.
Share on (60814480682):
Product Overview
Description

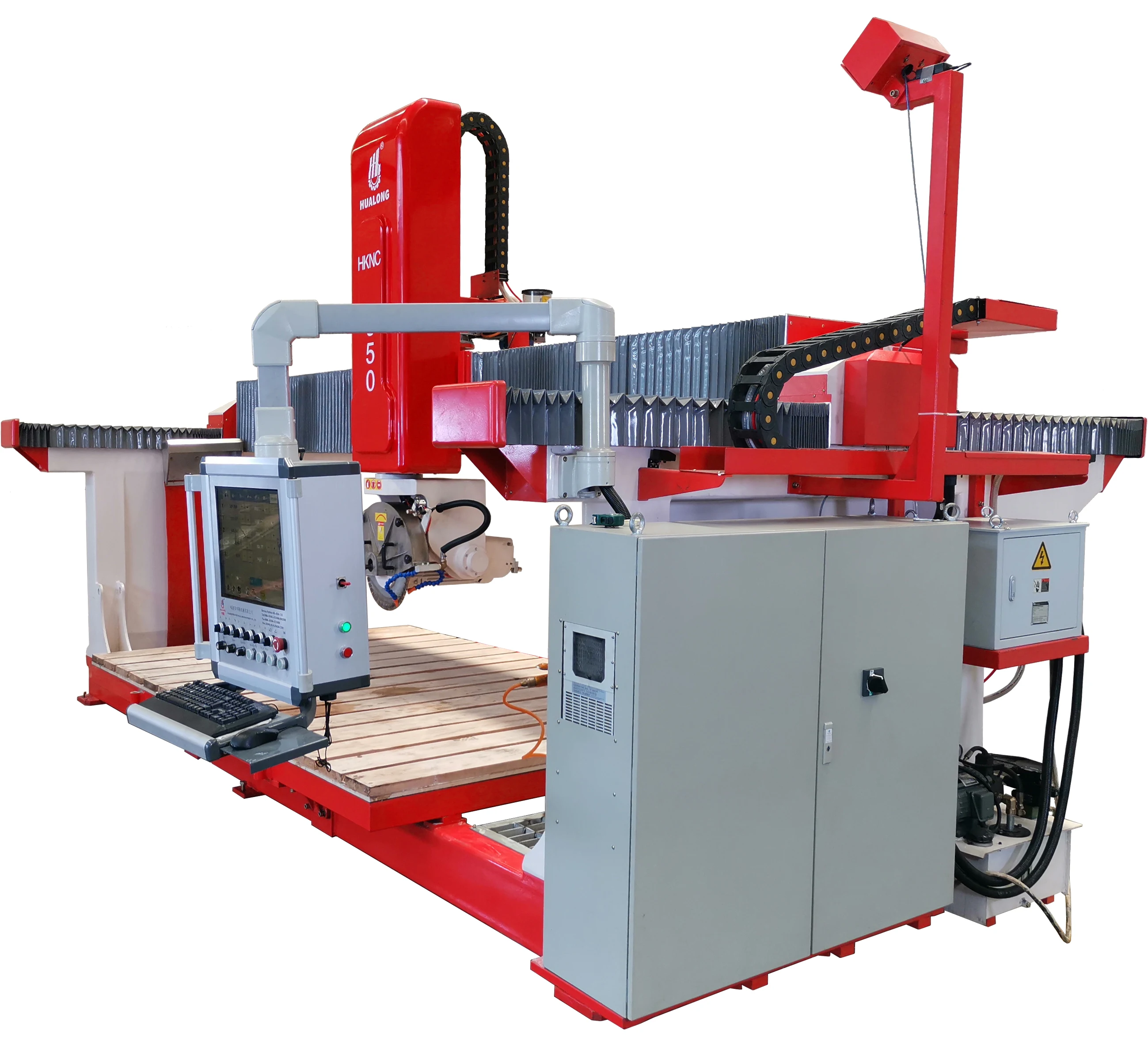

5 Axis CNC Stone Cutting Machine
HKNC-560/650 is a bridge type multifuction cnc machine for stone cutting and milling. It’s easy for this cnc stone machine to process all kind of stone kitchen coutertop, bathroom countertop, shower trays, tombstone, window frames, 3D decorative wall and other products in general for furniture and building .
Functions:

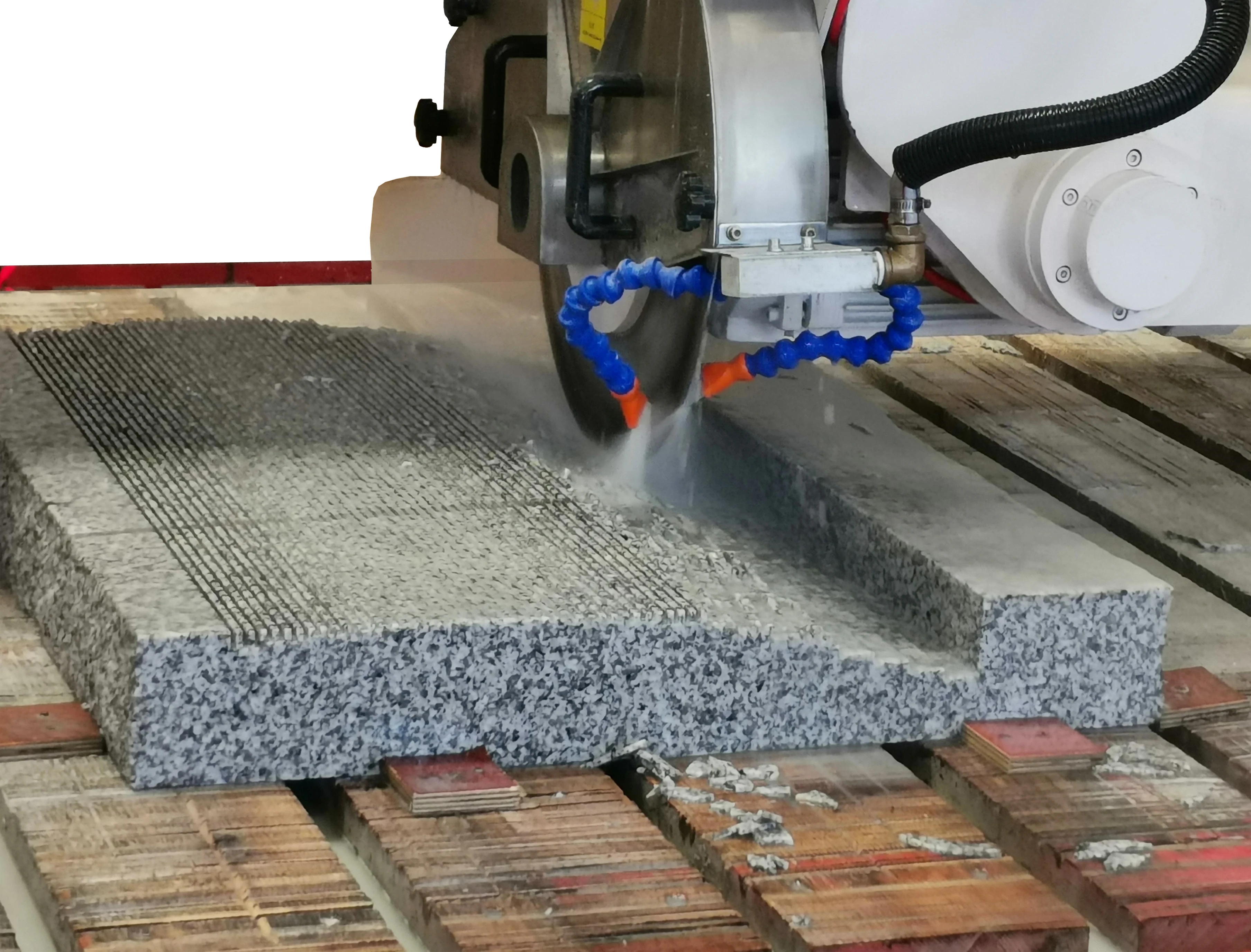

* Slab cutting，chamfering0°-360° at any angle.
* Drilling, milling, recess machining.
* Block profiling, engraving.
* Photographing to positioning the workpiece for correct cutting.
* Worktable tilt 0-85°for easy slab feeding.
Functions:
* Slab cutting，chamfering0°-360° at any angle.
* Drilling, milling, recess machining.
* Block profiling, engraving.
* Photographing to positioning the workpiece for correct cutting.
* Worktable tilt 0-85°for easy slab feeding.
Main Features
1) 5 axis linkage control with Italian CNC Esa system.
2) Easy to use interface with 19" color touch-screen.
3) Combine fuctions of carving, milling, cutting, drilling, engraving into an organic whole for complex processing.

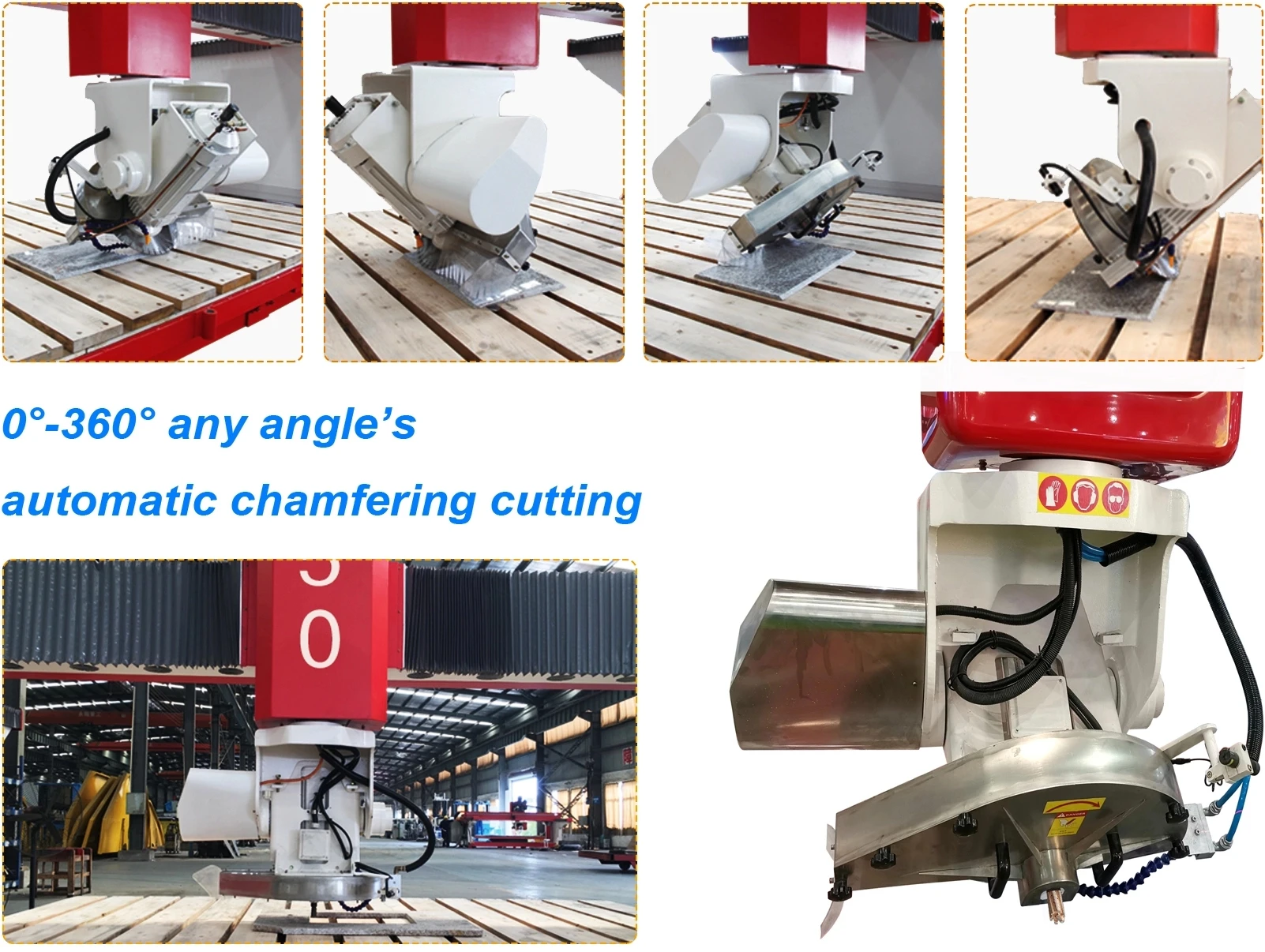

4) Blade can rotate 0°-360° and tilt 90° for any any direction's and any angle's chamfering cutting.
5) Working platform can tilt 85 degrees, easy for slabs loading.
6) Manual cuts available for simple machining.
7) Photo slab for nesting and avoiding defects.
8) Nesting manual / automatic to optimize slab surface usage
9) RTCP tool point tracking function ensure precision machining easy.
10) Optional - Vein match for easily matching up perfectly each vein,color at the seam of your project.
2) Easy to use interface with 19" color touch-screen.
3) Combine fuctions of carving, milling, cutting, drilling, engraving into an organic whole for complex processing.
4) Blade can rotate 0°-360° and tilt 90° for any any direction's and any angle's chamfering cutting.
5) Working platform can tilt 85 degrees, easy for slabs loading.
6) Manual cuts available for simple machining.
7) Photo slab for nesting and avoiding defects.
8) Nesting manual / automatic to optimize slab surface usage
9) RTCP tool point tracking function ensure precision machining easy.
10) Optional - Vein match for easily matching up perfectly each vein,color at the seam of your project.
Application fields:
* 3D decorative wall panels
* Countertops
* Doorsteps, staircases and thresholds
* Fireplaces
* Flooring
* Funerary art
* Street furniture
* Ventilated facades
* Countertops
* Doorsteps, staircases and thresholds
* Fireplaces
* Flooring
* Funerary art
* Street furniture
* Ventilated facades
TECHNICAL DATA | ||||||
Model No. | HKNC-560 | HKNC-650 | ||||
Diameter of saw blade | mm | ø350-ø560 | ø350-ø650 | |||
Dimension of working platform | mm | 3300×2000 | 3500×2100 | |||
Max. cutting length | mm | 3300 | 3500 | |||
Max. cutting thickness | mm | 140 | 190 | |||
Max. lifting stroke | mm | 250 | 500 | |||
Max. lifting weight by sunction cups | kg | 200 | 200 | |||
Power of main motor | kw | 11 | 15 | |||
Power of cutter frame reciproctating motor | kw | 1.15 | 1.15 | |||
Power of crossbeam shifting motor | kw | 1.15 | 1.15 | |||
Power of hydraulic station motor | kw | 2.2 | 2.2 | |||
Power of lifting motor | kw | 0.85 | 0.85 | |||
Gross power | kw | 16.35 | 20.35 | |||
Water consumption | m3/h | 2 | 2 | |||
Gross weight | kg | 5400 | 5800 | |||
Dimensions (L x W x H) | mm | 5700×3260×2765 | 6300×3600×3100 | |||
Shipment for HKNC-560/650
Monoblock wholly loaded in a 20' FCL. Easy for unloading and installation at destination.
Details Images
Control system -- CNC
Brand: Esa
Original: Italy
Top of the line CNC system with touch screen for easy setting and automatic processing. It can make a complicated machining job
easy, perfect and high efficient.
Top of the line CNC system with touch screen for easy setting and automatic processing. It can make a complicated machining job
easy, perfect and high efficient.
Digital Servomotor
Brand: ESA
Original: Italy
A permanent magnet brushless servomotor with intergrated drives, designed to achieve total digital integration with Esa’s CNCs,
creates a reliable controlling power for X, Y, Z, C and A axises

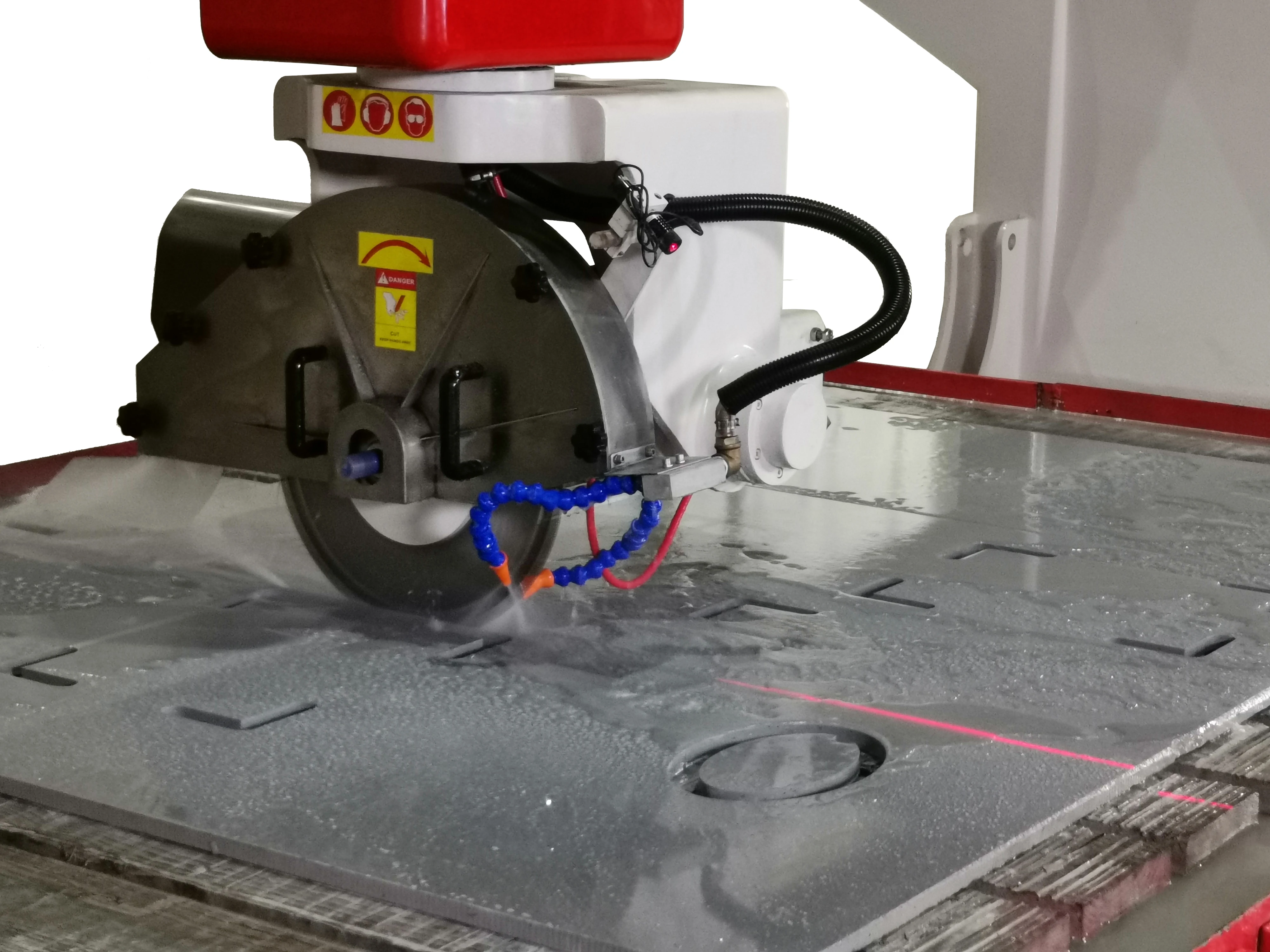

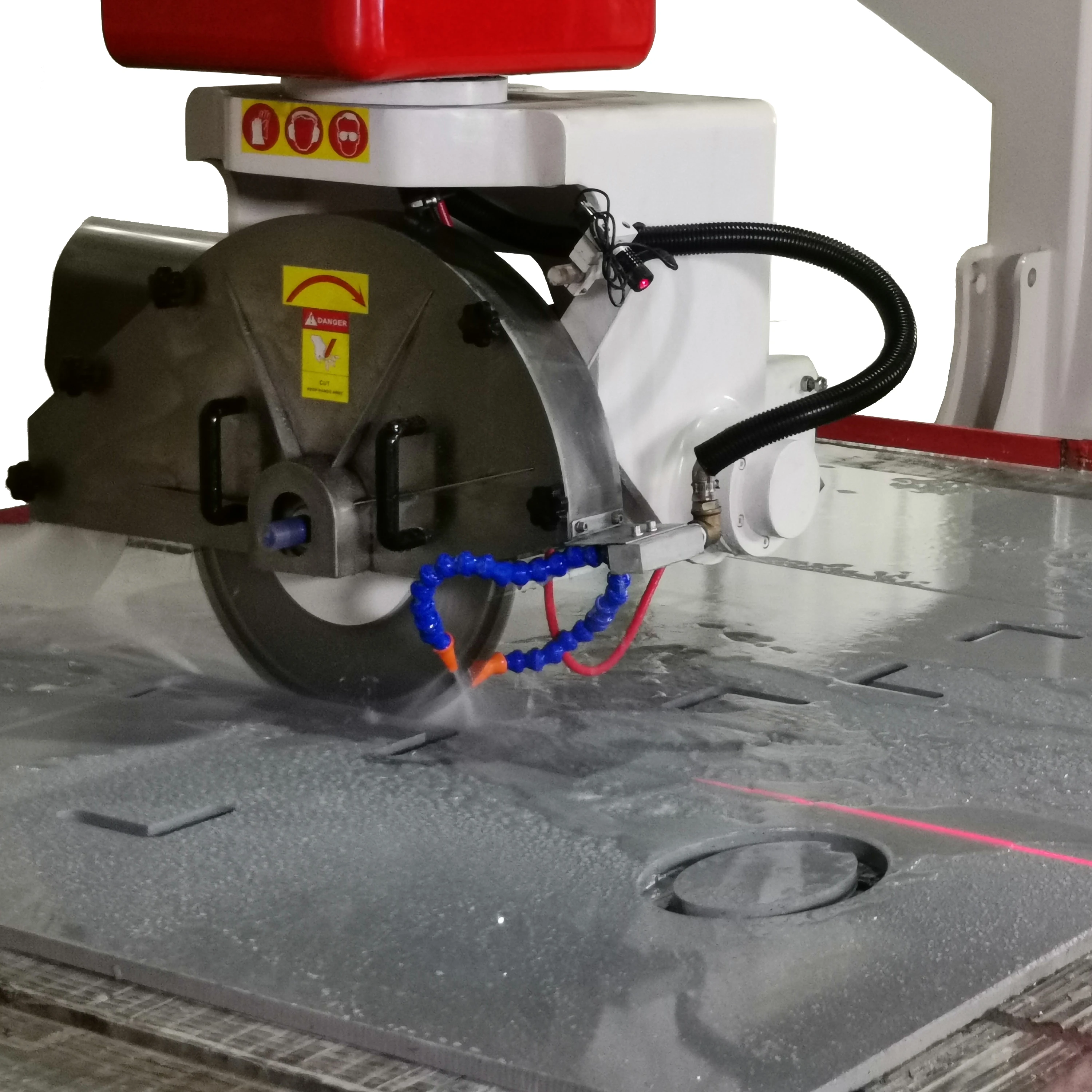

Laser Reticule Apparatus
Origin: China
Aid for accurate alignment at the begining of processing.

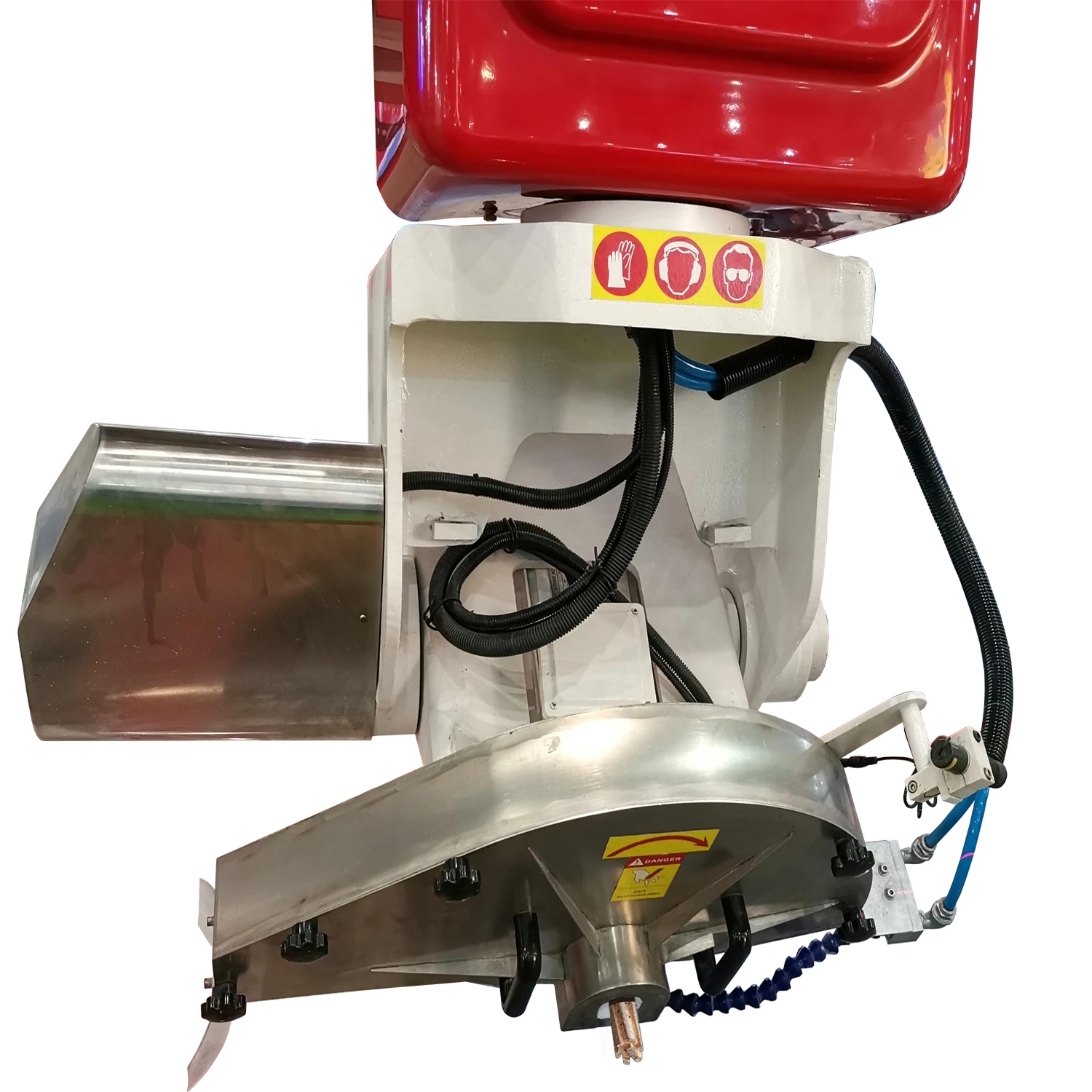

Electro-spindles
of high quality controlled by an inverter allowing the adjustment of the nr. of revolutions from 0 to 6000 rpm, so
granting the use of blade and diamond tools such as a core drill or milling cutter. The tool change is of manual type.
Internal water passage
granting the use of blade and diamond tools such as a core drill or milling cutter. The tool change is of manual type.
Internal water passage
Linear Guide
Brand: Hiwin Original: Taiwan, ChinaFamous products, top quality used on crossbeam and carling for high precision of cutting and long lifespan.
Quality Fabrication Equipment
* Made with 20 years+ expertise and patents.
* Many machines available to order
* Experienced techs for all your questions
* Customization available
* Many machines available to order
* Experienced techs for all your questions
* Customization available
Pre-Sales Service
* Inquiry and consulting support.
* Configure best machine line according to customer condition
* View our Factory.
After-Sales Service
* Training how to instal the machine, training how to use the machine.
* Engineers available to service machinery overseas.
* Lifetime technology maintenance in free and spare parts supply.
