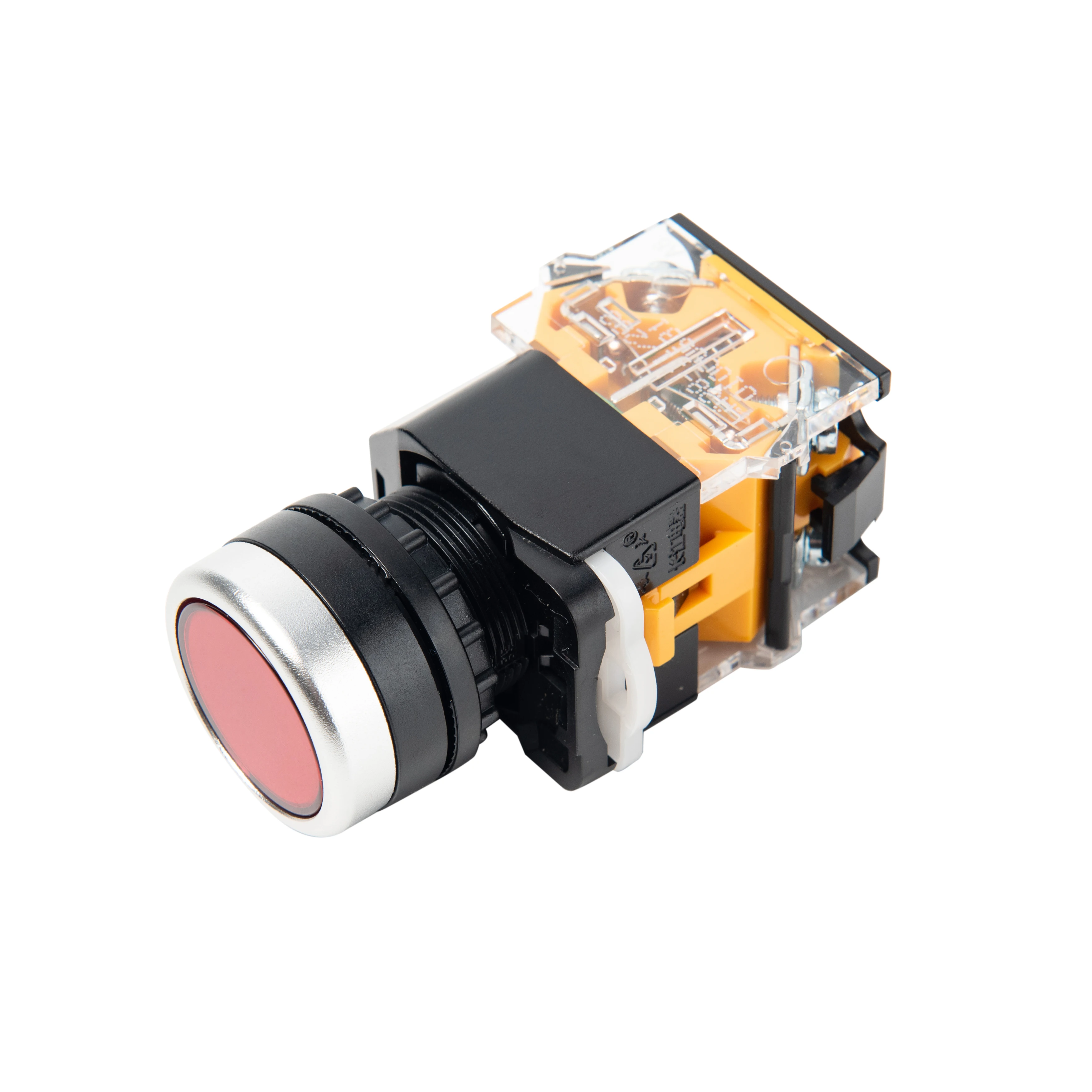

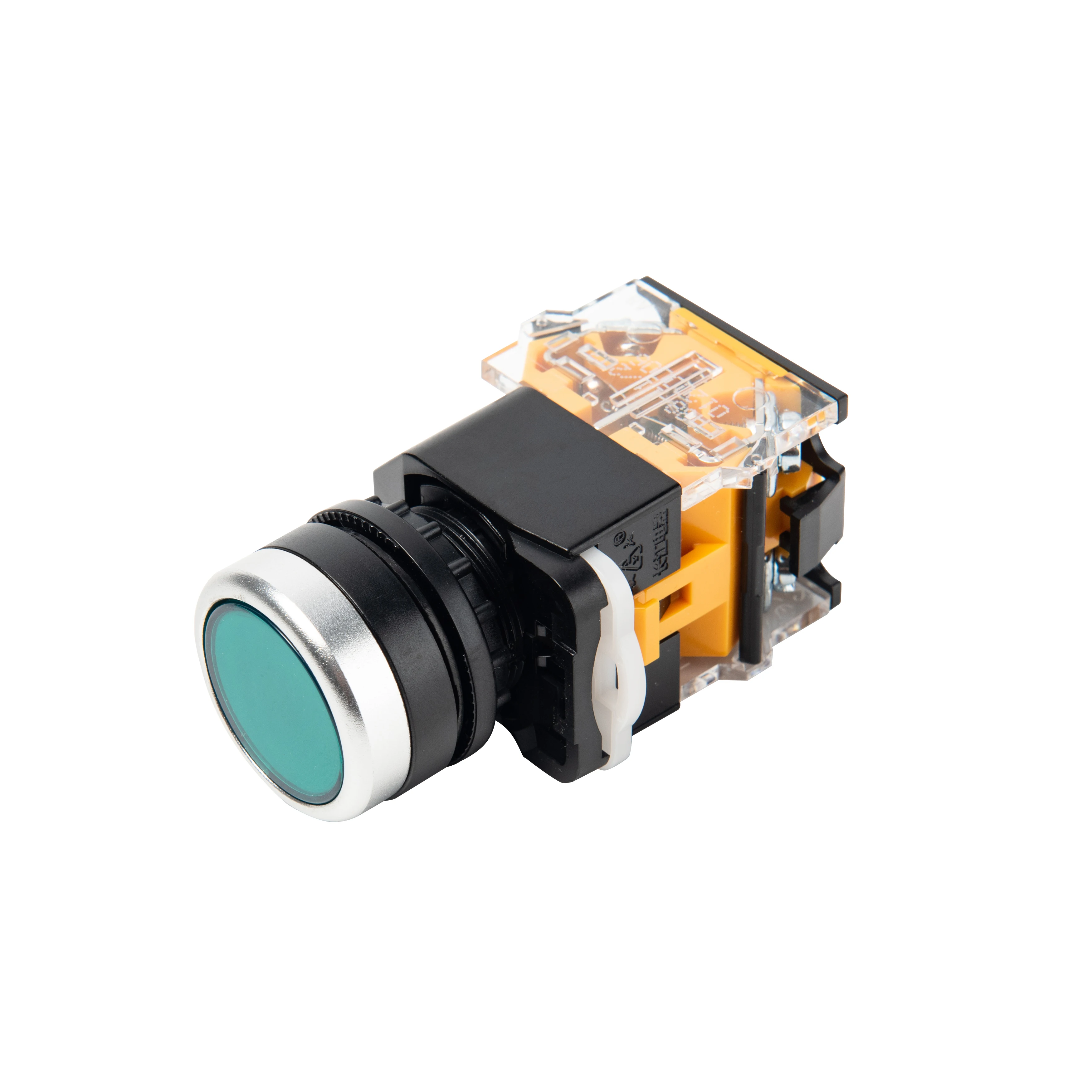

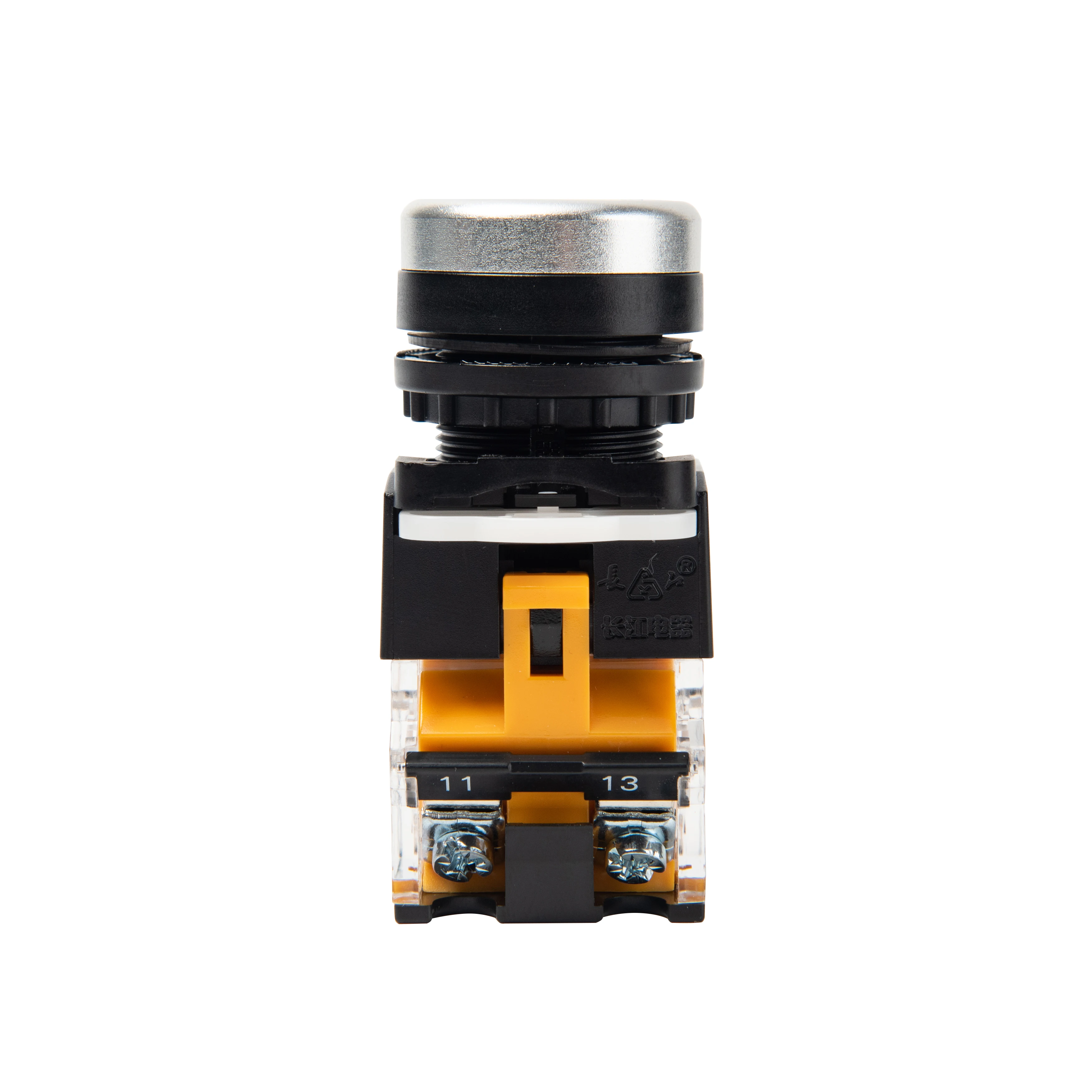

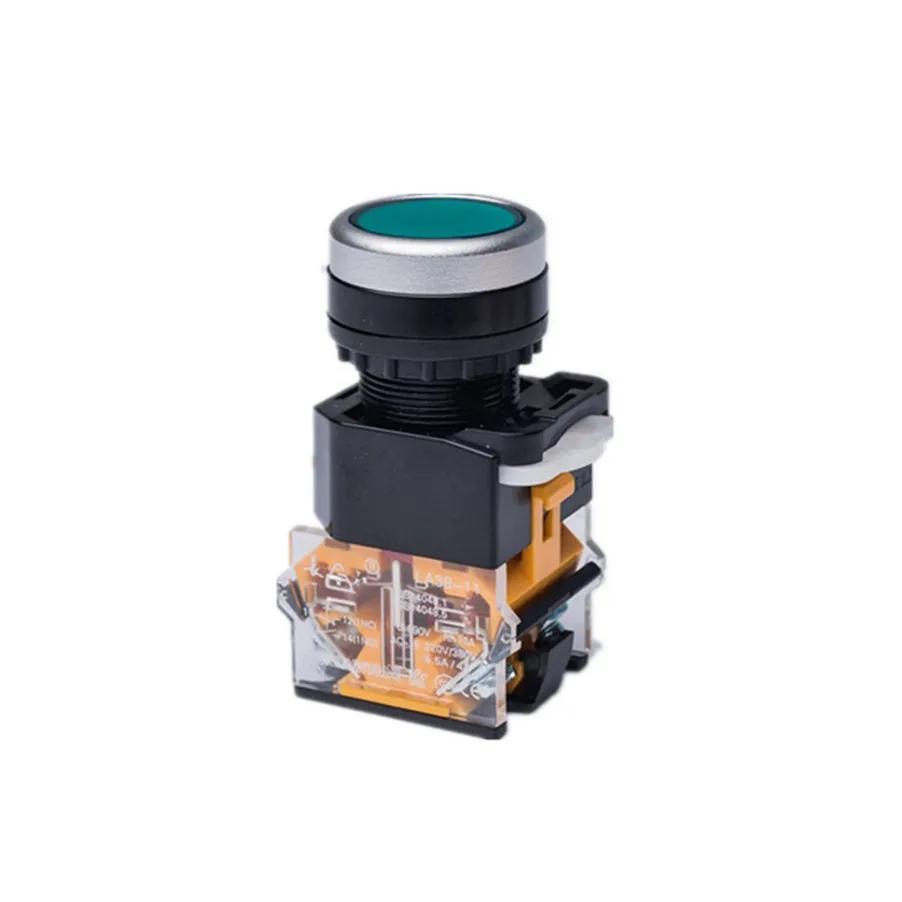

LA38 series diameter 22mm ACDC 12v 24v 48v latching push button switch
- Category: Push Button Switches >>>
- Supplier: Jiangyin Changjiang Electric Appliance Co. Ltd.
Share on (60814893158):
Product Overview
Description
Product Overview
LA38 series push button switch
LA38 Series Button Switch is used for remote control in electromagnetic starters,contactors, relays and other electrical circuits with the voltage of 380V and below and the DC voltage of 230V and below, AC 50Hz (or 60Hz); The button with lamp is also suitable for the occasions where light signal indication is needed. It has passed the national CCC certification, CE certification and type approval of China Classification Society.
Details Images
Product Parameter
Type specification | LA38-**S/203 (**means contact,10:1NO, 01:1NC, 11:1NO+1NC, 20: 2NO, 02: 2NC,6 pairs of contacts at most ) | ||||||||||
Product Name | push button switch | ||||||||||
Products Standard | GB/T 14048.5 | ||||||||||
Operation Condition | Altitude height | Environment temperature | Storage temperature | Relative humidity | Pollution class | Install type | |||||
≤2000m | -25℃~+55℃ | -40℃~+70℃ | ≤90% | 3 | Ⅲ | ||||||
Main technical index | Common parameter | Rated insulated Voltage | 500V | ||||||||
Rated shock withstand voltage | 4000V | ||||||||||
Insulation resistance | ≥50MΩ | ||||||||||
Front panel protection degree | IP54，IP65 customizable | ||||||||||
power frequency withstand voltage | 1.89KV/5S | ||||||||||
Button parameters | Resistive current | 10A | |||||||||
Contact Resistance | ≤50mΩ | ||||||||||
Rated working Voltage /Current | AC-15 | DC-13 | |||||||||
380V/4A | 220V/5.5A | 110V/1A | 220V/0.45A | ||||||||
Electrical life | 500,000 times | ||||||||||
Mechanical life | 1000,000 times | ||||||||||
Lamp parameters | Rated working Voltage/Current | / | |||||||||
Life of signal lamps | / | ||||||||||
Outline Drawing
Installation Drawing
Successful Application
Our Company
Company Headquarter
Jiangyin Changjiang Electric Appliance Co., Ltd has become a leading manufacturer of low-voltage electrical appliances and lighting of construction machinery. Our products are widely used in power, machinery, industrial control, elevator, communication, rail transit, new energy and construction machinery. Its novel design and reliable product features have won the unanimous favor of the majority of users.
Workshop
The facotry of Jiangyin Changjiang Electric Appliance covers an area of more than 6,000 square meters,and has several production lines,including signal lamp line,push button line,cam chang-over switch line,transformer line and electrical line.There are 30 excellent R&D staff in technology center and 300 workers in production workshop.Professional design and inspection support our products in best quality and in shortest delivery time.
Product Packaging
Different box size
Professional packaging

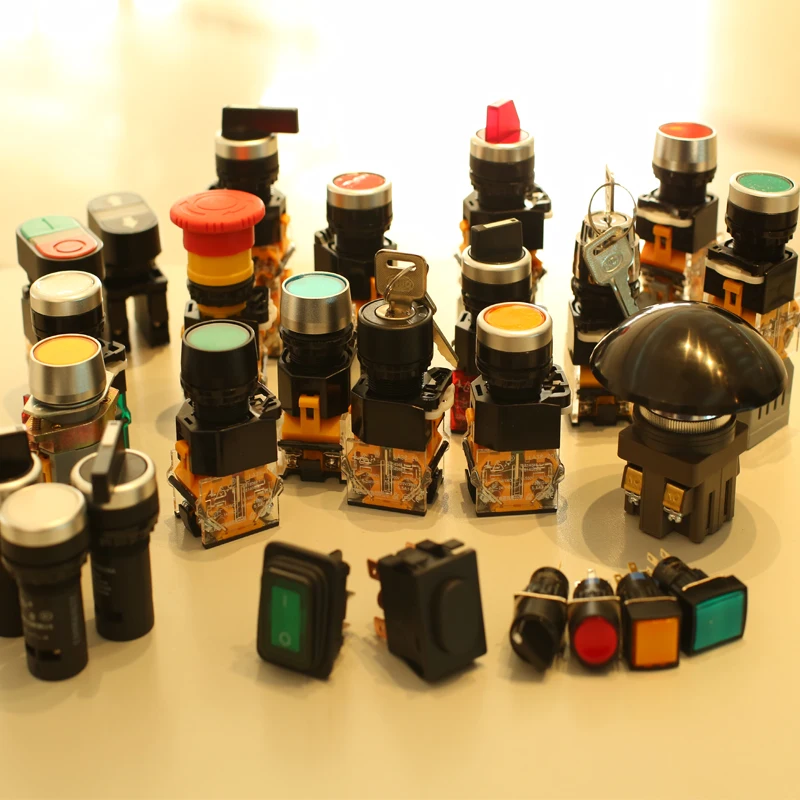

Related Products
