22.5 CBM ISO Standard 20ft Bulk Cement Tank Container

Material: Stainless steel, ASTM A240, 316/316L low carbon
Maximum Allowable Working Pressure: 2.2Bar (32.0 Bar)
Certificate: csc certificate like GL/LR/BV/ABS/CCS
AmbientTemperature:-19°C----+80°C (-22°F to 176° F)
Design Approvals: IMDG T11, RID/ADR, ASME VII DIV2, CFR 48, USDOT (BYSP), TIR, UIC, CSC, TC, UKDFT, FRA
Application: cement powder transport and storage

Detailed Images

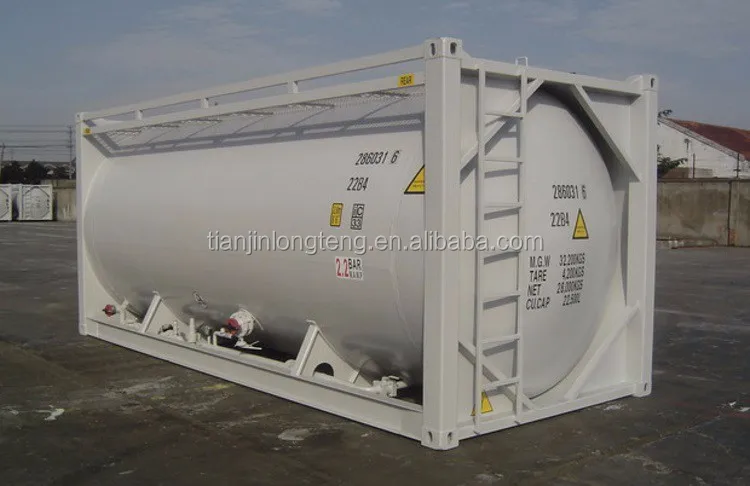

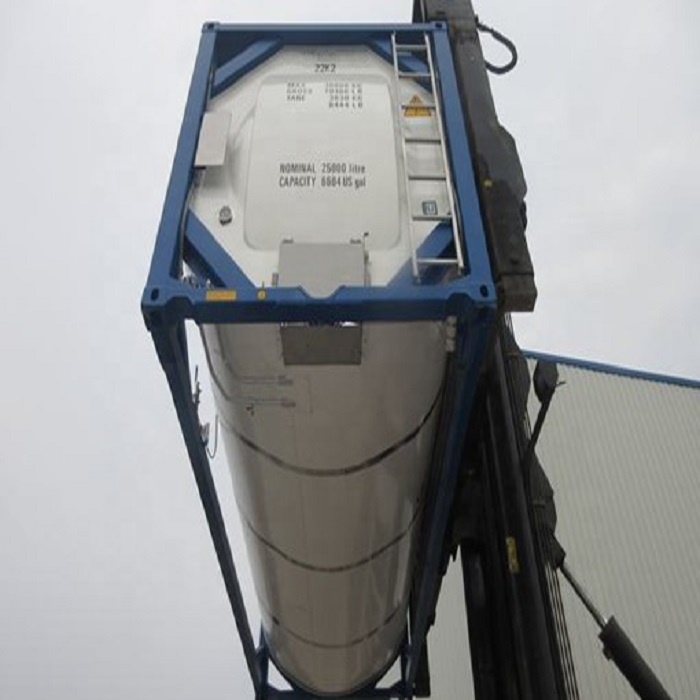

20ft Cement Container

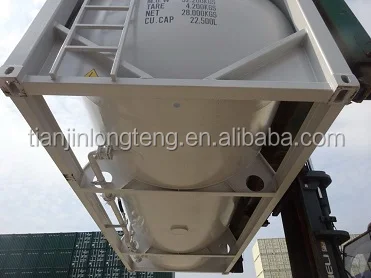

Top View

Valves

Dimension

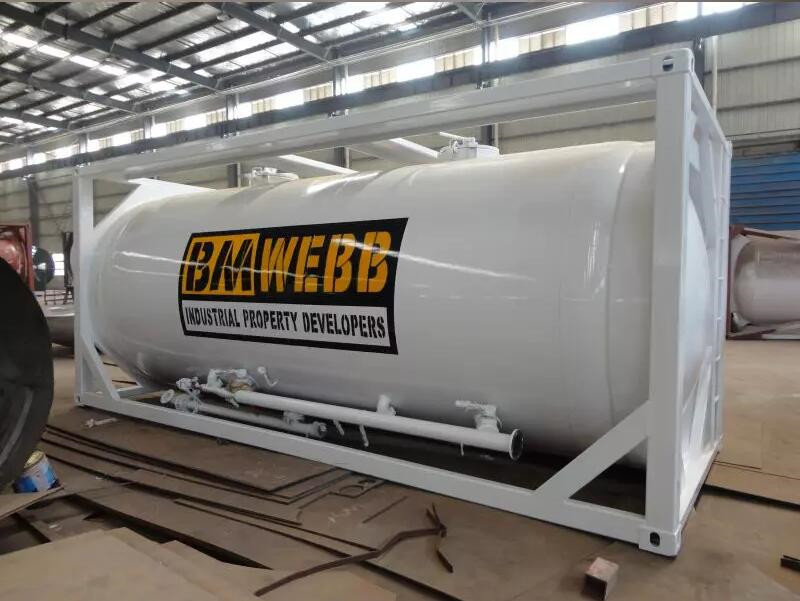

New 20ft Cement Container
Capacity	22500 liters	5943 US gallons
Maximum Gross Weight	32000 KG	70548 LBS
Tare:	4200 KG	9260 LBS
Construction:
Working Pressure	2.2 bar	32 psi
Test Pressure	3.3 bar	48 psi
Steam Working Pressure	4.0 bar	58 psi
Relief Valve Set Pressure	2.2 bar / -0.21 bar/vac	32 psi / -3 vac/psi
Ambient Temp. Range	-19°C up-to +80°C	-2,2°F up-to +176°F
Maximum Cargo Temp	80°C	176°F
Shell Material	Stainless steel, ASTM A240 316 / 316L low carbon <0.03% DIN 17441 w1.4401. Cold rolled shell 2B finish. Thickness nominal 4.2mm shell +0.1 corrosion allowance, 4.65 ends, and equivalent 6mm mild steel in accordance with regulations.
Design Code / Approvals	ASME, section VIII, division 1 where applicable and TIR, C.S.C., ISO/TC - 104, ISO668, ISO6346, ISO830, ISO1496/3(Edt1995), ISO1161, CCS. (China Classification Society)

Packing & Delivery

Packing: non packing requirement for 20ft cement tank container.

 Delivery: delivery from main sea ports of China like Tianjin, Qingdao, Shanghai, Ningbo and etc.

Company Profile

FAQ

1. Can a tank container be manufactured to my request?

Yes. tanks can be manufactured and modified to fit your needs.

2. Can I use tank containers for storage applications?
Sure/ Tank containers are suitable for storage applications and have the added benefit of being suitable for stacking.

3. Can I completely fill the tank container?
A space must be left to allow for expansion of the cargo.
