Cryogenic Tire Recycling Equipment Waste Tire Shredder Machine To Rubber Chips
- Category: Rubber Recycling Machinery >>>
- Supplier: Zhengzhou Yuxi Machinery Equipment Co. Ltd.
Share on (60816027563):
Product Overview
Description
Product Description
The waste tire recycling machine is a piece of new innovative equipment. Rubber powder production line is used for processing used tires and rubbers to fine rubber powders.
End product size can reach 30-120 mesh free of steel wire and fiber.
Capacity | 500-10000kg/h |
Scope of application | The diameter of the tire:400-3000mm |
Output size | 5-100 mesh, can be Customized |
Complete separation | The rubber Crumbs, Steel and Fiber can be separated automatically. Adopt PLC control system, it is only needs 4-6 persons to operate a Tire recycling(granule)production line with 3000 kg/h capacity. Low energy consumption. The installed powder of Tire recycling production(granule)line with capacity 3000 kg/h is about 800 kw. |
Equipment required area | About 680 square meter, 7m height |
Characteristic of blade | Long service life.High utilization, Multiple maintenances. |
Final Product
How about your final product?
Our tire recycling machines can break down the waste tires into rubber granules, rubber powder, steel wire, and fiber.
Deal With All Kinds of Waste Tires
Details Images
Schematic of tire recycling machine
Waste rubber tire powder recycling machine consists of tire broken machine host and auxiliary machine two parts. Auxiliary equipment: Hook Wire Drawing Machine, Tire Cutter Machine(Optional according to tire size), Conveyor, Magnetic Separator Machine, and other components.
Working flow:
Waste tire---Wire drawing machine---Rubber shredder--- Steel wire separating machine---magnetic separating ---Rubber powder.
1. Steel wire drawing machine--extract the thick steel wire.
2. Conveyor-Transport the tire to the shredder.
3. Twin-shaft shredder--Shears the tire into 5- 10cm blocks;
4. Recirculation system--To control the size of shreds going to the rapers;
5. Raspers-Reduce the shreds into 15. 20mm chips and liberates steel from the rubber;
6. Over belt magnet--Separation of liberated steel from the rubber chips;
7. Vibratory feeder--Transports the rubber chips;
8. Rubber granulator machine--Size reduction of the chips to 1-4mm granules and liberates the textile fraction to air flow separation.
9. Grinder machine --Grinder rubber powder.
10.Central de-dusting unit--Remove dust and fines from the system and filter the air before returning it to the atmosphere.
Related Product
Packaging & Shipping
1. Packaging: 1)Wrapped by the protective film;
2)Packed by standard import & export wooden cases or carton boxes.
2. Shipping: By logistics; by automobile; by train; by shipping; by air etc.

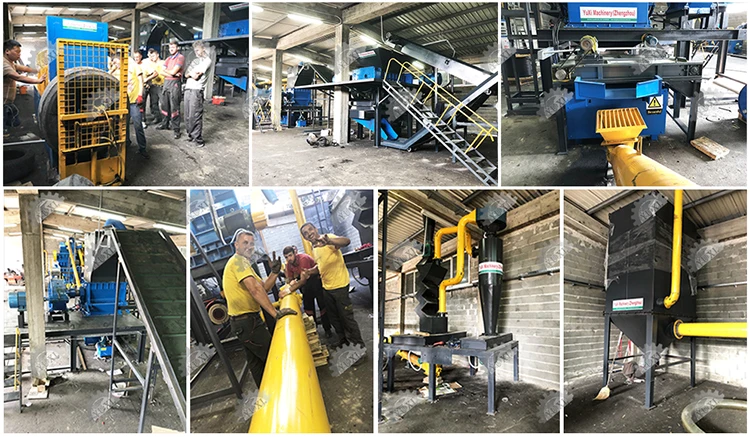

♥ Field installation, commissioning and training ♥
European customer installation site

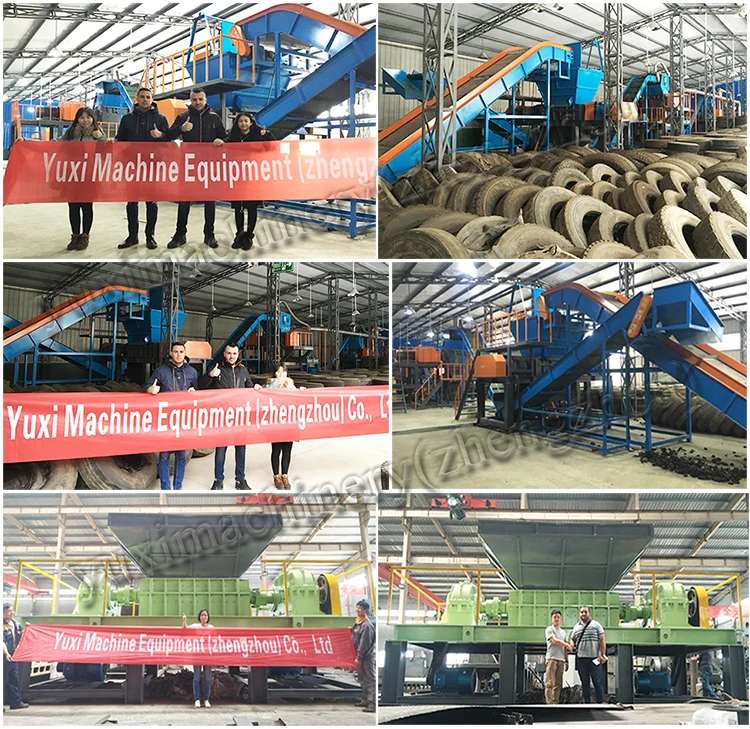

Our Factory
Zhengzhou Yuxi Machinery Equipment Co. , Ltd. is specialized in designing, researching, producing waste recycling equipment and provide waste treatment solutions. Yuxi factory has been working closely with well-known foreign enterprises to establish a good relationship between technical cooperation and market development. at the same time, 32 patents and 3 invention patents have been obtained.
High efficiency, energy saving, environmental protection is the belief that our company has been firmly established. With high-quality products and core technology, our products are successfully exported to United States, Europe Australia, Southeast Asia, Middle East, South America and other more than 90 countries and areas, win the support and reliability of customers at home and abroad.
Working shop
