Clean room GMP air shower
US $1580-$5300
Cleanroom air shower room AL AS 1300/P1
- Category: Air Shower >>>
- Supplier: Guangzhou Kelaichuang Purification Equipment Manufacturing Co. Ltd.
Share on (60816068055):
Product Overview
Description
Double-Side Blowing Air Shower for Clean rooms
Product Introduction:
Air shower is essential purification equipment to the modern industry clean room, installed between the clean room and unclean room. It blow clean air can remove the dust which carried by the man or goods, effectively block or reduce the source of dust into the clean area. The air shower room two doors are electronic interlocking, played as a role of an airlock, preventing unpurified air into the clean area.

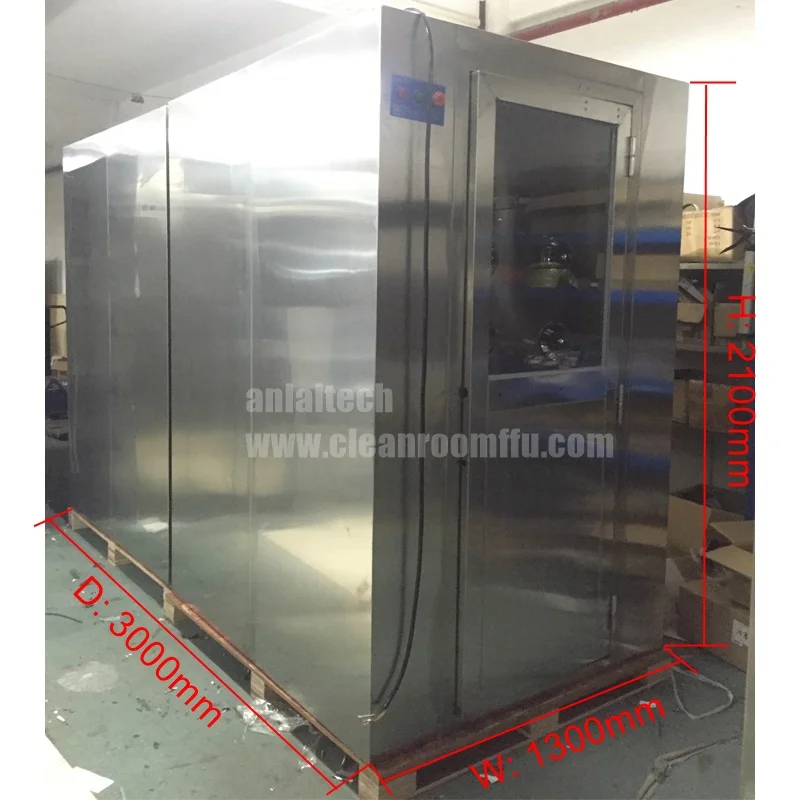

Double Air shower (AL-AS-1300/P1)
ED: 1300×1000×2100mm
ID: 800×930×1960mm
Cabinet Material: Epoxy powder coated steel outside
Stainless steel304 inside (T=1.0mm)
Door: SUS304 with half glass
Electrical control system; Electrical interlock;
Nozzles: SUS304 (12nos of nozzles on both sides);
Washable prefilter, G1
HEPA filter,630*630*69mm,99.99%@0.3um
Emergency switch inside and outside
Automatic door closer: 1set
Fan: 1set Air velocity: 23-27m/s
Shower time: 0-99s adjustable
Power supply: 380V 50hZ 3PHASE / 220v 50/60hz
Stainless Steel Air Shower Parameter:
Model | AL-AS-1300/P1 | AL-AS-1300/P2 | AL-AS-1300/P3 | 1300 Channel type |
Applicable Number of People | 1 | 2-4 | 4-6 | more |
Air Shower Time | 0- 99s (Adjustable) | |||
Number of Nozzle | 12(Two Sides) | 24(Two Sides) | 36(Two Sides) | 48(Two Sides) |
Mouth Diameter of Nozzle | Φ30mm | Φ30mm | Φ30mm | Φ30mm |
Speed of Air Flow at the Nozzle | >25m/s | >25m/s | >25m/s | >25m/s |
Dimension of High Efficiency Air Filter (mm) | 600×600 ×120 | 600×600 ×120 | 600×600 ×120 | 600×600 ×120 |
Dimension of Air Shower Area (mm) | 800×900 ×1960 | 800×1900 ×1960 | 800×2900 ×1960 | 800×3900 ×1960 |
Outside Dimension (mm) | 1300×1000 ×2100 | 1300 ×2000 ×2100 | 1300 ×3000 ×2100 | 1300 ×4000 ×2100 |
Power Supply | ||||
Maximum Power Consumption | 1.1KW | 2.2KW | 3.3KW | 4.4KW |
Customized design is available for air shower clean room | ||||
Factory testing (all the sets you ordered):
All of equipment is individually factory tested for safety and performance in accordance with international Standards. Each unit is shipped with a documentation outlining the tests undertaken and the unit’s individual results for each unit.
Factory test include:
--appearance testing
--functional test and visual inspection
--electrical safety tests
--air velocity testing
--noise testing
Warranty:
Our equipment is warranty for 1 year excluding consumable parts and accessories.
All equipment is shipped with a comprehensive use’s manual complete with a report documenting all test procedures.
Additional IO/OQ/GMP document is available upon request.
Contact our sales representative for specific warranty details or document request.
Consumable parts illustration:
1: Pre-filter: each one should be replacement in each 6 month, but it can refresh no more three times.
2: HEPA air filter: each one should be replacement in each half and one years.
Standard export packing:
--Stretch film strapped whole cabinet,
--Foam inside protected,
--Plywood case solid fixed
--European standard bottom tray
What you can get from us?
- 1. Immediately responses for your inquiry and response saving your time, update your project processing.
- 2. Professional design team matches all your ideas;
- 3. Over 10years cleanroom, laboratory furniture and air filters producing experience guarantee the quality;
- 4. Strictly factory testing take out your troubles in advance;
- 5. ISO, CE, UL,TUV, SGS testing Certificates helped your business;
- 6. With 18monthes Warranty card service your business in good way;
- 7. Own the CNC machine, class 10000 clean room workshop, spray booth, 1300*1300 non-gap Mini-plated HEPA filter producing machine as well with over 5years clean room producing experience workers keep well each your orders.
- 8. Completed of set documents issued with final products help you easy with our products.
With many thanks for your support, factory price is waiting for your response.
