Машина для литья пенополиуретана высокого давления, используемая для изготовления подушек для автомобильных сидений, руля, бампера, солнцезащитного козырька, одноразовых затычек для ушей
- Category: Foam Machinery >>>
- Supplier: Bobo Machine Co. Ltd.
Share on (60816258113):
Product Overview
Description
Product Description
Brief introduction

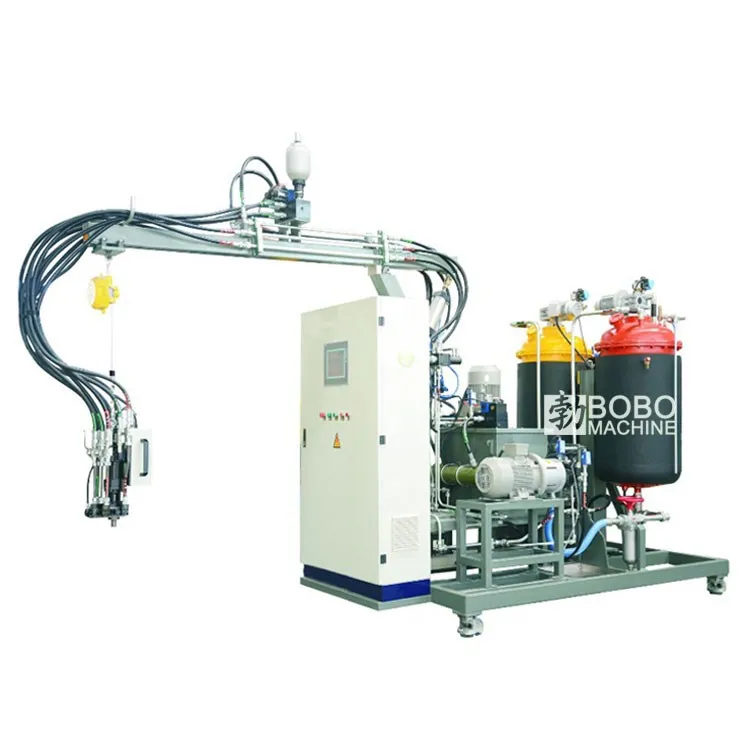

High pressure foam injection machine is mainly used for small and medium sized foam object injection including pillow, car seats, decoratives furnitures ect . It is with automatic cleaning and the operation is easy. And usually it works with a chiller.
No | Description | Item |
1 | Model | GZ-1800 |
2 | Injection capacity range | 50g/s-200kg/s (can be customized) |
3 | Arm | 2.3 meters ( can be customized) |
4 | Rated power | 30KW |
5 | Temperature control power | 2*9KW |
6 | Tank capacity | 250L ( can be customized) |
7 | Mixing system rotation speed | 2800-5000 r/min |
8 | Compressed air required | Dry, no oil, 0.6-0.8MPa |
9 | Motor power | 380V, 50Hz, 3 phase ( can be customized) |
10 | Dimension | 3600mm x 1250mm x 2300mm |
11 | Weight | 1250Kg |

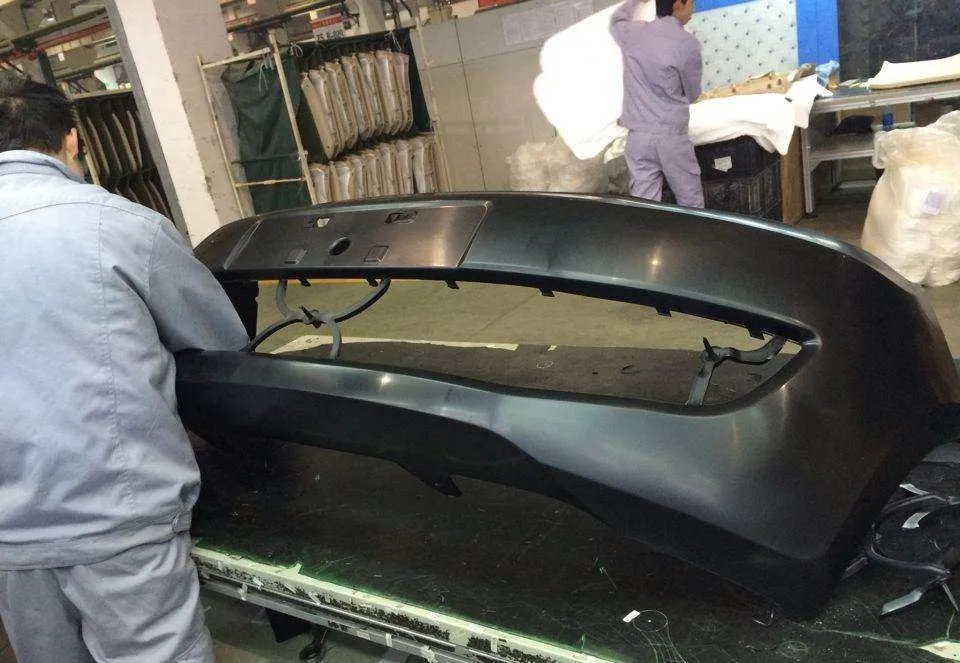

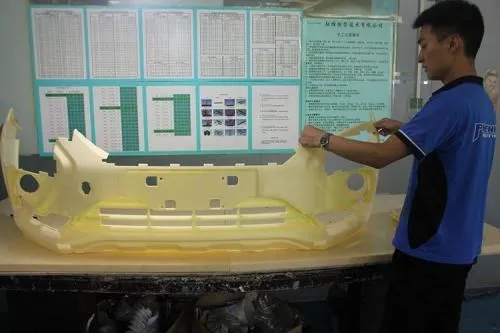

Application
Detailed Images
Mixing head
The mixing head adopts floating mechanical seals, and its high shear mixing screw head, which can mix two materials with better performance.
Material tank
Two-sandwich heating tank, plus insulation, heating quickly, low energy consumption.
Material of the tank: SS304
Size of feeding flange: φ150
Capacity: 250L
Quantity: 2
Procedure
It's a general procedure of surfing plate making. Prepare the mould and inject the material into the mould and after seconds (differs) the material gets hard and comes into shape, it's done.

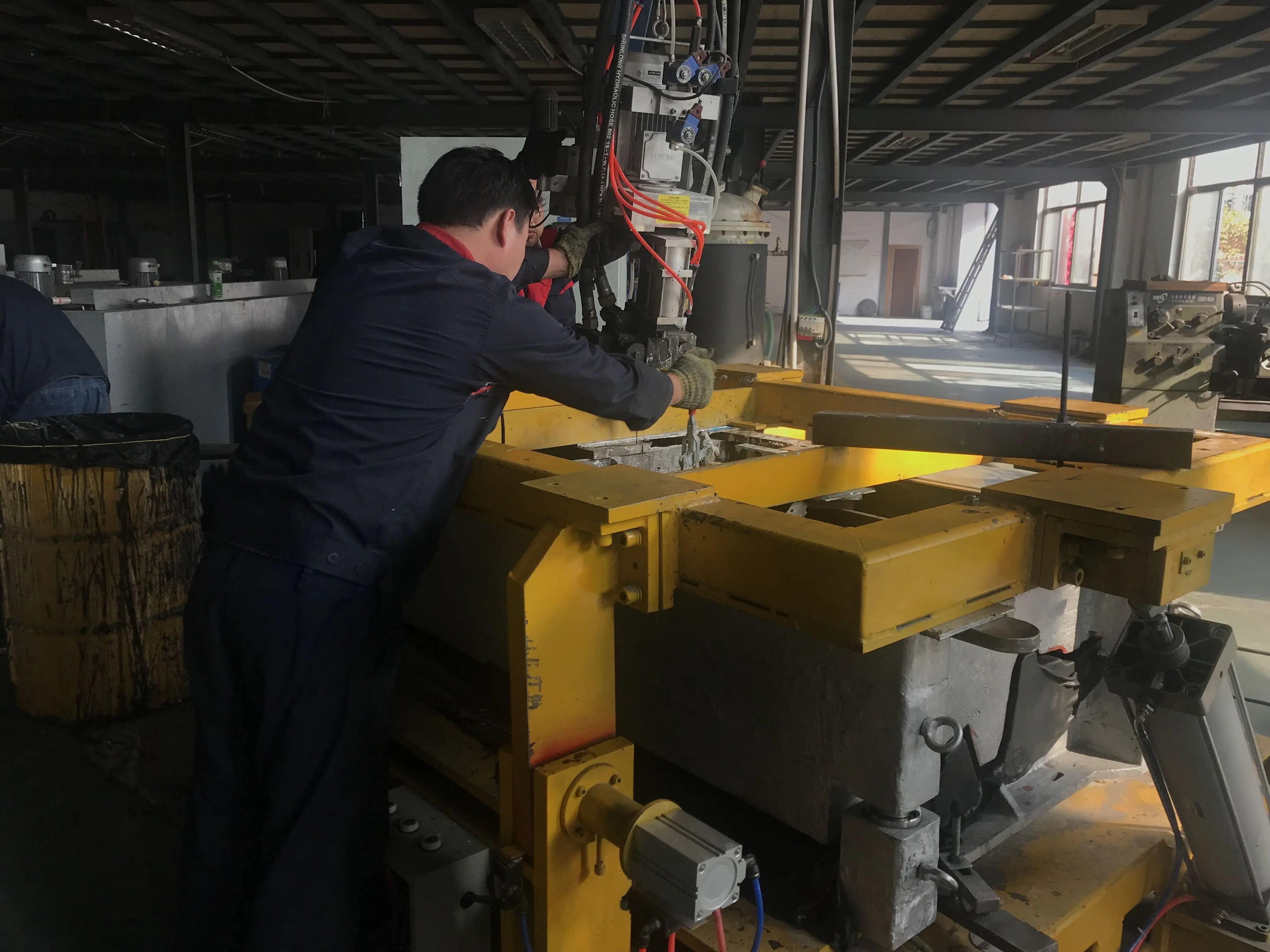

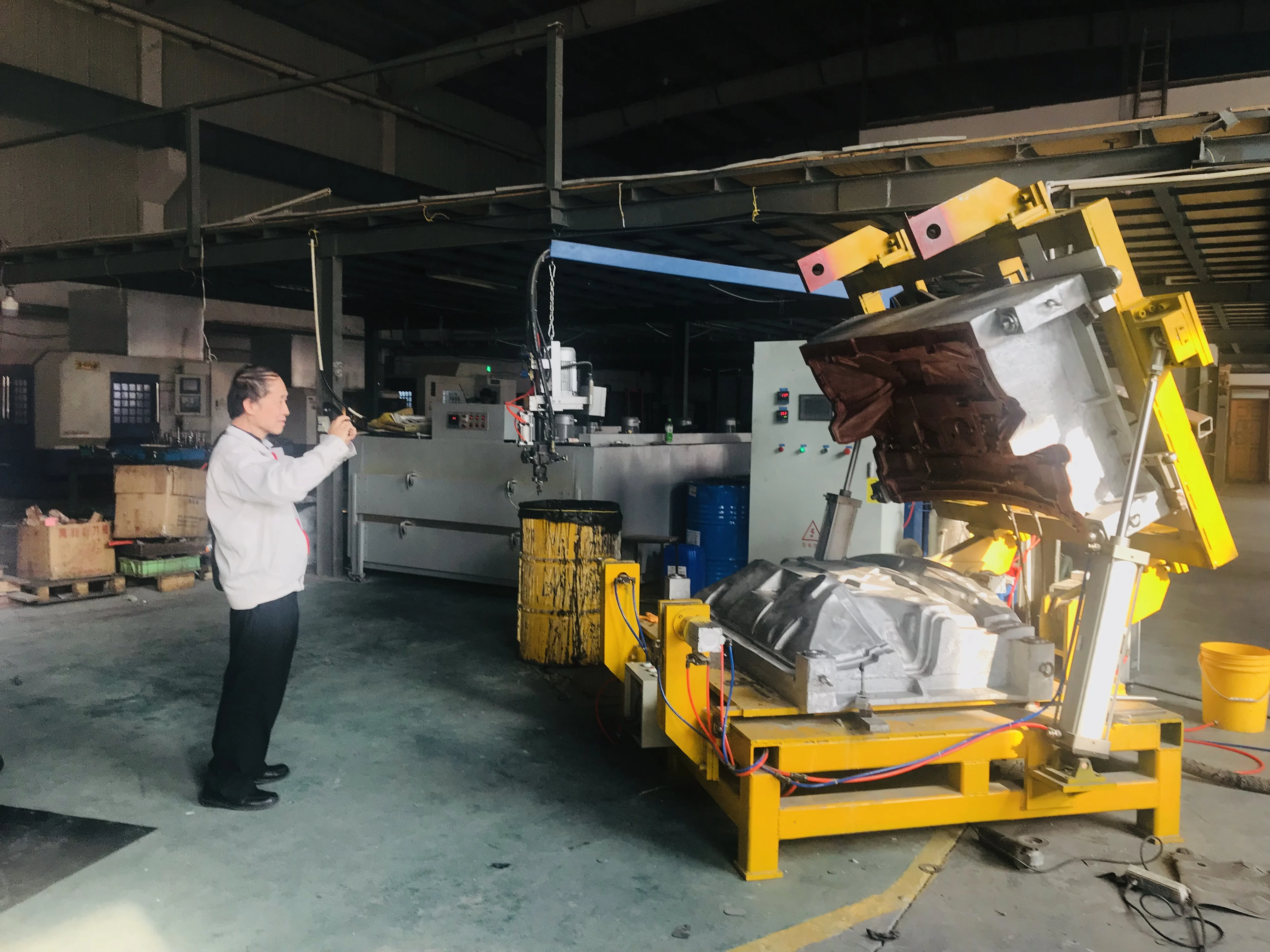

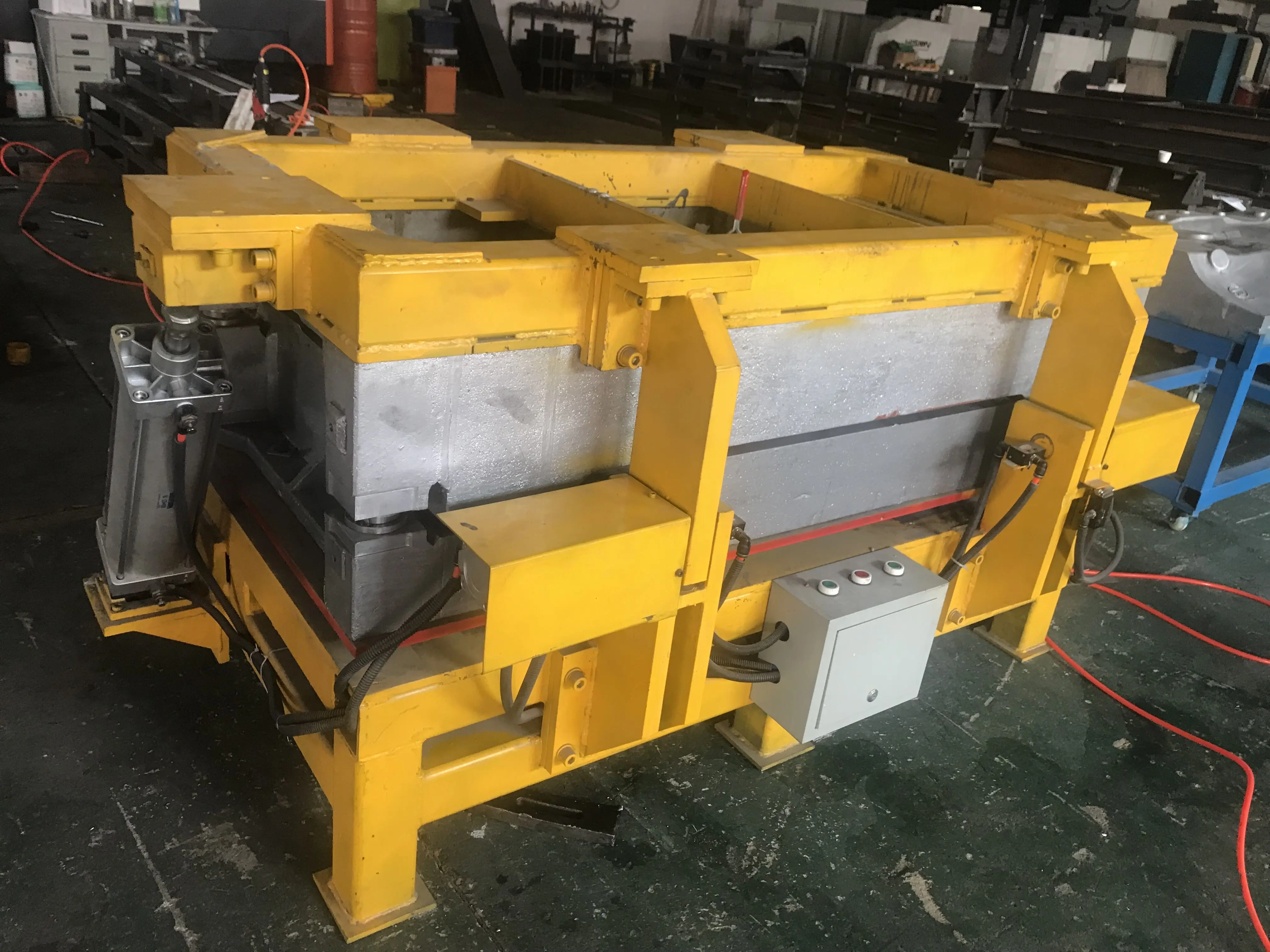

About the mould
The foam injection machine can be used for any kind of foam product with a mould and foam material mixed with required ratio.
We can custimize mould for our clients, and you should provide us with a detailed drawing for your product, or a sample.
And we also supply drum/barrel foam material.
Packing & Delivery
Packaging | ||
Size | 1800*1350*2400mm | |
Weight | 1.35T | |
Packaging Details | The machine is installed completely before shipment, so the package is a little bit high. When you get the machine, it can be put into use after wire connection. Standard package with waterproofing protection for shipping. | |
