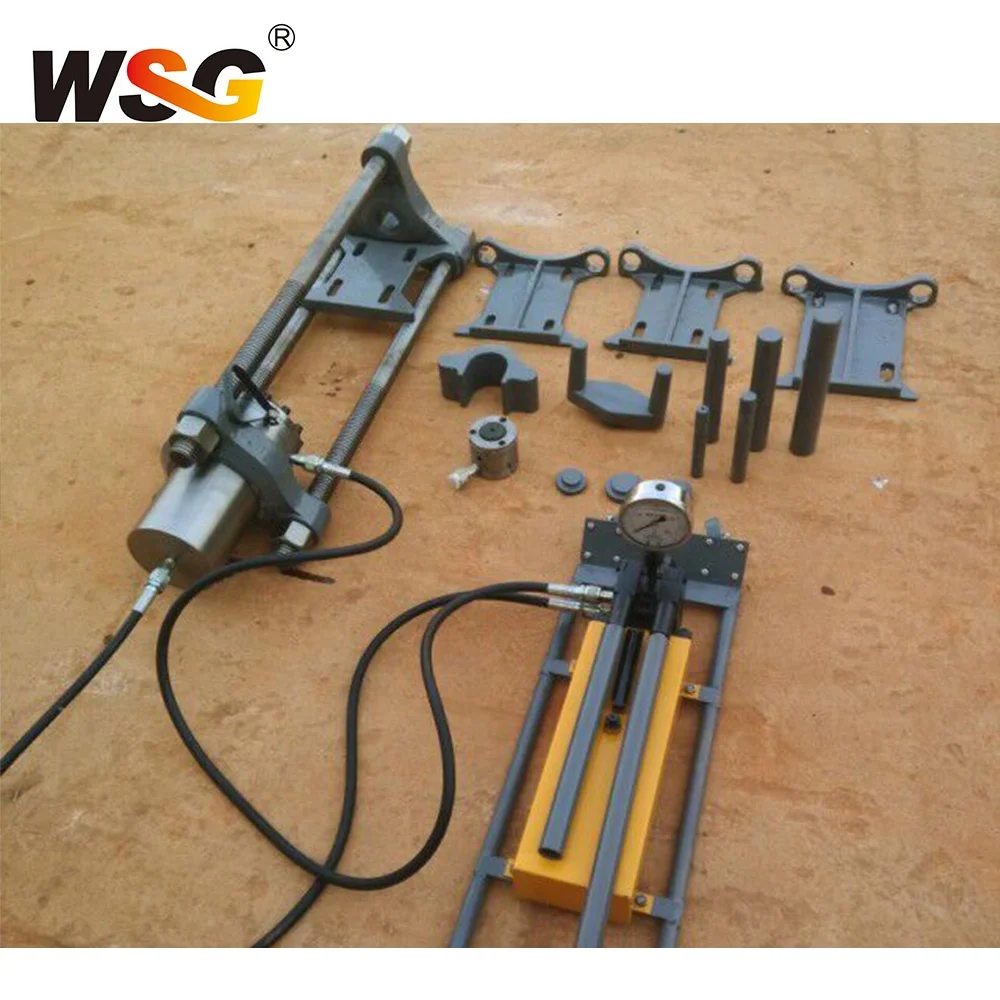

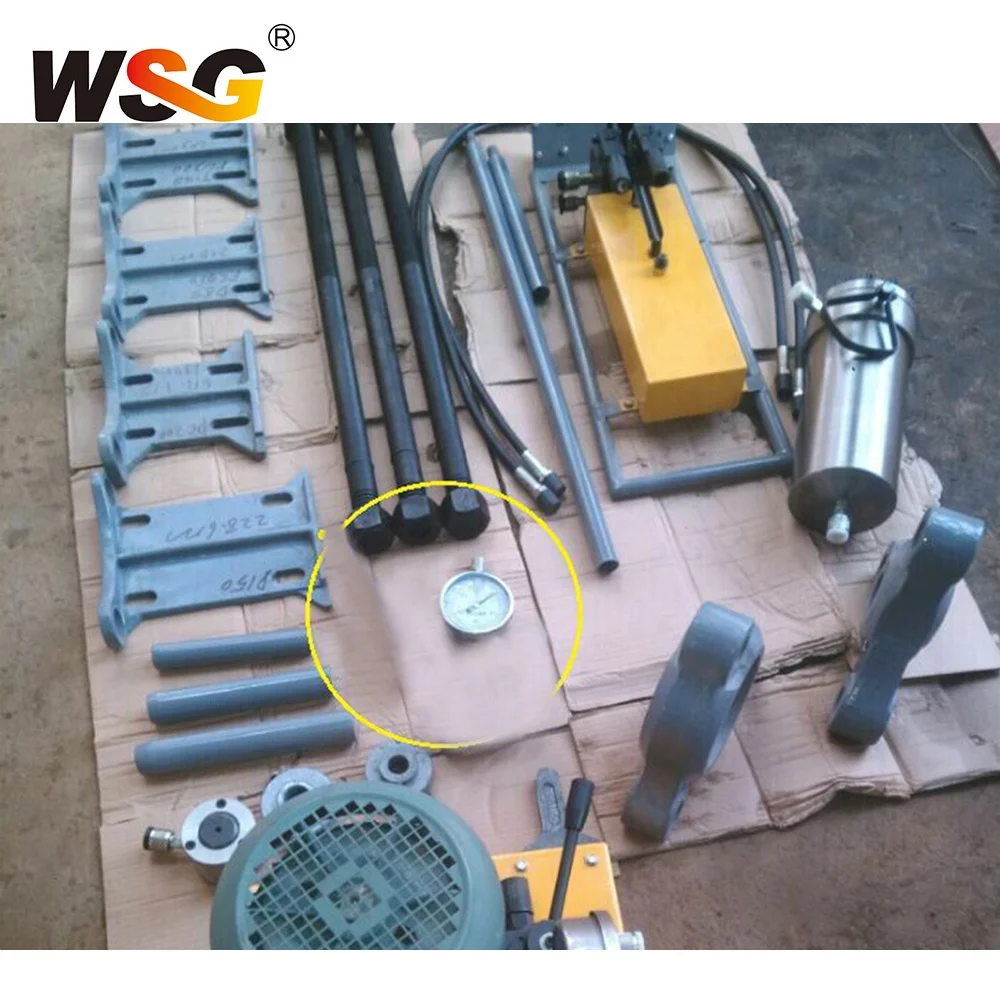

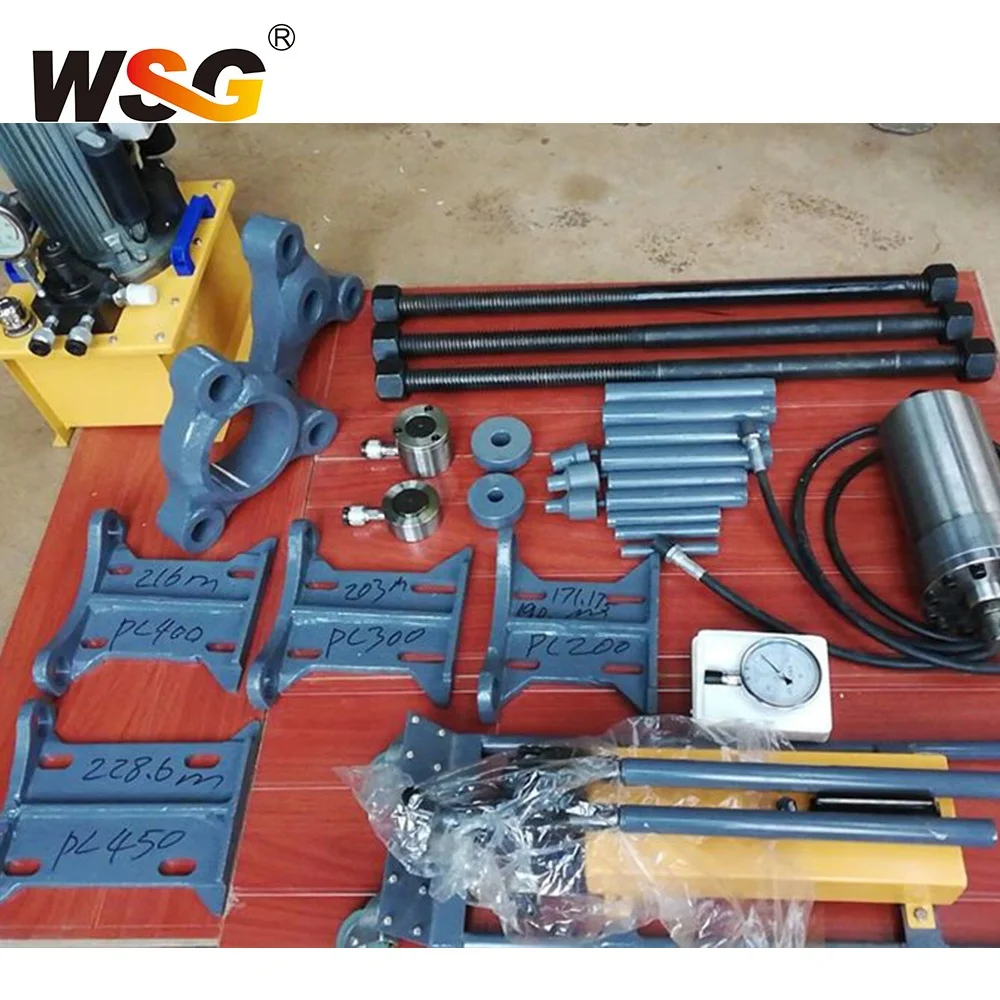

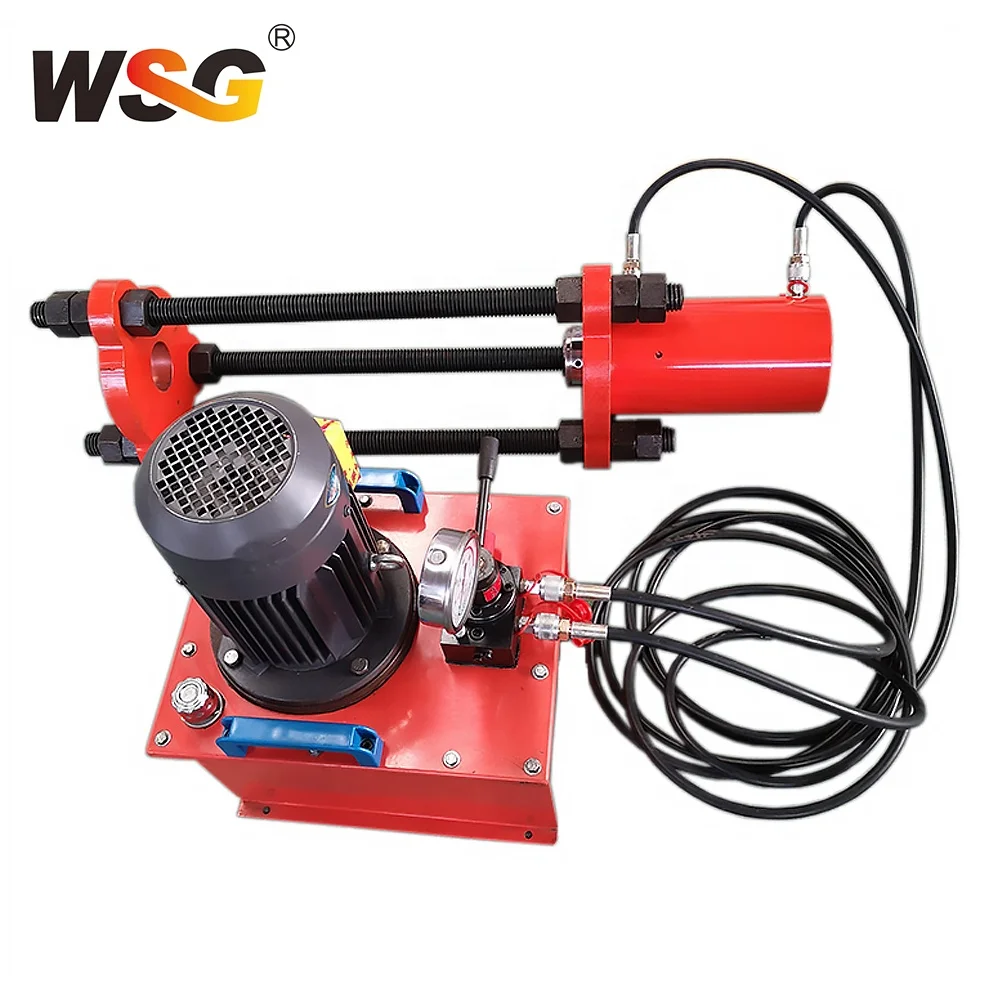

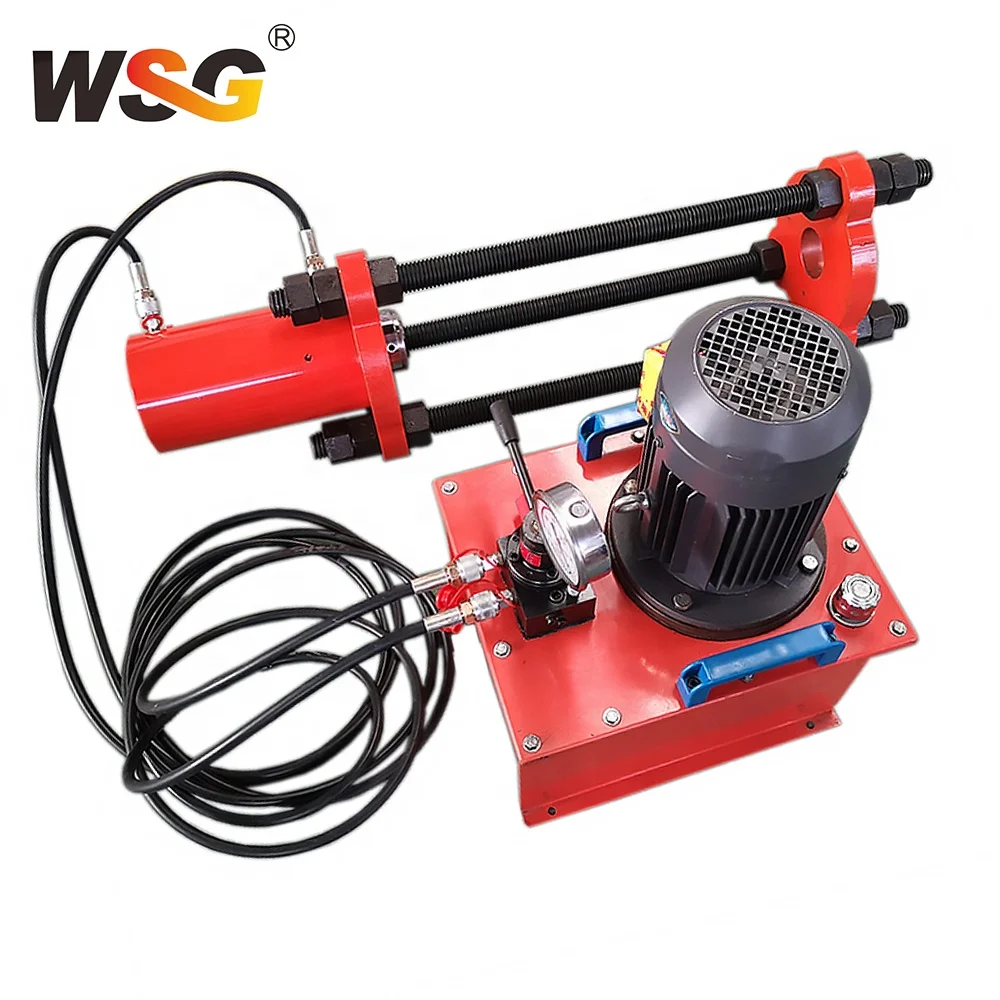

100/150/200 Ton Hydraulic track link pin press portable press link machine

Product Overview

Description



Product Detail
Product Name	Portable Track Pin Press
Province	fujian
Color	Customer's Requirement
MOQ	1 Piece
Service	OEM&ODM
After Warranty Service	Video technical support
Keyword	Excavator Slewing bearing
Delivery	in 7 days after payment
Packing	Wooden Case or carton
Condition	New
Warranty	6 Months
Processing method	Forging casting
Certificate	ABS.BV,DNV,ISO9001,GL
Payment term	T/T is our first choice

More models please kindly contact us

Type	Model	Fit for pitch (mm)	Fit machine example
Manual & Electronic Press link machine	WSG150-1E	175,190	PC100,PC200
	WSG150-2E	175,190, 203	PC100,PC200,PC300
	WSG150-3E	175,190, 203, 216	PC100,PC200,PC300,PC350
	WSG200E	175,190, 203, 216, 228	PC100,PC200,PC300,PC350,PC400
Manual Press link machine	WSG150-1	175,190	PC100,PC200
	WSG150-2	175,190, 203	PC100,PC200,PC300
	WSG150-3	175,190, 203, 216	PC100,PC200,PC300,PC350
	WSG200	175,190, 203, 216, 228	PC100,PC200,PC300,PC350,PC400

Hydraulic track presses are used for the removal or installation of the pins from the undercarriage tracks of excavators, bulldozers, tractors and similar track propelled machinery. High hydraulic pressures are required to force the pins which hold the modular plates, a portable hydraulic track field press (manual hydraulic or electric pump) is available for smaller machine tracks and larger fixed electrical machines are available for larger machinery tracks (suited for workshop).
