Fully automatic prefilled syringe filling machine for different different liquid

Product Overview

Description

APFS3500 Automatic filling and plugging machine for pre-serilized syringes

1. Features:

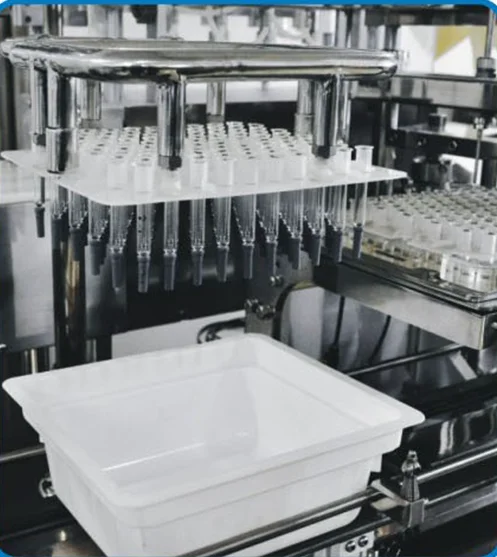

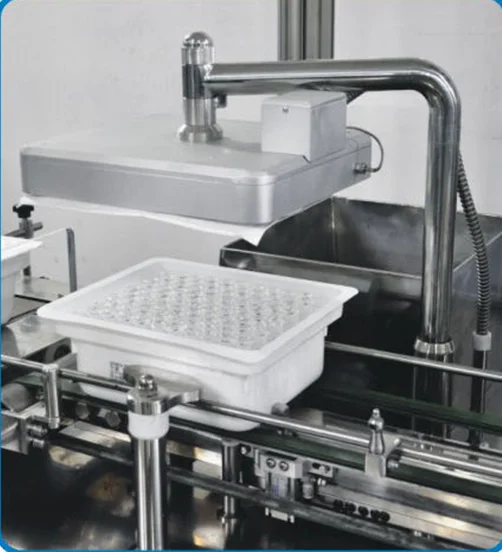

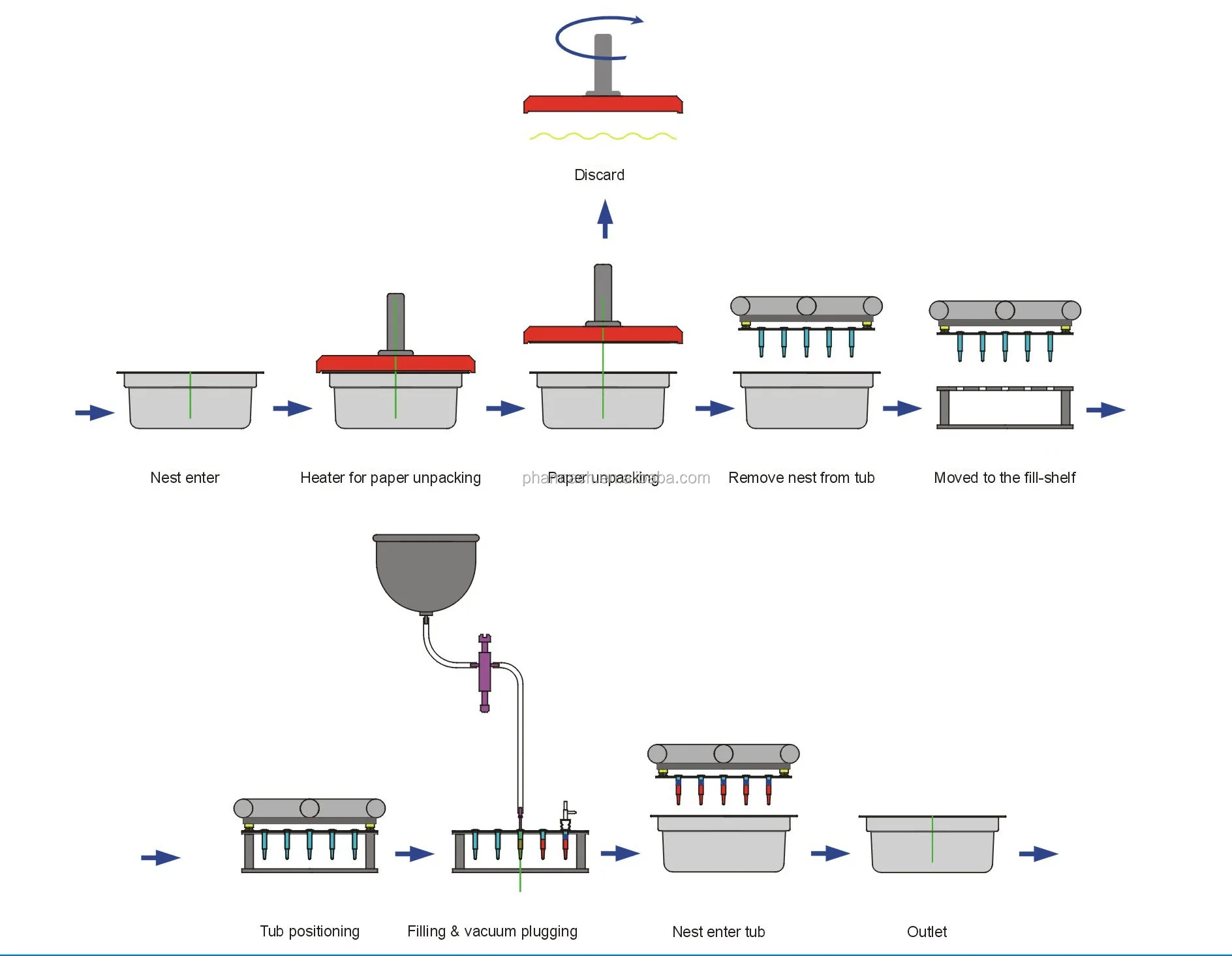

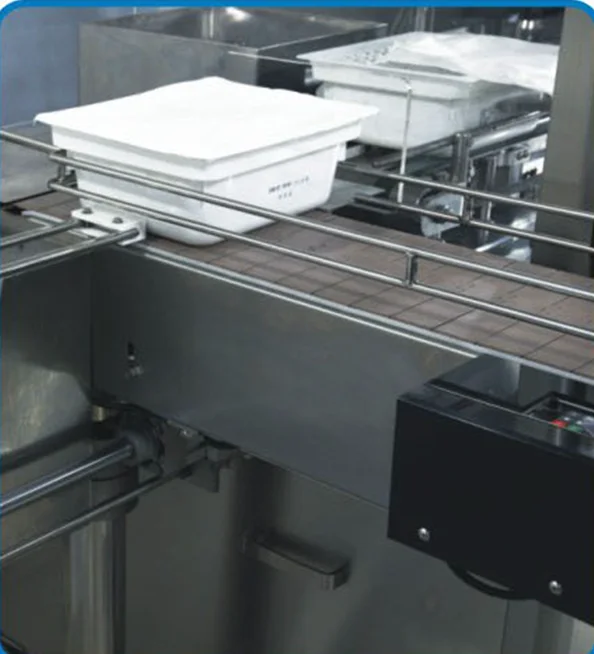

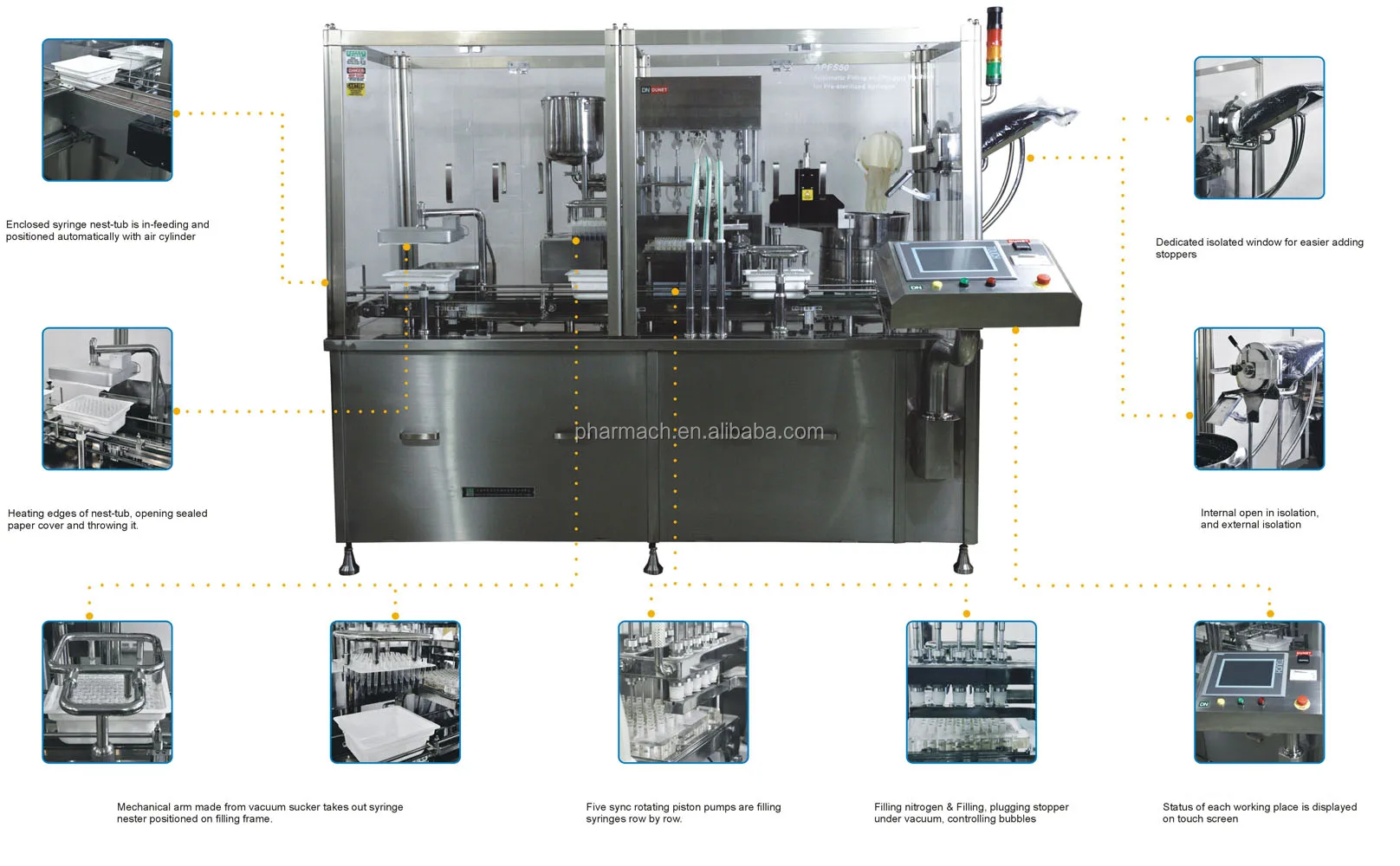

1). Automatic machine firstly developed in China. Features include automatic syringe nest-tub in-feeding, automatic paper-cover opening/throwing, automatic vacuum filling, automatic vacuum plugging and automatic nest-tub out-feeding. Accurate filling, controlling bubble during plugging.

Automatic operation with monitoring all the way. Beside normal liquid , also suitable for filling transparent thick liquid like ester acid.

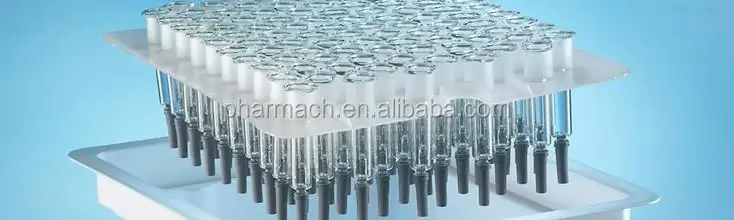

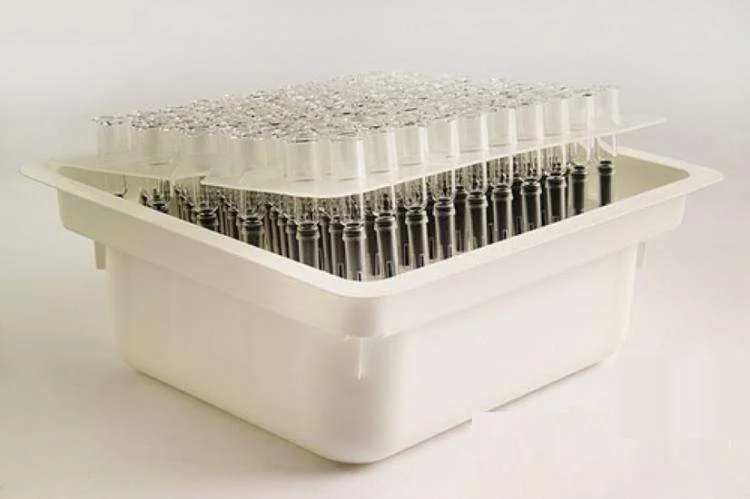

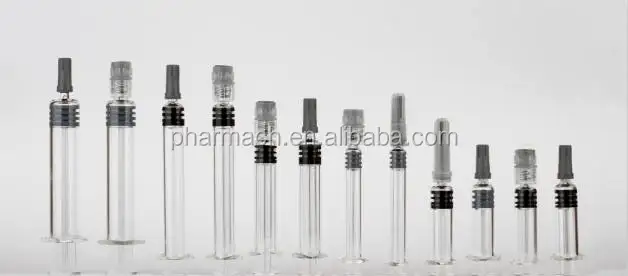

2). This machine is suitable to pre-sterilized syringes( SCF type) made by BD, BG, SCHOTT and major Chinese suppliers. Custom-designed is optional for other types of syringes.

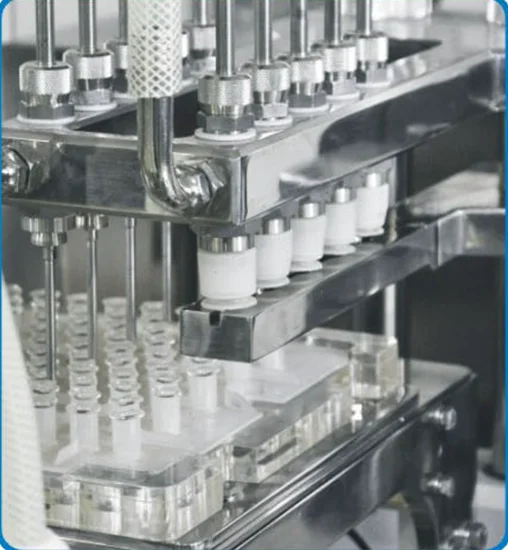

3). Five Sync filling nozzles, four sets of servo motors (Yasukawa, Japan) for accurate filling, plugging reliability and accurate row by row moving during filling operation.

4). SS rotating pumps. Filling volume set up and accuracy tuning are executd on touch-screen without and tools.

5). Siemens color touch screen. Real time monitoring and display of each operation status, vacuum pressure, nitrogen pressure, C/A pressure, fault alarm with position indication, fault indication and record. Multi-languages display.

6). Plugging quality is monitored with MVS (machine vision system), to ensure higher acceptability (option).

7). Process parameters can be timely printed, stored and retrievable.

8). All contact parts are of sus316L and medical silicon rubber. Machine is coated with SUS304 and 6061 Oxidated aluminum alloy.



2. Technique parameters:

Filling volume	0.1-0.5ml, 0.5-3ml, 3-10ml, 10-30ml
Number of filling nozzle	5sets
Capacity	2000-3500 syringes /hour
X  travel distance	900mm
Printer	Hot-sensible printing paper, width 56mm, max. 20alphabets per line
Machine Vision system resolution (option)	752x480dpi
Vacuum	0--98kap( 0- -750mmHg)
Nitrogen	1kg/cm2, 0.1m3/min 0.25u
Compressed Air	6kg/cm2, 0.35m3/min
Power supply (including Vacuum pump)	3P 380V/220V 50-60Hz, 5.5kw
Dimension	3050x1600x1900mm  LXWXH
Net weight	950KG
