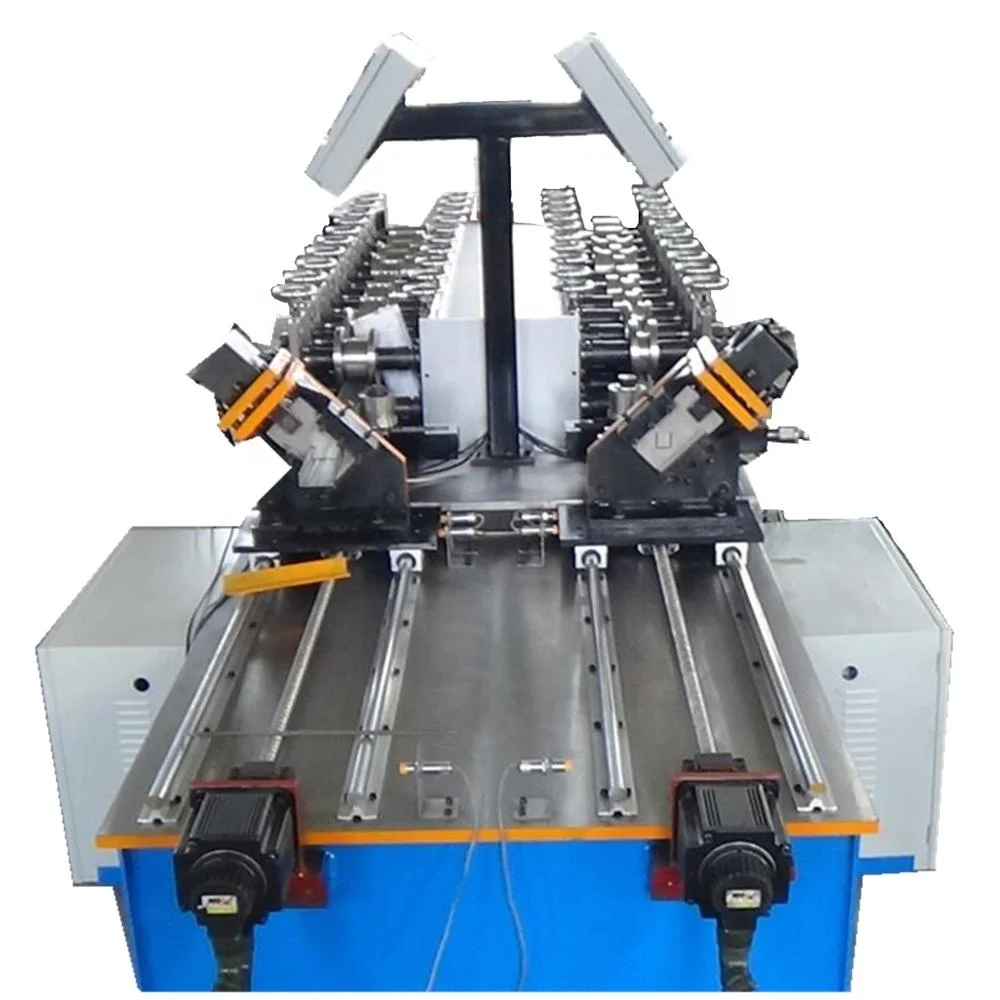

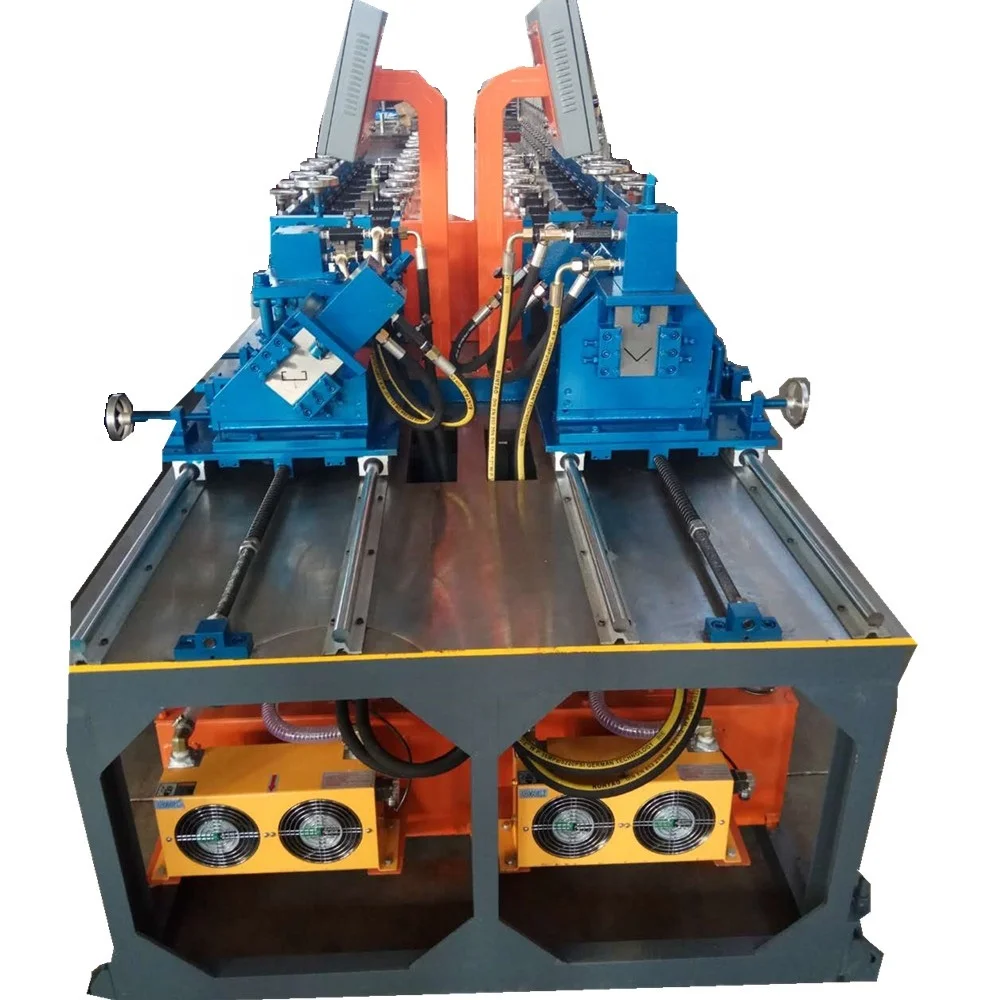

Stud and Track C U Channel Roll Forming Machine
Product Description
1. Usage and introduction of this production line

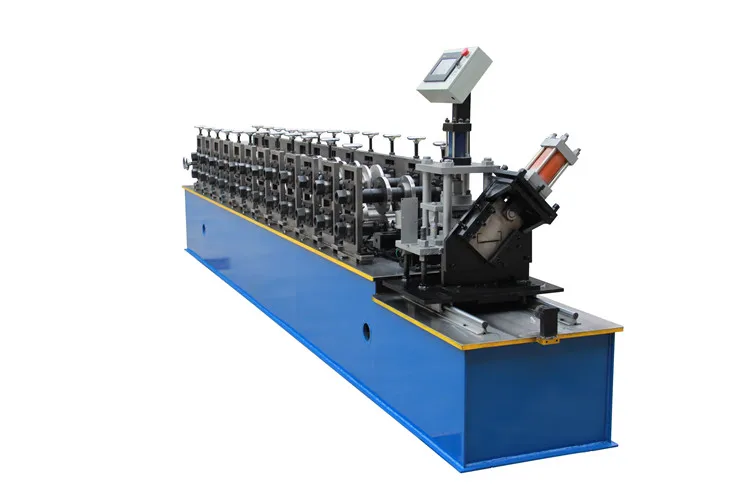

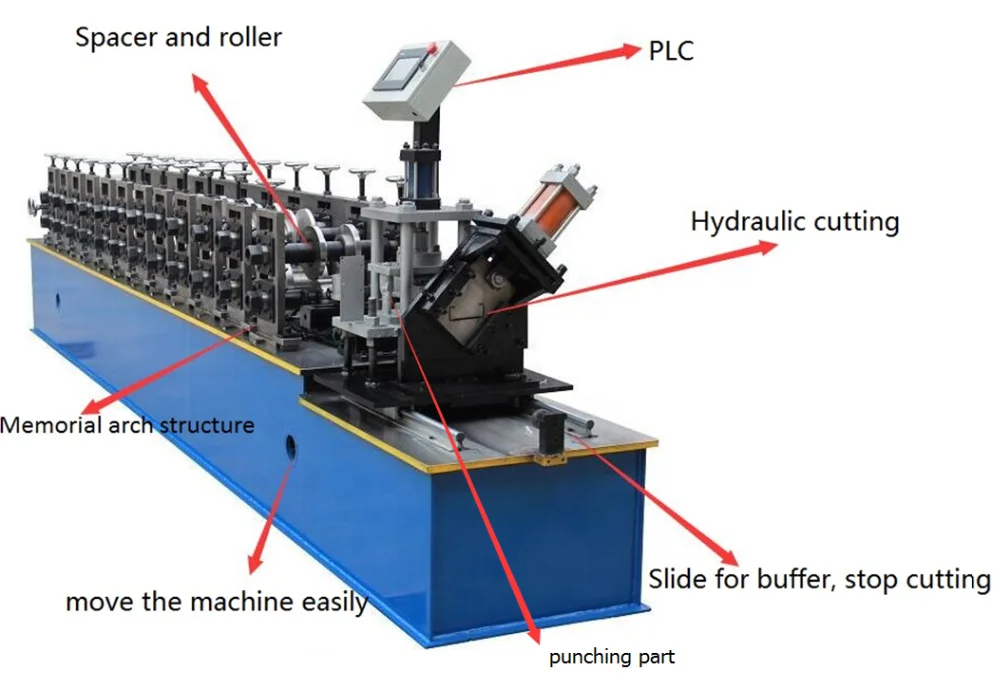

Metal Frame Stud And Track Omega Shaped Light Steel Cold Roll Forming Machine includes manual decoiler, main body of roll forming machine, hydraulic cutting system, PLC control system and discharge table. The users can set order as per their requirement to produce the special pieces and length products. This machine line can work automatically by PLC control system. It is easy to operate and running stably.
2. Components of the roll forming production line
(1) Manual Decoiler 1 set
Un-powered, manual control
Max Feeding width: 300mm,coil ID range 508mm±50mm
Bearing Capacity: Max. 1 Ton
Weight: 120kgs

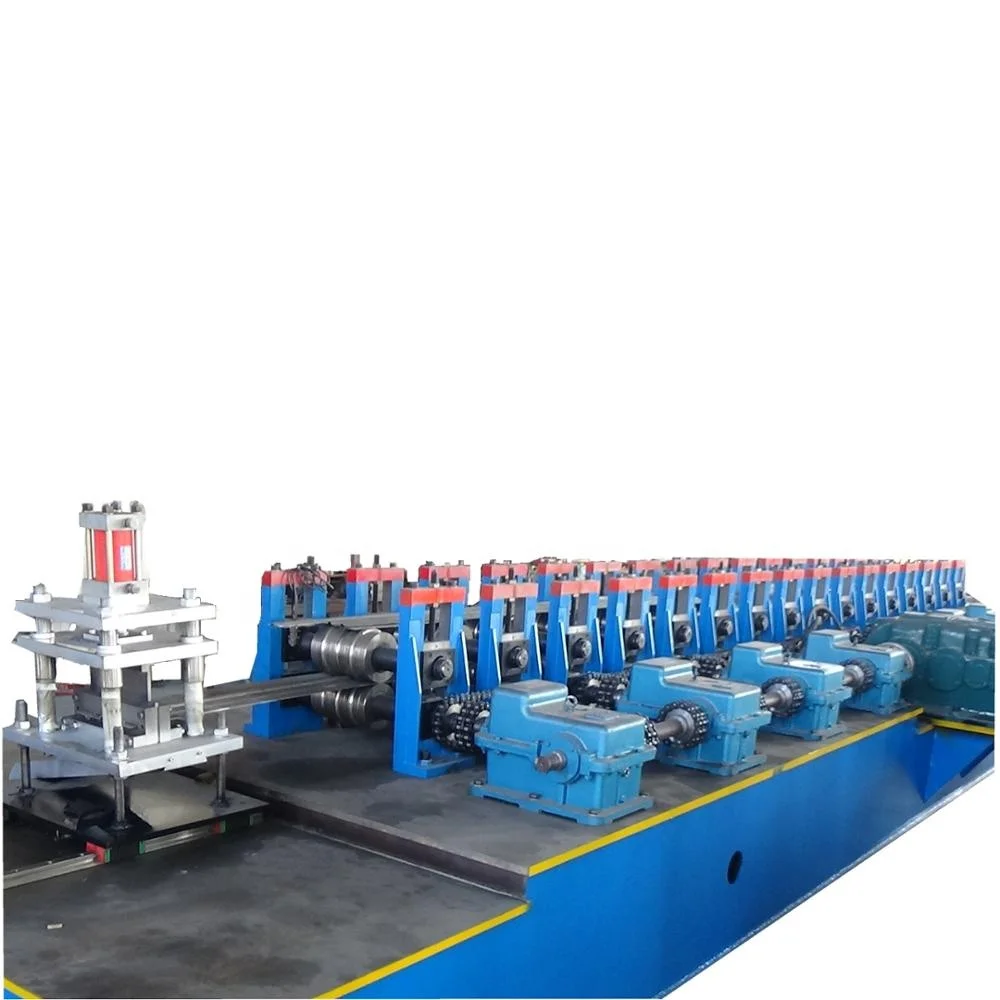

(2) Main body of machine
| Feeding material | PPGI / GI plate |
| Frame type | steel board welded |
| Width of the plate | 94mm |
| Thickness of the plate | 0.3 - 0.75mm |
| Dimensions | 5500mm*1200mm*1400mm |
| Diameter of the shaft | Φ45mm |
| Roller station | 12rows |
| Productivity | 15-20m/min |
Drive mode | A / C motor |
| Motor power to drive the machine | 5.5 + 4 kw |
| Voltage | 380V 50Hz 3phase or as per requirement |
| Weight | 2900kgs |
| Material of the cutting head | Gr12 , heat treatment HRC58-60 |
| Machine frame | steel board welding frame |
| Side board thickness | 25mm |
(3) Hydraulic Cutting device
It is controlled by gear wheel oil pump.
After filling the hydraulic oil into the hydraulic oil tank, the pumps drive the cutter machine to begin the cutting job.
The system includes: a set of hydraulic tank, a set of hydraulic oil pump, two hydraulic pipes. And two sets of electromagnetism valves.
Power of the oil pump motor: 4kw Hydraulic oil :46#
(4) PLC Control System
It adopts industrial computer to control.
The target piece’s length is adjustable and digit of it can be adjusted.
Computed mode has two Modes: automatic one and manual one. The system is easy to operate and use.
It contains programmer, transformer for the electronic machines and kits of every part.
Language screen:Chinese,English or Russian language .
(5) Discharge table 3 separate tables
Un-powered, manual type
Function: collect the finished products
Dimension: 1000mm*1000mm*700mm
Weight: 30kgs/ set
1.. Processing technique and deployment
Flow chart : Decoiler-- Roll Forming--PLC System—Hydraulic System –Punching --Cutting —Output Table
2. Components of line:
No. | Name | Unit | Qty |
1 | Decoiler | set | 1 |
2 | Main Machine for roll forming | set | 1 |
3 | Control System(PLC) | set | 1 |
4 | Pressing System | set | 1 |
5 | Cutting System | set | 1 |
6 | Output Table | set | 1 |

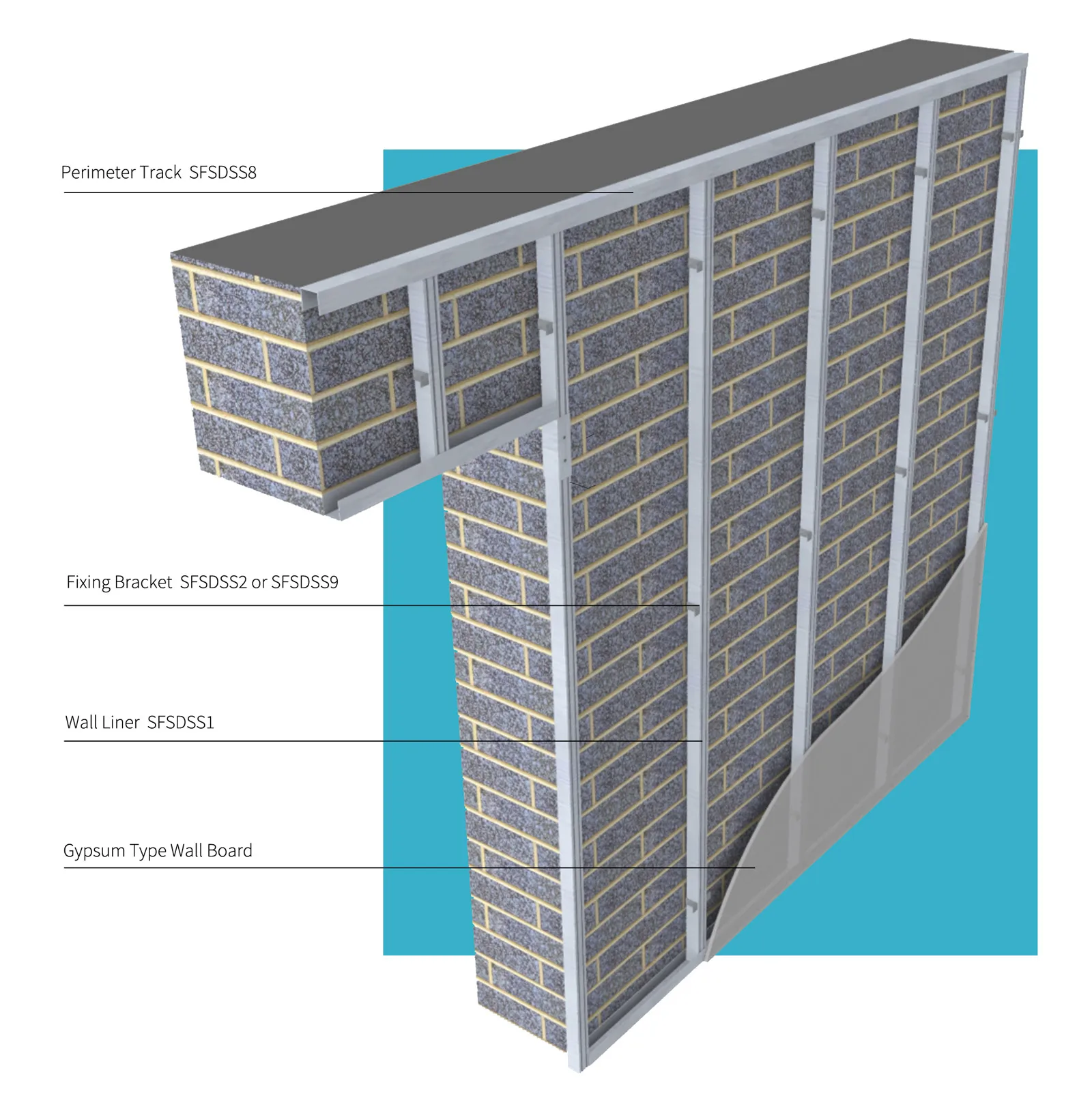

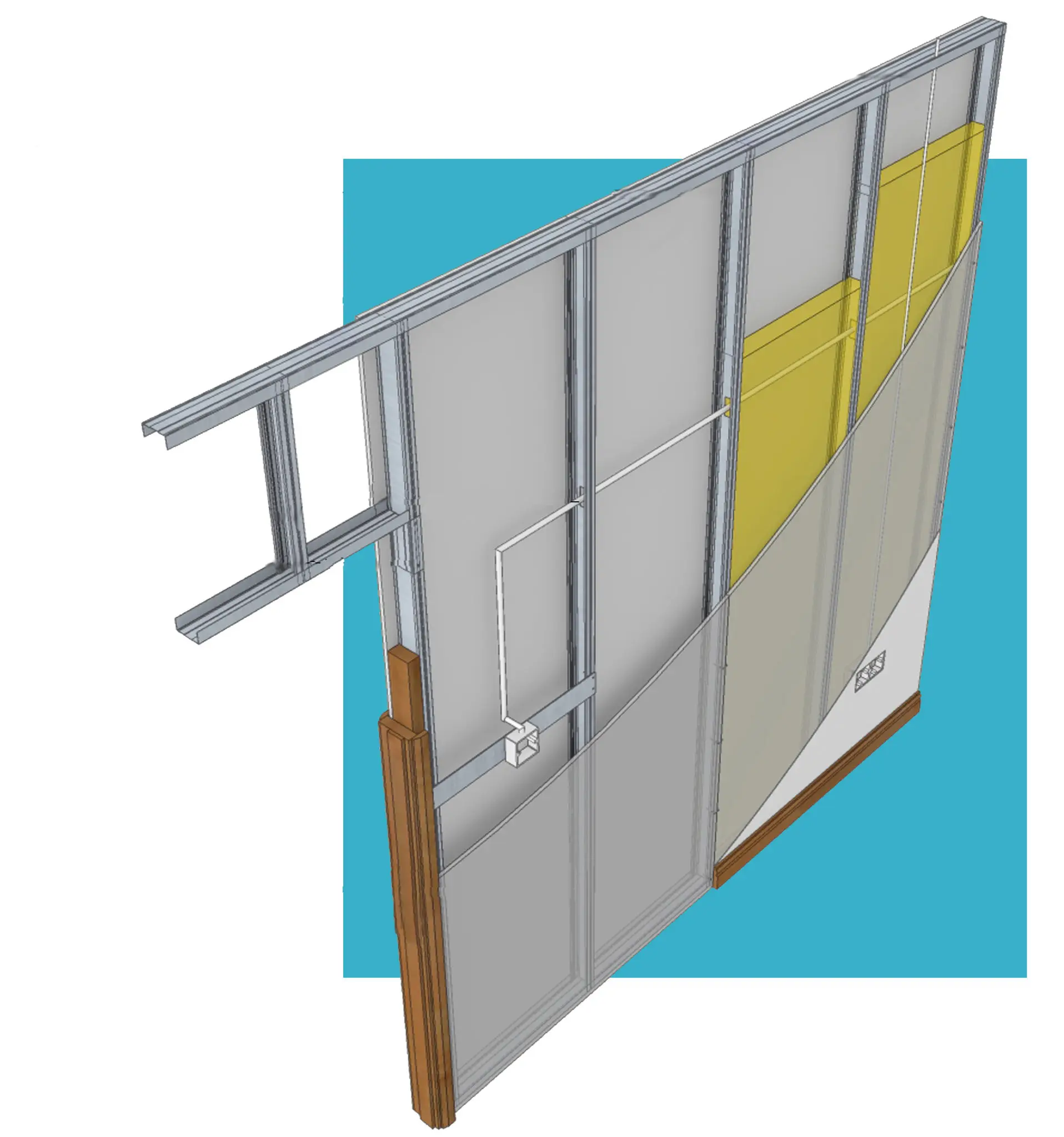

3.Application of Automatic Light Steel Keel Stud&Track Roll Forming Machine
Why choose us ?
The advantages of Floor Decking Tile Press Roll Forming Machine
1.Our machines can uses galvanized steel sheet, colored armor plate or aluminum plate as the material plate.
2.Controlling by computer, PLC display, operation is easy, running is steady and reliable,endurable,maintenance-free.
3.We can make and design will kinds of roll forming machine according to customer's request.
Sales Service:
1.we provide the technical support for whole life of our machines.
2.If buyers need the technician to go abroad , we will arrange the technician,but the buyers should take all the cost ,inculding visa, roundtrip ticket etc.
