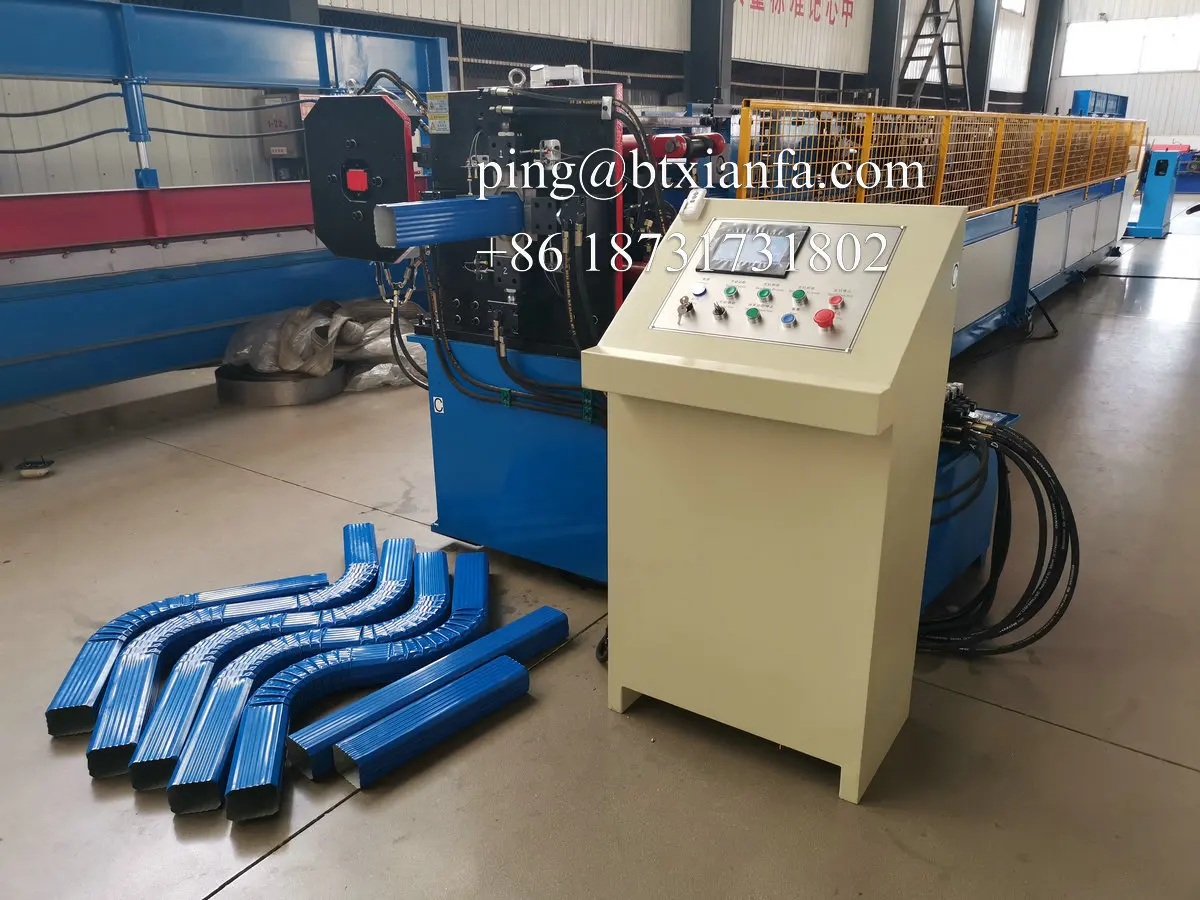

2022 New Product Hydraulic Cut Square Downpipe Forming Machine
2022 New Product Hydraulic Cut Square Downpipe Forming Machine
2022 New Product Hydraulic Cut Square Downpipe Forming Machine
2022 New Product Hydraulic Cut Square Downpipe Forming Machine
2022 New Product Hydraulic Cut Square Downpipe Forming Machine
2022 New Product Hydraulic Cut Square Downpipe Forming Machine
2022 New Product Hydraulic Cut Square Downpipe Forming Machine

2022 New Product Hydraulic Cut Square Downpipe Forming Machine

Share on (60816728835):


Price:$48,500.00

Quantity:


Product Overview

Description



Product Description

 Round Downpipe Roll Forming Machine


























































1.Suitable to processColor steel plate
2.Width of the plate345mm
3.Rollers21Rows
4.Dimensions8.5*1.45*1.51m
5.Power7.5+11KW
6.Thickness of the plate0.4-0.5mm
7.Diameter of the roller70m
8.WeightAbout 3.8T
9.Voltage380V 50Hz 3phases
10.Hydraulic40#
11.Processing precisionWithin 1.00mm
12.Control systemPLC control

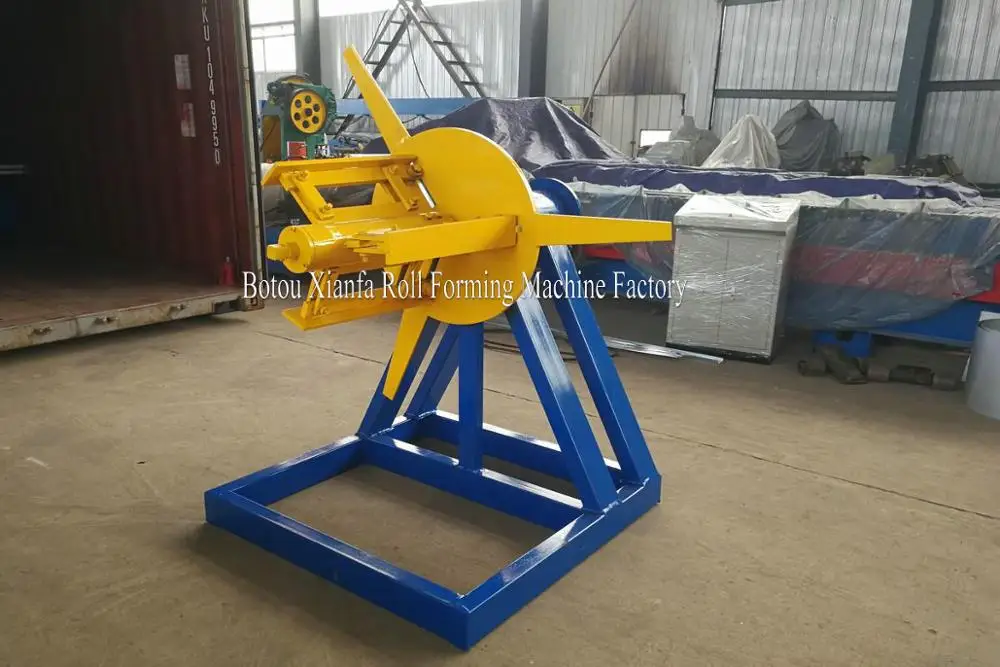

Manual Uncoiler




Usage:It is used to support the steel coil and uncoil it in a turnable way. The steel coil is uncoiled by hand. Loading capacity:3000KG.Inner diameter: 500-508mm

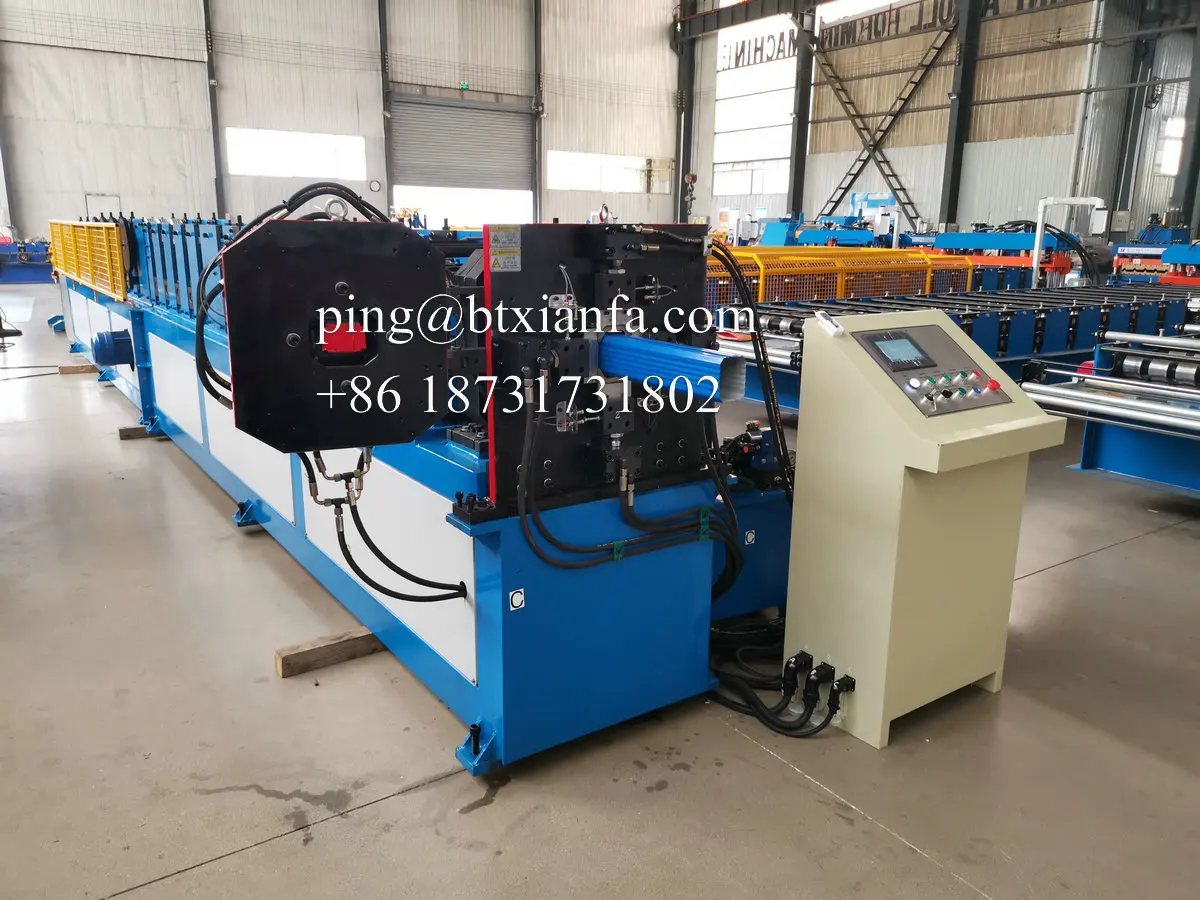

Main Roll Forming Machine

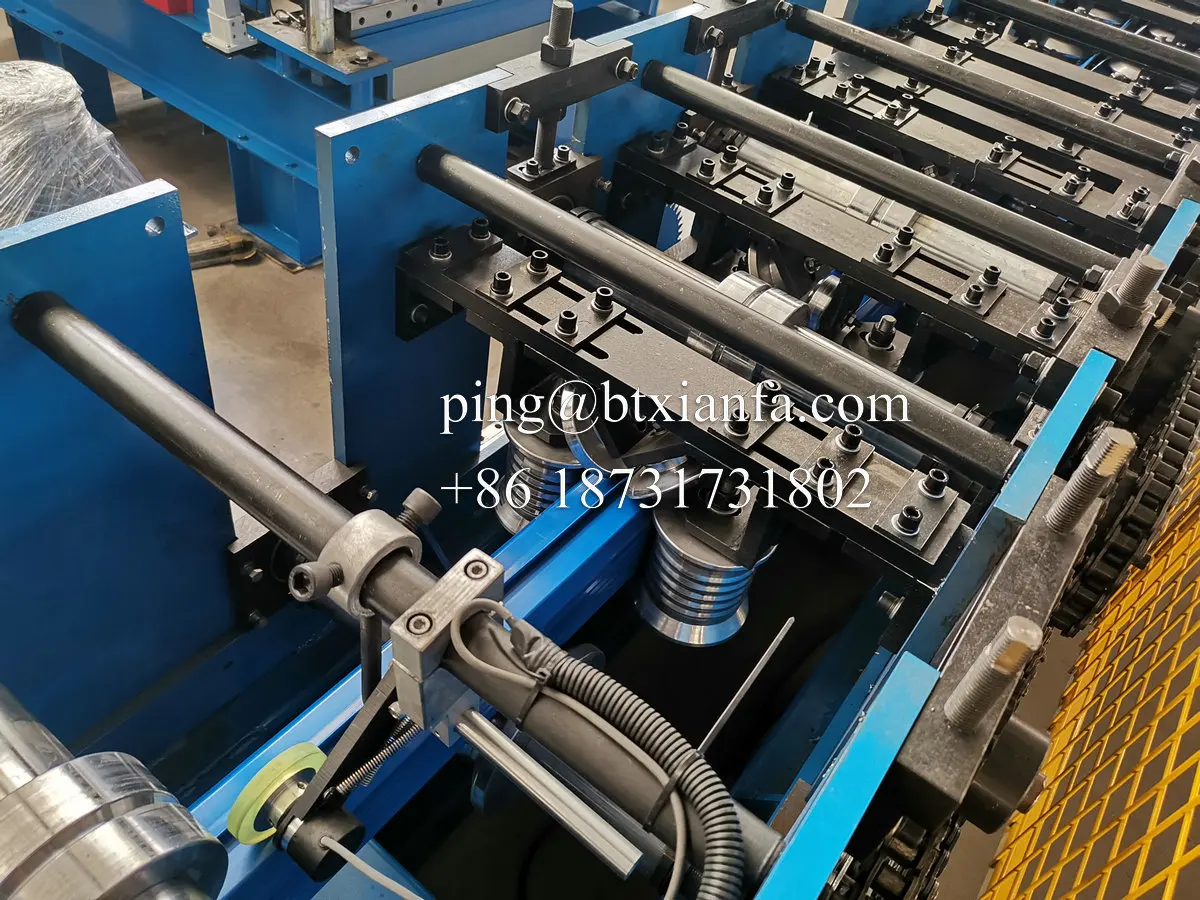

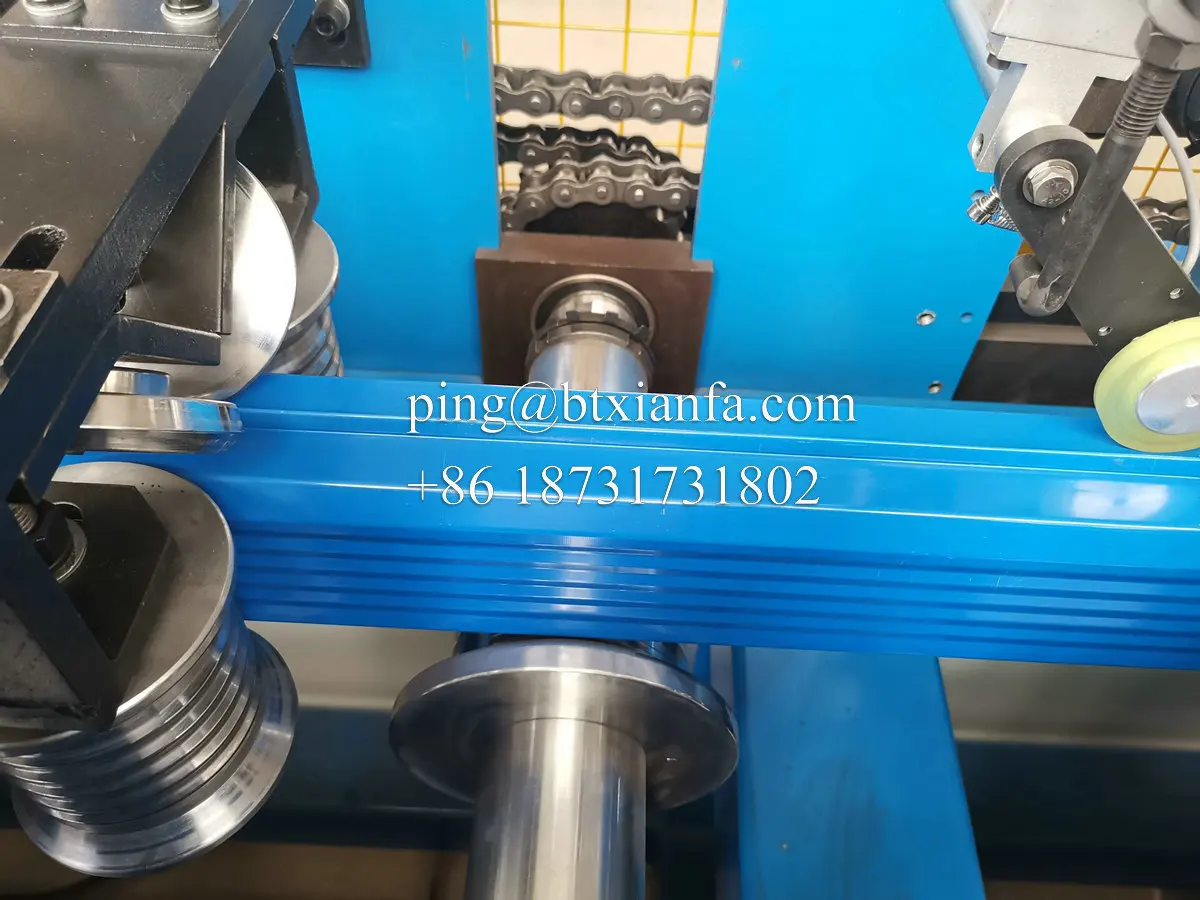

Material of rollers:45# steel,roller surfaces polishing, hard plating , The polished surface and the heat treatment towards the molds also can keep the molding plate surface smooth and not easy to be marked when it is being stamped.

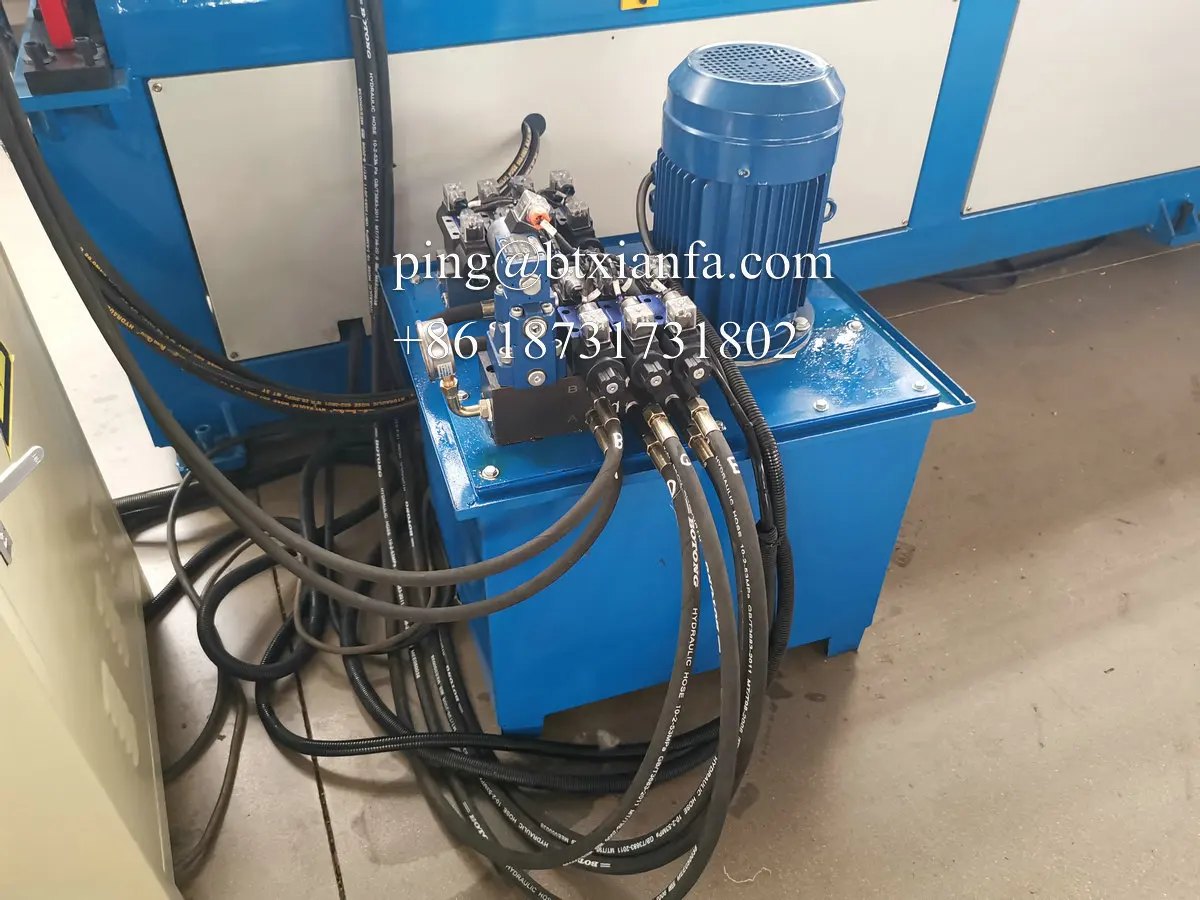

Hydraulic System AND Computer Control Cabinet




Hydraulic oil: 40#
hydraulic oil into the hydraulic oil tank ,the pump drive the cutter machine to begin the cutting job.
The target piece`s length is adjustable and digit of it can be adjusted. Computed mode has two modes: automatic and manual one. The system is easy to operate and use
PLC: EURA(Can customize as customer require)

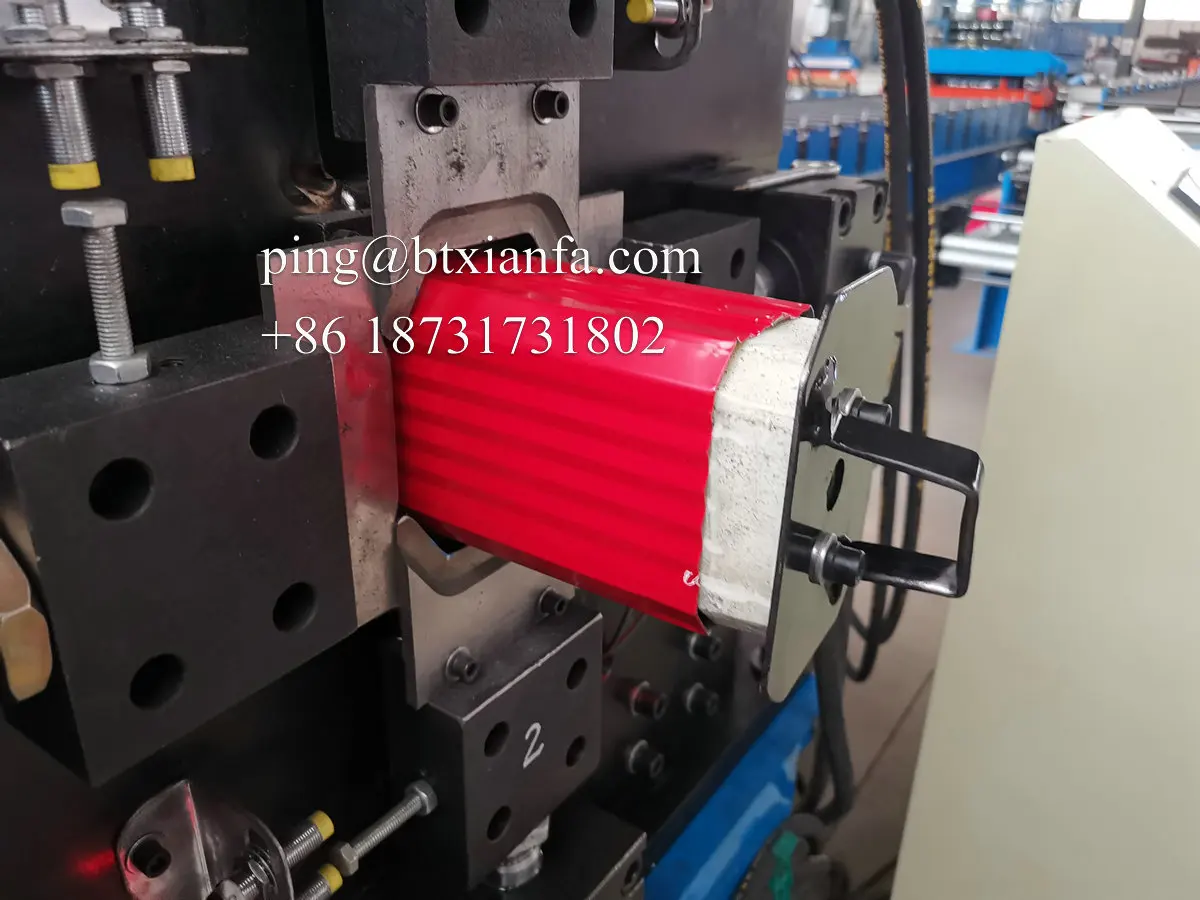

Shearing Mechanism



It adopts the hydraulic drive and automatic location to decide the dimension and cut the target products.


Material of blades: Cr12,quenching treatment










Our Services


1.Packing Method


Main machine is nude,the computer control box is packed by carton boxThe loading machine is operated by professionals and will not cause any damage to the machine during sea transportation


2.Transportation


 All machines need one 40 feet container


3.Payment Term


  30% deposit by T/T ,Making machine Provide photos and videos of the machine to the customer after the machine is finished After the qualified The customer will pay all the balance after confirmation


4.Delivery Time


 60Working days after receiving the deposi tcomplete


5.Warranty


 Free warranty for 12 months, lifetime maintenance service
