JT P6 5Liter Hot Melt Glue/Adhesive Machine Pneumatic Pump Dispensing Applicator For Packaging
- Category: Gluing Machines >>>
- Supplier: Fujian Jingtai Equipment Co. Ltd.
Share on (60816937140):
Product Overview
Description
Product Description

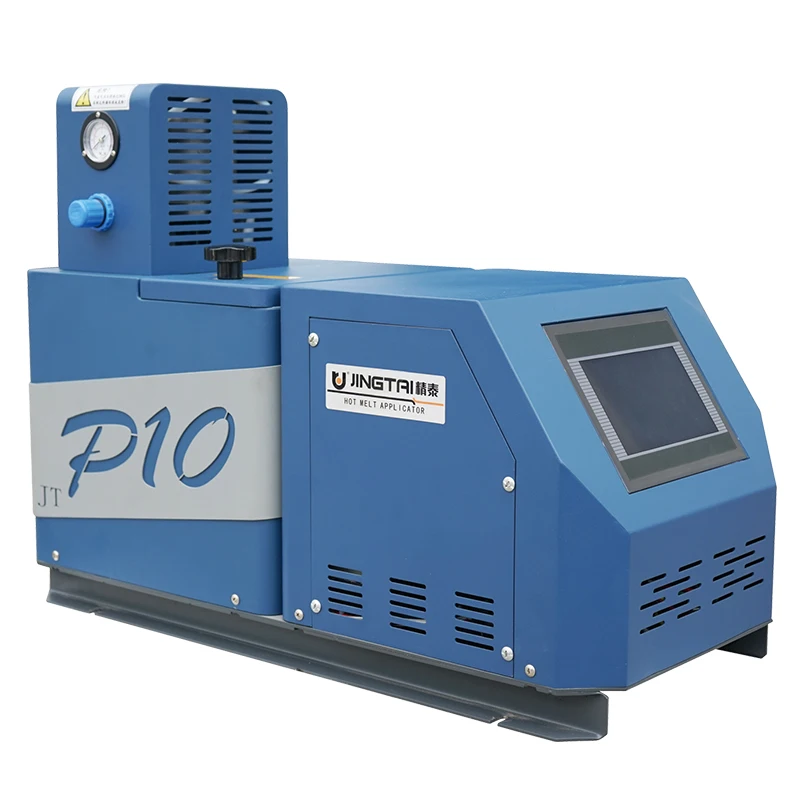

SPECIFICATIONS FOR JT-P6 & JT-P10 HOT MELT GLUE MACHINE | ||||||
MODEL | P6 | P10 | MARK | |||
TANK CAPACITY | 5L | 10L | ||||
MAX. MELTING RATE | 7L/HOUR | 15L/HOUR | ||||
MAX. OPERATION TEMP. | 200℃ | 200℃ | ||||
SETS OF HOSE & GUN | 1-2 | 2-4 | ||||
AIR PRESSURE | 4-6KG/CM2 | 4-6KG/CM2 | ||||
MAIN MACHINE POWER | 2800W | 4300W | ||||
PUMP TYPE | PNEUMATIC PUMP | PNEUMATIC PUMP | ||||
MAX. VISCOSITY | 12000CPS | 12000CPS | ||||
WEIGHT | 42KG | 56KG | ||||
DIMENSION | 685*380*485MM | 753*380*354MM | ||||
POWER DEMAND | 220V/50HZ | 220V/50HZ | ||||
Main Features
1) Heated hose and additional automatic controller for easy adjustment of spraying height and angle.
2) Large area operation can be achieved without moving machine.
3) 1 to 2 sets of hose & gun can be chose to be installed so as to save purchase cost.
4) High strength integral molding glue tank, leaf shape heater can increase the heating area and improve the melting rate. The inner tank is sprayed teflon, so its internal face is smooth without corner structure , and it can protect glue stick to the internal face and get carbonized efficiently.
5) Piston pump's working accuracy (adopt import technology) can efficiently ensure the stable output glue of piston/pneumatic pump.
Detailed Images

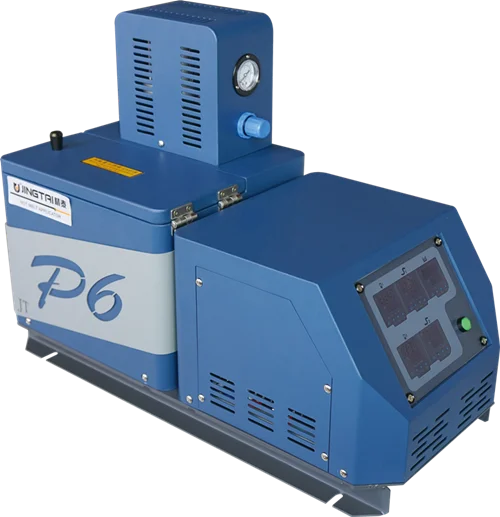

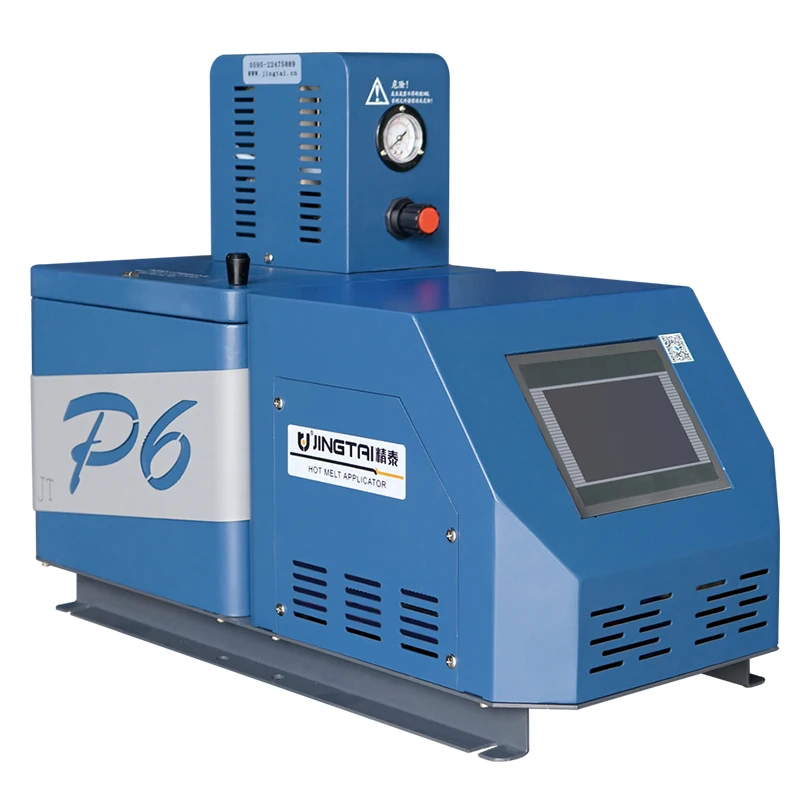

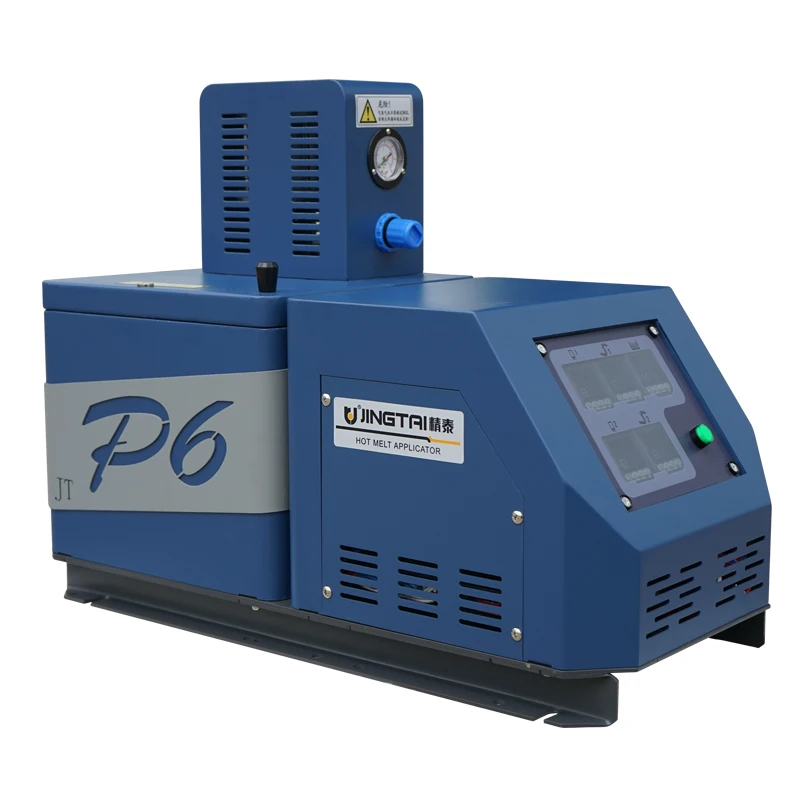

Machine
Name: JT-P6 Hot Melt Glue Machine/Applicator
Brand: JINGTAI
Original: China
1. The glue output is stable;
2. The max. operation temperature is 200℃;
3. High quality and good price;
4. It can be equipped with 1-2 sets of heated hose & glue gun.
Machine Accessories

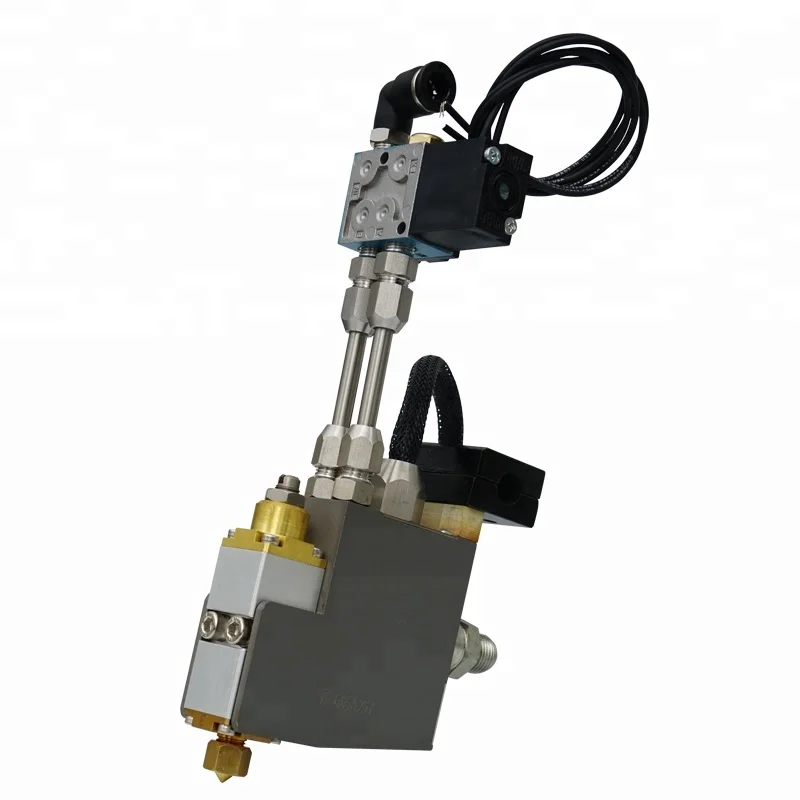

Name: Glue head
Brand: JINGTAI
Original: China

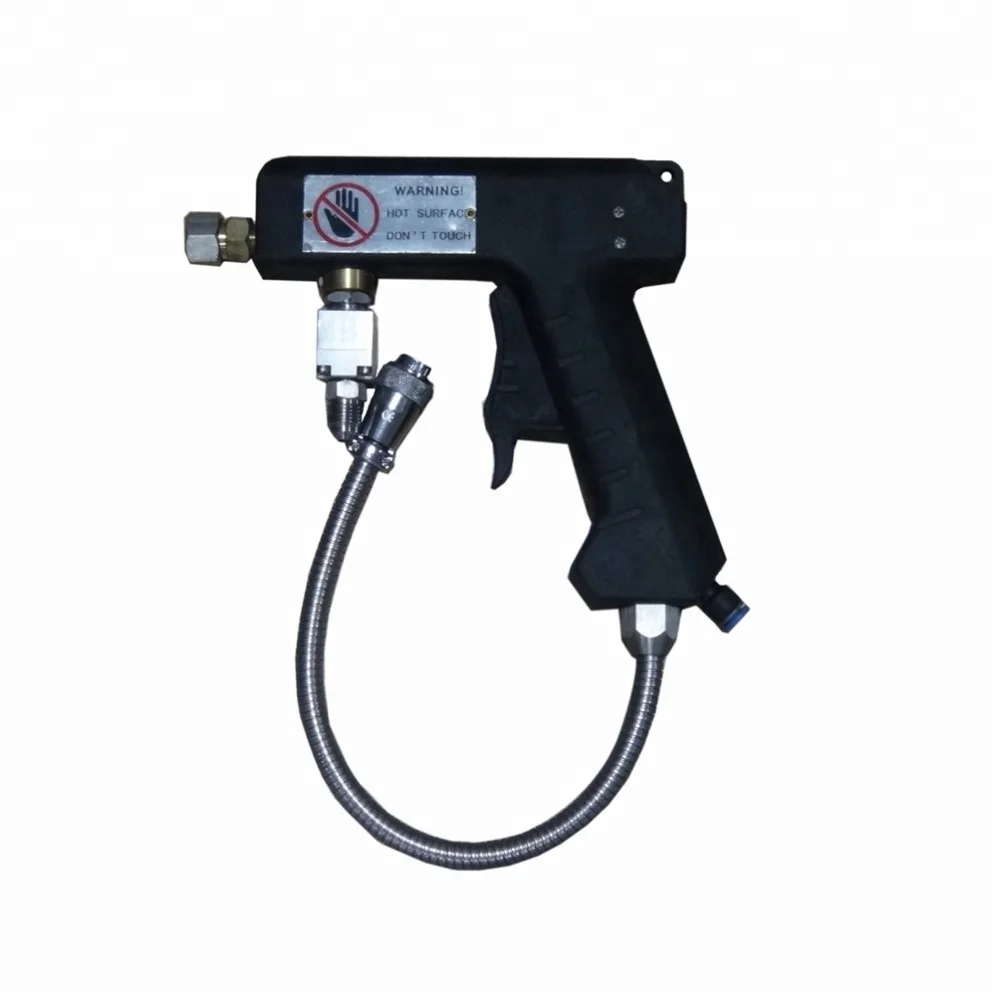

1. Manual glue gun or automatic glue gun can be chose;

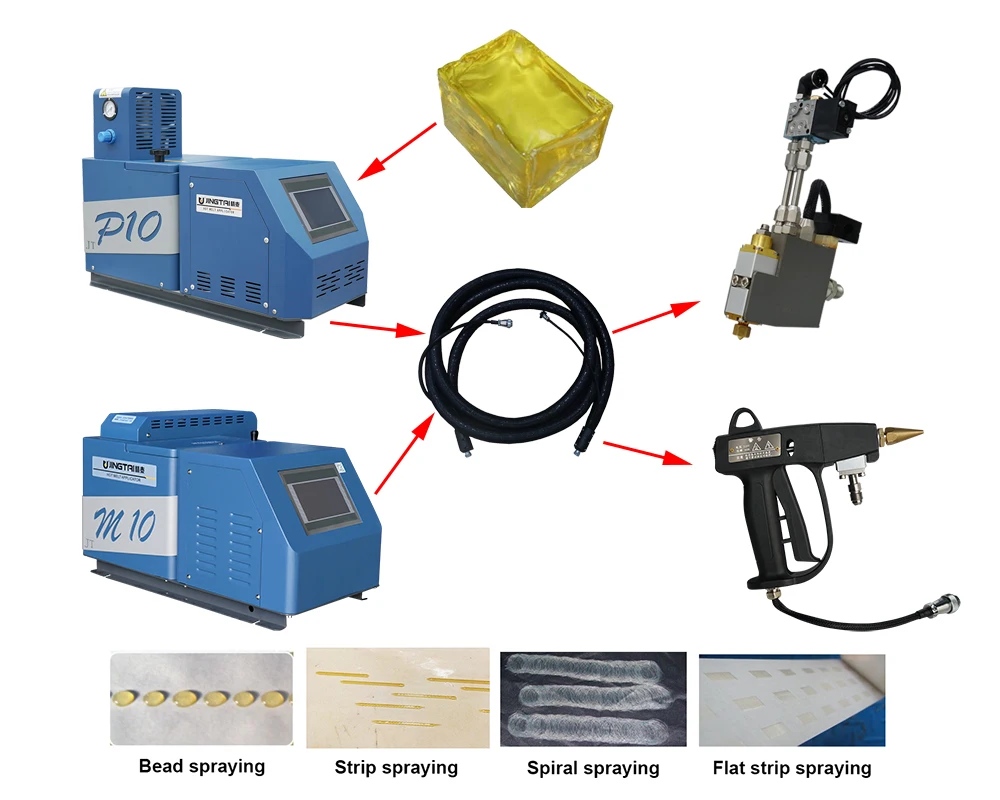

2. Glue output way: bead spraying, strip spraying, mist spraying, scrape spraying.

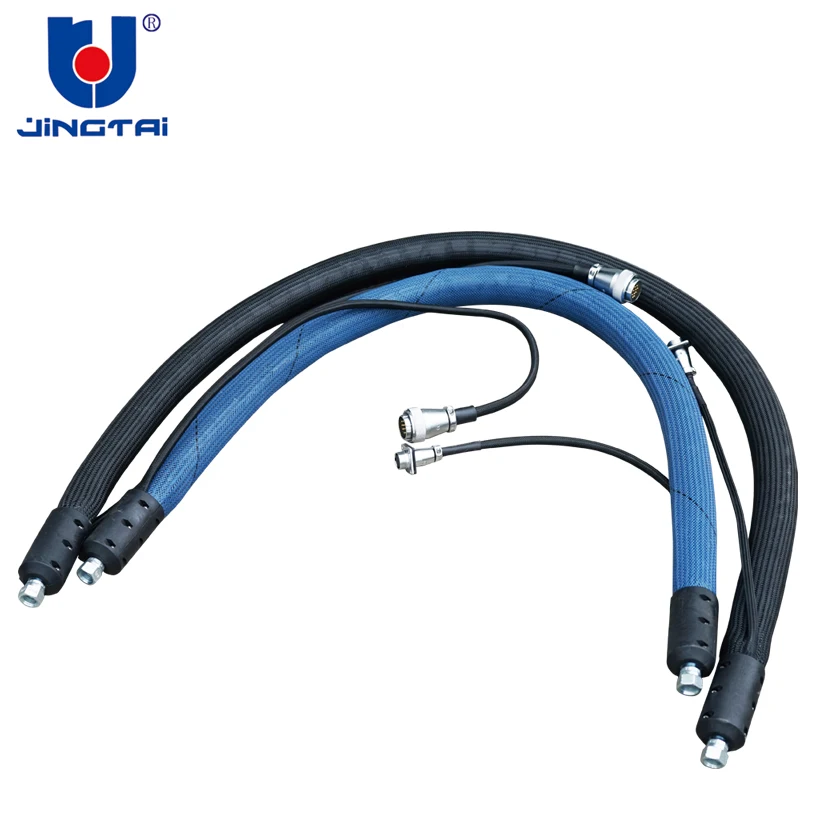

Machine Accessories
Name: Bliwing Cylinder
Brand: JINGTAI
Original: China

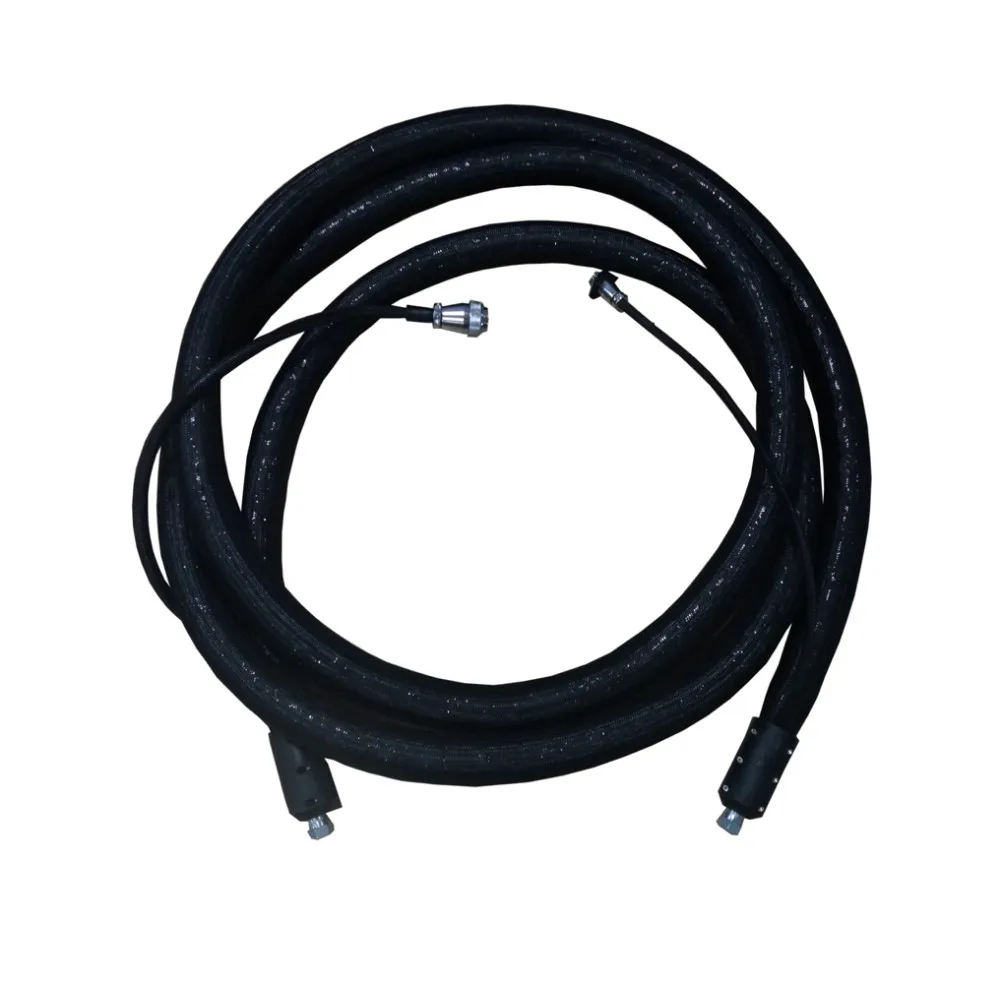

1. Customized hose length, min. length is1 meter;
2. The color can be chose, black or blue.
Our Service
Pre-Sales Service
* Inquiry and consulting support.
* Testing support.
* View our Factory.
After-Sales Service
* Techonology support.
* Video adn specification directioon.
Packing & Delivery
Packaging | ||
Size | 685mm (L) * 380mm (W) * 485mm (D) | |
Weight | 42kg | |
Packaging Details | 1. The packing is confirmed to export wooden case standard, strong and durable. The wooden case's thickness is generally 1 cm. 2. In order to be waterproof, we usually use bubble film to wrap machine. 3. In order to avoid the machine being damaged in transit, the foam will be full filled between the machine and wooden carton. 4. pack it according to customers special request. | |
