Humidity And Temperature Sensor Probe
US $35.00-$48.00

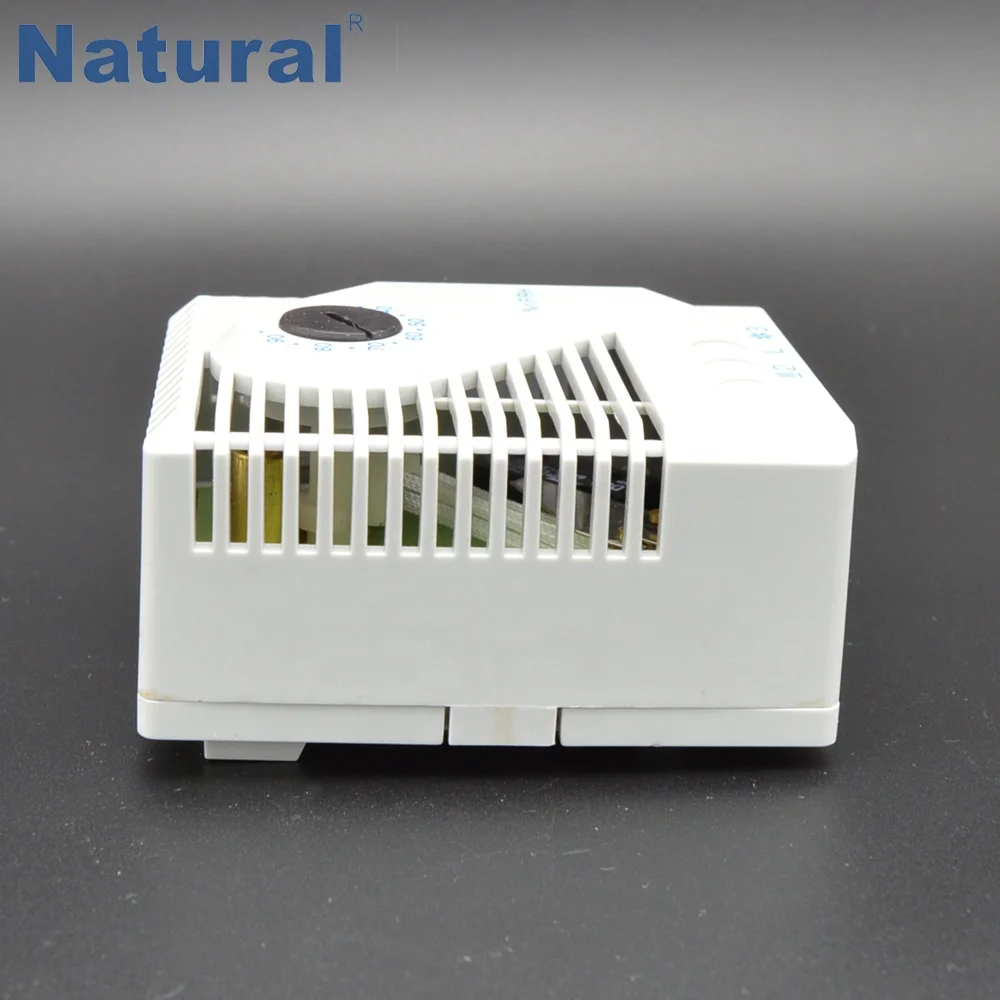

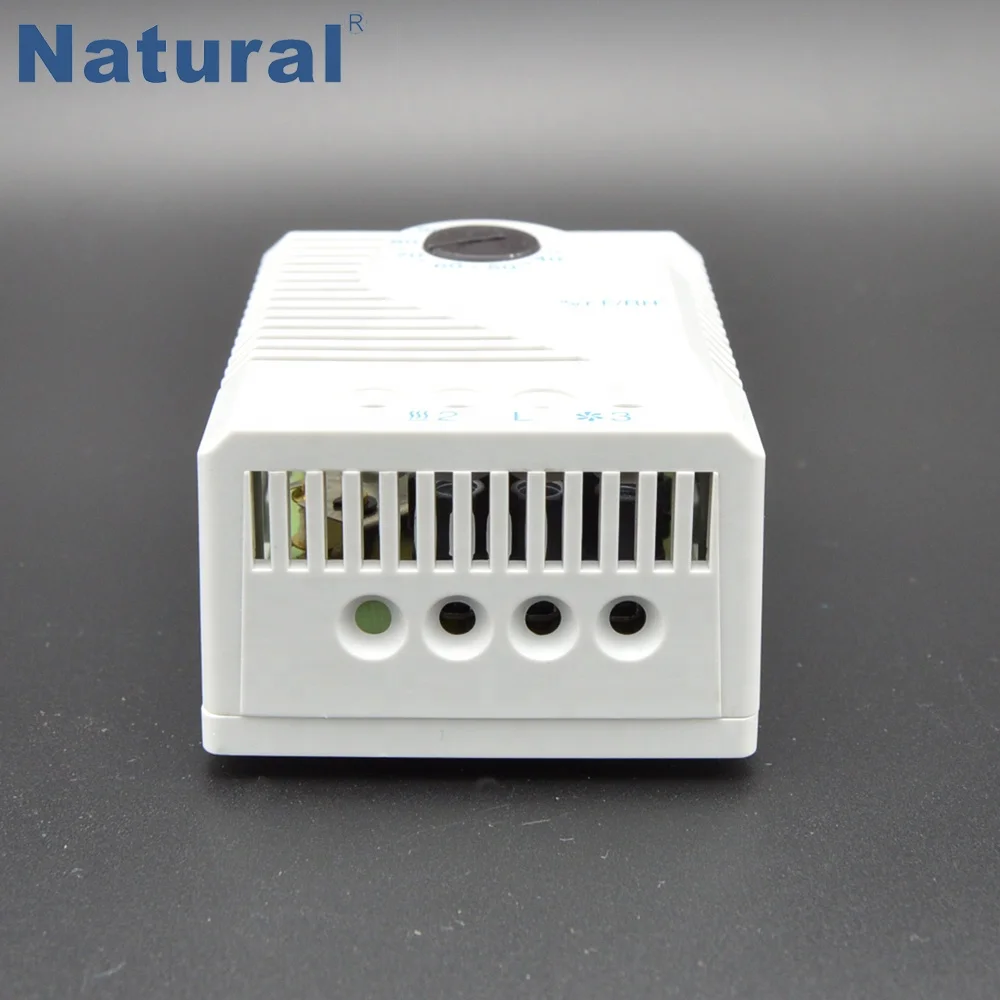

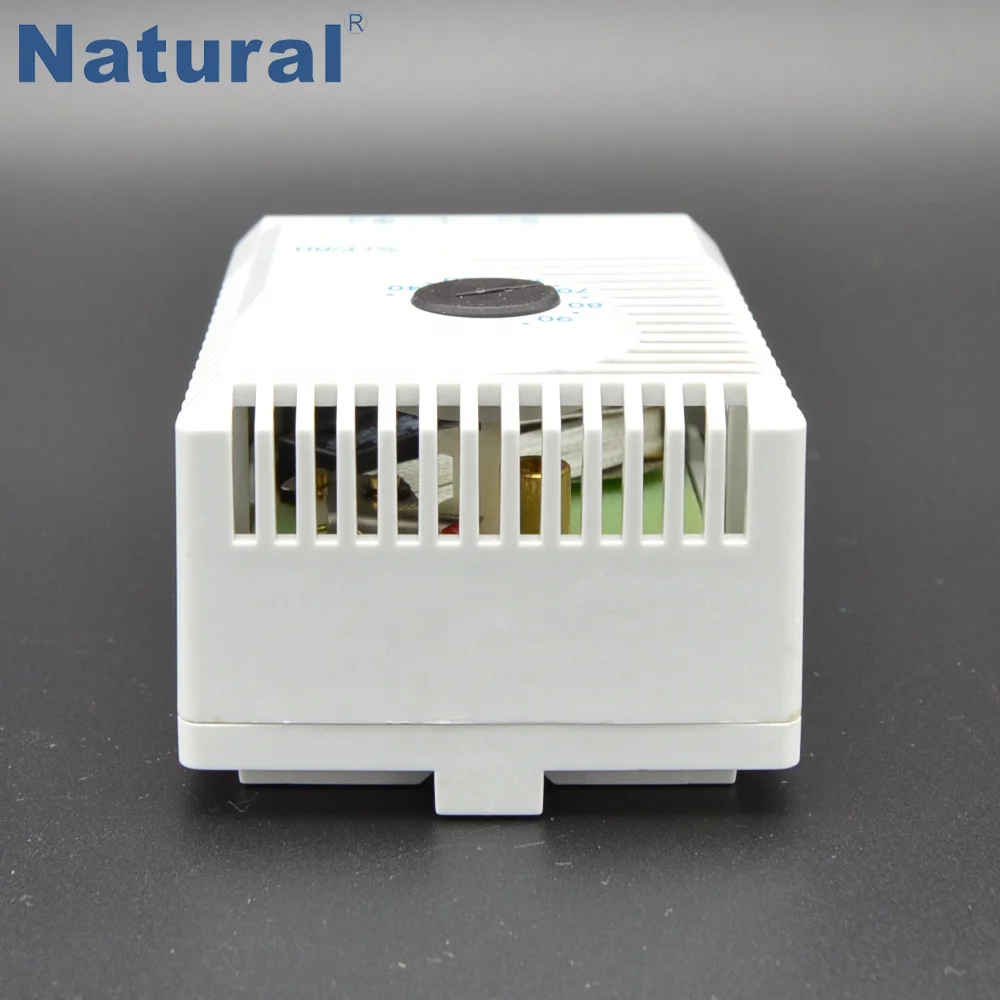

Натуральный новая горячая распродажа регулируемые механический гигростат mfr 012 механический гигростат термометр с 3 летами гарантированности
- Category: Temperature Instruments >>>
- Supplier: Wenzhou Natural Automation Equipment Co. Ltd.
Share on (60817285458):
Product Overview
Description
Product Description
Electronic Thermostat
• Adjustable relative humidity
• Change-over contact
• High switching capacity
• Easily accessible terminals
• Clip fixing
• Change-over contact
• High switching capacity
• Easily accessible terminals
• Clip fixing

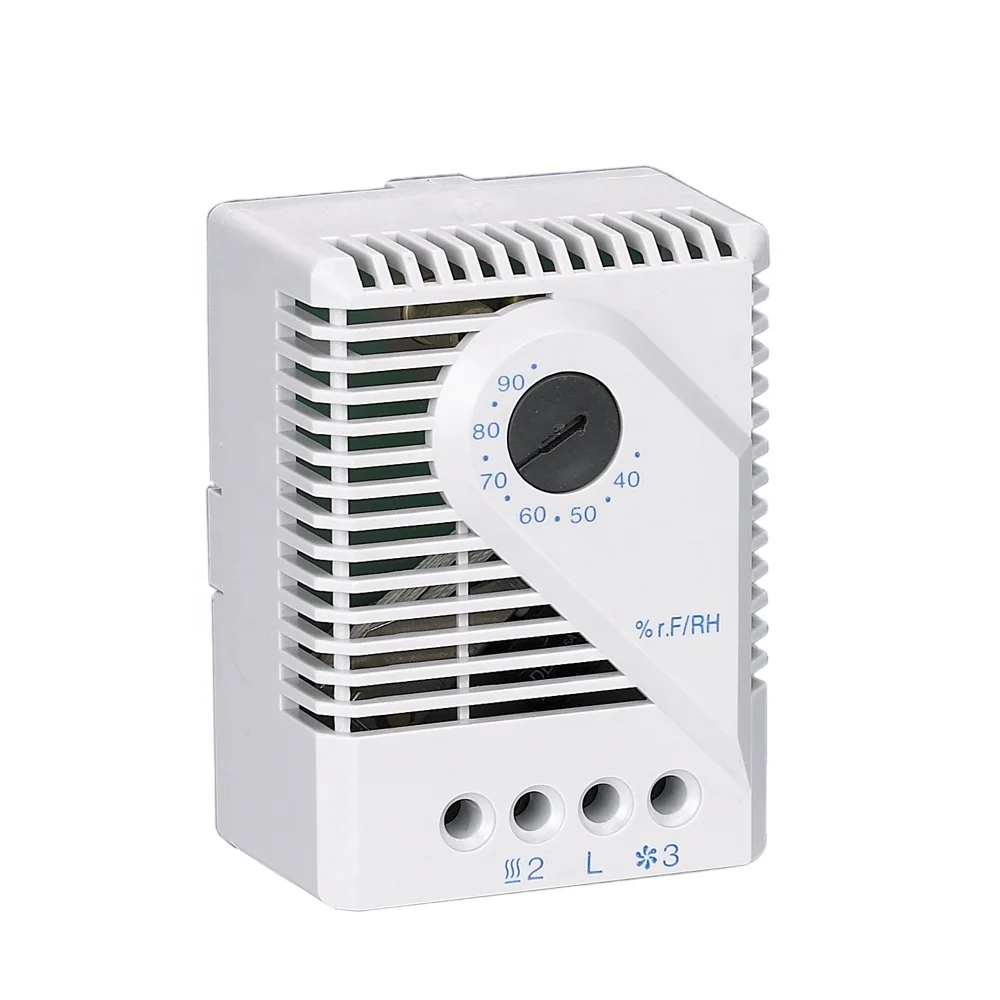

The electromechanical hygrostat is designed to control enclosure heaters so that the dew point is raised when a critical
relative humidity of 65% is exceeded. In this way condensation and corrosion in enclosures with electric/electronic
components is effectively prevented.
relative humidity of 65% is exceeded. In this way condensation and corrosion in enclosures with electric/electronic
components is effectively prevented.
MFR 012 | ||
Switch difference | +/-5% RH | |
permissible air velocity | 15m/sec. | |
Contact type | change-over contact (relay) | |
Service life | > 50,000 cycles | |
Max. switching capacity | 250VAC, 5A/DC 20W | |
Min. switching capacity | 20VAC/DC 100mA | |
Connection | 3-pole terminal for 2.5mm², clamping torque 0.5Nm max.: rigid wire 2.5mm² (AWG 14)；stranded wire² 1.5mm²（AWG 16） | |

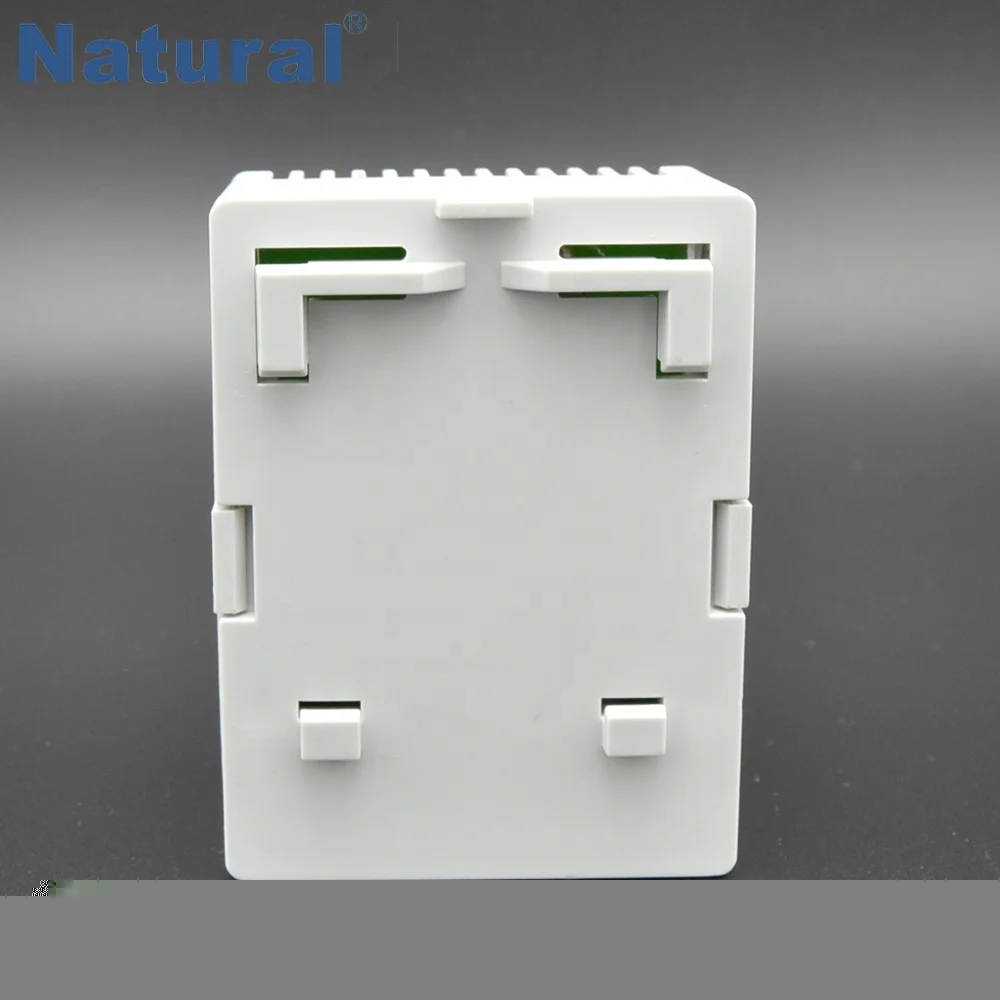

Mounting | clip for 35mm DIN rail, EN 60715 | |
Casing | plastic according to UL94 V-0, light grey | |
Dimensions | 67 x50 x 38mm | |
Weight | approx. 60kg | |
Fitting position | vertical | |
Operating/Storage temperature | 0 to +60°C (+32 to +140°F)/-40 to +60℃（-40 to +140℉）） | |
Operating/Storage humidity | max. 95% RH (non-condensing) | |
Protection type | IP20 | |

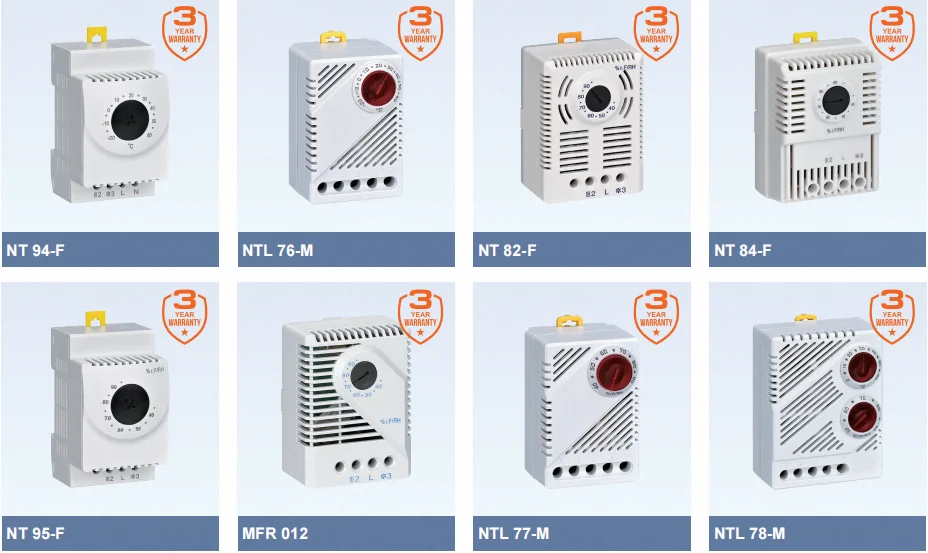

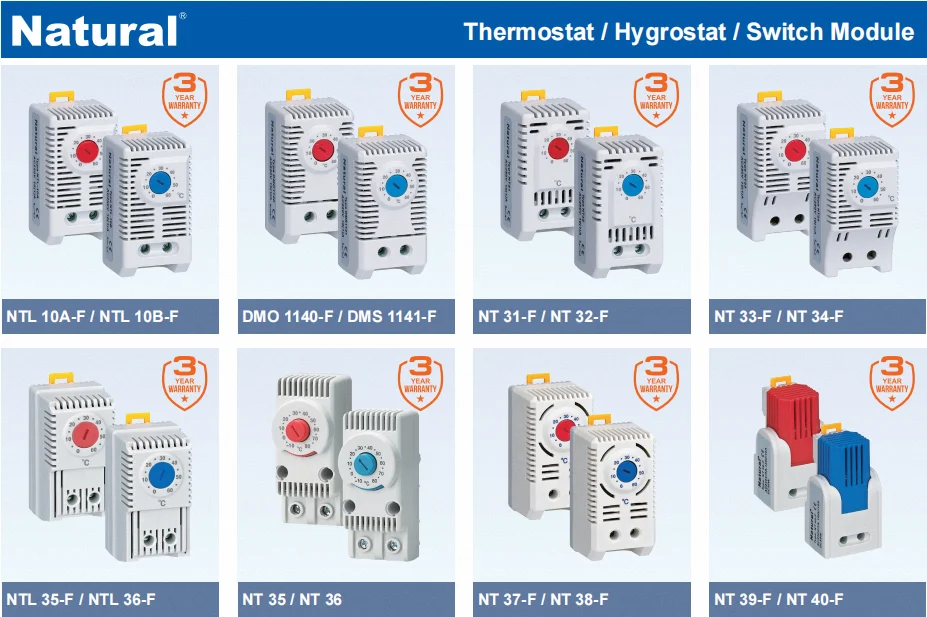

Main Categories
Click on the following categories, then you can get what you want
Warranty:
Thermostat: 3 Years
PTC Heater: 3 Years
Filter without Fan: 3 Years
Filter with Fan: 2 Years
Cabinet LED Lamp: 3 Years
Compensation Devices: 3 Years
Voltage Protector: 5 Years
PTC Heater: 3 Years
Filter without Fan: 3 Years
Filter with Fan: 2 Years
Cabinet LED Lamp: 3 Years
Compensation Devices: 3 Years
Voltage Protector: 5 Years
