Шланг высокого давления для полива и орошения 2 дюймов Солнечный водяной погружной штанговый скважинный насос

Share on:


Price:163,00 $ - 215,00 $
Price in USD:Details

Quantity:


Product Overview

Description



Product Description


We focus on water pumps for 25 years

high pressure irrigation 2 inch solar powered water submersible deep well pump



Model
4DPC6-112-110-1300
Pump Outlet Diameter
1.25 Inch or 2 Inch For Selection
Max. Flow
6000 Liter Per Hour
Max. Head
112 Meter
Voltage
DC110 V
Power
1300 W


Tips:
In addition to this solar pump model, we have a total of more than 100 models to meet the different requirements of customers


DIFFUL Pump Advantages

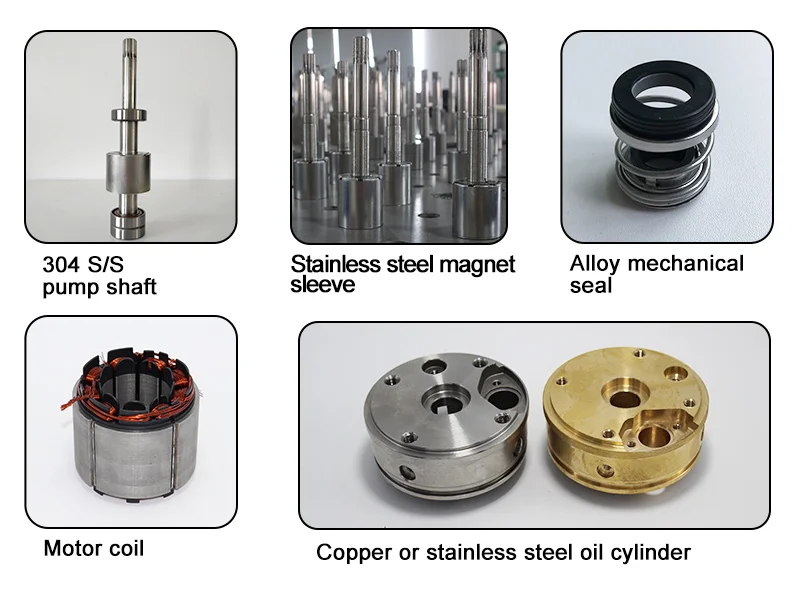

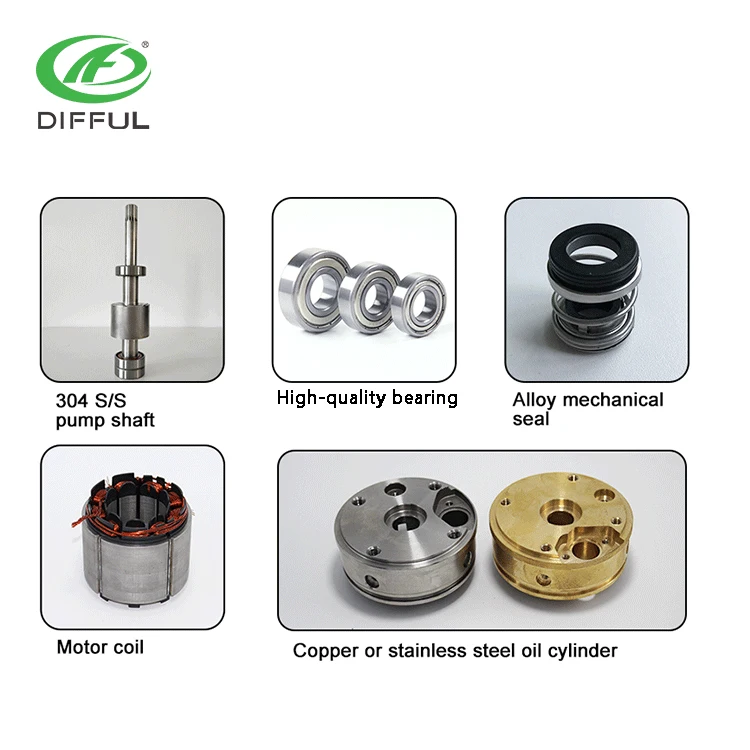

OUR SOLAR PUMP ADVANTAGES:
1,Permanent magnet DC brushless synchronous motor: the efficiency is improved by 15- 20%; Save energy; Reduce the consumption of solar pump
2,304 Stainless Steel pump shaft
3,Double bearing,motor base work better under more axial pressure
4,Alloy mechanical seal ,longer working life and high reliability
5,Intelligent water shortage protection
6,MPPT controller

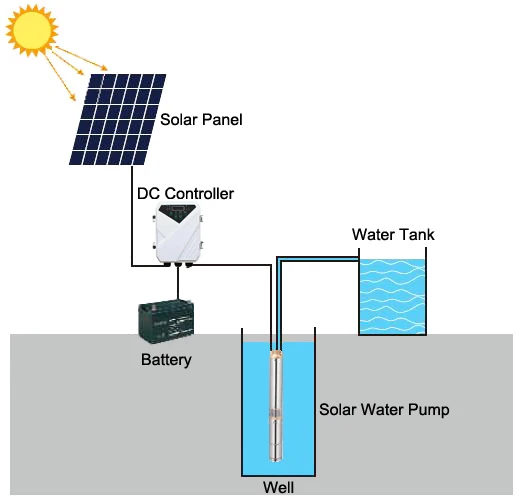

How to Connect the Solar Pumps:
Pump connects U V W ,float switch connects TH COM
Very simple connection .

Tips 1: Do not reverse the positive and negative of power, otherwise it will not work.
Tips 2: Before you start wiring the controller box, switch must be in the off position
MPPT Controller Features
Automatically run when power enough or tank is not full. Automatically off when tank is full.
Double seal effect in waterproof and leak-proof .
Soft start technology: No impulse current, longer life for the pump motor.
High voltage/Low voltage/Over-current/High temperature protection


How to Choose Solar Pump


How to choose and buy the correct solar water pump model?
HEAD CALCULATE:
The horizontal water pumping distance and vertical water pumping distance, especially the vertical distance.

FLOW CALCULATE:
How many cubic meter water per hour/per day is needed for irrigation use?

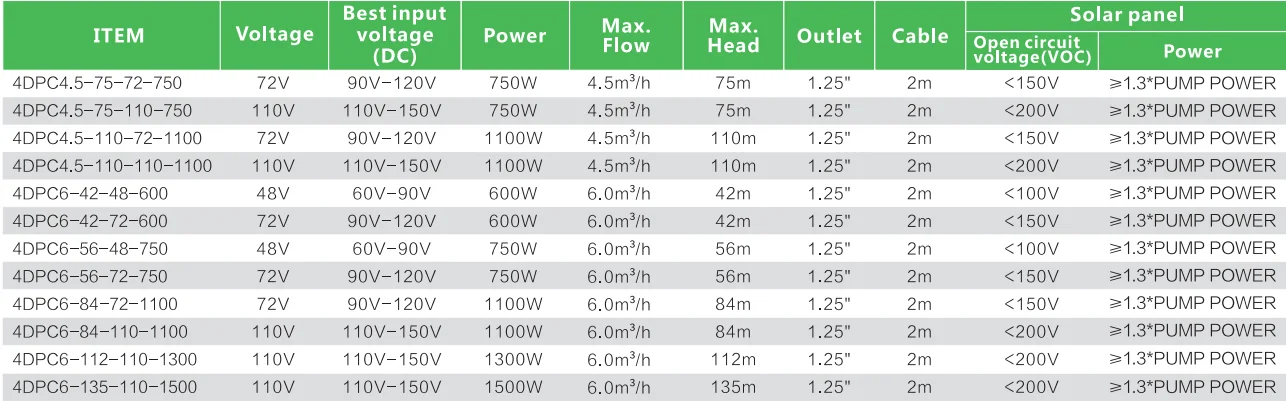

After you estimate Head and Flow,please refer to the technical data diagram below to select the solar pump model

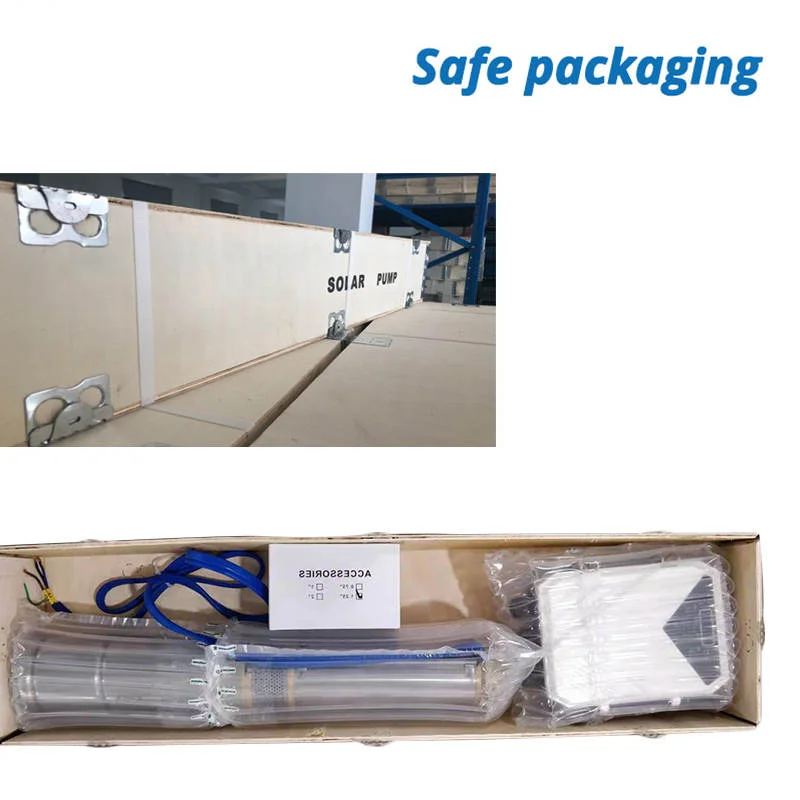

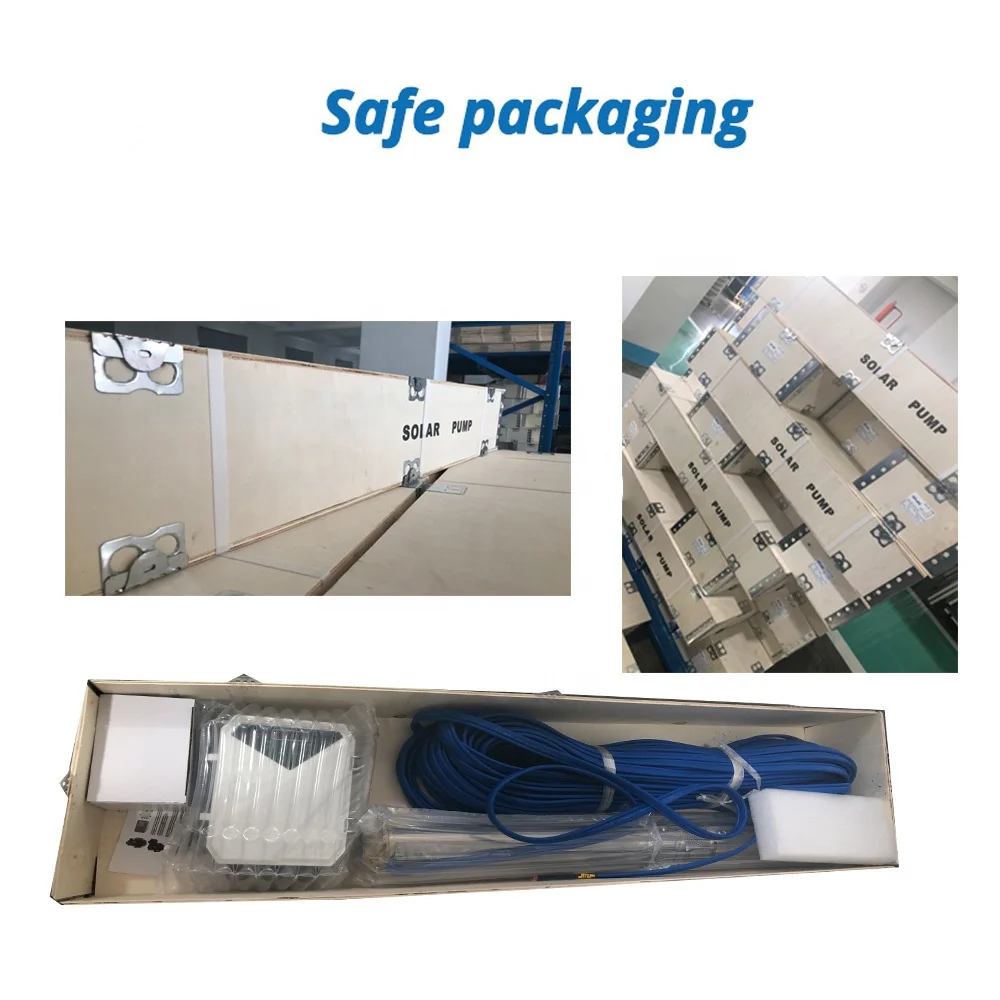

Packaging


Packing Details:
Outer Packaging: high-quality strong export wooden box
Inner Packaging: bubble bag to protect the controller and water pump from damage during transportation




What We Get For You (Package Include):
- 1 x DC brushless solar Pump with 2m cable
- 1 x Pump controller with MPPT function
- 1 xStainless steel float switch (sensor for the tank)
- 1 x Pump outlet joint connector
- 1 x Splice kit for cable join


Customer Reviews


①Application of deep well solar pump to irrigation
②Village and town water supply
③Clean drinking water
④Garden watering
⑤Environment friendly
⑥Pumping and drip irrigation




Why Choose Us




① We are among the top three in all solar pump factories in China, both in terms of professionalism and market share.
② According to last year’s annual report, the unqualified rate of our products was three out of one thousand.
③ Our factory will continue to develop new solar water pump products to meet customer needs for various types of solar water pumps.
④The controller, pump body, and motor are all produced in our own factory. The quality inspection of the whole set of solar water pump products is more comprehensive than that of other factories, and customers can get better prices.
⑤ We use good production materials to manufacture our solar water pumps, which greatly extend the service life and use efficiency of the pumps.


About Us

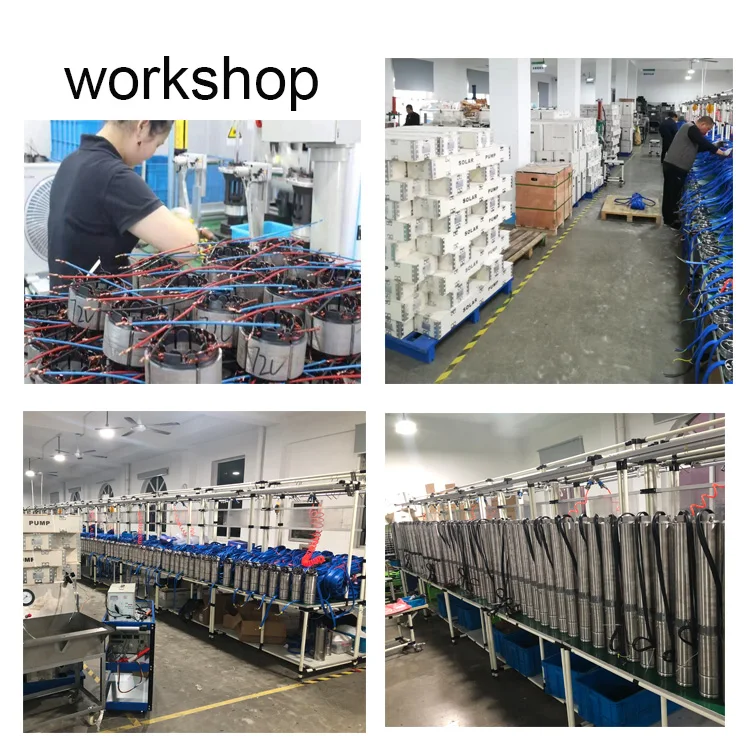

Zhejinag Dingfeng Electrical Appliance Co., Ltd is a professional manufactory for submersible solar pumps, surface solar pumps and deep well pumps. Our head office is located in Wenling, Zhejiang, which is established in 1989. And we found our branch office specially for solar pumps in 2016 in Ningbo, Zhejiang. We have kinds of advanced automatic winding machines and processing machines, 7 assembling lines and testing machines to control the quality. And we already got CE certificate, ISO9001, technical patents etc. Every month, we export at least 180200 pcs of solar pumps all over the world, and got countless buyer praise. We never stop the steps to improve and innovate our solar pumps to reach the different market requirements.






FAQ


1. Q:What's your MOQ?
A:Trial sample order is OK.
2. What's your payment terms?

A: T/T,L/C,PayPal, Credit Card etc.
3. Q: What is the delivery time?
A: 25-30 days after receiving your advanced deposit.
4. Q:Can you we do OEM brand?

A:Yes,welcome your OEM.
5. Q: How to buy our pumps ?
A: Firstly we should know from you :
What is the fluid ?
Clean water(temperature), dirty water(temperature), particles,or slurry ?
What is the flow and head ? And the power?
What is the voltage and frequency of three phase electricity ?
Other conditions from customer if possible : pump type,motor ?
With complete information, then we selected the pump and feedback to you
