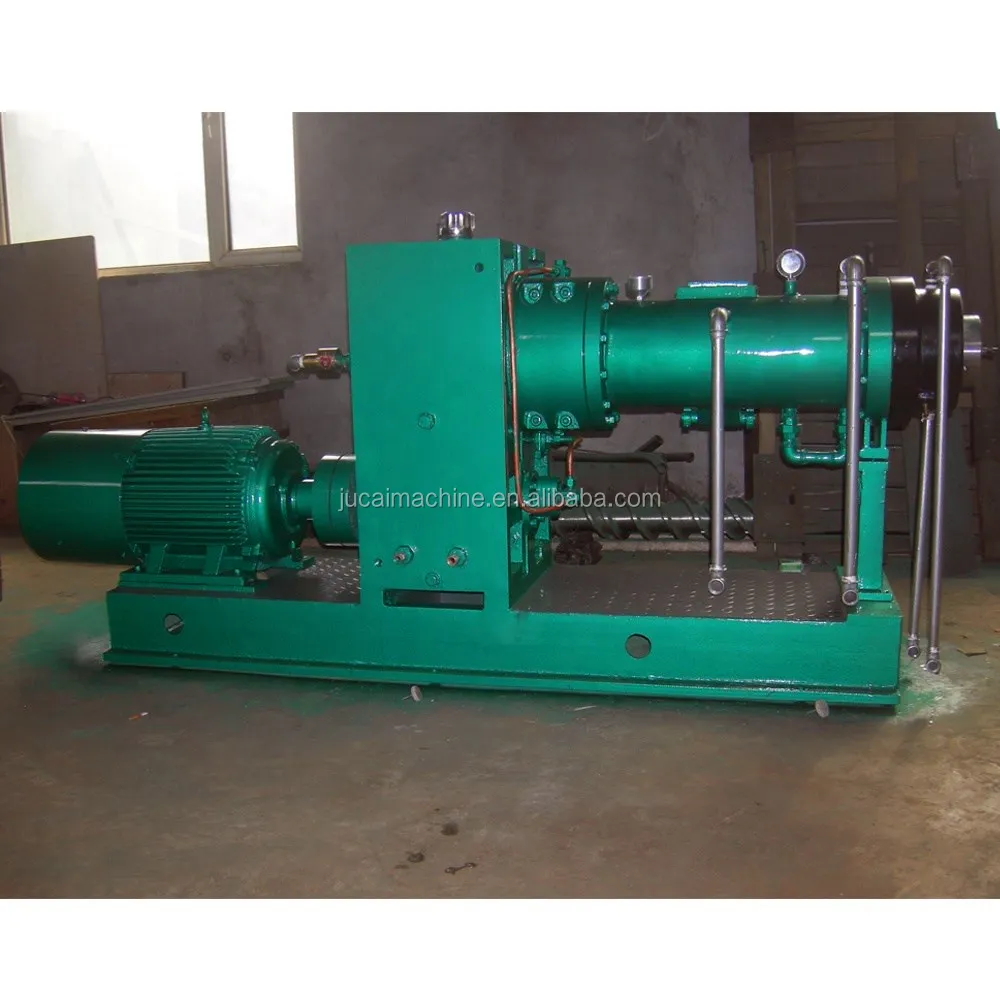

Reclaimed Rubber Extruder From Manufacturer/Factory price 90mm hot feed rubber extruder machine/90mm single screw extruders
- Category: Rubber Extruders >>>
- Supplier: Qingdao Jiuzhou Jucai Machine Co. Ltd.
Share on (60817633780):
Product Overview
Description
Product Description
Rubber extruder machine
Hot feed rubber extruder : XJ-60(65), XJ-85(90),XJ-115(120),XJ-150.XJ-200,XJ-250
Cold feed rubber extruder :XJW-65 (60),XJW-75,XJW-85(90),XJW-115(120),XJW-150,XJW-200
Exhausted rubber extruder :XJ-50,XJ-60,XJ-65,XJ-70,XJ-75,XJ-90,XJ-120,XJ-150,XJ-200,XJ-250
Pin barrel rubber extruder :XJ-50,XJ-60,XJ-65,XJ-70,XJ-75,XJ-90,XJ-120,XJ-150,XJ-200,XJ-250

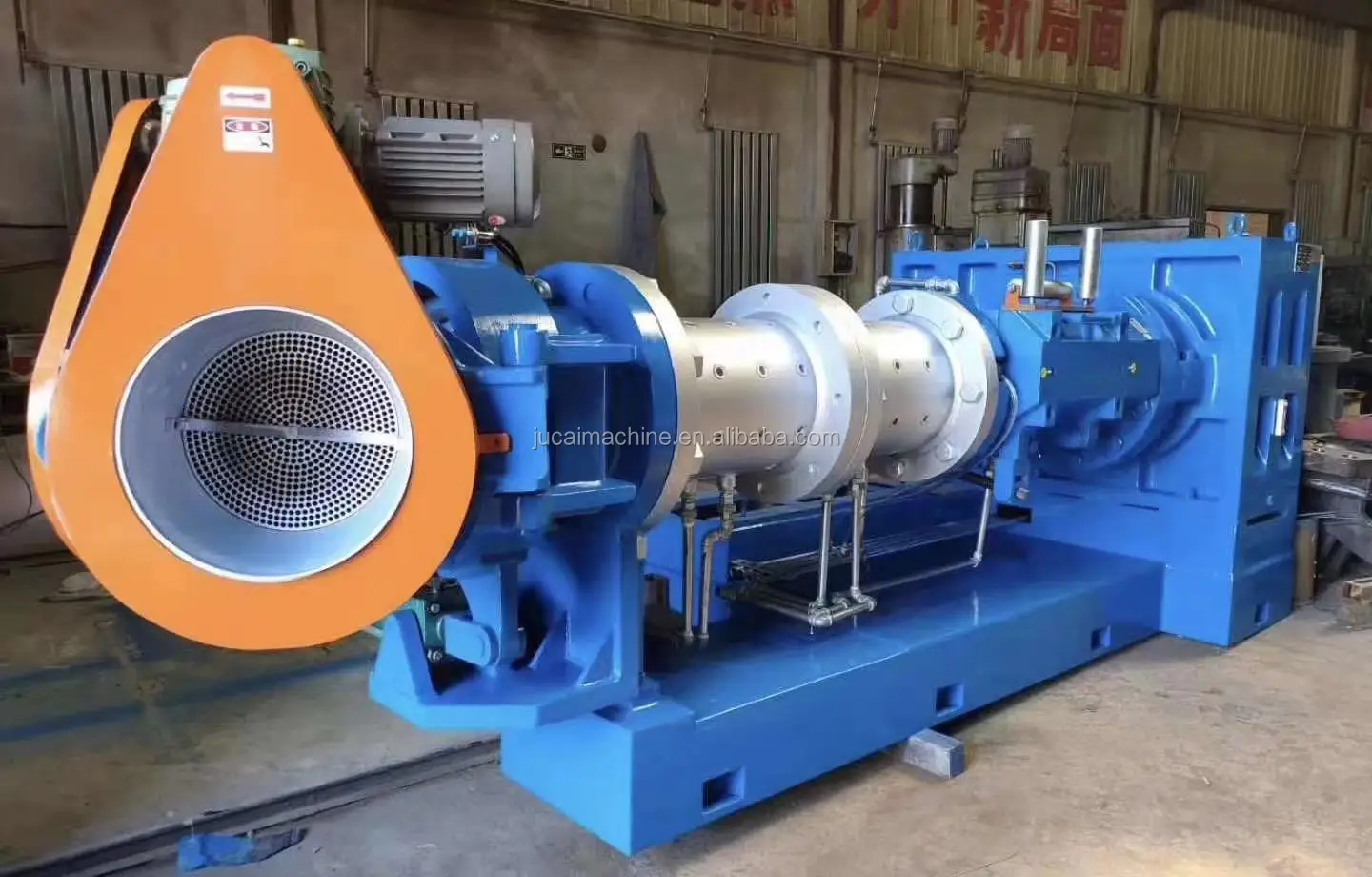

rubber strainer : XLJ-150,XLJ-200,XJL-250
Rubber profile extruder
The extrusion line manufactures endless strips of profiled, or shaped compounds. We offers various type of general rubber extruder, fit for different capacity requirements.

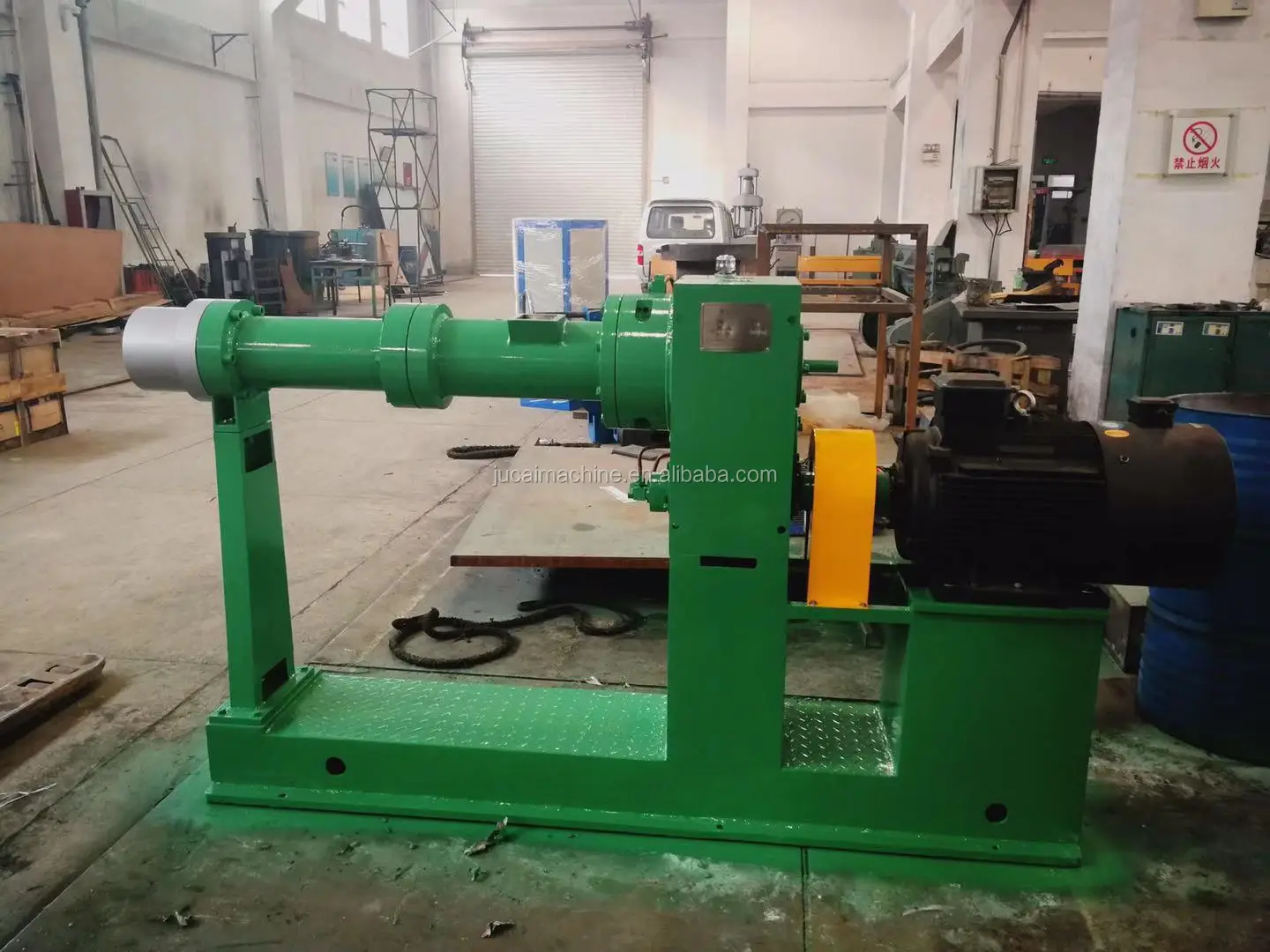

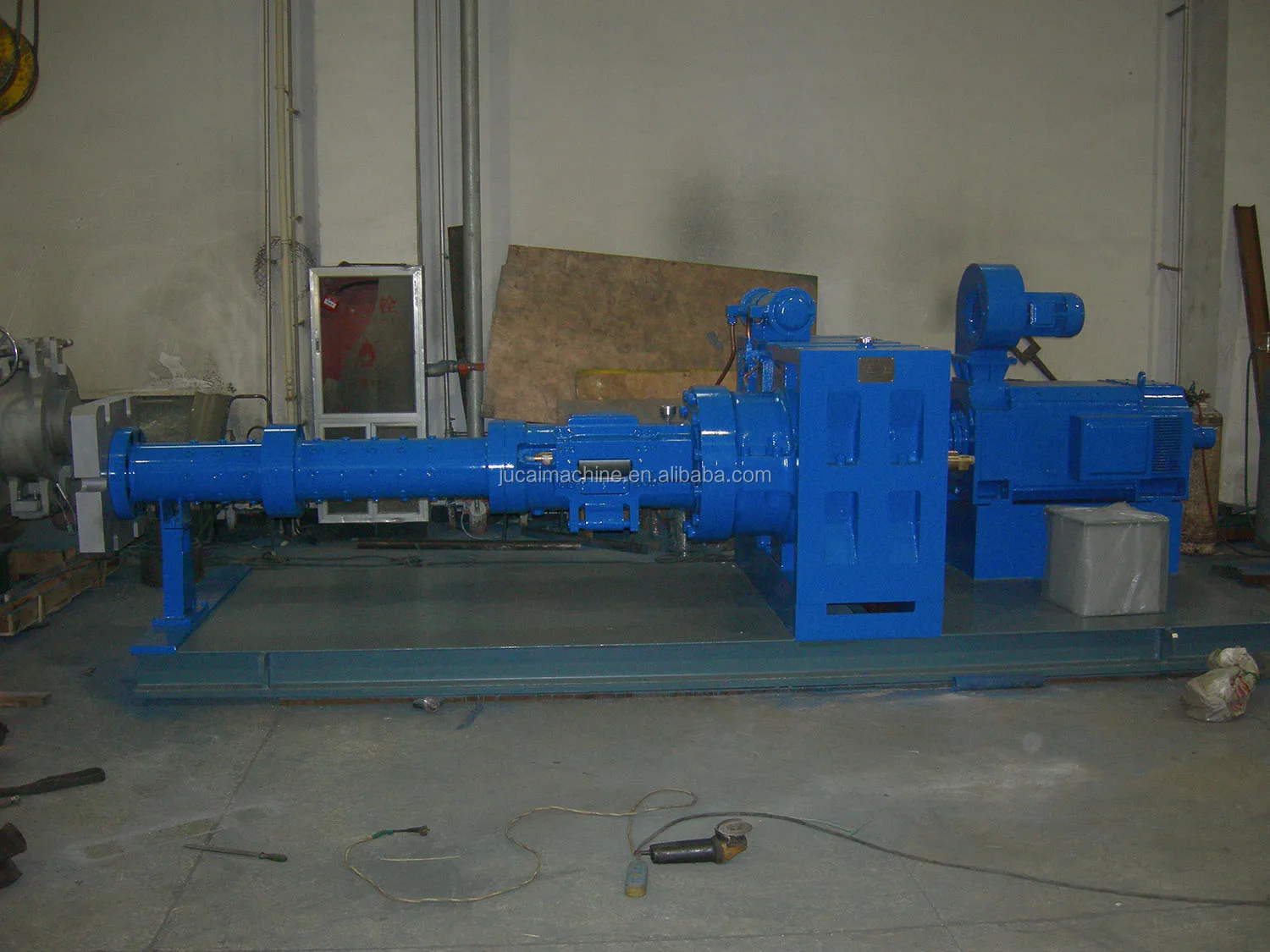

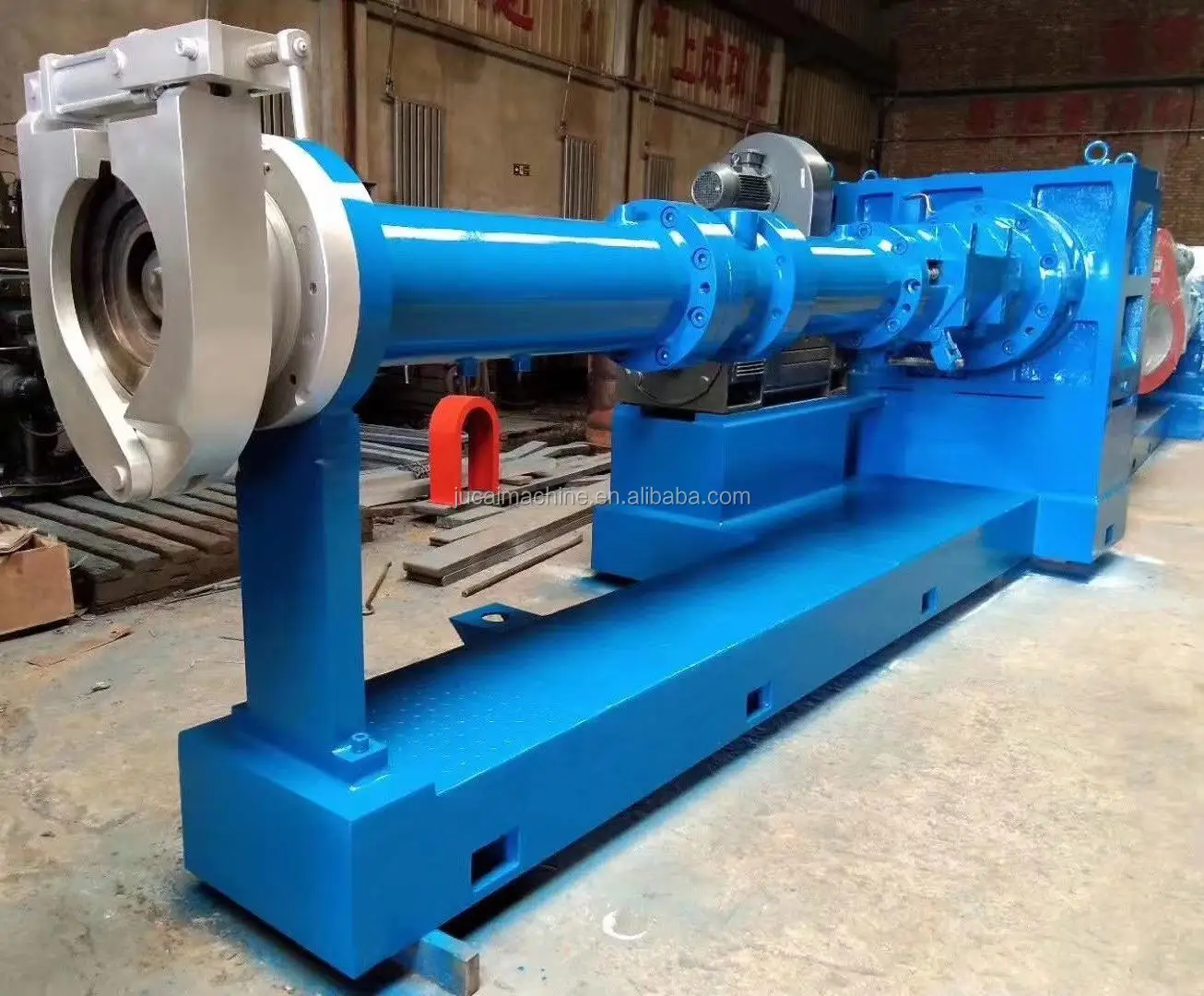

cold feed rubber extruder
We offer extruder in different diameter, 55mm, 60mm,
75mm, 90mm, 120mm, 150mm for tubes, profiles, tyre
treads, blanks, slugs, fuel tubes, fenders, rubber liners &
other technical extrusions.
Application
Spiral channel with fuselage system, good thermal conductivity
Screw and bushing adopt nitrided steel for good strength and wear resistance
Screw structure adopt main thread structure for good plasticizing and self cleaning
c/w temperature control unit controlled by hot water circulating device
c/w AC variable frequency or DC motor
Model | XJ-90 | XJ-120 | XJ-150 |
screw diameter | 90mm | 120mm | 150mm |
screw speed | 55 r/min | 50 r/min | 43 r/min |
motor | 55 kw | 110 kw | 185-220 kw |

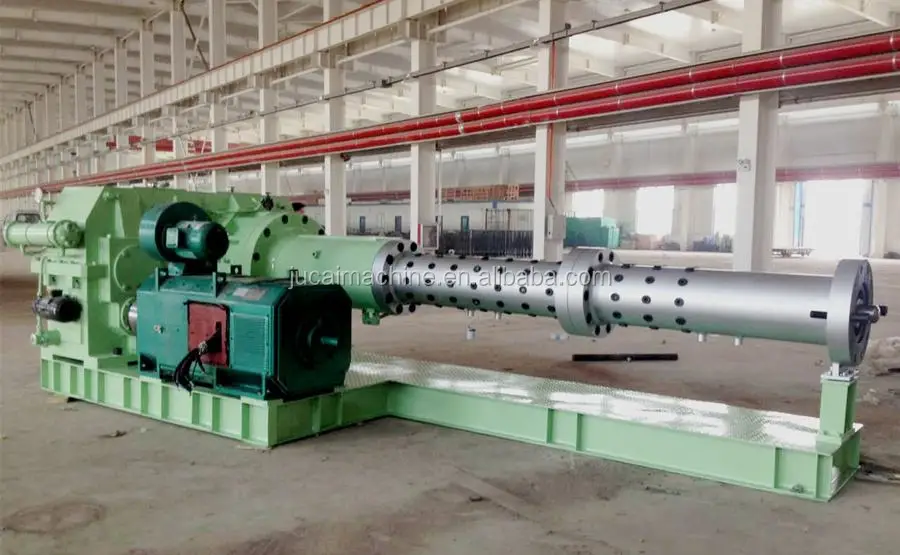

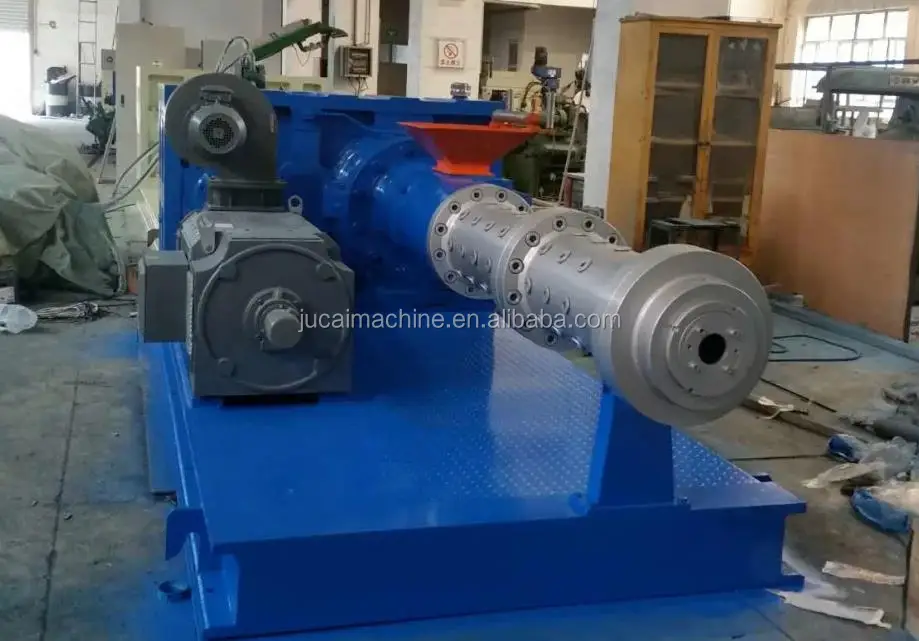

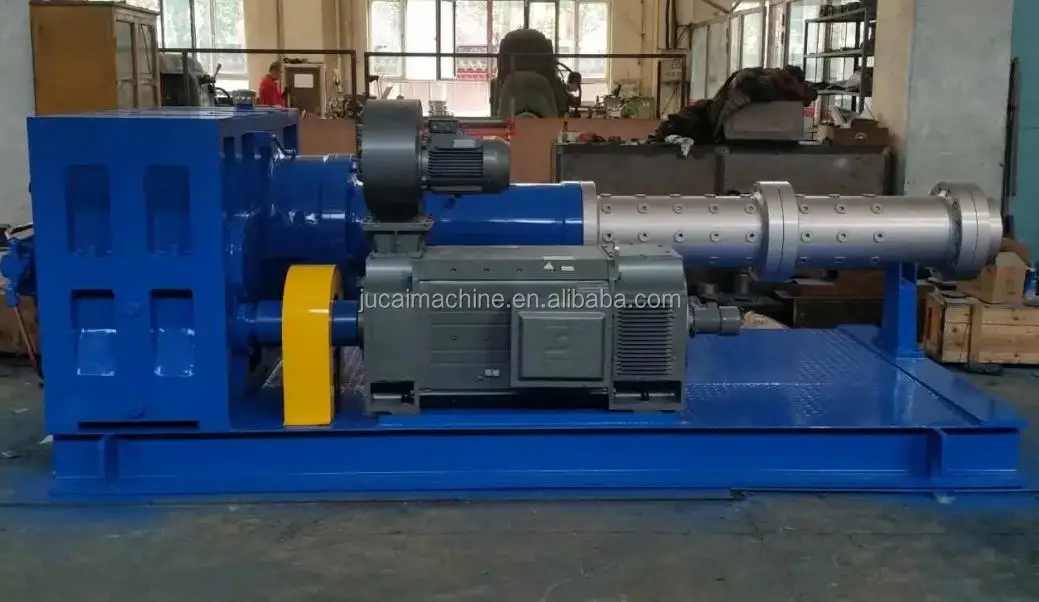

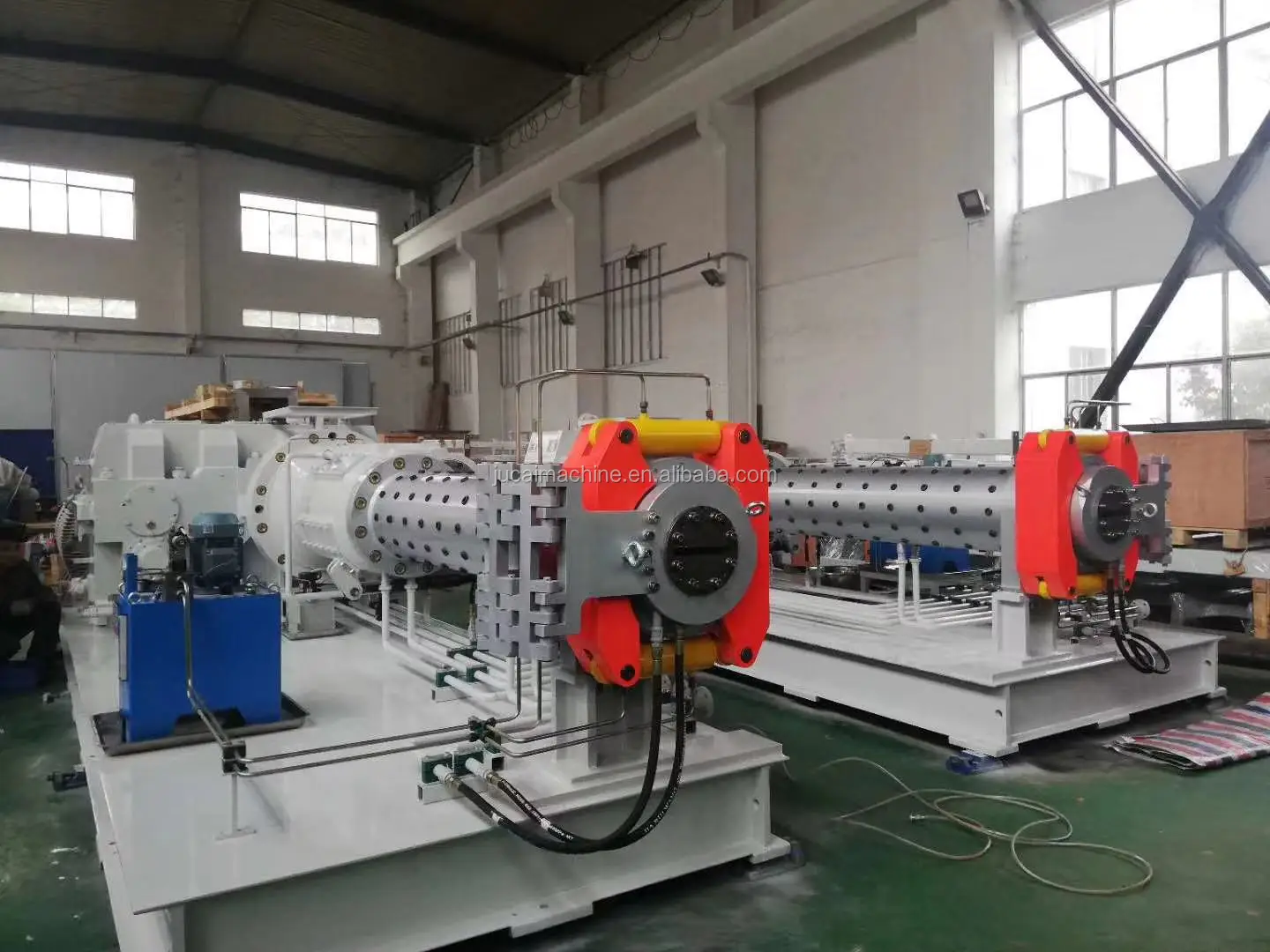

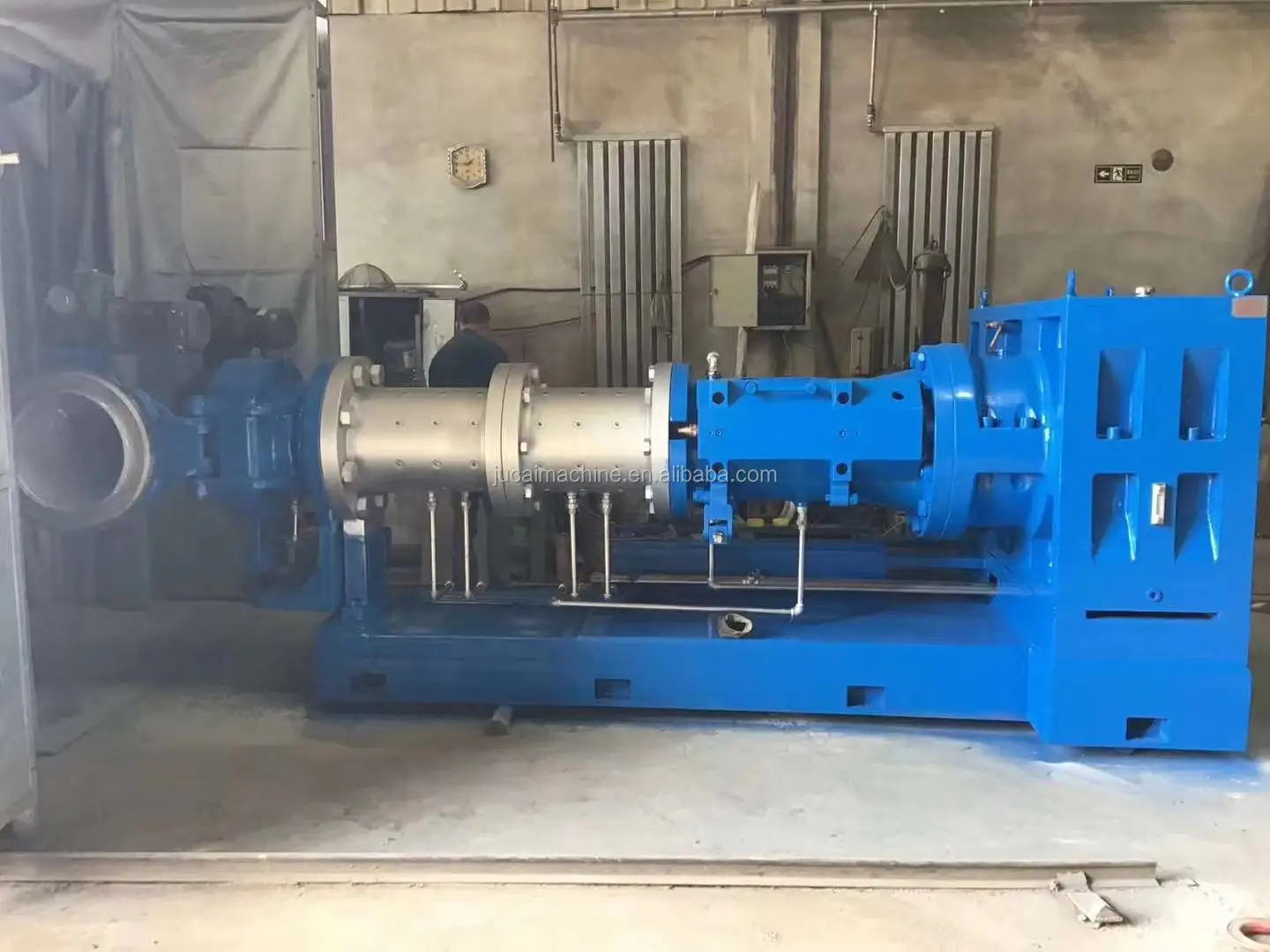

Pin barrel cold feed rubber extruder
Pin barrel for sectional structure, feeding belt over the
barrel of the spiral groove, and the roller with increase the
feeding capacity, plasticizing and extruding barrel
containing different numbers on the pin
Application
Pin type cold feed extruder of Acten is introduced with advance manufacturing technology
Pin barrel for sectional structure, increase plasticizing
Screw by CNC milling, polished with high accuracy, nitrided treatment
Pin barrel for sectional structure, increase plasticizing
Screw by CNC milling, polished with high accuracy, nitrided treatment
Strong extrusion capability, lower temperature generation, stable production.
model | XJ-120 | XJ-150 | XJ-200 |
Screw diameter | 120mm | 150mm | 200mm |
screw speed | 50 r/min | 43r/min | 40 r/min |
motor | 110 kw | 185-220 kw | 315 kw |

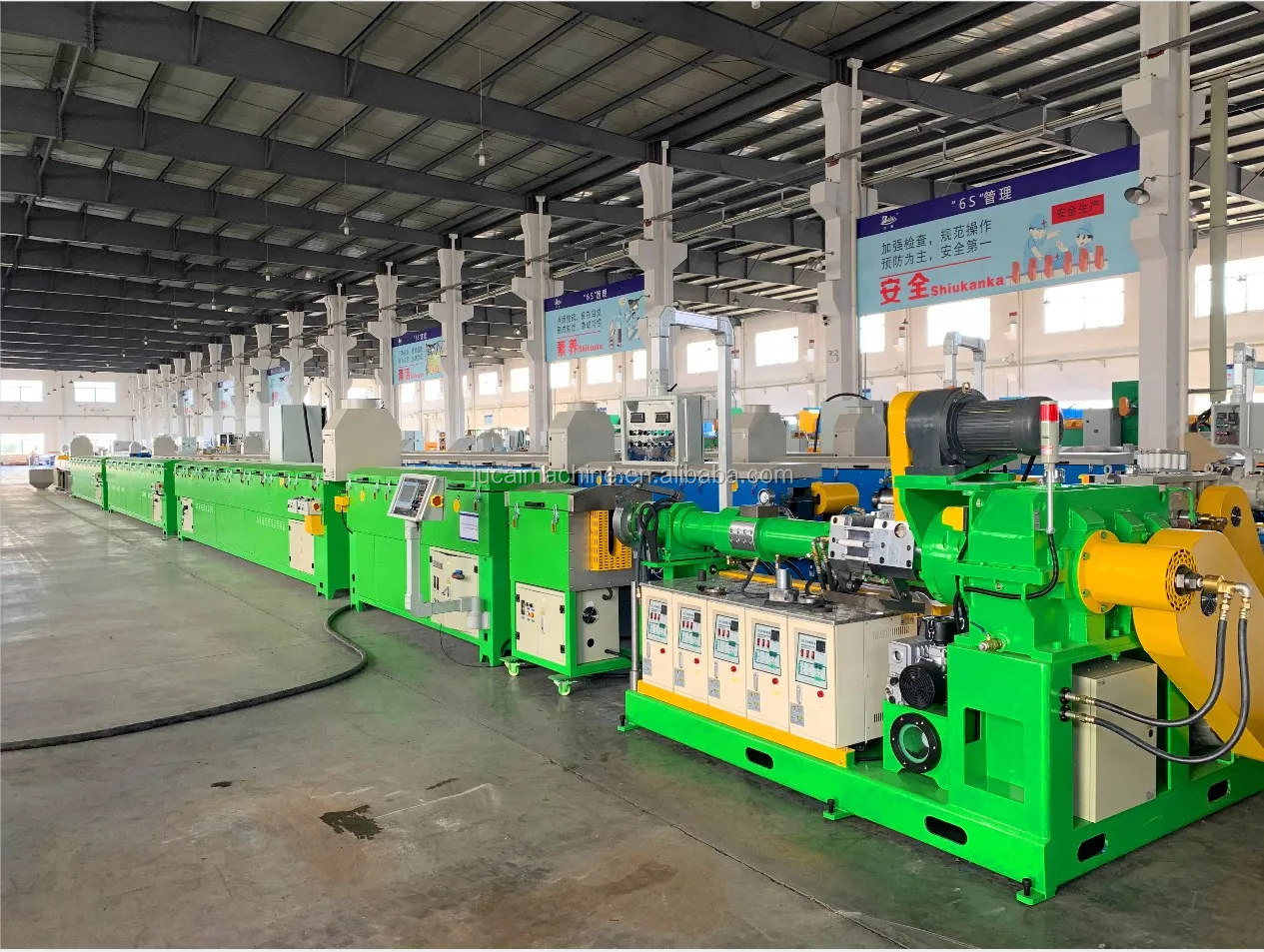

rubber profile extrusion
we provide a quality profile production system to
manufacture profiles of rubber, TPE or silicone. We
recognized the importance of different extrusion and
vulcanization technology, completed with suitable cooling,
cutting and winding system for a steady production flow.

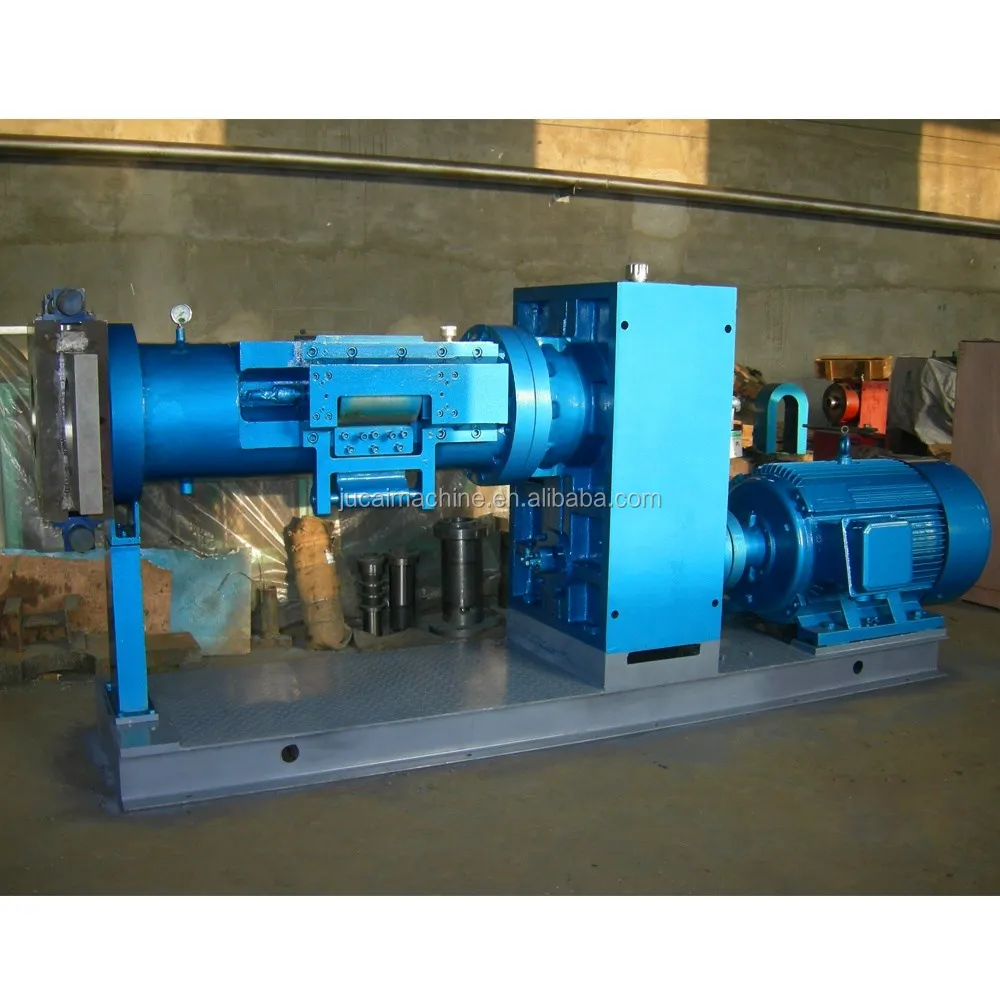

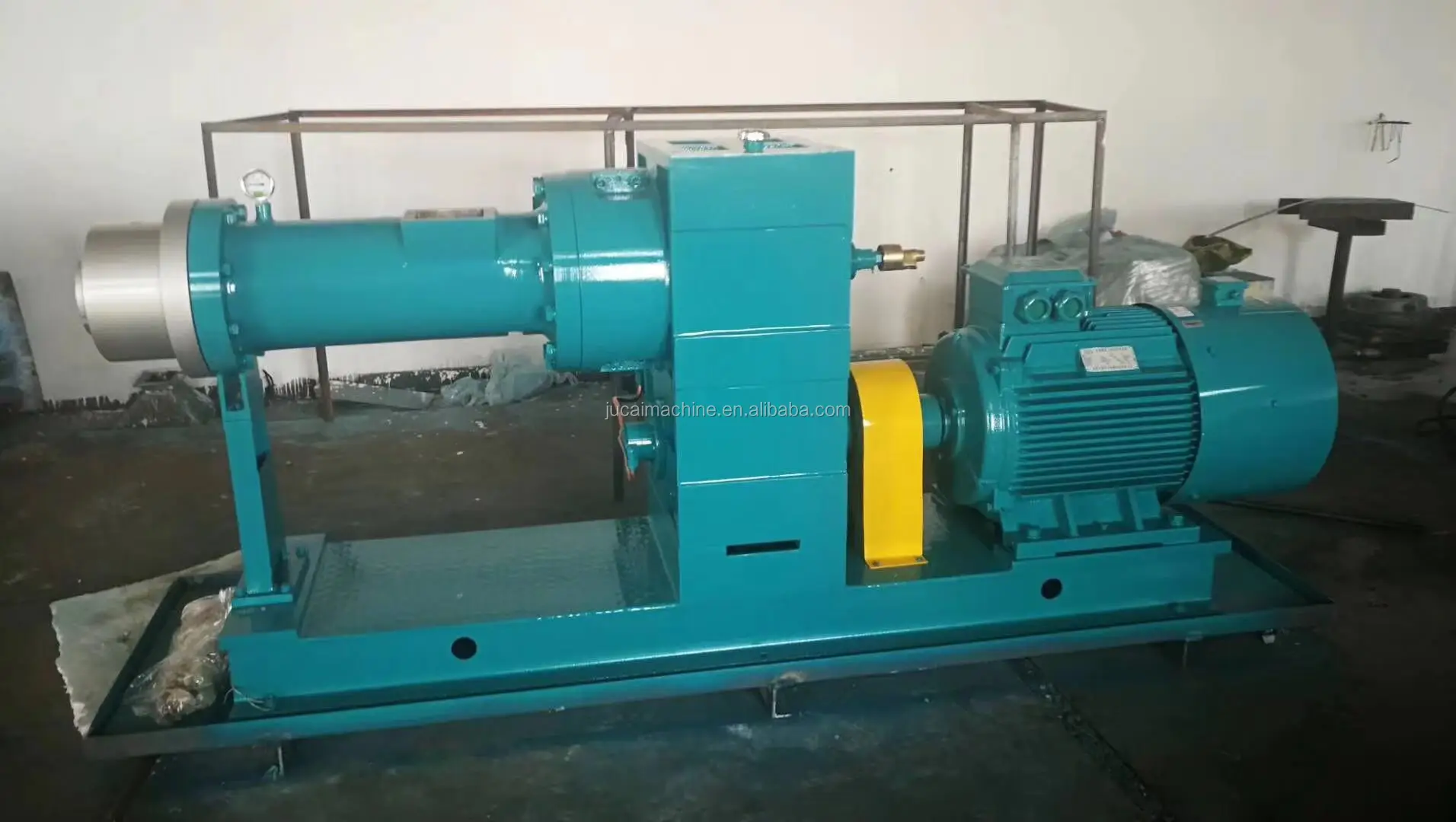

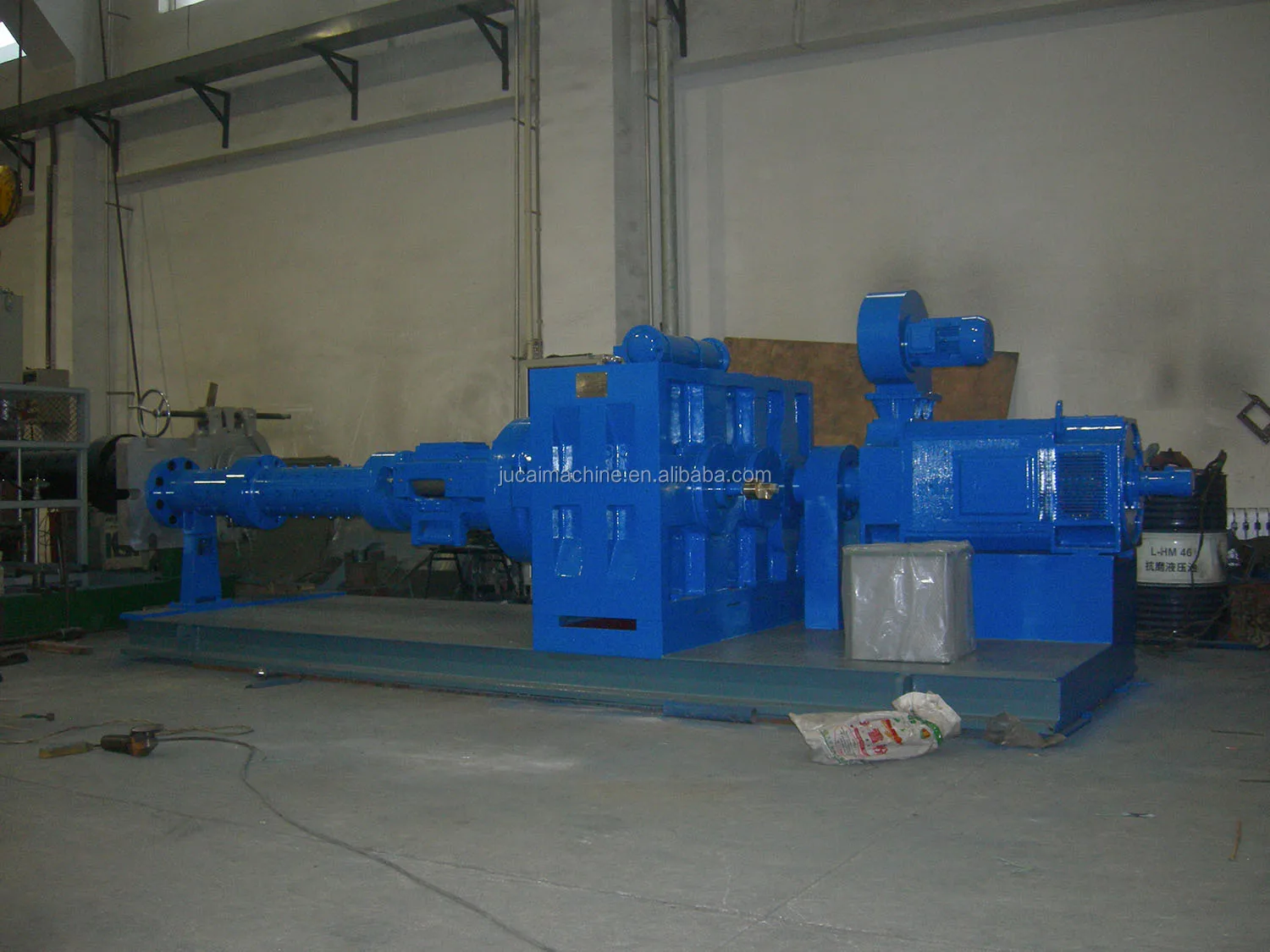

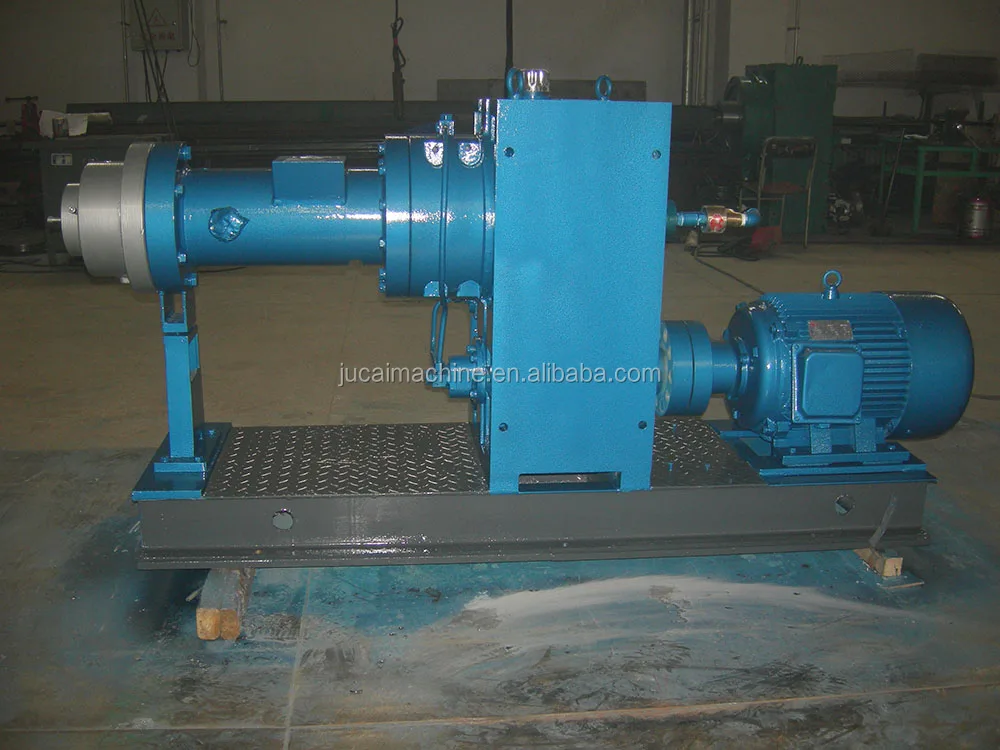

Hot feed rubber extruder
it is widely used in rubber hose , tubes ,rubber sheet,inner liner ,seals ,and other rubber products extruding shaping ,also can be used to supply rubber for calender
Model | XJ-65 | XJ-85 | XJ-115 |
screw diameter | 65 | 85 | 115 |
L/D ratio | 4:1 | 4.8:1 | 4.8:1 |
rotated speed | 20-50 | 20-60 | 20-60 |
1.Are your company a trading one or a factory?
Factory + trade (integration), 30 years focusing on rubber machine design and production .
OEM is also acceptable for us.
2.How to choose the most suitable products?
Our professional team will give you the best suggestion as long as you tell us what kind of product you need to do and the required specification.
3.Do you accept customization service?
Yes, of course, we can not only offer standard machines, but also customized machines according to your request. Don’t hesitate to tell us your requirement, we will try our best to meet your needs.
4.How about your warranty?
Generally, our warranty is one year. Within the warranty period, we can offer technique support and part parts change,
necessarily, our engineers may go to your place for better service.
5.How about the packing for machine, is it safely protected during transportation?
Our machine is packed by standard export wooden box, it won’t be damaged. We’ve delivered many testing machines abroad by sea or by air without damage.
6.What is the order process?
Inquiry - quotation - communication - order confirming - deposit payment - production - testing and debugging - balance payment -packing - delivery - customer receiving - after service.
Factory + trade (integration), 30 years focusing on rubber machine design and production .
OEM is also acceptable for us.
2.How to choose the most suitable products?
Our professional team will give you the best suggestion as long as you tell us what kind of product you need to do and the required specification.
3.Do you accept customization service?
Yes, of course, we can not only offer standard machines, but also customized machines according to your request. Don’t hesitate to tell us your requirement, we will try our best to meet your needs.
4.How about your warranty?
Generally, our warranty is one year. Within the warranty period, we can offer technique support and part parts change,
necessarily, our engineers may go to your place for better service.
5.How about the packing for machine, is it safely protected during transportation?
Our machine is packed by standard export wooden box, it won’t be damaged. We’ve delivered many testing machines abroad by sea or by air without damage.
6.What is the order process?
Inquiry - quotation - communication - order confirming - deposit payment - production - testing and debugging - balance payment -packing - delivery - customer receiving - after service.
