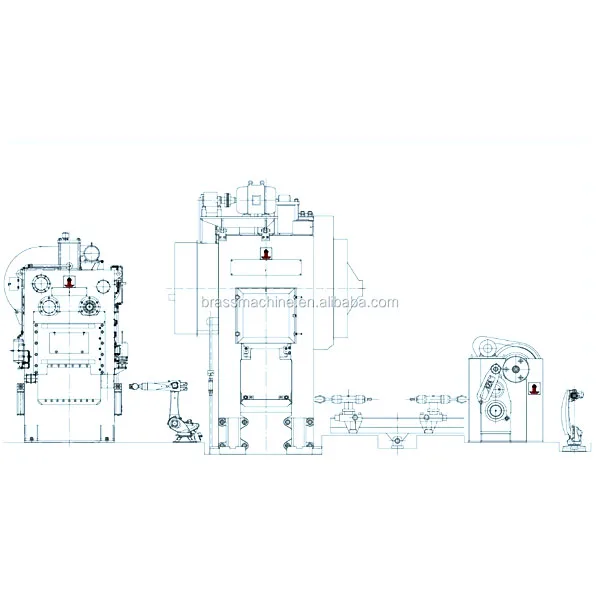

Hot die forging press machine from 100 6000Tons

            Taiwan high precise forging press

Machine characteristic:

• Processing accuracy is 0.3mm: Lowest assembly tolerance,  very high concentricity and best quality raw material, which make machines with highest accuracy.


• Less tolerance it is, longer service time the mold will have: With such low tolerance and high accuracy, will reduce mold loss, which can extend mold service life.

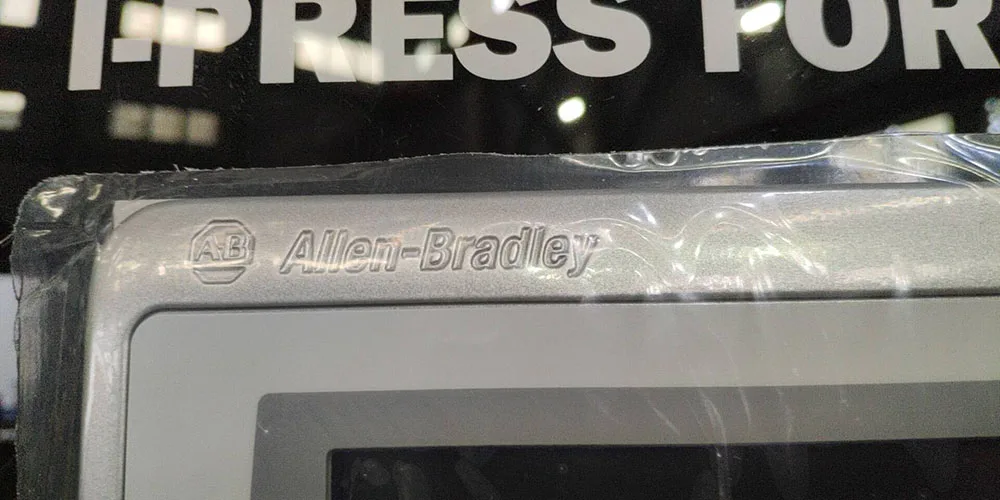

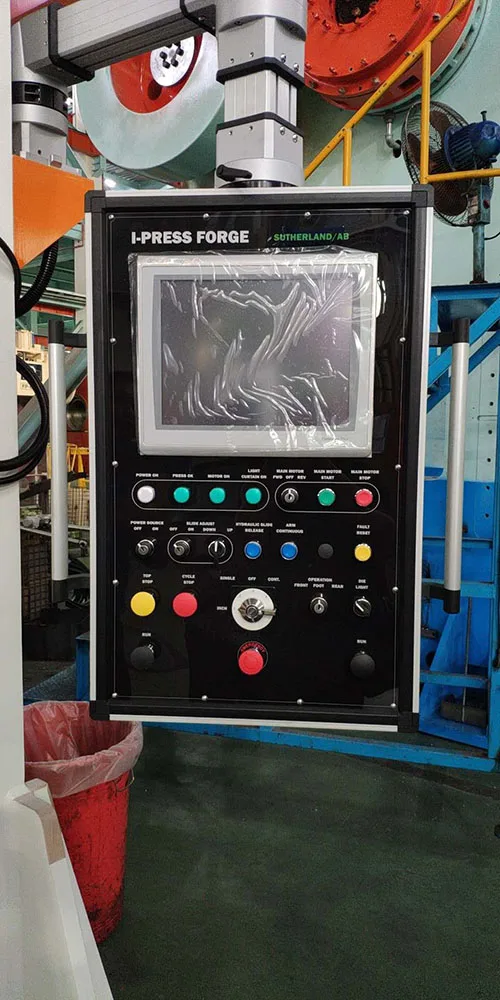

• Internal control is RJ45 intelligent control, with ethernet network and network-transformer.

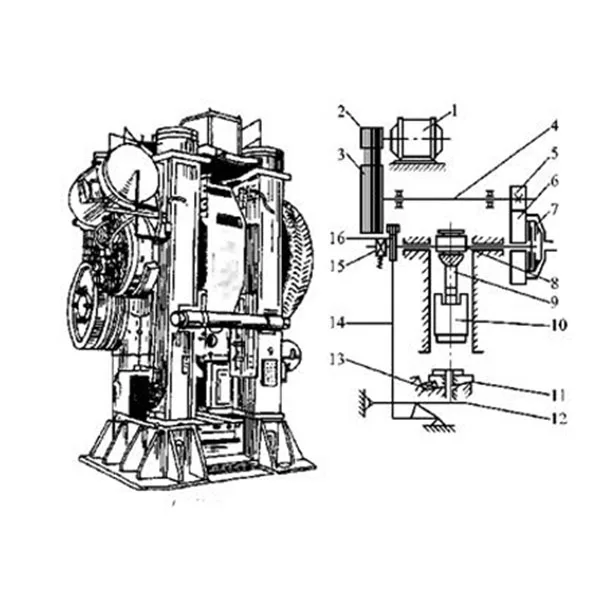

• flywheel drive: The flywheel is driven directly, the running speed is high, the contact time between forging material and die is shortened, and the life of die is increased. Because of the simplification of transmission mechanism, the failure rate is reduced, and the maintenance cost is greatly reduced.


• X-type slider guide: Design of X-type guideway, Fully overcome the phenomenon of thermal expansion caused by heat conduction to the slider during forging. This design minimizes the variation of sliding clearance, Design of extra long guideway, enhance the overall rigidity and eccentric load capacity, more suitable for precision multi-station forging.


• New type flywheel: big gear suspension mechanism: The flywheel and the big gear are suspended on the shaft and no longer allow the eccentric shaft to bear extra weight, can reduce copper lining wear, improve service life. The new suspension design ensures the smooth running of flywheels and large gears, Greatly reduce the noise generated by gear operation, At the same time increase gear life. Flywheel internal bearing use forced lubrication with oil, can ensure that there is no shortage of oil, and oil cooling effect, more can improve the bearing life.


• Closed clutch mechanism: The semi-closed clutch mechanism introduces external cold air into the clutch through rotating motion, increase heat dissipation and effectively reduce the operating temperature inside the clutch, increase the contact area of the lining, increase clutch drive torque, at the same time to extend the service life of the film.


• Design of double point connecting rod: The sliding block is supported by two points when the sliding block is actuated with a double connecting rod structure, big left and right width, and synchronously apply force to the slider, the structure has strong capability of resisting eccentric load, widening the area of copper sleeve and increasing the service life of the structure.
