JT 106P 10Liter Hot Melt Glue/Adhesive Machine Packaging Pneumatic Pump Hot Melt Applicator

1. Applying to a variety of packing cartons, packing boxes, paper bags, paper packing boxes, such as competitive book box, mooncake box, food box, wine gift box.

2. The glue spraying of many kinds of products, for example, cosmetics aluminum cap/lid, cream cap/cover/lid, spray head, pump head, Chiaki cover, essential oil cap/lid, gift boxes.

3. Instead of double-sided glue tapes, the glue spraying craft of paper bags sealing like sticky tapes/velcro tapes, courier bags, bubble bags, envelop bags, document bags, handbags.

4. Automotive industry(interior seal, lamp manufacturing, windshield assembly, car body, foot plate, seat,ceiling doors and windows seal etc.)

5. Household electrical appliances and furniture industry like refrigerator seal and fill, filters industry, household products assembly such as the glue spraying of mattress, sofa, sponge, sticky household appliances.

6. Crystal ball, security hat, hair accessories, handmade accessories, toys, seal cartons/boxes, woodworking, papers, decorated colorful boxes, Buffer material, drink labels, book bonding, electronic industry and any other packing application.

SPECIFICATIONS FOR JT-106P HOT MELT GLUE/ADHESIVE MACHINE
ITEM	PARAMETER	UNIT	MARK
MODEL	106P	--
TANK CAPACITY	10	L
MAX. MELTING RATE	15	L/HOUR
MAX. OPERATION TEMP.	200	℃
SETS OF HOSE & GUN	2-4	PCS
AIR PRESSURE	4-6	KG/CM2
TOTAL POWER	3960	W	DEMAND: AC220V/50HZ
PUMP TYPE	PNEUMATIC/PISTON PUMP	--
MAX. VISCOSITY	12000	CPS
WEIGHT	66	KG
DIMENSION	750*350*600	MM

Main Features

1) Heated hose and additional automatic controller for easy adjustment of spraying height and angle.
2) Large area operation can be achieved without moving machine.
3) 1 to 4 sets of hose & gun can be chose to be installed so as to save purchase cost.
4) High strength integral molding glue tank, leaf shape heater can increase the heating area and improve the melting rate. The inner tank is sprayed teflon, so its internal face is smooth without corner structure , and it can protect glue stick to the internal face and get carbonized efficiently.
5) Piston pump's working accuracy (adopt import technology) can efficiently ensure the stable output glue of piston/pneumatic pump.

Detailed Images

Machine Parts

Name: JT-106P Hot Melt Glue Machine/Applicator

Brand: JINGTAI

Original: China

1. The glue output is stable;

2. The max. operation temperature is 200℃;

3. High quality and good price;

4. It can be equipped with 1-4 sets of heated hose & glue gun.

Machine Accessories

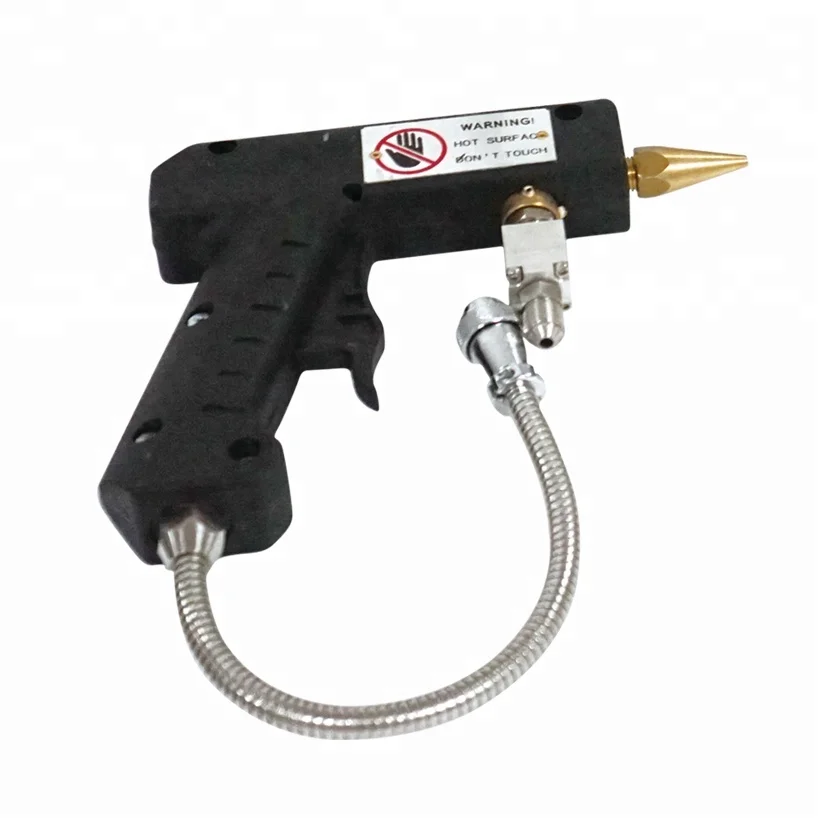

Name:  Glue Gun

Brand: JINGTAI
Original: China
1. Manual glue gun or automatic glue gun can be chose;

2. Glue output way: bead spraying, strip spraying, mist spraying, scrape spraying.

Machine Accessories

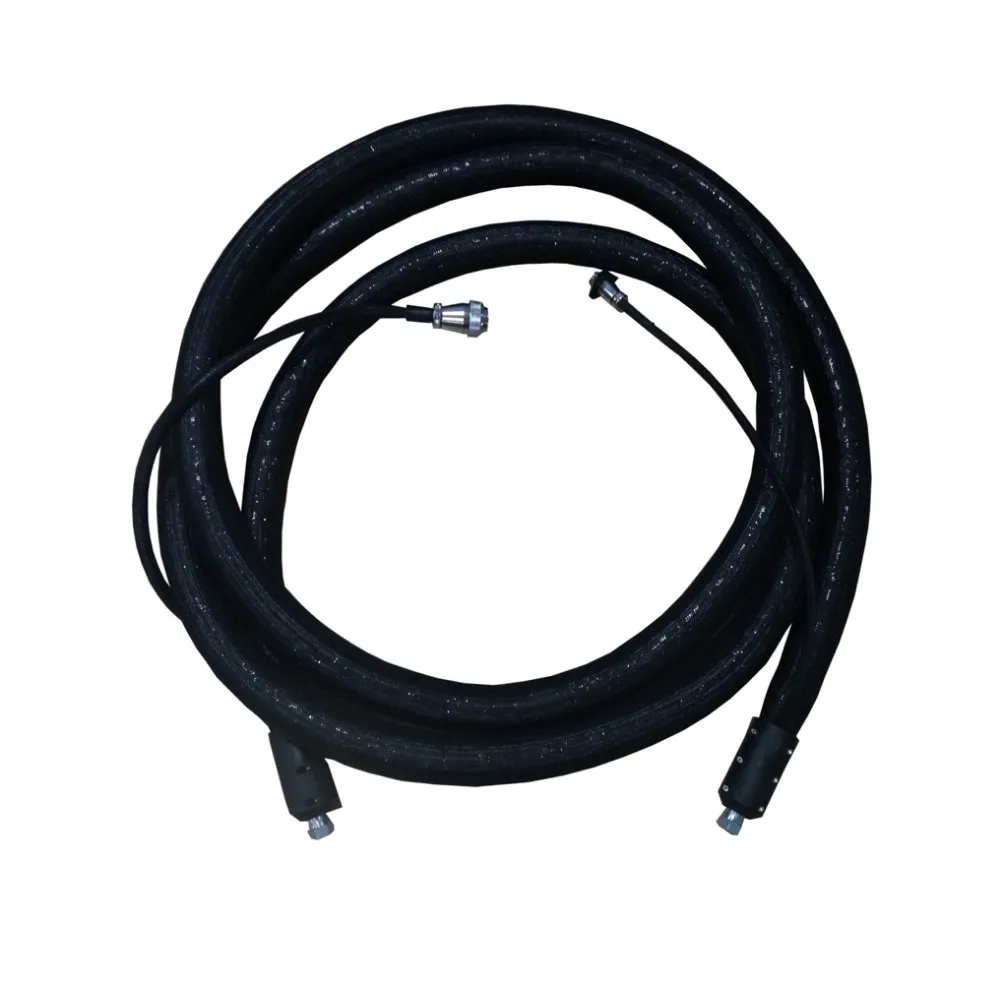

Name: Heated Hose
Brand: JINGTAI
Original: China
1. Customized hose length, min. length is1 meter;

2. The color can be chose, black or blue.

Packing & Delivery

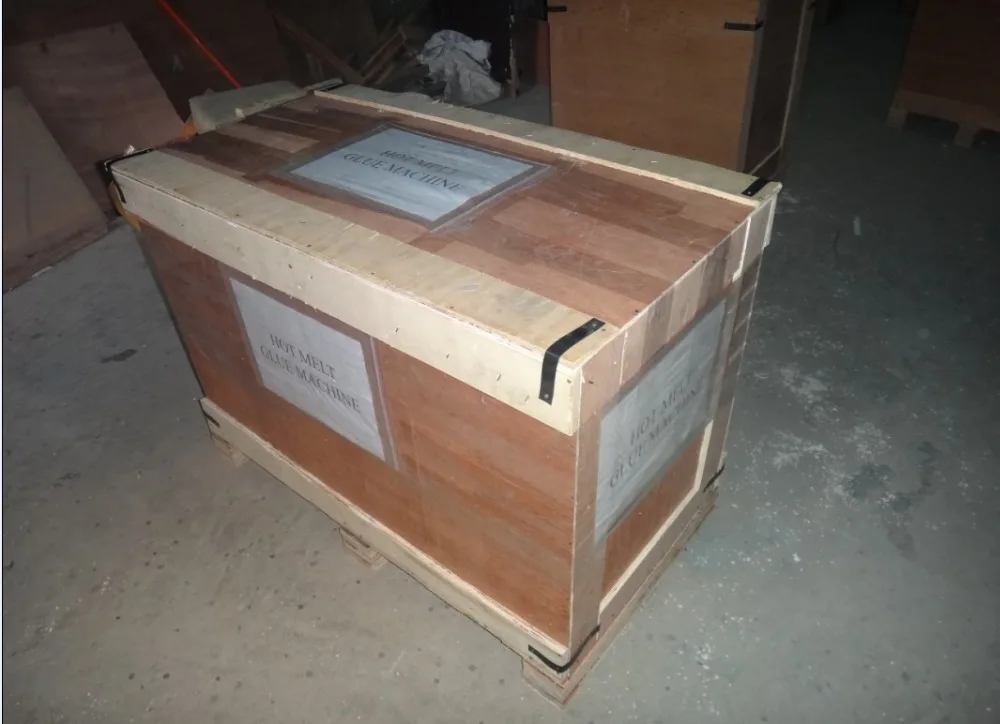

Packaging
Size	750(L) * 300 (W) * 600 (D)
Weight	66KG
Packaging Details	1. The packing is confirmed to export wooden case standard, strong and durable. The wooden case's thickness is generally 1 cm. 2. In order to be waterproof, we usually use bubble film to wrap machine. 3. In order to avoid the machine being damaged in transit, the foam will be full filled between the machine and wooden carton. 4. pack it according to customers special request.

Related Products

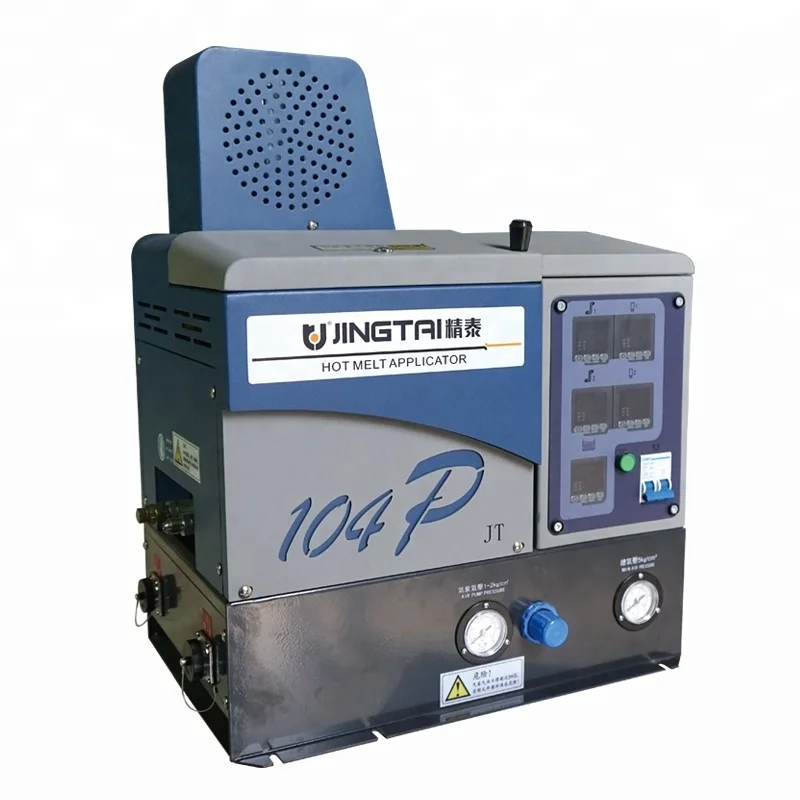

                       JT-104P

                  98.8% Response Rate

                JT-P6

        97.8% Response Rate

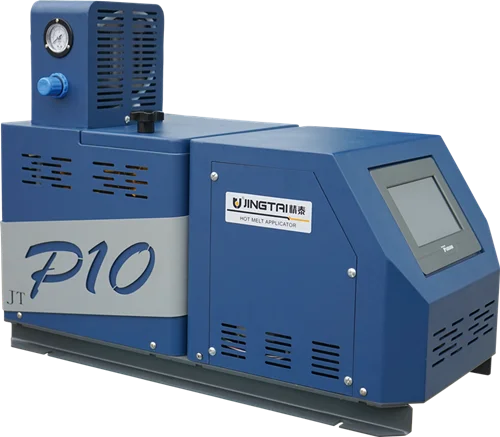

                   JT-P10
