DZH 120 Высокое качество Автоматическая блистерной упаковки в картонные коробки
- Category: Boxing Machines >>>
- Supplier: Minhua Pharmaceutical Machinery Co. Limited
Share on (60818054302):
Product Overview
Description
Product Description
———Descriptions———
The cartoning machine is the new product which Our company develops have the volume to be small, the weight is light, the application scope is broad, the production efficiency is high, but one machine multipurpose and so on merits, simultaneously, this aircraft may model with the aluminum, packaging machine on-line uses and so on aluminum - aluminum, achieve the desired effect. And may satisfy national drugs production quality administrative regulations GMP the request.
Then goods packing, food packing, cosmetic packing and correlation profession packing. The use scope is widespread, simultaneously according to user's different operation requirements, but regular
replacement product, and the mold production cycle is short, the assembly and the debugging are simple, are suitable for the mass sole variety production, simultaneously may satisfy the user small batch multi-varieties the production.
———Technical Parameters———
Encasing speed | 100-120 Cartons/min | ||
Carton | Quality requirement | 250-350g/m2 | |
Dimension range(L*W*H) | (80-200)*(35-130)*(15-60)mm | ||
Leaflet | Quality requirement | 60-70g/m2 | |
Unfolded leaflet sprcification | (80-250)*(80-170)mm | ||
Fold range | 1-4 fold | ||
Compressed air | Working pressure | ≥0.6Mpa | |
Air consumption | 120-160L/min | ||
Power supply | 220V 50Hz or customized | ||
Motor power | 2.5kw | ||
Overall dimension: | 4350*1500*1850mm(L*W*H) | ||
Weight: | 2000 kg | ||

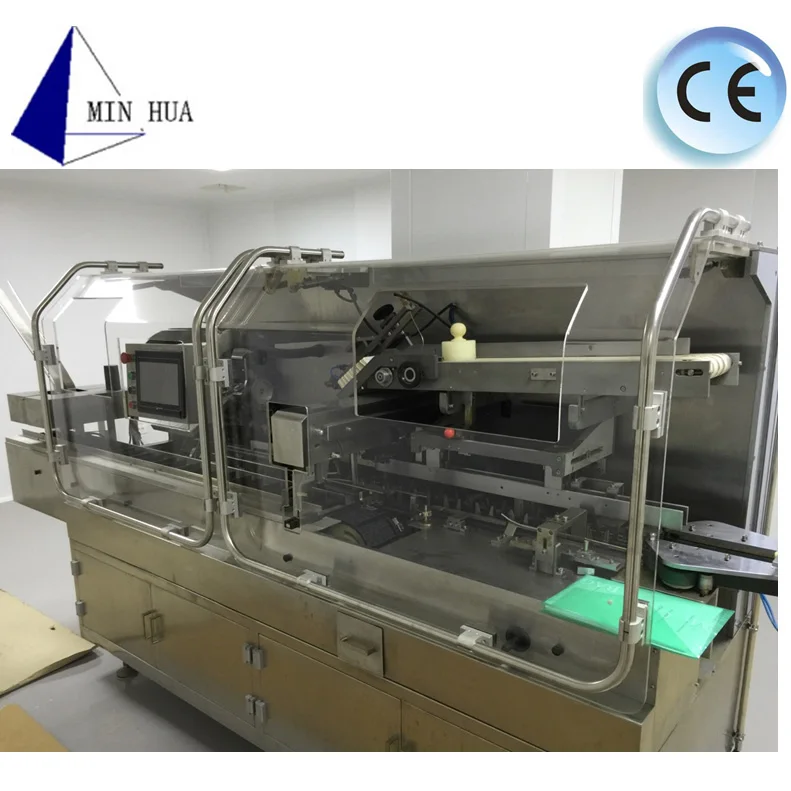

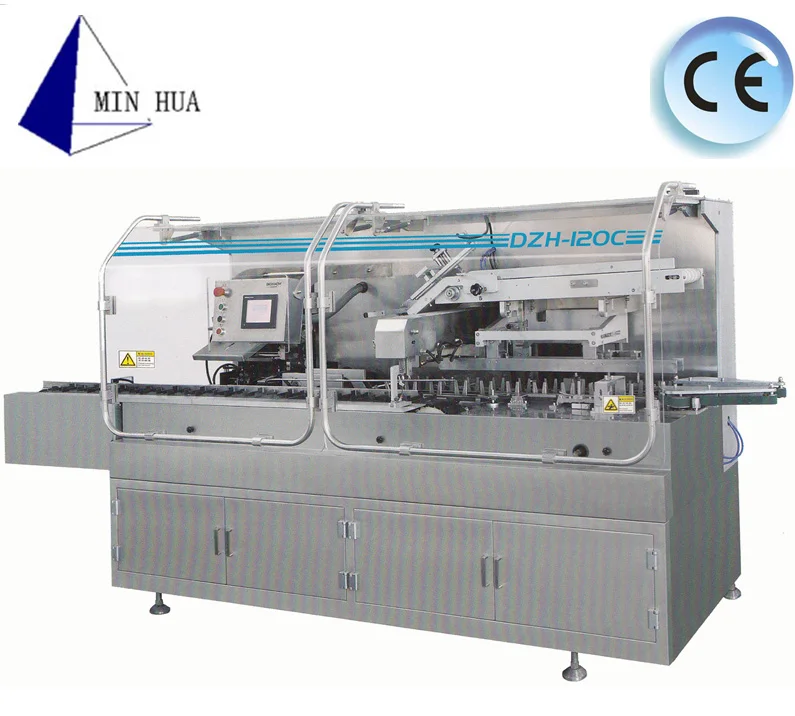

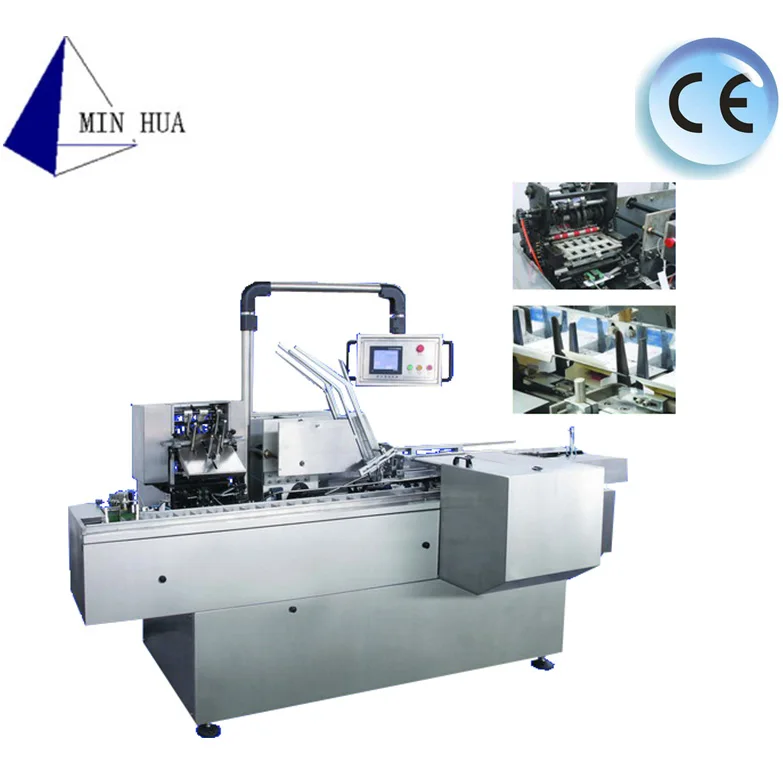

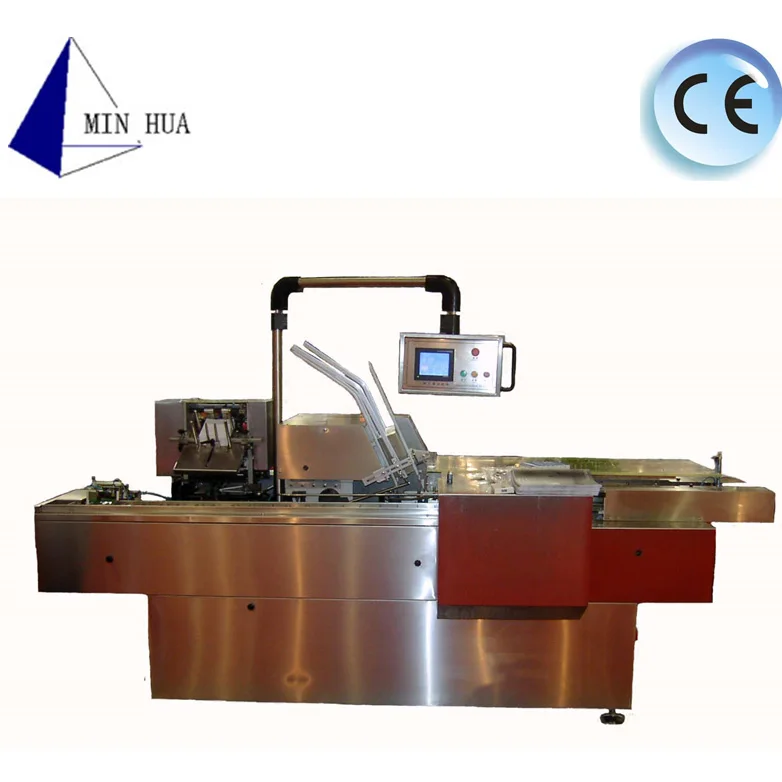

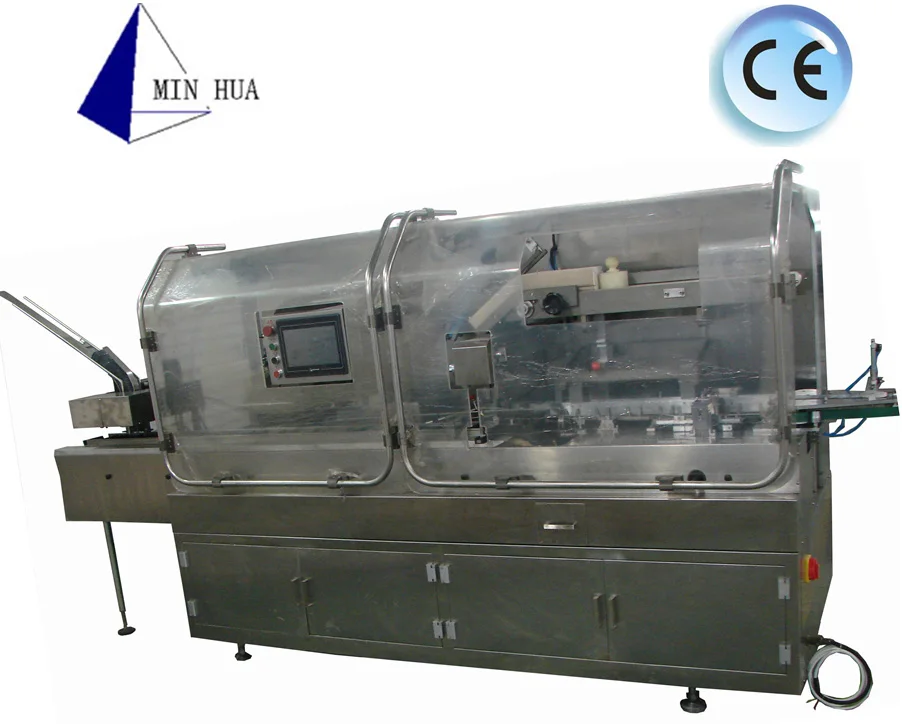

———Product image———
Features
——Features——
Feature 1 | Installs the box opportunity behavior intermittence type design, the PLC control, the structure is succinct, easy to maintain. This aircraft uses a series of complex under the transmission, imitates person's movement from to move completes the box, opens the box, the folding instruction booklet, the powder charge (instruction booklet) and seals working procedures and so on box. |
Feature 2 | The complete machine maximum speed may amount to 120 time/minute (product specification size decision machine run speed). Packing material's running rate is low, thus causes the packing material to the running rate sensitive reduction, the packing material compatibility strengthens, machine's machinery attrition is small, its characteristic: High yield, low machinery running rate. |
Feature 3 | This aircraft uses the vacuum is by the vacuum pump or with ZL112 vacuum generator (SMC), the automatic vacuum takes the box, the wide angle opens the box. Guaranteed that the box opens the precision. |
