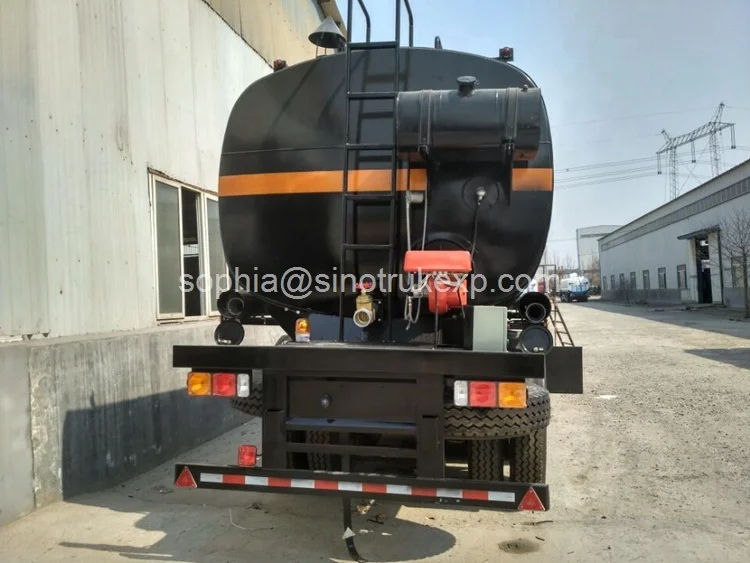

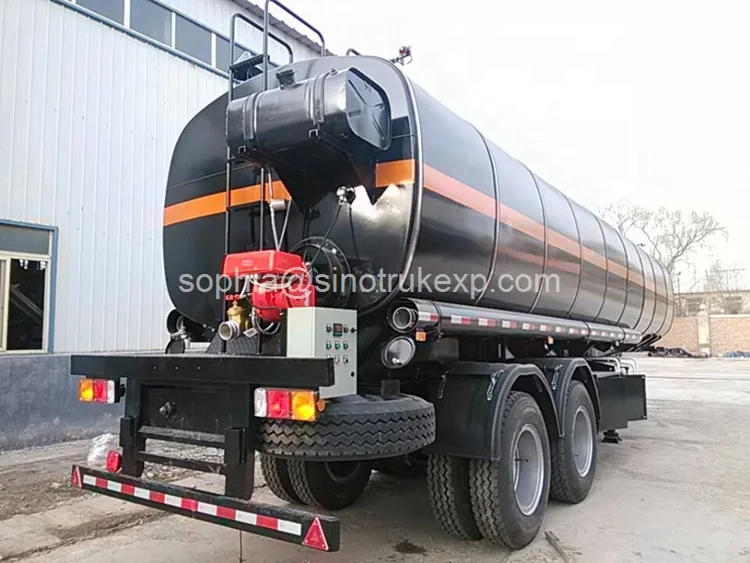

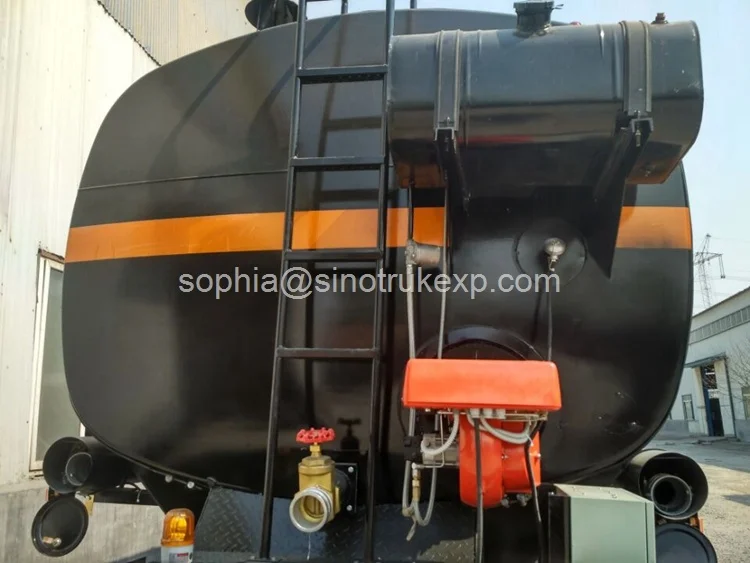

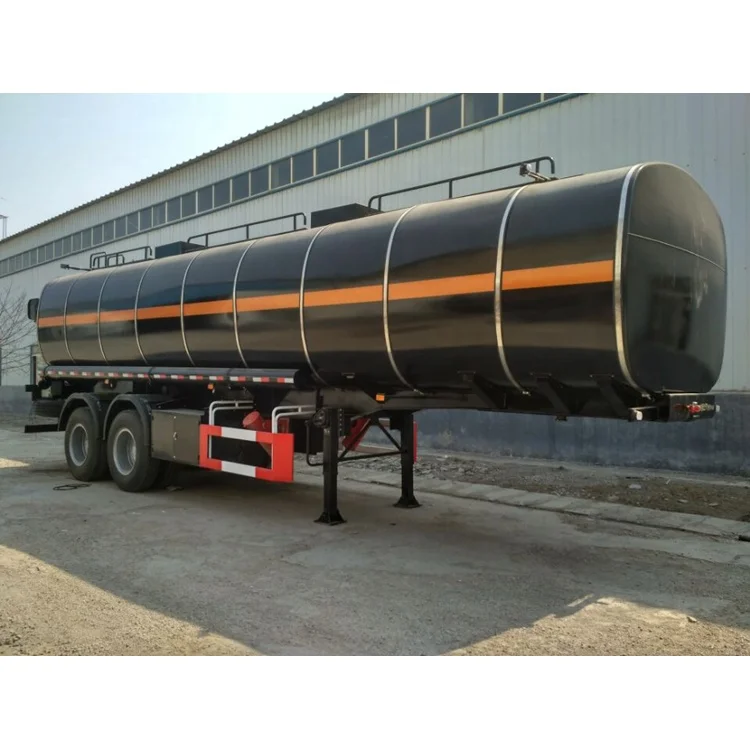

3 axle 50000L fuel tank trailer semi trailer With 4 Inch Manhole Cover

Tank Body

Shape

Optional ( Round or Suare or TV type )

Dimension

12000mm*2490mm*3990mm ( Exact size depends on the final design)

Tare weight

About 8000KGS-12800KGS

Total Volume(m3)

25m³-60 m³ (25000L-60000L )

Tanker Body Material

5mm or 6mm/ Q235 carbon steel

End Plate

5mm or 6mm /Q235 carbon steel

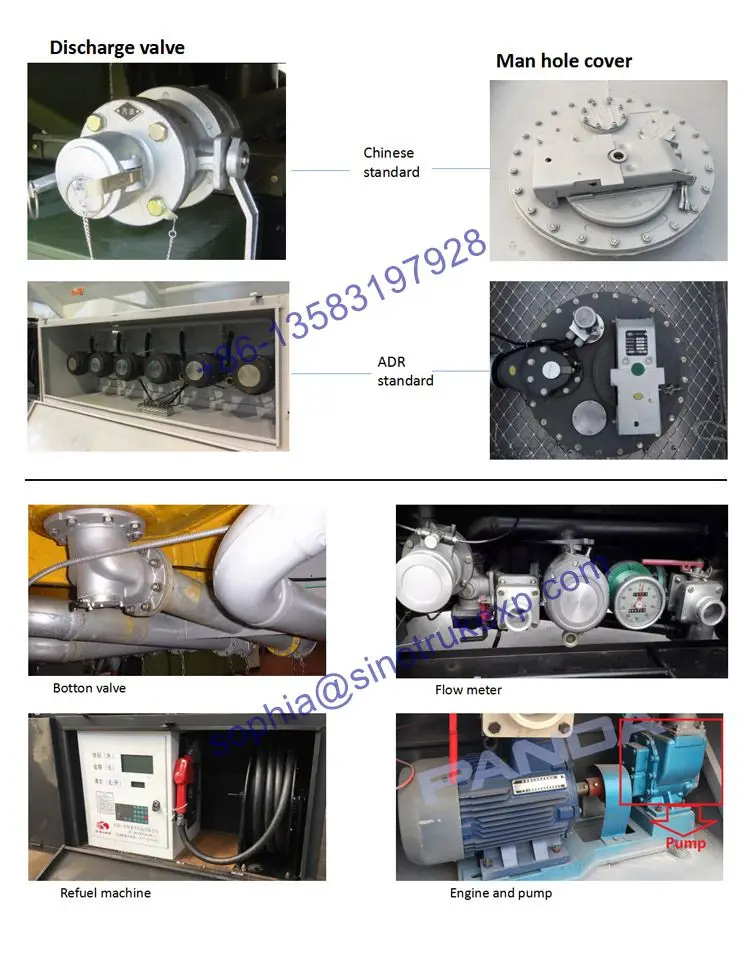

Manhole Cover

Cabon steel or Aluminum alloy API manhole cover, 500mm

Bottom Valve

Aluminum API Pneumatic Bottom Valve

Discharging Valve

Diameter is 3 or 4 inch

Compartments

Optional

Discharging Pipe

4” rubber hose, 2 pcs,  6m/each

Cat Walk

With (Common model or special design)

Chassis

Main Beams

 Weldding design or Special design I beam, connected by bolts and nuts

 Q345 carbon steel material

Axle

2 or 3 axles, BPW/FUWA/HUAJING brand

Landing Gear

JOST (D200T)or FUWA BRAND 28T

King Pin

JOST 2.00 or 3.5 inch bolt-in king pin

Suspension

Mechanical suspension/Germany or America type /air suspension

Leaf Spring

90(W)mm*13(Thickness)mm*10 Layer or 100mm*12mm*12 /without

Pneumatic Braking System

WABCO RE 6 relay valve; Spring brake chamber(TKL brand); 2 pieces of 45L air tanks.

Rim

9.00-22.5/8.00-20/8.5-20  China Brand

Tire

/12.00R22.5/315 80R22.5/11.00R20 /12.00R20  Brand can be Optional

ABS

Optional

Water tanker system

Optional

Painting

Complete Chassis sand blasting to clean rust, 1 coat of anticorrosive prime, 2 coats of final paint

Accessories

One standard tool box
