air heater greenhouse heating system

Product Overview

Description

air heater greenhouse heating system

Temperature control copper tube water temperature fan

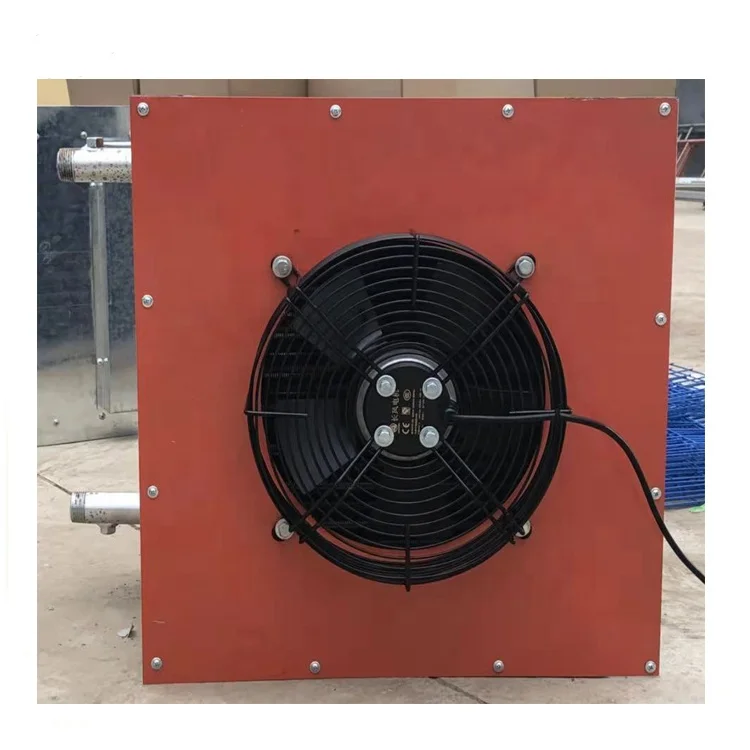

 "Copper tube water temperature air conditioning unit": chassis material: galvanized sheet plus electrostatic spray.

1. (GD-80-4P): The height of 750mm includes import and export 900mm thickness 450mm, national standard copper tube series aluminum fin air conditioning unit, copper tube four rows, a total of 68, import and export DN32, equipped with low noise external rotor fan, national standard copper wire motor, power 190 watts, air volume of 2800 cubic meters per hour, intake temperature 80 degrees, heating. The quantity is about 25 kilowatts, and the heating area is 150-200 square feet under normal temperature. It weighs about 35 kilos.

2. (GD-80-6P): The height of 750mm includes import and export 900mm thickness 450mm, national standard copper tube series aluminum fin air conditioning unit, six rows of copper tubes, a total of 102, import and export DN32, equipped with low noise external rotor fan, national standard copper wire motor, power 250 watts, air volume of 3500 cubic meters per hour, intake temperature of 80 degrees, heating. The quantity is about 35 kilowatts, and the heating area is 200-300 square feet under normal temperature. It weighs about 45 kilos.

3. (GD-80-8p): The length of 750mm includes import and export 900mm thickness 450mm, national standard copper tube series aluminum fin air conditioning units, eight rows of copper tubes, a total of 136, import and export DN32, equipped with low noise external rotor fan, national standard copper wire motor, 420W motor power, air volume of 5500 cubic meters per hour, intake temperature of 80 degrees. The heat is about 45 kilowatts, and the heating area is 300-400 square feet under normal temperature. It weighs about 55 kilos.
