HZ870 air jet power loom/economic air jet loom
- Category: Other Textile Machines >>>
- Supplier: Qingdao Huazun Machine Co. Ltd.
Share on (60818667165):
Product Overview
Description

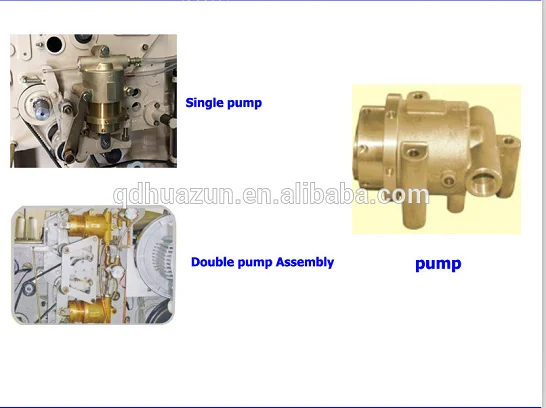

Hz870 air jet loom is our specially designed new styp water jet loom.with a larger workable range of various yarns,two pumps water jet feeding systerm and electronic opration systerm,it can weave two kind of distinctly different yarns at the same time.The RJW-851 based sturdy strcture is also ecellent in vibration reduction during high speed operation.Reed with:190 210 230 250 280 340 360
weft density:5-60pick/cm
Item |
| Standard specifications | option |
Reed space | Nominal(cm) | 150,170,190,210,230,250 |
|
Neck in(mm) | 600mm |
| |
Weaving scope | Staple | Ne80-Ne5 |
|
Filament | 56d-1000d |
| |
Weft selection |
| Double /Four Nozzle |
|
Power |
| Super start motor, motor drive directly |
|
The motor rating(KW) | 1.8,2.2,2.8,3.0,3.7 |
| |
Weft insertion |
| Main nozzle, deputy nozzle together, use special reed | tensile |
| Auxiliary main nozzle |
| |
| Deputy nozzle relay control |
| |
Shedding |
| Crank shedding |
|
| Upper cam shedding |
| |
| Upper dobby shedding |
| |

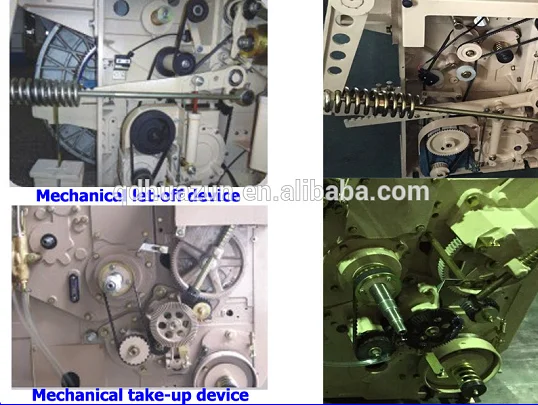

Let off |
| Electronic |
|
Variable dis dia(mm) | 800 |
| |
Take up |
| Electronic |
|
| The largest cloth diameter(mm) | 520 |
|
| Weft density range | 9.8-78.7 pick//cm(25-200pick/inch) |
|
| Weaving length counting | Displayed on the keyboard display, with the function of scale parking |
|
Beating-up |
| Crank type sley feet more beating -up mechanism |
|
| Four linkage beating-up |
| |
Measuring weft Storage |
| Electric drum weft |
|
Leno |
| Planetary gear type |
|
Cutter |
| Mechanical scissors |
|
Stop device | Weft stop | Reflex detector |
|
Warp stop |
| 6 columns batching motion | |
Other | Wring side,yarn end processing broken parking |
| |
Fault display | Operating screen |
| |
4 color indicator light display |
| ||
Automation |
| The computer control system |
|
| Monitoring and self diagnosis function |
