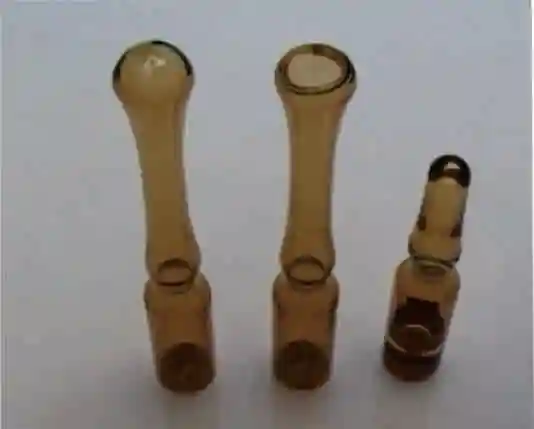

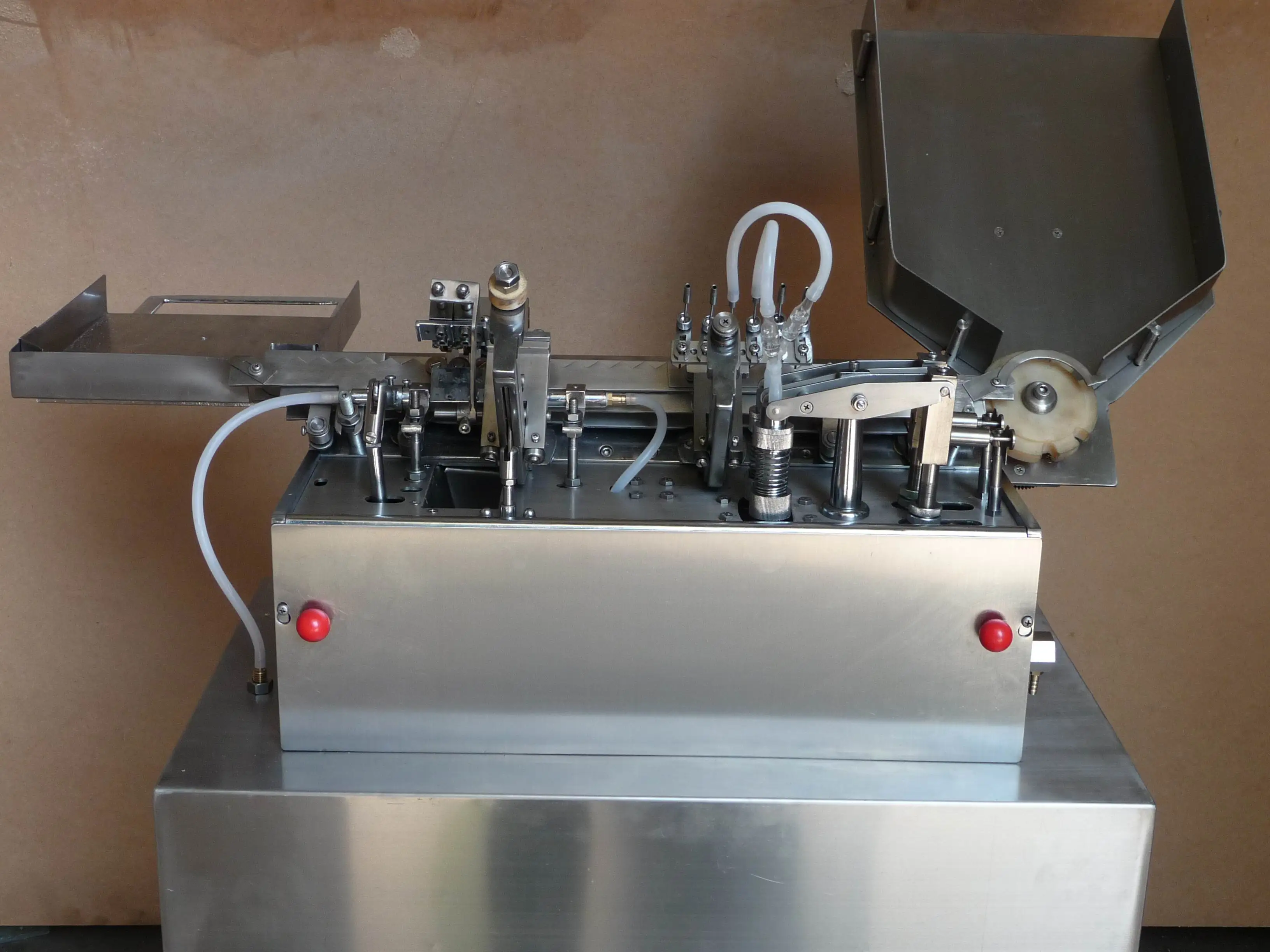

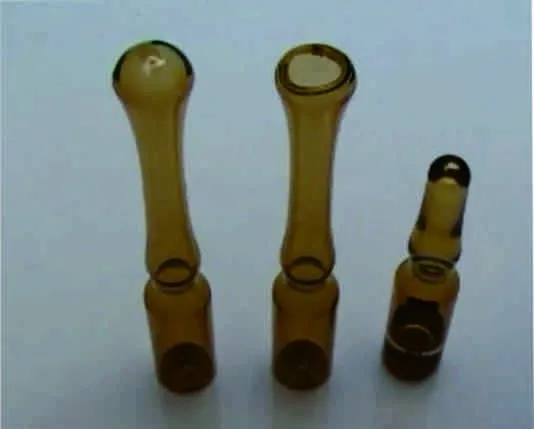

This machine is a new generation of the ampoule filling and sealing machine for 1-20ml D type ampoule. It adopts the rectangular way to transfer ampoules, in such case, the transferring is steady, lower braking rate. A new type of clutch is mounted under the ampoule feeding hopper; therefore the ampoule can be stopped at any time while the machines are still running. So the ampoule consumption can be reduced. Electromagnetic switch is replaced with mechanical way in the part of filling stop system. It is reliable and durable. The traditional ampoule out-feeding way is abandoned, and ampoule collecting is reliable, the qualified filled ampoule is more excellent.

Work flow: Open mouth > Filling nitrogen > Filling Liquid > Filling nitrogen > Sealing

Main parts and fittings are made of stainless steel through precision casting. The accuracy and exchangeability of parts can be guaranteed. Besides, we use the peristaltic pump to filling the liquid, filling very accurate, and the filling quantity arbitrary control by touch screen.

Our company is the earliest factory developing 45 degree to transferring filling nozzles filling and sealing machine for ampoule;

Surface and the key exterior parts are all made of stainless steel and the key cam is treated by nitrogen and it is hard durable.

Stable in operation, highly efficient for filling and sealing, mechanical way to stop filling without ampoule process, it is more reliable

Peristaltic pump for filling, Very high measuring accuracy and the filling quantity arbitrary control by touch screen.

Very low maintenance requirements and high reliability, tool free when change size

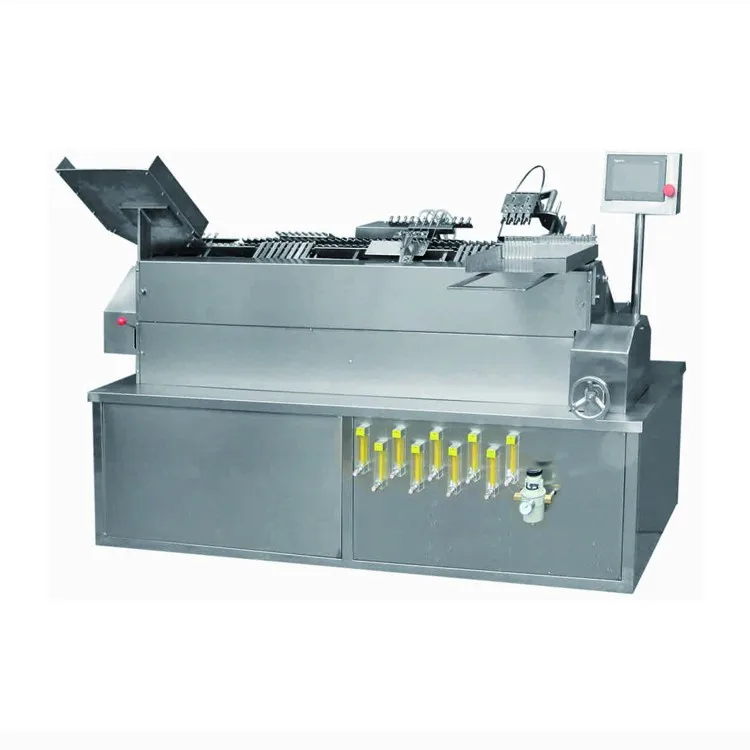

This machine with the 100 levels of laminar flow system and organic glass cover, the emergency Stop Switch and Touch screen on the laminar flow cover.

Production capacity: 10ml: 70 to 80 bottles/min, 5ml: 90 to 100bottle/min

Fuel & Consumption: Pipe gas 3-3.5m3/h, LPG 1kg/h

Consumption of oxygen: 7kg/h

Power of main machine: 1.4kW

Power supply: 220V 50Hz 1p

Overall Dimension: see the layout drawing

Weight: 550kg

Weight: 700kg (with 100 levels of laminar flow and organic glass cover)
