High Speed Automatic Flat Grinding trimming Machine For Toothbrush
- Category: Home Product Manufacturing Machinery >>>
- Supplier: Guangdong Chuangyan Technology Co. Ltd.
Share on (60818879556):
Product Overview
Description
Product Description
Technical parameters
1. Products range: all kinds of special-shaped toothbrush, such as the difficulty of higher cross- slant-hole toothbrush
2. Equipment specifications: two shear wool platforms support 1-2 similarities and differences can be loaded flat machine, eight areon the contrary cone rotary grinding head swing.
3. Equipment Size: 2310*620*1050(mm)
4. Speed: about 2000pcs/hour
5. Power: about 4.5KW
6.Weight:800kg
2. Equipment specifications: two shear wool platforms support 1-2 similarities and differences can be loaded flat machine, eight areon the contrary cone rotary grinding head swing.
3. Equipment Size: 2310*620*1050(mm)
4. Speed: about 2000pcs/hour
5. Power: about 4.5KW
6.Weight:800kg
Features
(I).Cutting function: two hair cutting platform, can put 1 to 2 the similarities and difference of wavy hair cutter
(II).54 brushes handle fixture accuracy
(III).Treatment of circular mill:
(i).Eight pieces inverted cone swaying rotary diamond grinding disc by import.
(ii).Totally enclosed grinding disc suction hood
(IV).Six levels of variable frequency adjustable sharpen treatment
(V).Automatic timing dust jet
(VI).3.5KW large flow centrifugal dust collector
(VII).Production: 2000 pcs/hour
(II).54 brushes handle fixture accuracy
(III).Treatment of circular mill:
(i).Eight pieces inverted cone swaying rotary diamond grinding disc by import.
(ii).Totally enclosed grinding disc suction hood
(IV).Six levels of variable frequency adjustable sharpen treatment
(V).Automatic timing dust jet
(VI).3.5KW large flow centrifugal dust collector
(VII).Production: 2000 pcs/hour
Certifications
Detailed Images

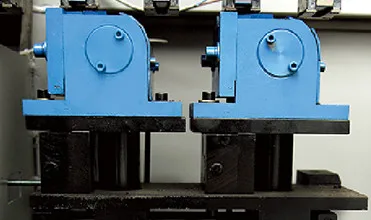

1. Main Mechanism (Product Transportation Part)
Principle: using biaxial eccentric operating principle
Advantages: high stability
Advantages: high stability
Features:
1. high precision closed steel after heat treatment, grinding surface, high hardness, not easy to wear and tear
2. 54/46 pcs precision fixture

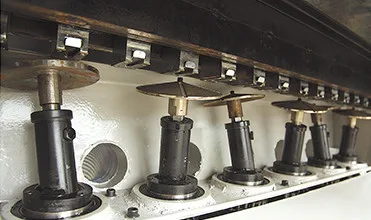

2. Circular Grinding Setting: (Product Round Processing Part)
Principle: Using eight levels of positive and negative inverted cone rotating swing type
Advantage: round spherical surface brightness and remove all static electricity
Features:
1. the full round spherical surface processing, and the rate can reach more than 85%
2. mill plating quality

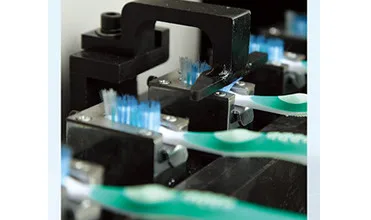

3.Hair Cutting Device Part
Principle: using eccentric connecting rod type
Features:
1.using German hair cutting technology
2. imported precision linear bearing rail
3. hair cutting knife connects with the knife holder
4. precision trimming flat hair length adjustment Advantage: high precision, wear resistance and high stability
4. Electronic frequency control part
*Continuous electric frequency conversion control
*Round processing frequency conversion control
*Grinding frequency conversion control (1/2, 3/4, 5/6)
*Five leves frequency conversion control
*Flat hair
*Wave
*Dust collection
*Jet Time Control (0.5s-4.5s)
*Digital counting
Our Company
Shanghai International Brush Industry Exhibition
Packing & Delivery
Packaging | ||
Size | 2150*650*1150(mm) | |
Weight | 800kg | |
Packaging Details | The normal package is use pe film for packing first and wooden box(Size: L*W*H). If export to european countries, the wooden box will be fumigated. Or pack it according to customers special request. | |
