API 16A ram bop/bop shear ram/blind shear ram bop

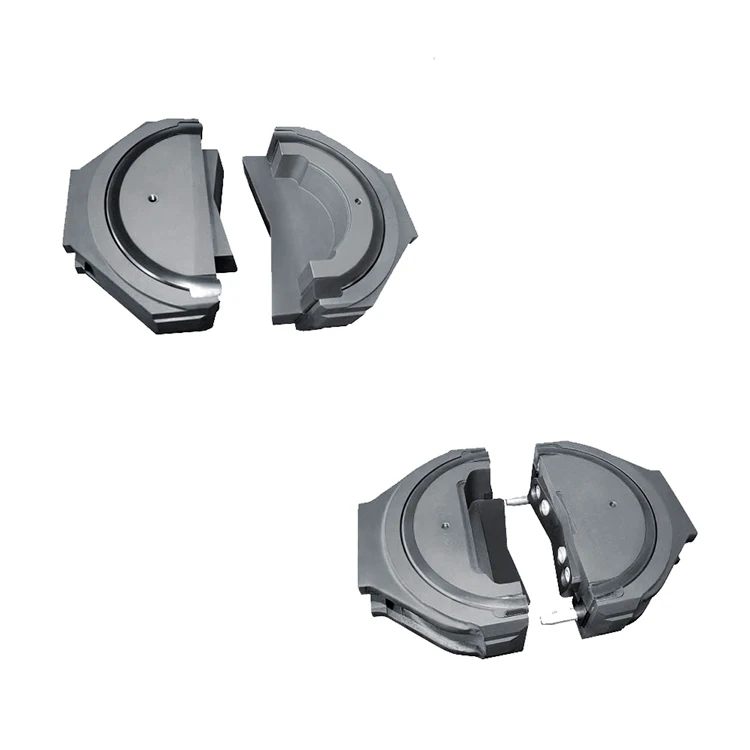

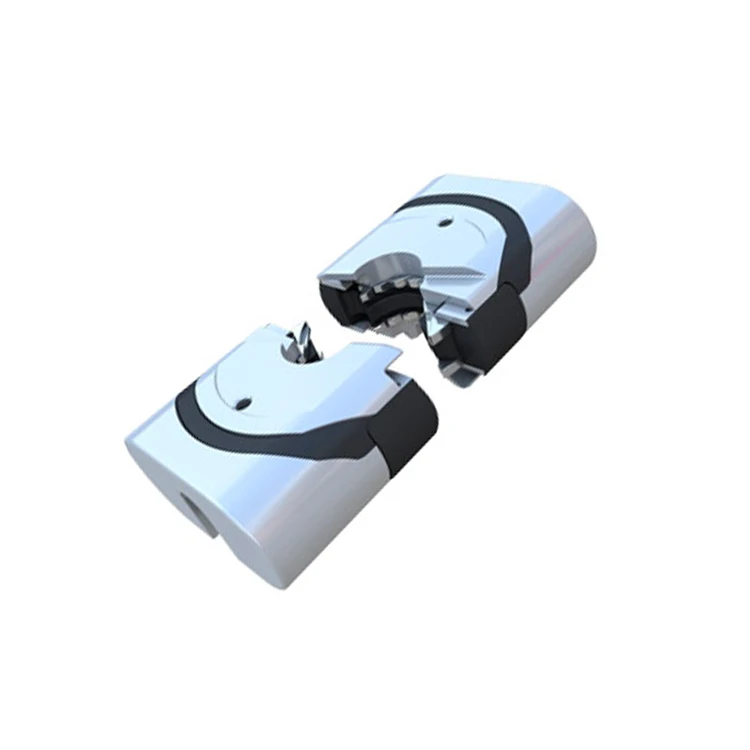

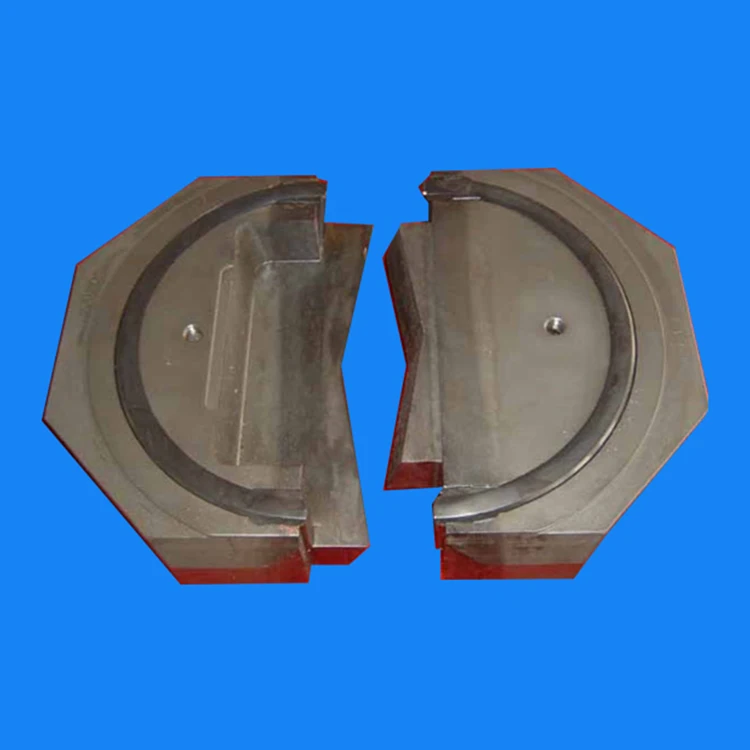

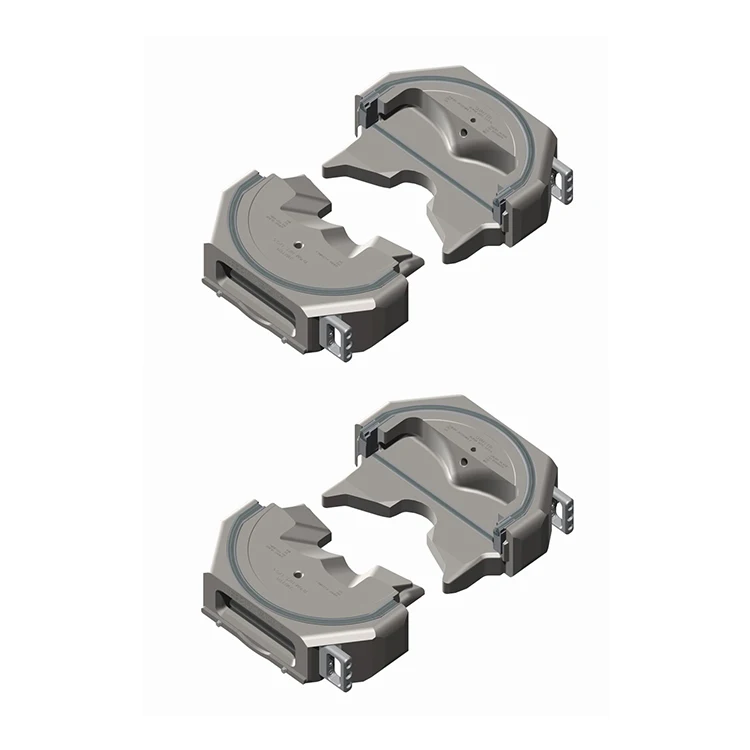

The Pipe Ram is use for single or double Ram Blow Out Preventer(BOP).The ram's size is matched with the pipe's OD. Its can be closed between the pipe stem and well annualer space.

The Blind Ram is use for single or double Ram Blow Out Preventer(BOP). Its can be closed the well when the well without the pipe line or blowout.

Main parameters:

Our drilling BOP includes an annular BOP and a ram BOP. The annular BOP, consisting primarily of a shell, a header, a rubber core and a piston, and which by design is equipped with a hydraulic control system, can be used independently but usually operates in tandem with a ram BOP.
In accordance with API 16A requirements, the connections at the top and bottom of the rig are either flange or studded flange and can be conveniently connected to a drilling spool or ram BOP.
Our ram BOP features an advanced design that is nonetheless easy to operate.
The ram BOP is reliable, and spare parts can be easily replaced. As with the annular BOP, it can be used independently or coupled to other BOP combinations.
A hydraulic system can be used to open and close the ram, but should there be no power or air on site to run this system, the rams can be opened or closed manually.

Our BOP is packed in wood cases or pallets as per API standard or as customer's requirement. Professional packing and loading machines make products' quality & appearance free from damage.

Our company is located in Dongying, the entrance Yellow River into the sea also the base of Shengli Oilfield. It will takes only three hours to Qingdao Port. Great location achieves convenient transportation and logistics service.
