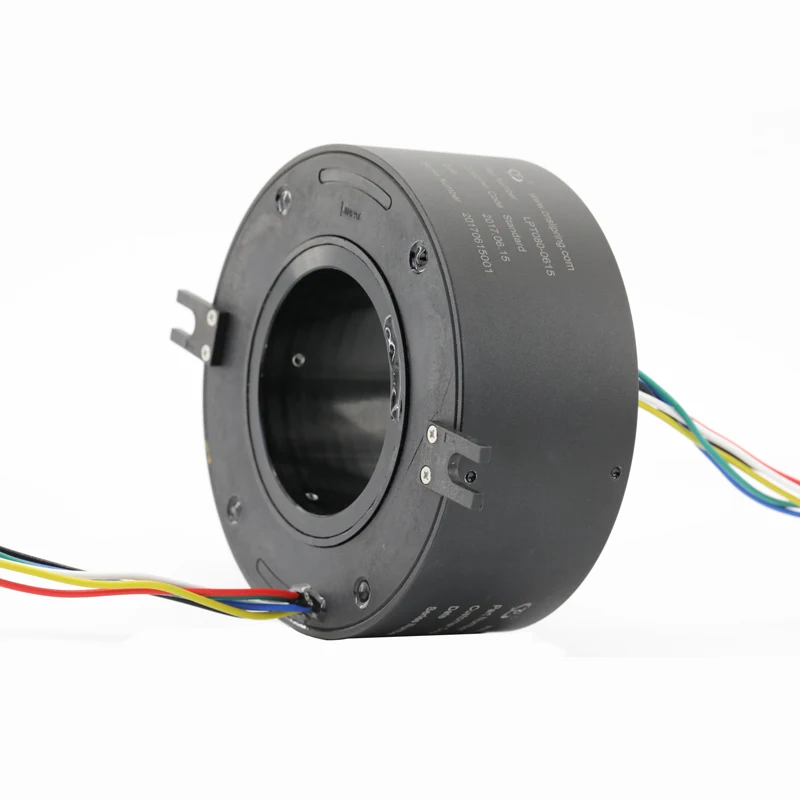

Hollow bore slip ring,6 Circuits 15A hole 80mm 240V 50Hz,2 channel slip ring mini

Product Overview

Description

Bargain Price Only in Alibaba

LPT slip rings are through-hole slip rings (the center hole can pass through the drive shaft, gas-liquid passage; it can also integrate high frequency, fiber, encoder, waveguide, gas and liquid and other joints). Using advanced fiber brush, reliable contact is guaranteed with very low friction. The center hole can be selected from 0 to 1000mm, the current can be selected from mA to 5000 amps, and the voltage can be up to 10000 volts, which can fully meet your different transmission schemes.



• Transmit analog and digital signal


• The power and signal are mixed transmitted, and the signal categories are as follows:


• Ethernet: Rate (10Mbps/100Mbps/1000Mbps)


• Industrial Ethernet: EtherNet , EtherCAT ,ProfiNet, Powerlink , SercosIII/IP, etc.


• HD video: SDI, LVDS, etc.


• Serial communication: RS232, RS485, RS422, etc.


• Universal Serial Bus: USB2.0


• Industrial Fieldbus: CANBus,ProfiBus, InterBus, CC-Link, DeviceNet, etc.


• Sensor signal: thermal resistance, thermocouple, strain gauge, etc.


• Long service life, maintenance-free


• Easy to install

• Industrial automation equipment


• Medical equipment


• Wind power equipment


• Test equipment


• Exhibition


• display equipment


• Robots


• Turntable equipment


• Amusement equipment


• High-speed railway equipment


• Packaging


• machinery


• Ship offshore equipment


• Construction machinery



Specification



Circuits	6
Current Rating	15A
Voltage	240 VAC/DC
Dielectric Strength	1000V@50Hz between circuits
Insulation	≥500MΩ@500VDC
Hole Diameter	80 mm
Working Speed	0~300 RPM
Contact	Precious metal
Housing	Aluminum alloy
Wire Length	300mm (rotor), 300mm (stator)
Working Temperature	-20~+60℃
Humidity	≤60%RH
Protection Grade	IP50







Application

• Semiconductor handling systems


• Industrial machinery


• Packaging/wrapping machinery


• Medical equipment


• Rotary index tables


• Cable Reels

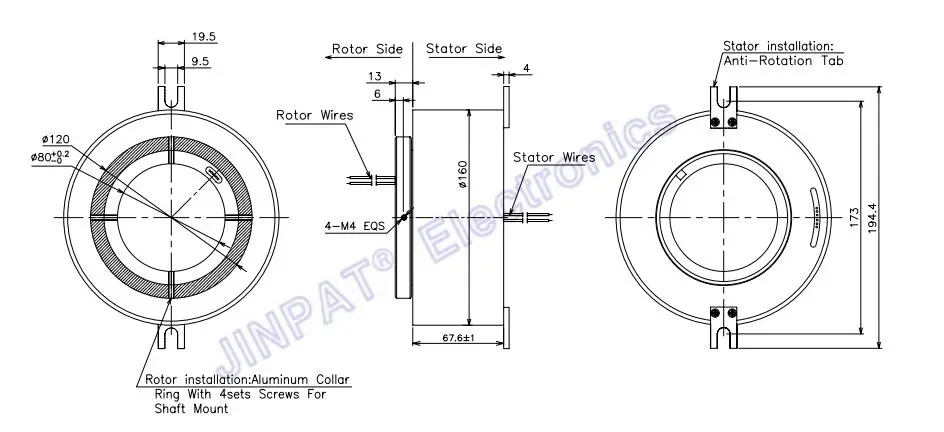

Outline Dimension

Product Display
