4T 2m3 2.5 yds made in china high quality diesel underground wheel Loader / Scooptram / LHD
- Category: Other Mining Machines >>>
- Supplier: Shandong Tongwu Machinery Equipment Co. Ltd.
Share on (60819783080):
Product Overview
Description
China made 2m3 underground mining machine/ lhd/ mining equipment/electric 4wd scooptram with CE on sale
Product Description

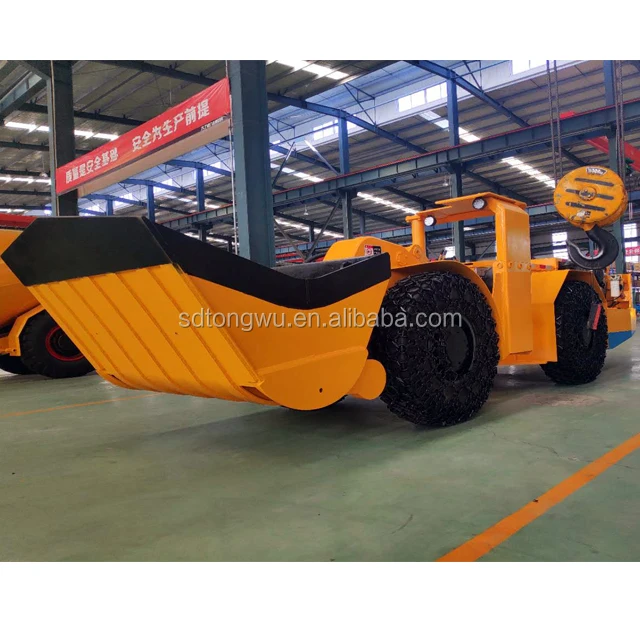

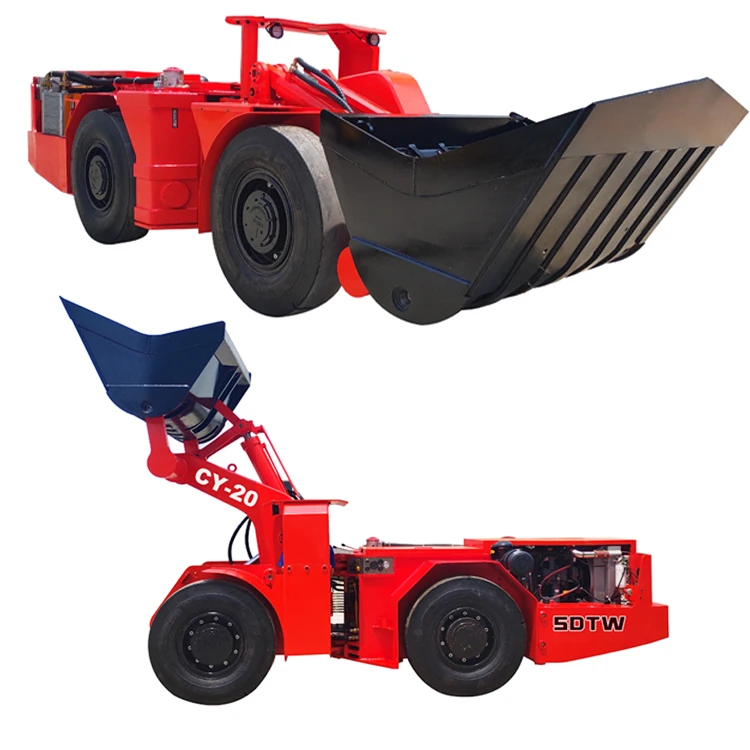

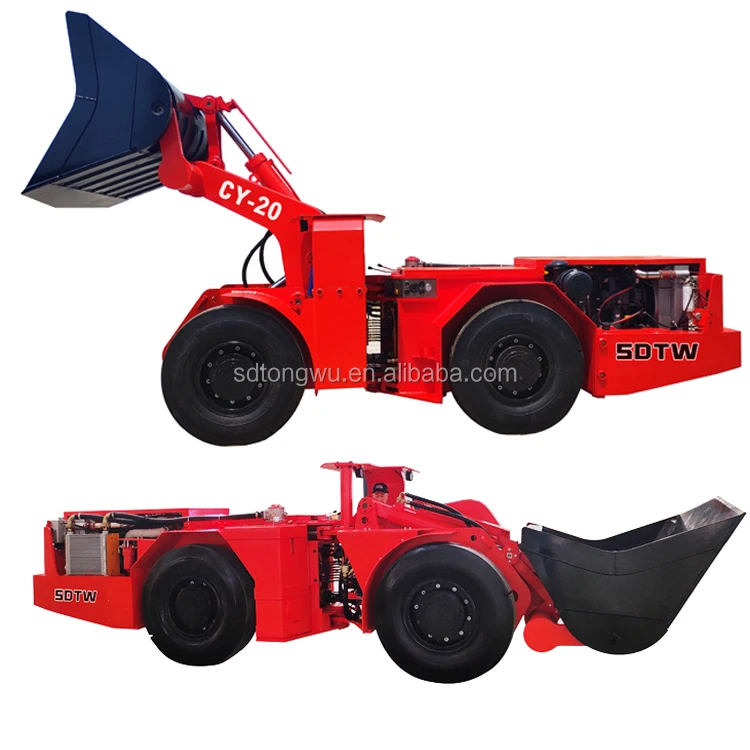

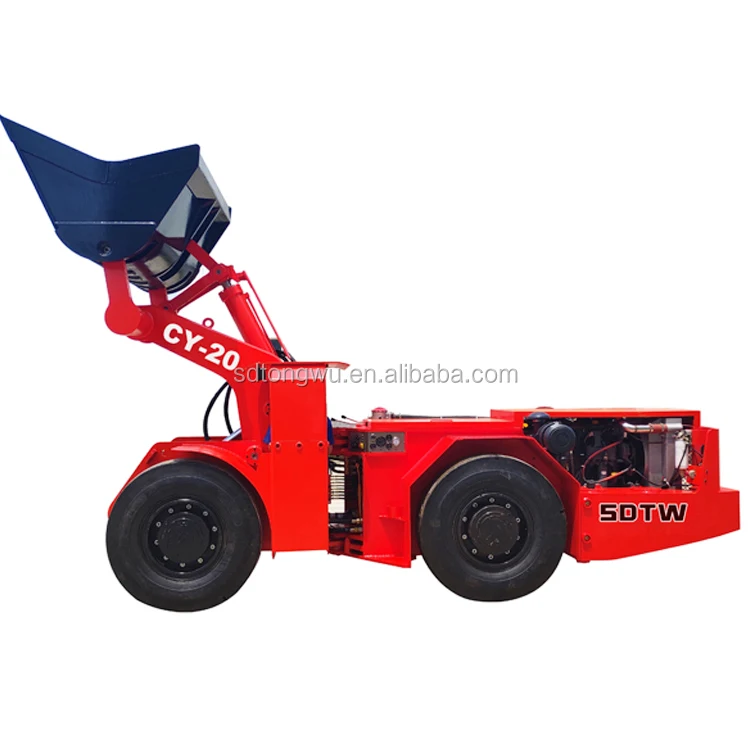

CY-20 is a Load Haul Dump (LHD) for mining. Best payload to own weight ratio in its class. It offers both reduced dilution, better flexibility and operator safety when working in operations. The loader is easy to operate and maintain, and it features an operator compartment that is in the rear frame of the machine to ensure increased operator safety. The CY-20 is full of features to help mines maximize tonnes and minimize extraction costs.
Specification
Model |
| CY-20 |
Bucket size | cbm | 1.5 m3 / 2.3m3 / 2.5m3 option |
Payload | kg | 4000 |
Overall Dimension | mm | 7000x1800x2080 |
Min Ground Clearance | mm | 250 |
Max Lift Height | mm | 3975 |
Max Unloading Height | mm | 1740 |
Turning radius | mm | 2600 / 4900 |
ENGINE | ||
Engine model |
| Germany F6L914 / BF4M1013EC |
Type |
| Air-Cool & Turbocharge |
Engine power | kw | 84 / 115 |
Numbers of cylinders |
| 6 In line / 4 in line |
Displacement | L | 6.472 |
Emission standard |
| EURO II / Tier 2 |
Filter Brand |
| Germany |
Type |
| Two stage & dry type |
Model |
| C16400 |
Purifier Brand |
| ECS(Canada) |
Type |
| Catalytic purifier with silencer |
Exhaust Gas |
| CO≤500ppm NOx≤262ppm |
HYDRAULIC SYSTEM | ||
Axle type |
| Rigid planetary axle |
Tire brand |
| Xinfeiya |
Model |
| 12.00-24 |
WEIGHT | ||
Machine weight | kg | 13500 |
Laden Weight | kg | 17500 |
|
|
|
PERFORMANCE | ||
Traveling speed | km/h | 0~17.4 |
Boom Raising Time |
| ≤ 6.3 |
Boom Lowering Time | s | ≤ 4 |
Dumping Time | s | ≤ 3.6 |
WORKING CAPACITY | ||
Max Breakout Force | KN | 85 |
Max Traction | KN | 104 |
Tank Volume | L | 150 |
Hydraulic oil tank | L | 120 |
