Product Overview

Description


Product Description

FEATURES

IMSG TURBO-AIR High Pressure centrifugal compressors utilize innovative three- and four-pinion designs to achieve discharge pressures up to 42 barg (610 psig). The ability to generate such high pressures make these packages a great fit for applications like soot blowing, nitrogen boosting, and PET bottle blowing.


\t
SPECIFICATION
\t
METRIC
\t
IMPERIAL
\t
Standard Input Power
\t
373 to 597 kW
\t
500 to 800 hp
\t
Discharge Pressure
\t
up to 42 barg
\t
up to 610 psig
\t
Inlet Flow
\t
42 to 51 m3/min
\t
1500 to 1800 CFM

BENEFITS OF MSG TURBO-AIR COMPRESSORS:

ISO 8573-1 Certified Oil-Free Air
Prevents oil contamination of your system
Limits the potential for compressed air pipeline fires caused by oil carryover
Eliminates costly waste disposal problems associated with oil-laden condensate
Eliminates the expense and associated maintenance requirements of oil-removal filters, since no oil enters the compressed air stream in the compressor

LOW-COST OPERATION

True unloading capability helps to take advantage of opportunities for energy savings

Increased uptime compared to alternative technologies translates into reduced operating life-cycle costs

Excellent part-load efficiencies for any operating load

No sliding or rubbing parts in the compression process causing wear or efficiency loss

Easy maintenance


Compression elements do not wear or require periodic replacement

No oil-removal filters to clean or replace

Accessible, horizontally split gearbox for quick inspection

Intercooler and aftercooler bundles are easy to remove for inspection and cleaning
Water-in-tube design intercooler and aftercooler allow for simple mechanical cleaning
Maintenance-free dry coupling

High Reliablity

Thrust loads absorbed at low speed


Non-contacting air and oil seals

Stainless steel compression elements

Conservative, high-quality gear design

Extended life pinion bearing design

Centrifugal compressors are proven to have a long mean time between failures (MTBF), and independent research has shown an industry-leading availability of 99.7%

Our Service

Pre-Sales Service

*Gain valuable information about compressor performance
*Understand your energy consumption and true flow production
*Monitor and evaluate variable events throughout the production day
*Determine if changes are required, and receive solid recommendations based on current air consumption requirements

After-Sales Service

*Our Project Managers are professionals that deliver clear and simple processes to ensure you are in control of the project objectives without the headache of managing every little detail.
*Maintenance and operation services - long term source for parts and maintenance

* Engineers available to service machinery overseas.

Packing & Delivery
\t
Packaging
\t



Packaging Details
\t

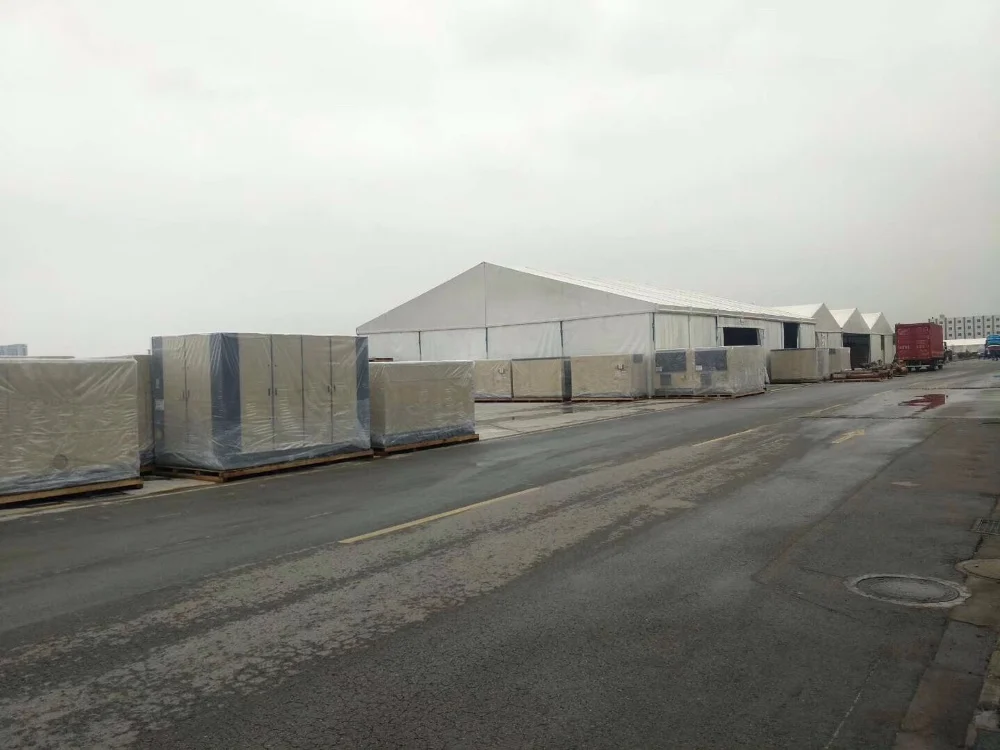

The normal package is wooden box.
 If export to european countries,the wooden box will be fumigated.If container is too tigher,we will use pe film for packing or pack it according to customers special request.
\t
Our Advantage
\t
1)Best Price support from China.
2)Professional and comprehensive technical advisory service.
3)Experienced overseas engineer team.
4) Warrantry of Products 3 years.
5)Sales first response within 8 hours.
6)Spare parts on stock to support immediate shipment.
7)Good cooperation with forward company, support cheap and safty express, airfreight and sea transportation.
8)OEM & ODM accepted.
