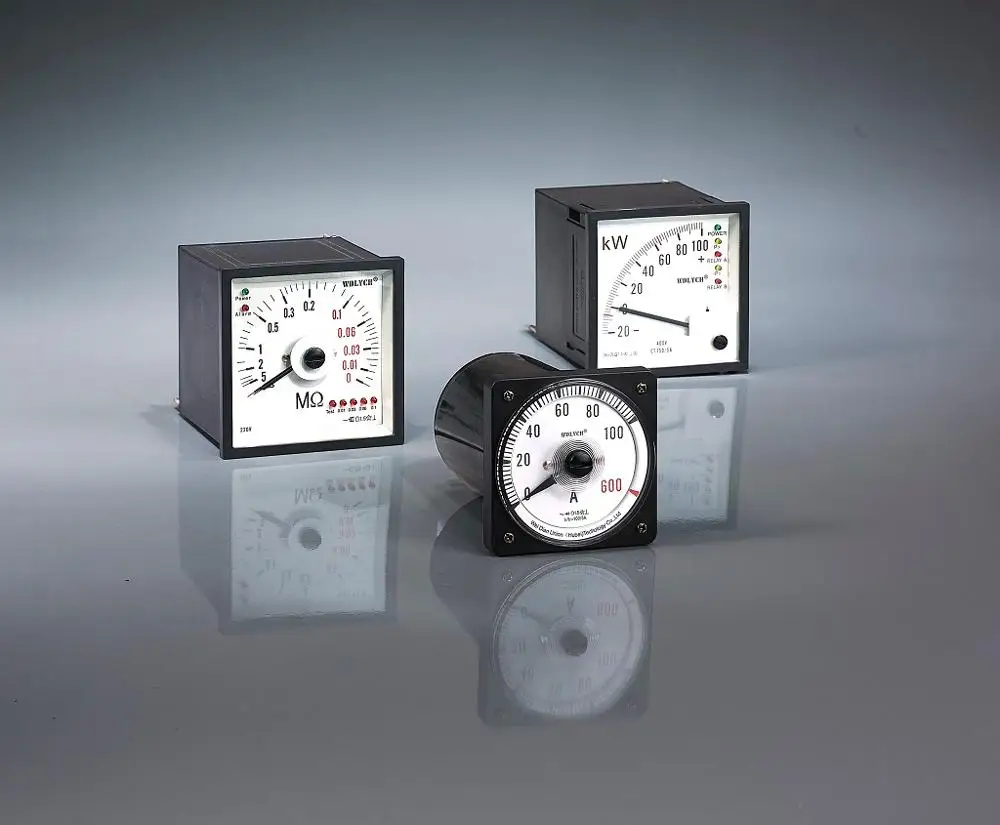

4 20mA Signal Input 96mm Mpa Meter For Marine Application
4-20mA Signal Input 96mm Mpa Meter For Marine Application
4-20mA Signal Input 96mm Mpa Meter For Marine Application

4 20mA Signal Input 96mm Mpa Meter For Marine Application

Share on (60819930150):


Price:RUB 1,082.21 - RUB 2,451.31

Quantity:


Product Overview

Description

Usage & Application


Mainly used in various AC/DC transmission and distribution system, power control panel and electric equipment for various industries such as marine,rail, aviation, chemical and explosive-proof,nuclear power, hig/mid voltage equipment, power generator set and control engineering. It is high end meter, and suitable for complicated environment to measure electric/non-electric energy;


Also used on low voltage equipment, construction/mechanical equipment, various AC/DC power distribution system, electrical control panel and equipment. It is mid/low end meter, and suitable for universal environmental to measure electric/non-electrical energy.

Product Description

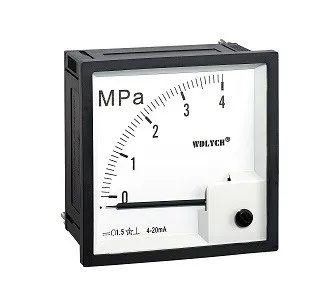

Product Name
Analog Mpa Meter
Model No
WDZ96-Mpa
Measurement
Customized
Dimension
96*96mm
Hole Size
92mm
Technical Parameters
Item
Technical Data
International Standard
Technical Standard
GB/T7676-1998
IEC60092-50
Environment Standard
GB8355-1987
IEC92-504-74
Safety Standard
GB4793-20
IEC61010
Working Temperature
-40℃-65℃
Temperature Influence
-13-33℃, 100% comply with accuracy class
Indicating Angle
240-270° (Synchroscope meter:360°)
Color of Shell
Black/white , board frame , terminal plate : Black
Color of Dial Plate
Black/white, other colors are available on requests
Mounting
Vertical mounting

Dimension
110*110mm,  80*80mm
96*96mm, 72*72mm, 48*48mm
Overshoot
Less than 20% when scale reaches to 2/3
Insulation Withstand
Circuit & shell: AC2600V/1 minute(Water area)
Vibration Resistance
24.5m/s2
Impact Resistance
147m/s2
Material
Shell/terminal board: ABS;  Cover: Transparent Glass

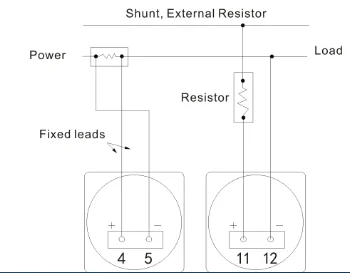

Wiring Diagram
R & D



Wei Dian Union sticks to the core value of "PURSUING FOR PRECISION AND PERFECTION", UNIFYING THINKING AND BEHAVIOR"as always. The WDLYCH technology study changes from mechanical machining mainly to more intensive, compact, electromechanical integration of mechanics & electrics fields. The world class experiment installation and testing facilities give strong R & D platform for Wei Dian Union continual creation and development.




Based on sufficient experience and understanding of industry automation field, the Wei Dian Union technical team continuously gives technology upgradation and renovation on electro-mechanical pneumatic components, focusing study on high frequency, intelligence, and low power technology, ex. multi-function meter, stern shaft tachometer, etc., just to make all products fits more for production, fits better for system, and achieve higher safety and stability performance.

Our Company

Factory Building

Our General Manager

Office First Sighting

Workshop

Assemble Line

Alnico Installation

Electrical Welding

Balanced adjustment

Meter adjusting

FAQ



1. Who is Wei Dian Union?

Wei Dian Union is a new company, eastablished in the year of 2015, we have 15 technical engineer and 10 sales man, including domestic and international sales. Our team is young, which guarantee us more vitality.



2. Is your company manufacturer or trading company?

Yes, we are the manufacturer, we buy house and develop moudles all by ourselves.



3. What is the warranty of your products? and how about your quality?

All of our meters have 18 months warranty, and we cooperate with the university to develop new items and quality control, besides our own technical team.



4. How about your payment term and shipment?

We accept T/T, L/C and western union, prefer to TT, delivery date should be within one week after payment.



5. What's your advantage? Why should I choose your company?

Price: Compared with other famous company, our cost is much lower;

Quality: We have strict quality control, each meters have to accept life-time testing & inspection.


Sales supports: We are not big company, so our policy is flexible, quick action to any requirements.
