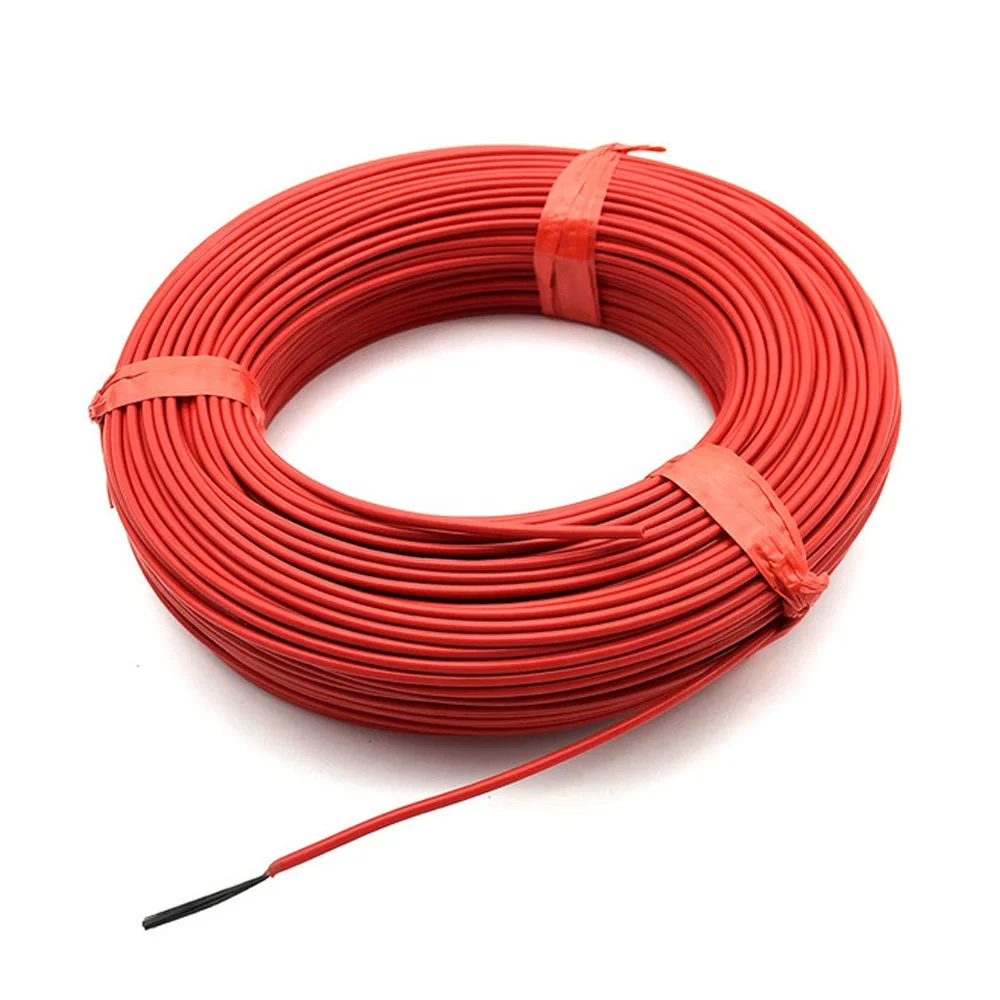

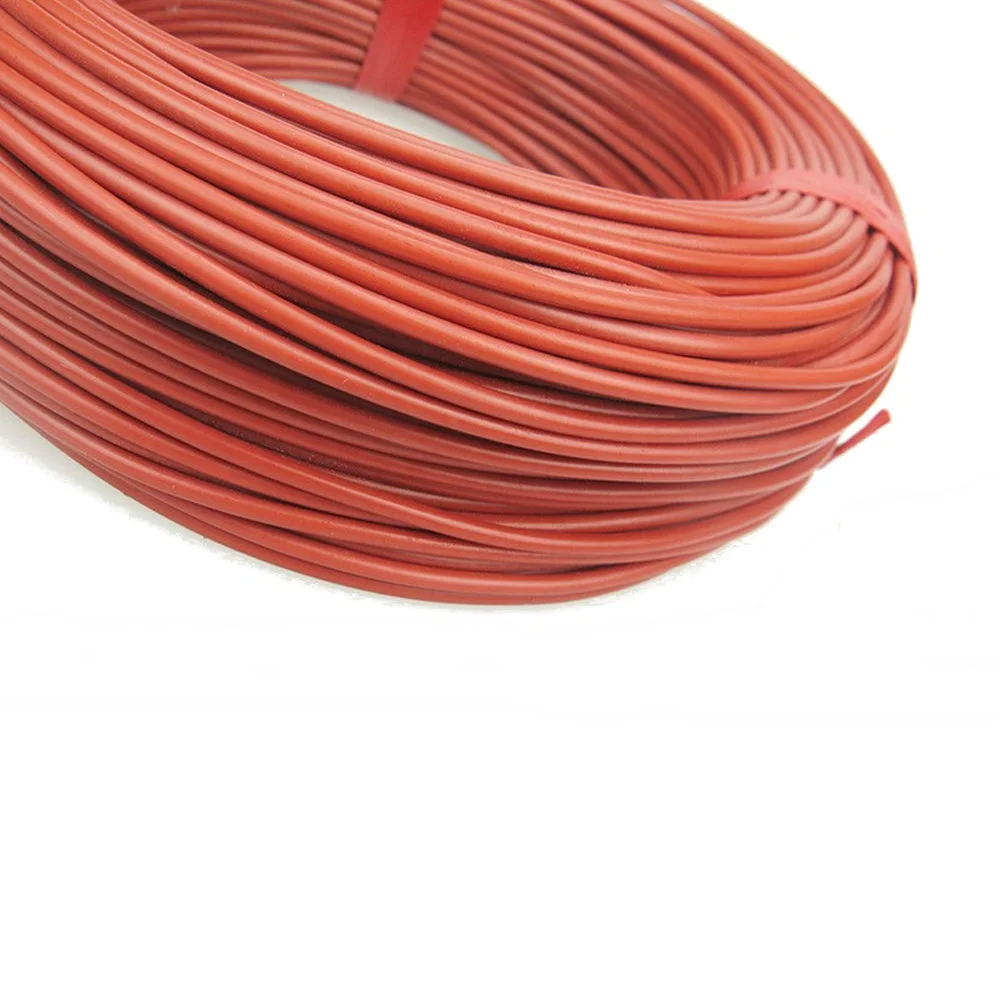

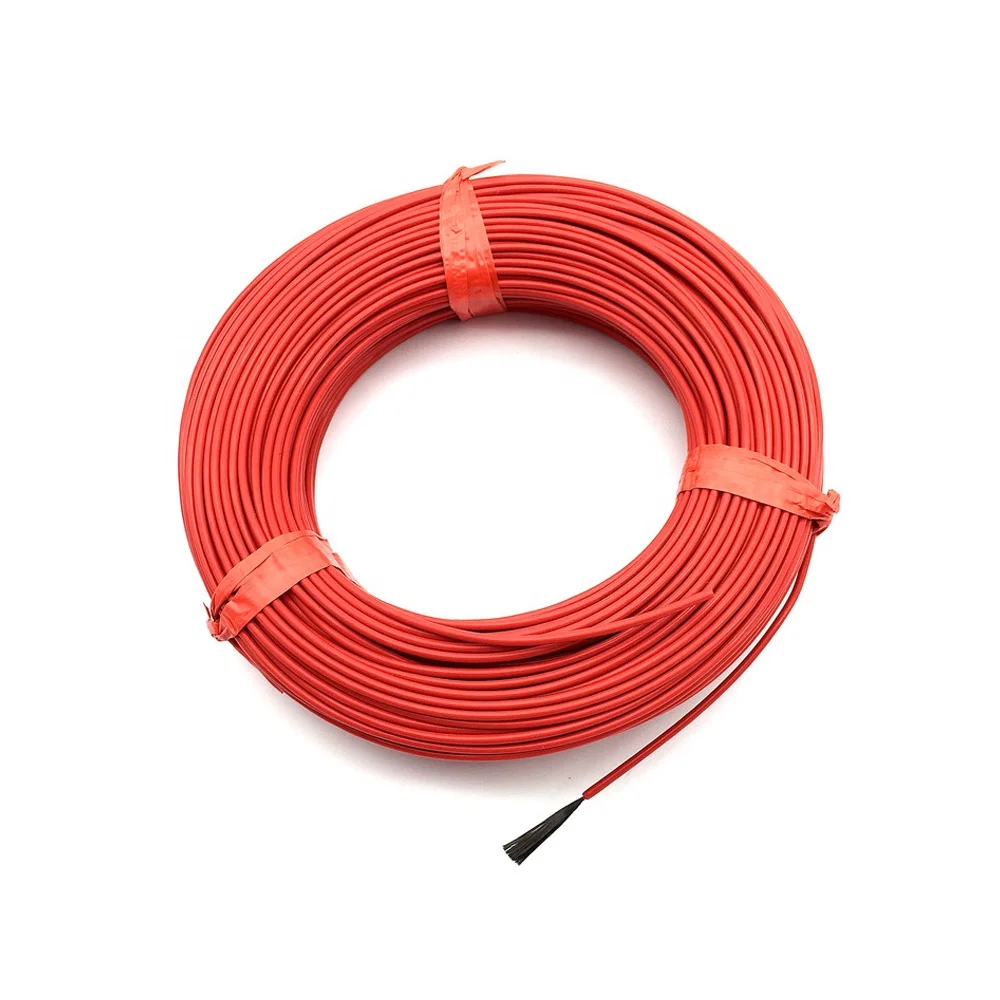

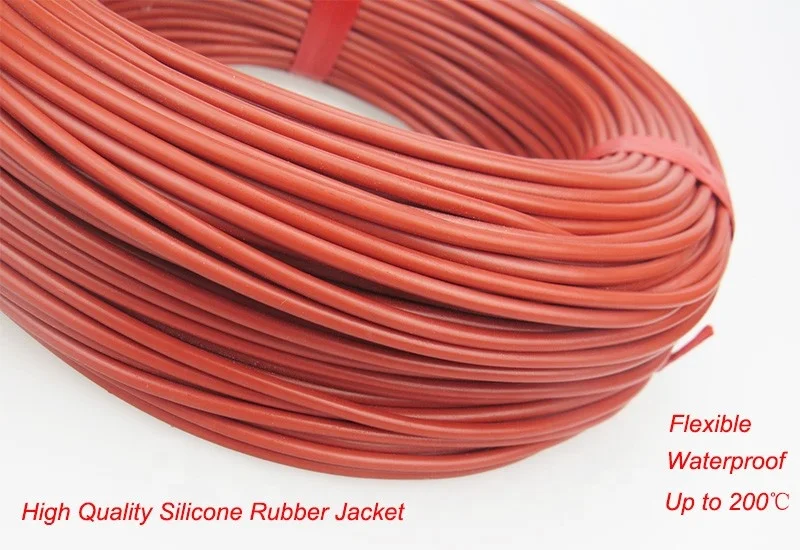

Carbon Fiber PTFE Floor Heating Wire
- Category: Heating Equipment >>>
- Supplier: Yancheng Songtai Electric Heating Element Factory
Share on (60820141236):
Product Overview
Description
Songtai Heater
Heating Cable
Silicon Rubber Heater Features
■ Design according to actual shape and dimension, and adopt three-dimensional geometry to satisfy the requirements of your equipment.
■ Moisture-proof chemical defense silicon rubber material makes the service life of heater much longer.■ It can be simply pasted or attached to your component by vulcanizing, adhesive or fastener, etc.
Out Diameter | 2mm to 4mm | 2mm to 6mm | |
Heating Coil Circling Skelton | 0.5mm to 1.5mm | ||
Heating Wire Material | Nichrome or CuNi | ||
Insulating Layer | 105C for PVC | Silicone Rubber | |
Tolerance | DC Ohm for ±5% Out Diameter for =0.2/-0.1mm | ||
Output Power | 15W/M | 40W/M | |
Voltage | Max 600V | ||
Max Temp | 105℃ | 200℃ | |
Min Temp | -30℃ | -70℃ | |
Description
This model heating cable is consist of Fiber Glass wire twined with electrical resistance alloy s and outside silicone insulated;
Out diameter is commonly for 1.2mm,2.0mm,2.5mm,3.0mm,4.0mm and 5.0mm;
Resistance: 0.3-20000 ohm/m;
Temperature Resistance: 180C/ 90C;
Types for Silicon Heating Wire
PS Resistance Heating Wire
PVC Heating Wire
Silicone Heating Wire
PS Resistance Heating Wire
For food use,nontoxic,but low temperature at -25C to 60C,Max 8w/m
PVC Heating Wire
Used mostly for Refrigerators, air conditioners, freezers defrost and for temperature at -25C to 70C,max 12w/m
Silicone Heating Wire
Top heat-resistant quality,used widely for Refrigerator freezer defroster,-60C to 155C,up to 50w/m
\t\t\t\t\t\t\t\t\tApplication \t\t\t\t\t\t\t
● Refrigerators, air conditioners, freezers defrost
● Rice cooker heat preservation● Electric blanket
● Electric heating cushion
● Electric massage chair
● Medical and beauty equipment
● Electric thermal clothing
● Electric heating shoes
● Bath pool heat
● Footbath heat
● Pipeline and tank insulation antifreeze
● Car window heat and etc
