automatic copper pipe straighten and high speed rotary chip less cutting machine

Product Overview

Description

automatic copper pipe straighten and high speed rotary chip less cutting machine

Product Description

Main Characteristics and Applications

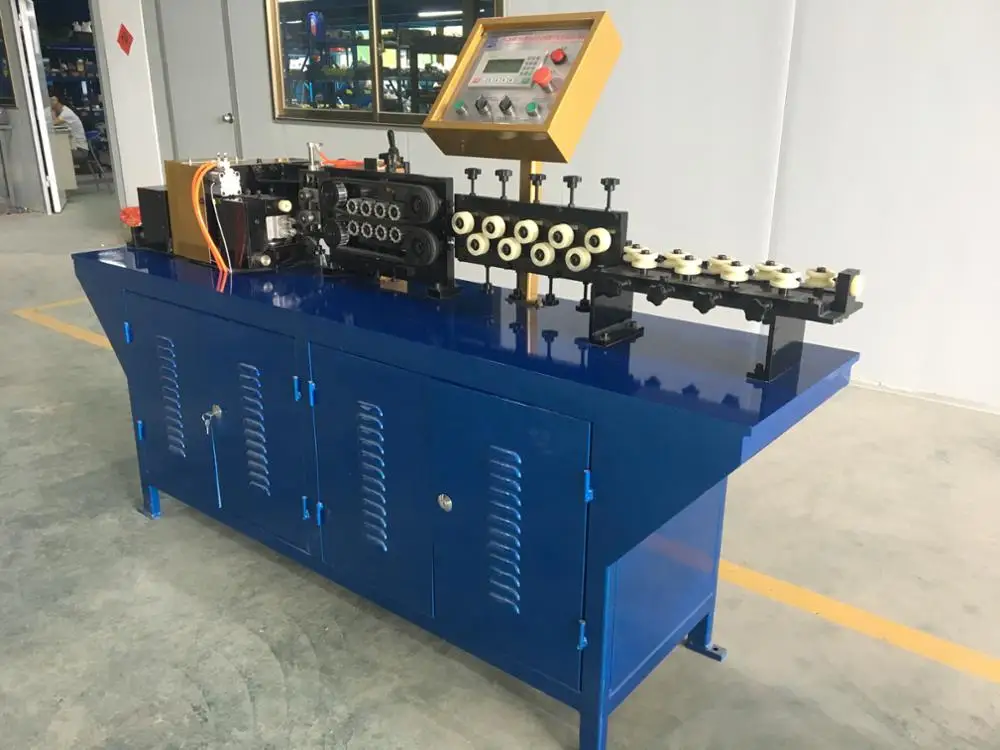

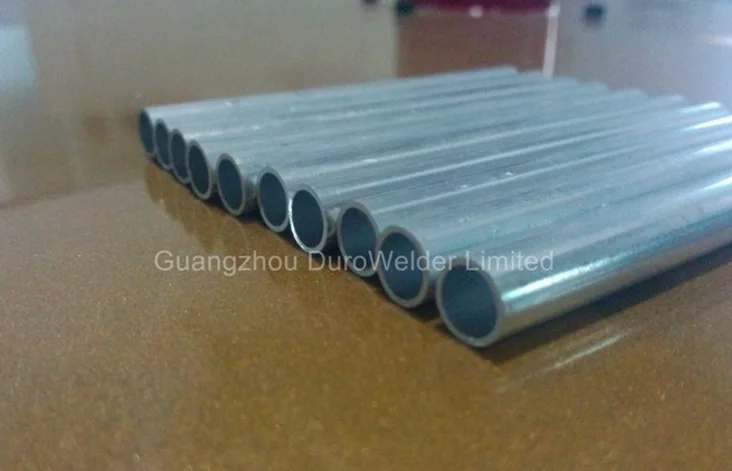

This equipment is designed for straightening and cutting various sizes of copper and aluminum tubes to predetermined length.

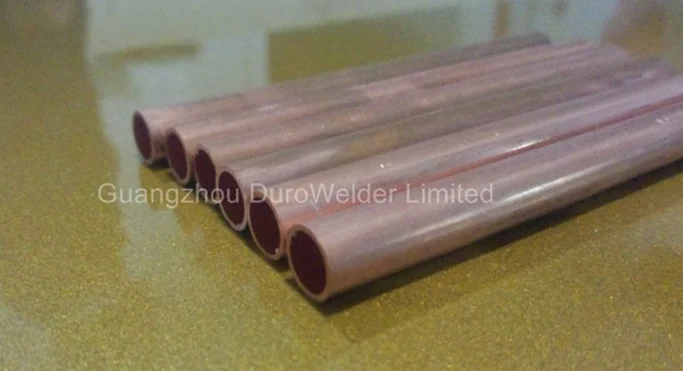

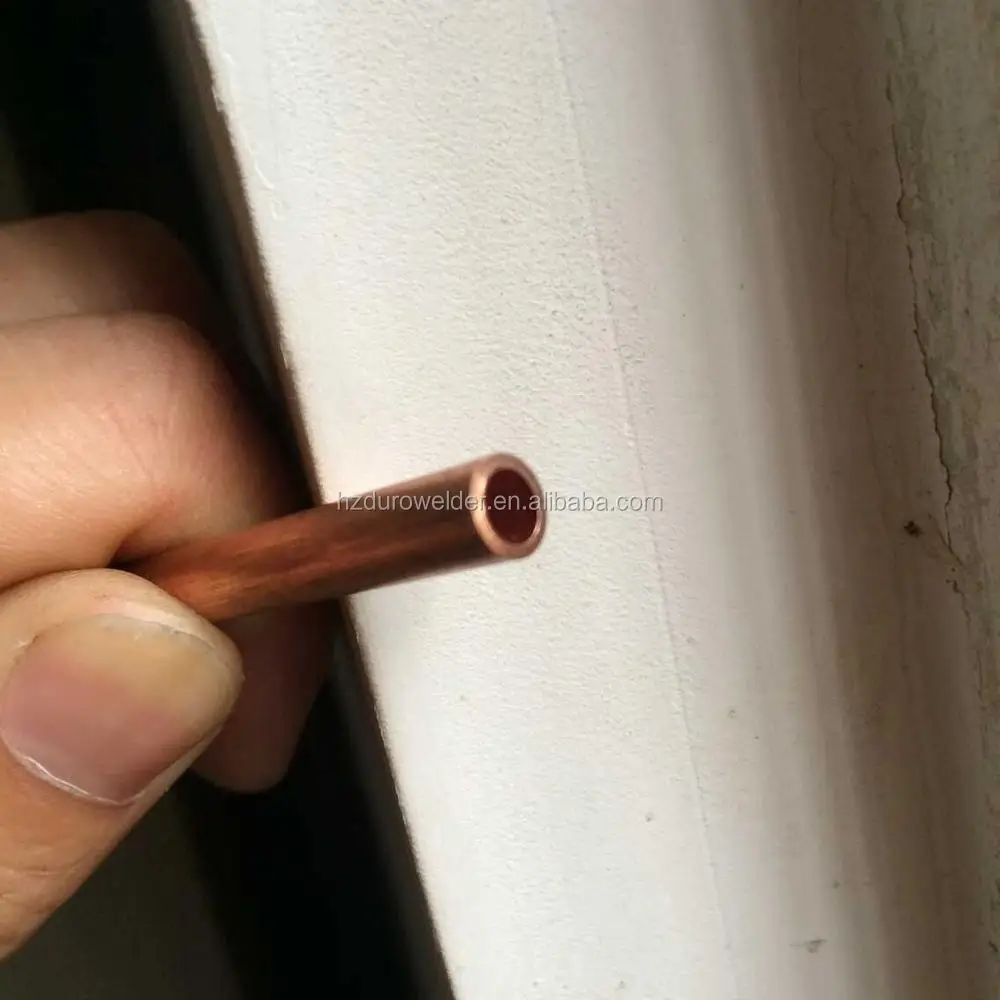

Depending on quality requirements, machine can use "Rotary Chipless Cutting" or "High Speed Saw Blade Cutting" leaving the cutting edge smooth with no burrs.

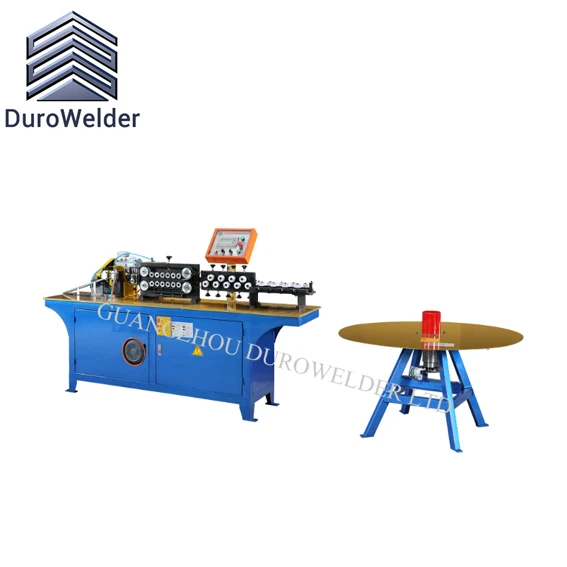

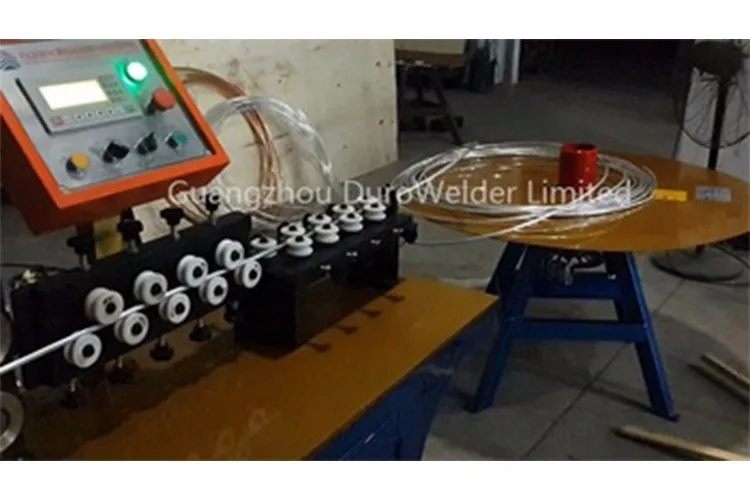

Machine is equipped with "Bidirectional Pipe Uncoiler" that is synchronized with pipe feeding and cutting by means of pneumatic brakes and servo driven rotation of uncoiler table that allows to achieve precision length of cut tubes,can effectively prevent pipe damaged phenomenon of feed the tube suddenly too long or too fast due to inertia effect,further ensure the tube cutting quality.


Main Technical Parameters(can customize)

Machine Model	PSC-12.7MM	PSC-19.05MM	PSC-25.4MM
Max Copper & Al Pipe Diameter	12.7MM	19.05MM	25.4MM
Max Pipe Thickness	5.0MM
Min Cutting Length	25MM
Max Cutting Length	8000MM	10000MM
Tube Feeding Speed	0-60Meter/Minute
Cutting Mode	Rotary Chip less Cutting or High Speed Saw Blade Cutting
Air Source	0.4-0.7MPa
Input Voltage	220V / 380V / 440V / 480V, 50/60Hz
Machine Weight	850KG	1050KG	1250KG
