6 Wire Small High precision Slip Ring with Long Service Life,for Servo Motors

Product Overview

Description

 Bargain Price Only in Alibaba



 LPM-06G Slip Ring Description



The LPM-06G miniature slip ring can be used in any electromechanical system that requires unrestrained, continuous rotation while transferring power or data from a stationary part to a rotating part.

The LPM-06G unit is a standard, off-the-shelf unit that uses gold contacts at the rotary interface. Color-coded lead wires are used on both the stator and rotor for simplifying electrical connections.



 LPM-06G Slip Ring Specification



Circuits	6
Current Rating	1A
Voltage	240VAC
Electrical Noise	≤15mΩ
Working Speed	0~300 RPM
Contact	Precious metal
Wire Size	30# silver plated copper UL, Teflon
Lead Wire Length	Rotor:250mm; Stator:250mm
Working Temperature	-20~+60℃
Humidity	≤60%RH
Protection Grade	IP54





 LPM-06G Slip Ring Main Application

• Electric devices


• Medical facility


• Industrial machinery


• LED industry


• Medical equipment


• Process control equipment

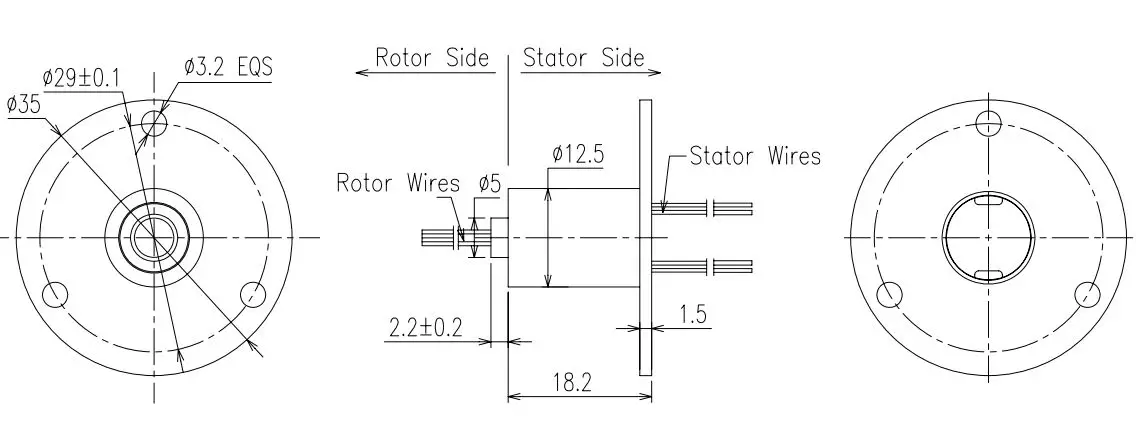

 LPM-06G Slip Ring Outline Drawing

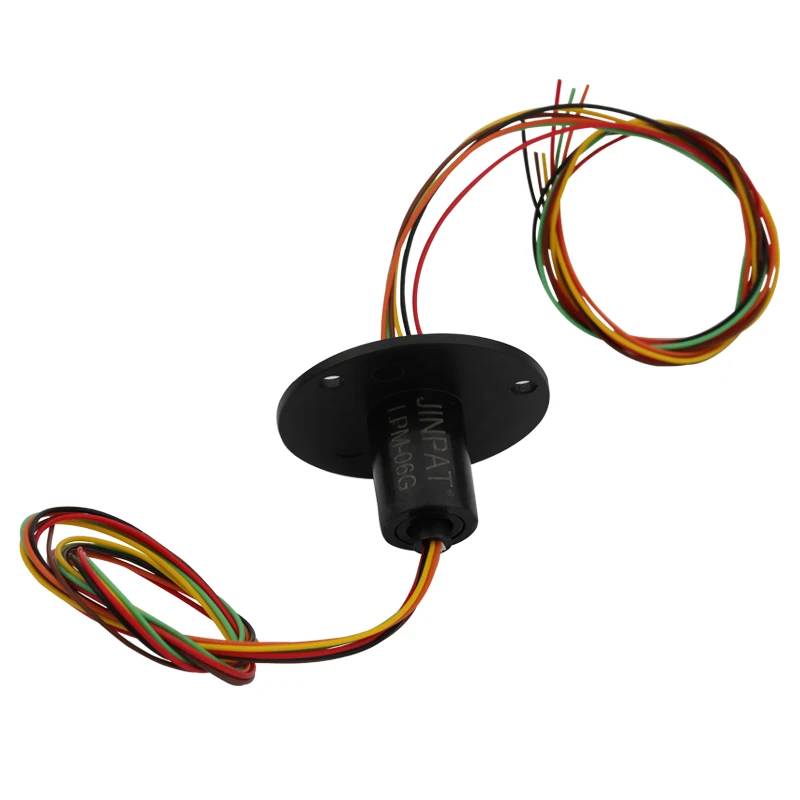

 LPM-06G Slip Ring Product Display







PS:

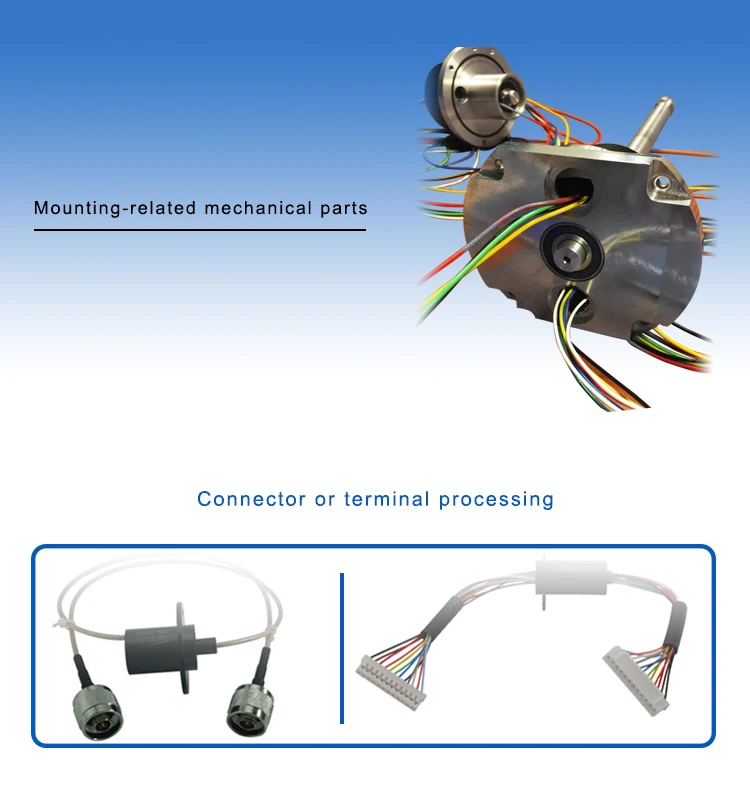

        Apart from providing connector or terminal processing for clients, we have our own CNC center so that we can provide one-stop service of supporting parts manufacture like housing or other mounting-related mechanical parts.
