2 Port HDMI KVM Switch RS232 support 4k EDID
- Category: KVM Switches >>>
- Supplier: Shenzhen Tesla Elec Technology Co. Ltd
Share on (60820471256):
Product Overview
Description
2 Port HDMI KVM Switch 2 in 1
out RS232 suport 4k EDID
Product Description
4K IR Remote control 2 port auto kvm switch Support EDID
You can control 2 PCs or other media devices which support HDMI output, USB Keyboard and mouse input with only 1 set of keyboard, mouse and monitor, support hot plug and don't need to install any driver. It is easy to switch devices by panel keys, remote control and keyboard hot key command.
For the best quality we would suggest using 24 AWG or 26 AWG HDMI cable and should not exceed 10m/33ft
Features
4K IR Remote control 2 port auto kvm switch Support EDID
1. Using one USB console controls two HDMI computer equipments
2. Support Unix /Windows /Debian /Ubuntu /Fedora /Mac OS X /Raspbian /Ubuntu for Raspberry Pi and other Linux based system
3. Support hot plug, connect or disconnect devices to the KVM switch in any time and without turn off devices
4. Support auto switching to monitor computers in a specified time interval
5. Support hot key commands and mouse gesture to switch inputs.
6. Support front panel buttons, IR signals, keyboard hot keys to control KVM switch.
7. Support keyboard and mouse smooth switch, no delay is introduced after switch channel.
8. Support resolution up to 3840*2160@30Hz

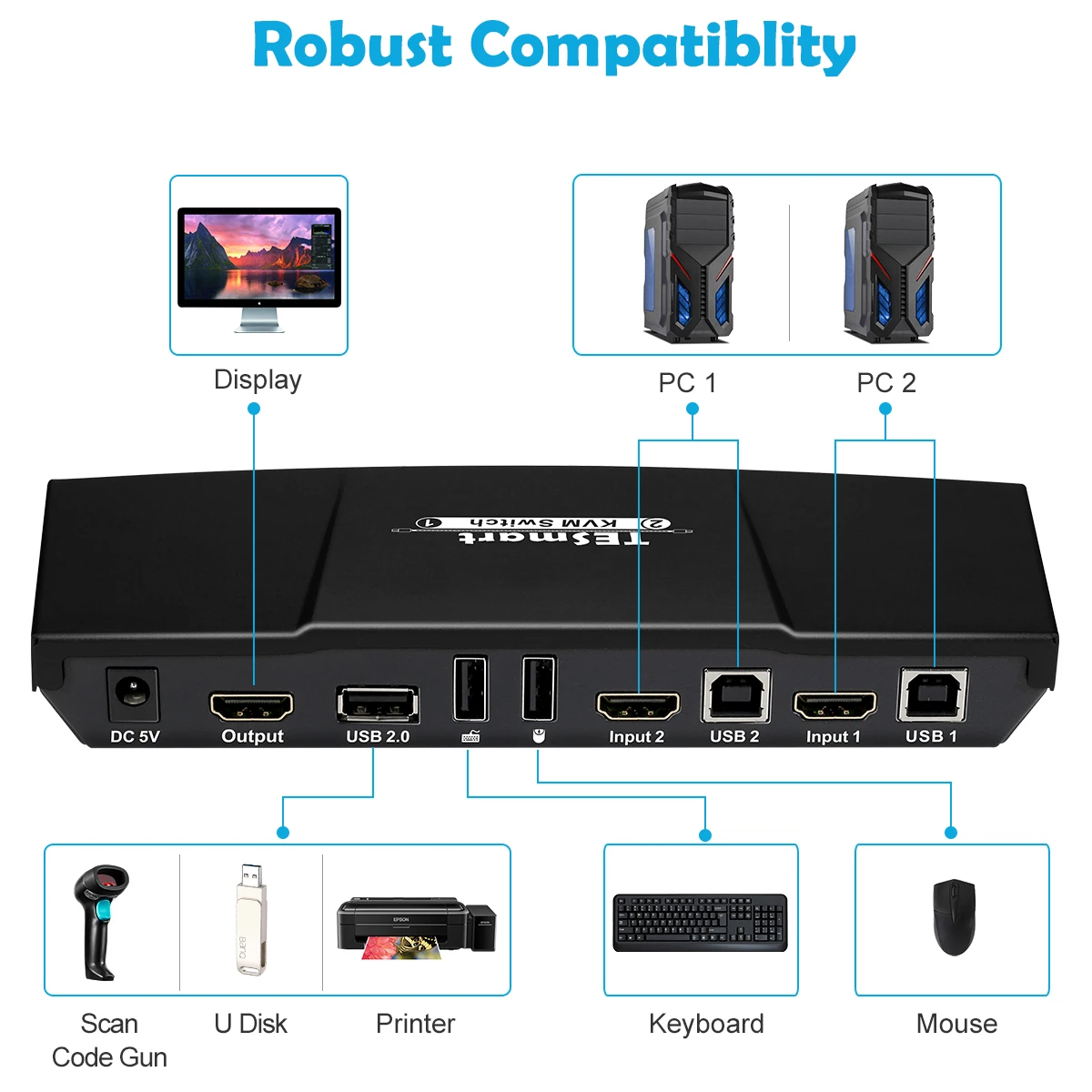

9. With extra standard USB 2.0 hub port, it is possible to connect bar code scanner, USB hard drive or other USB devices to KVM just as you have plug these devices directly to computer.10. Supports DVI-D single link sources and displays with the use of HDMI-to-DVI adapters.
HKS0201A20 | 2x1 HDMI KVM Switch | |
Functionality: | ||
Auto Scan | Yes | |
Port selection | Front panel buttons | Yes |
Keyboard hotkeys | Yes | |
IR remote control | Yes | |
Mouse gesture | Yes | |
Console commands | No | |
Technical: | ||
Resolution | Up to 3840x2160@30Hz | |
Auto to get EDID | Yes | |
Data rate | 10.2 Gbps | |
Auto scan interval | 1~250 Seconds | |
Beep Sound | On/Off | |
OSD | No | |
Supported OS | Unix/Windows/Debian /Ubuntu /Fedora /Mac OS X/ Raspbian /Ubuntu for Raspberry Pi and other Linux based | |

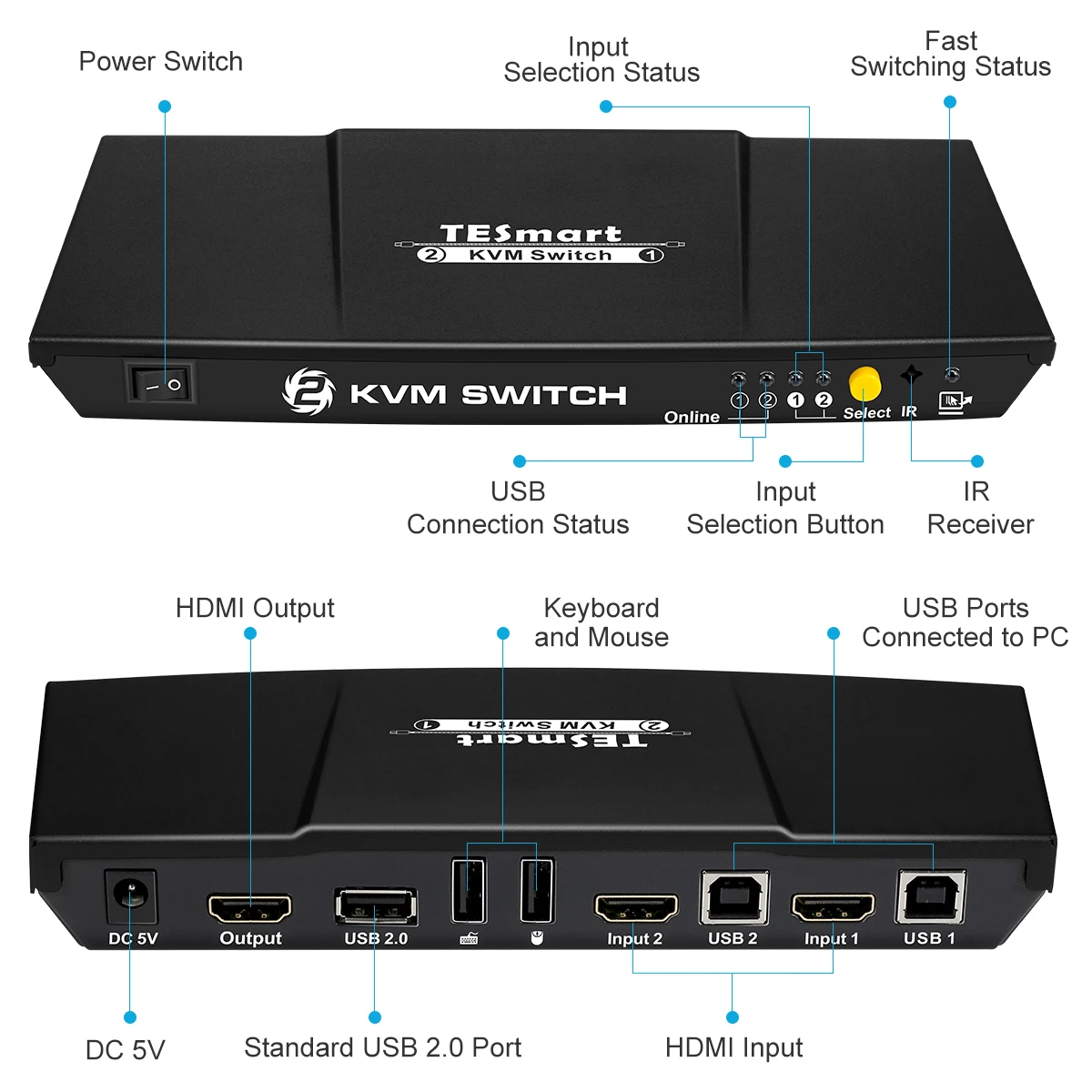

Console ports | Keyboard emulation | 1 * USB Type A |
Mouse emulation | 1 * USB Type A | |
USB 2.0 Hub ports | 1 * USB Type A | |
Video /Audio | 1 * HDMI Type A | |
RS232 | NA | |
LAN | NA | |
System ports | USB Data | 2 * USB Type B |
Video / Audio | 2 * HDMI Type A | |
ESD protection | Human body model - ±8/KV (Air-gap discharge) | |
Mechanical: | ||

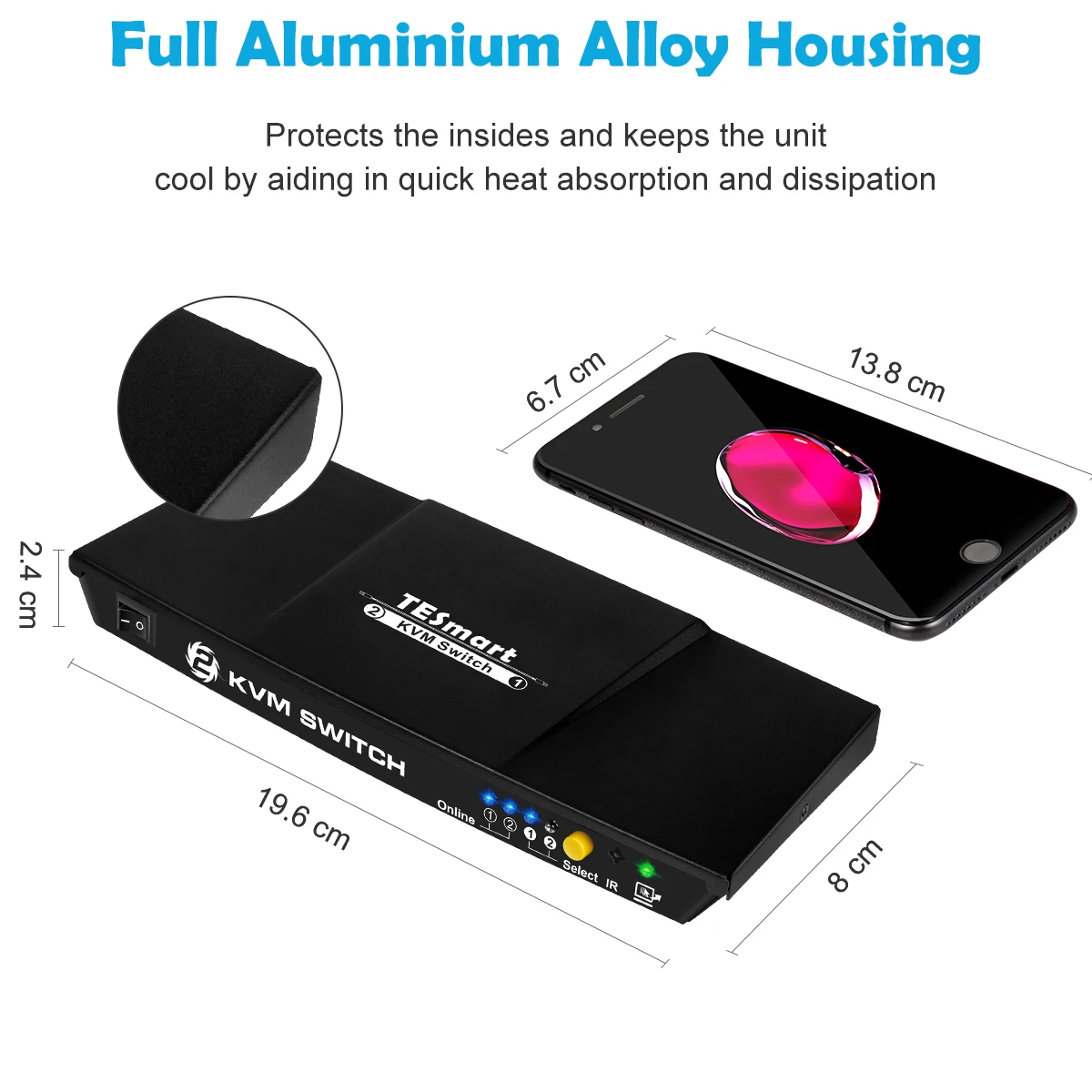

Chasing material | Aluminum Alloy | |
Product dimensions | 198 (L) x 82 (W) x 24 (H) mm | |
Item weight | 500g | |
4K IR Remote control 2 port auto kvm switch Support EDID
Detailed Image
Related Products
Packing & Delivery

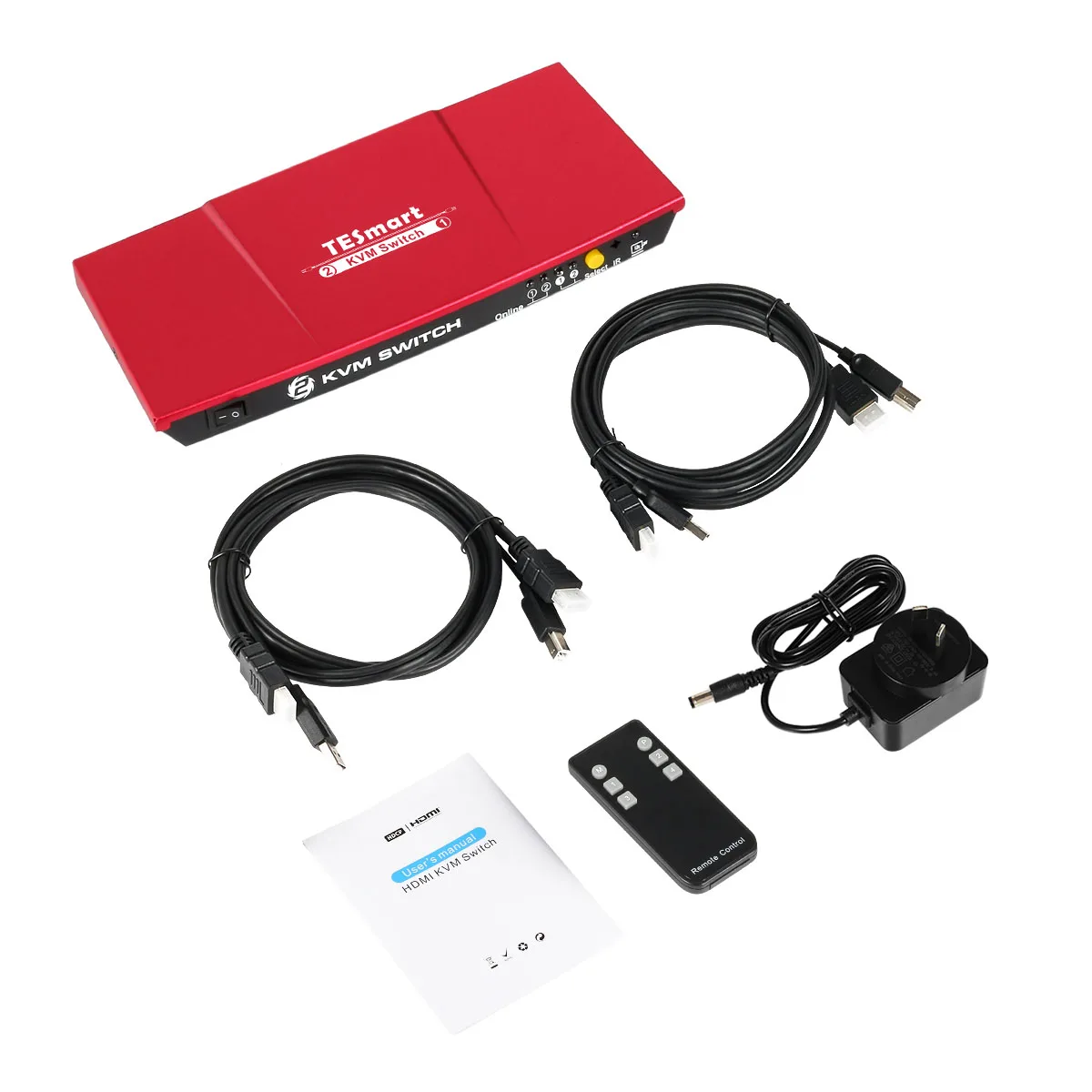

4K IR Remote control 2 port auto kvm switch Support EDID for box:
1 pcs per box
18 pcs per carton
Shipped in 7 days after payment
Certifications
